Model # LO-170-3 Official ICP oil furnace

Here are the diagrams and repair parts for Official ICP LO-170-3 oil furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Air Filter 64757
Air filter

Part #64757

The manufacturer no longer makes this part, and there's no substitute part

Bearing 67695
#4

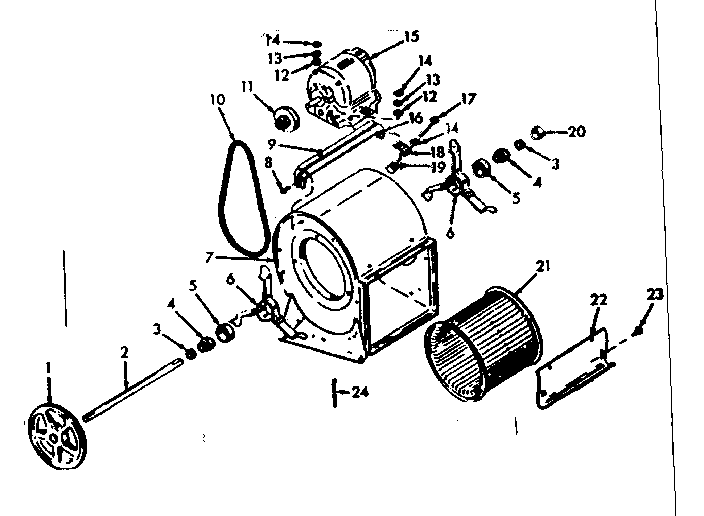

H-q blower assembly diagram

Bearing

Part #67695

Replaced by #2110257

?
Manufacturer substitution
This part replaces 67695. Substitute parts can look different from the original.
$12.54
In Stock
Screw 448445
#10

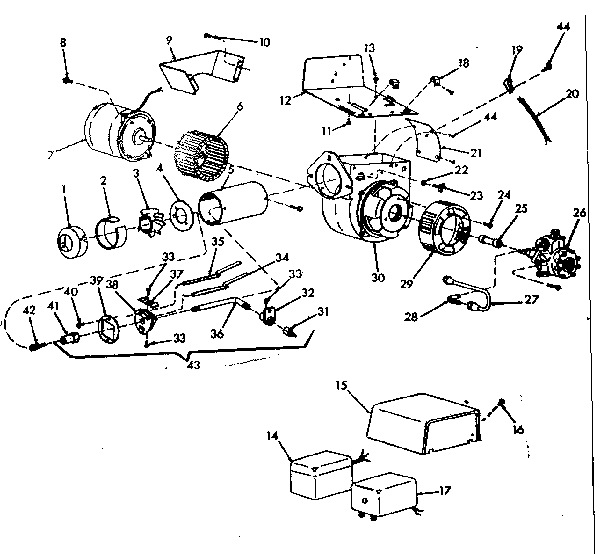

Oil burner assembly diagram

Screw

Part #448445

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 64759
#42

Oil burner assembly diagram

Nozzle

Part #64759

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 49488

#NI

All parts diagram

Thermostat

Part #49488

The manufacturer no longer makes this part, and there's no substitute part

Oil Pipe 68072
#27

Oil burner assembly diagram

Oil pipe

Part #68072

The manufacturer no longer makes this part, and there's no substitute part

Coupling 68091
#25

Oil burner assembly diagram

Coupling

Part #68091

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 64501

#NI

All parts diagram

Air filter

Part #64501

The manufacturer no longer makes this part, and there's no substitute part

Limit Control 69287
Limit control

Part #69287

The manufacturer no longer makes this part, and there's no substitute part

Washer 106261
#61

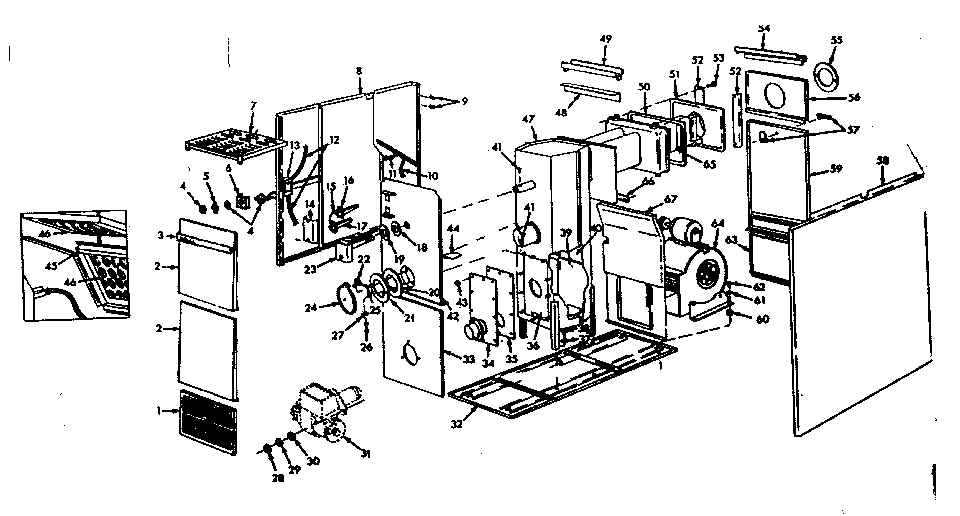

Furnace assembly diagram

Washer

Part #106261

Replaced by #STD551025

?
Manufacturer substitution
This part replaces 106261. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
