Jenn-Air
Electric Wall Oven

Model # JJW9330DDS13 Official Jenn-Air 30" electric wall oven

Here are the diagrams and repair parts for Official Jenn-Air JJW9330DDS13 30" electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Screw 7101P427-60
#16

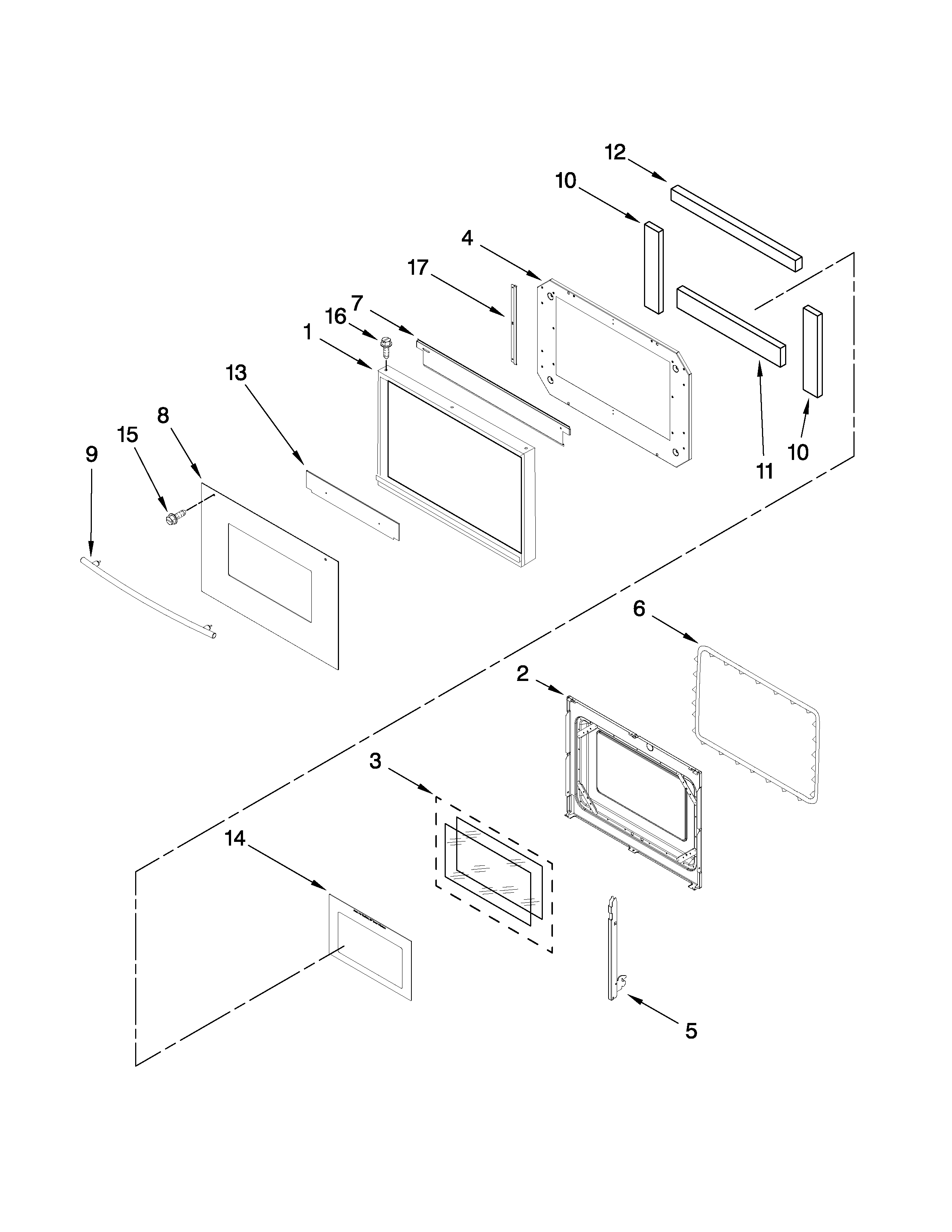

Oven door parts diagram

Screw

Part #7101P427-60

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces 7101P427-60. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock

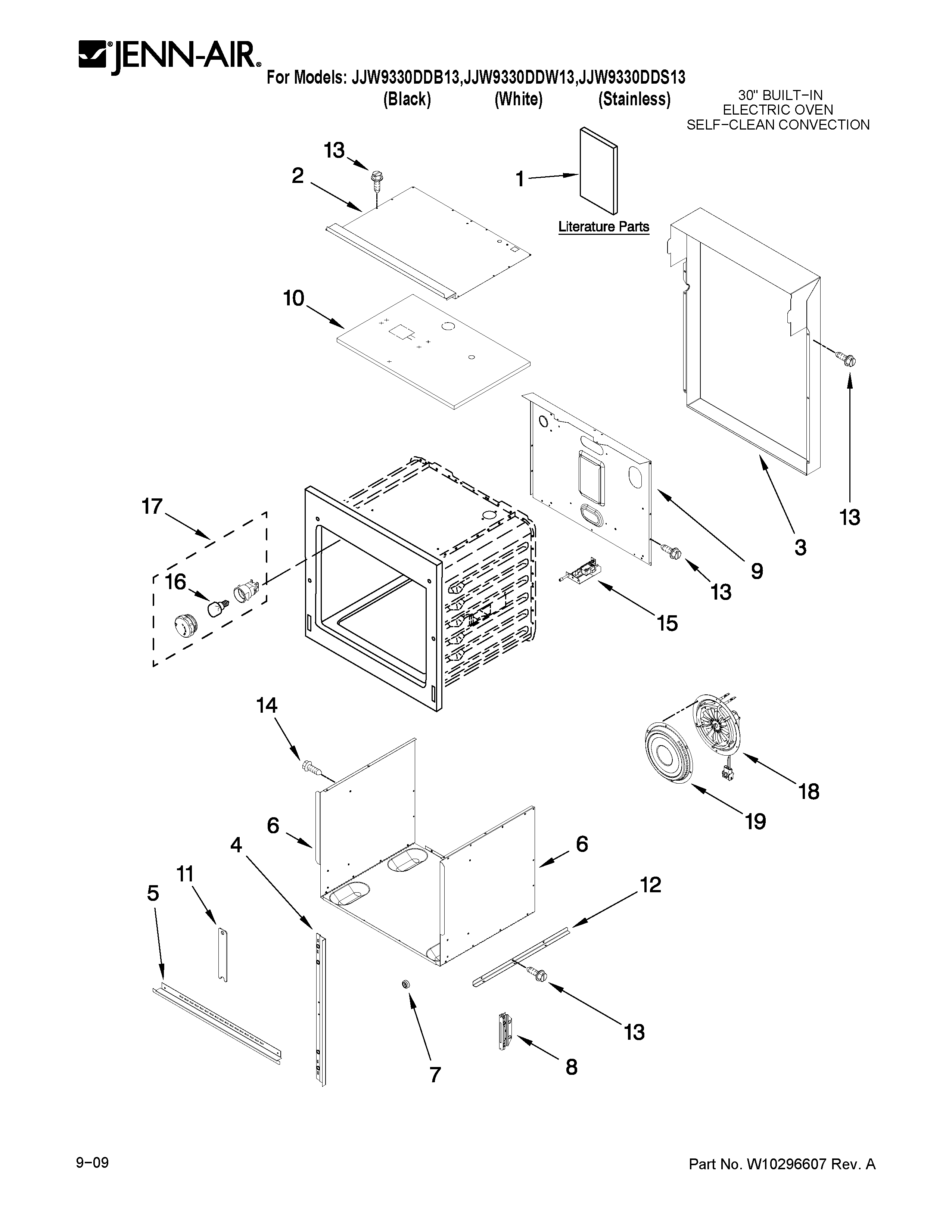

Light- Ove 7407P181-60
#17

Oven parts diagram

Light- ove

Part #7407P181-60

Replaced by #WP74011278

?
Manufacturer substitution
This part replaces 7407P181-60. Substitute parts can look different from the original.
$71.99 |
8% OFF Phone Price : $77.99
In Stock
Brace 3802F116-51
#12

Oven parts diagram

Brace

Part #3802F116-51

$7.80
In Stock
Cooking Appliance Safer Cooking Guide 9762761
#1B

Oven parts diagram

Cooking appliance safer cooking guide

Part #9762761

$10.09 |
17% OFF Phone Price : $12.09
In Stock
Wall Oven Control Panel (replaces 5765m488-60, Wp5765m489-60) 5765M487-60
#1

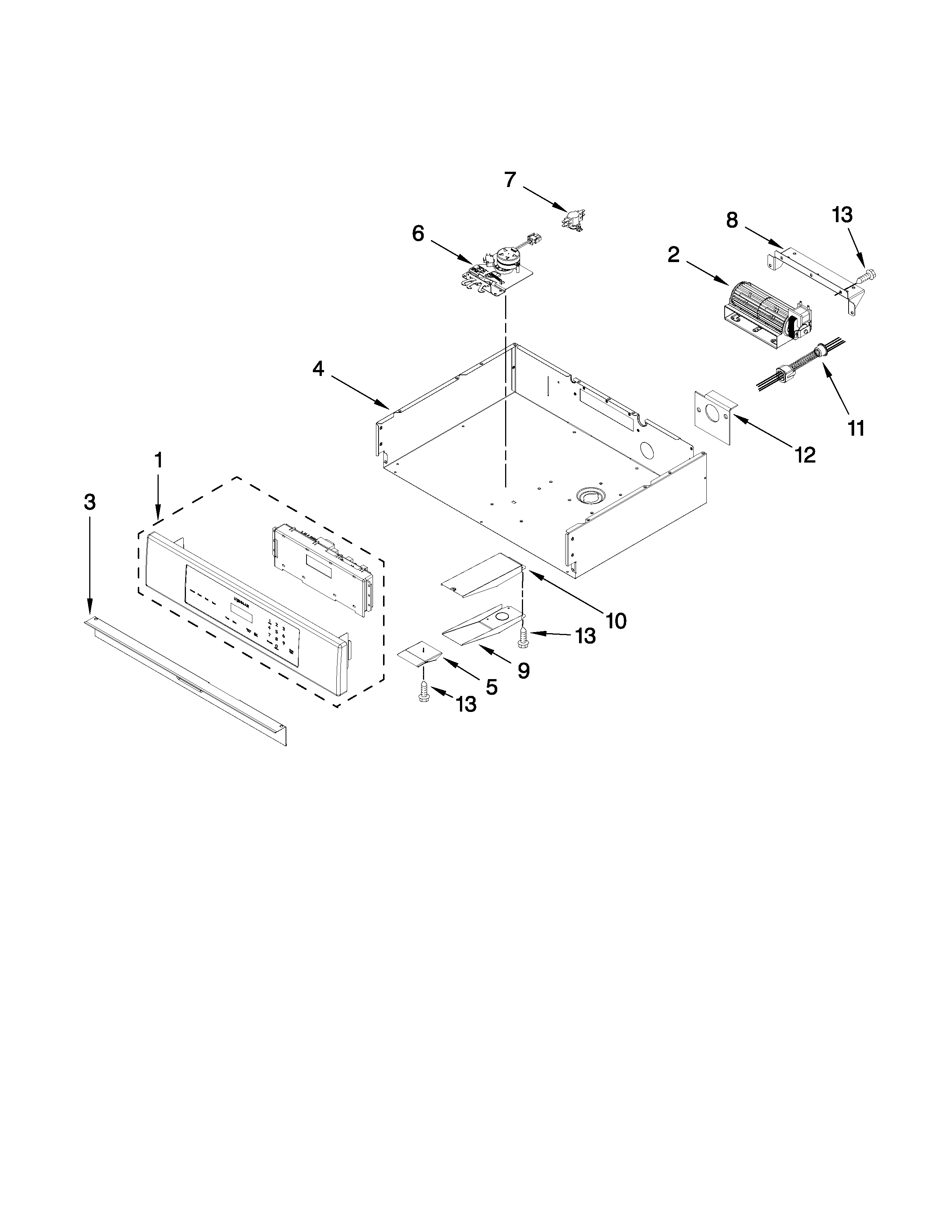

Control panel parts diagram

Wall oven control panel (replaces 5765m488-60, wp5765m489-60)

Part #5765M487-60

$166.55 |
7% OFF Phone Price : $178.55
In Stock
Light Switch 7450P109-60
#15

Oven parts diagram

Light switch

Part #7450P109-60

Replaced by #WP7450P108-60

?
Manufacturer substitution
This part replaces 7450P109-60. Substitute parts can look different from the original.
$63.99 |
9% OFF Phone Price : $69.99
In Stock
Light Bulb, A-15, 40-watt STD398091
#16

Oven parts diagram

Light bulb, a-15, 40-watt

Part #STD398091

The manufacturer no longer makes this part, and there's no substitute part

Bake Element 7406P271-60
#1

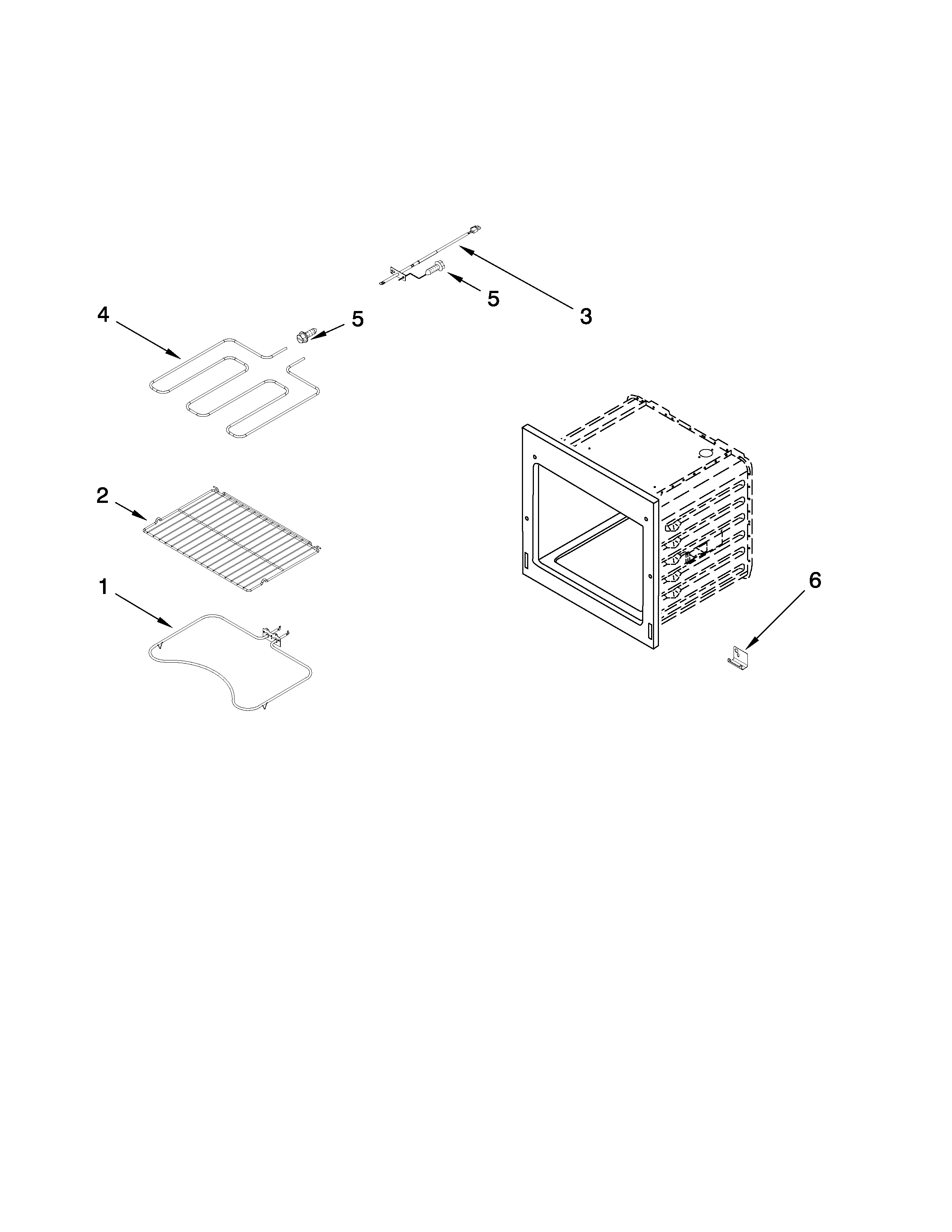

Internal oven parts diagram

Bake element

Part #7406P271-60

Replaced by #WPW10310258

?
Manufacturer substitution
This part replaces 7406P271-60. Substitute parts can look different from the original.
$82.70 |
7% OFF Phone Price : $88.70
In Stock
Screw Blk 7101P635-60
#14

Oven parts diagram

Screw blk

Part #7101P635-60

Replaced by #W10828565

?
Manufacturer substitution
This part replaces 7101P635-60. Substitute parts can look different from the original.
This item is not returnable
$5.29 |
16% OFF Phone Price : $6.29
In Stock
Thermostat 7403P856-60
#7

Control panel parts diagram

Thermostat

Part #7403P856-60

Replaced by #74008265

?
Manufacturer substitution
This part replaces 7403P856-60. Substitute parts can look different from the original.
$84.89 |
7% OFF Phone Price : $90.89
In Stock
