Briggs & Stratton
Lawn & Garden Engine

Model # 407777-0119-E3 Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 407777-0119-E3 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

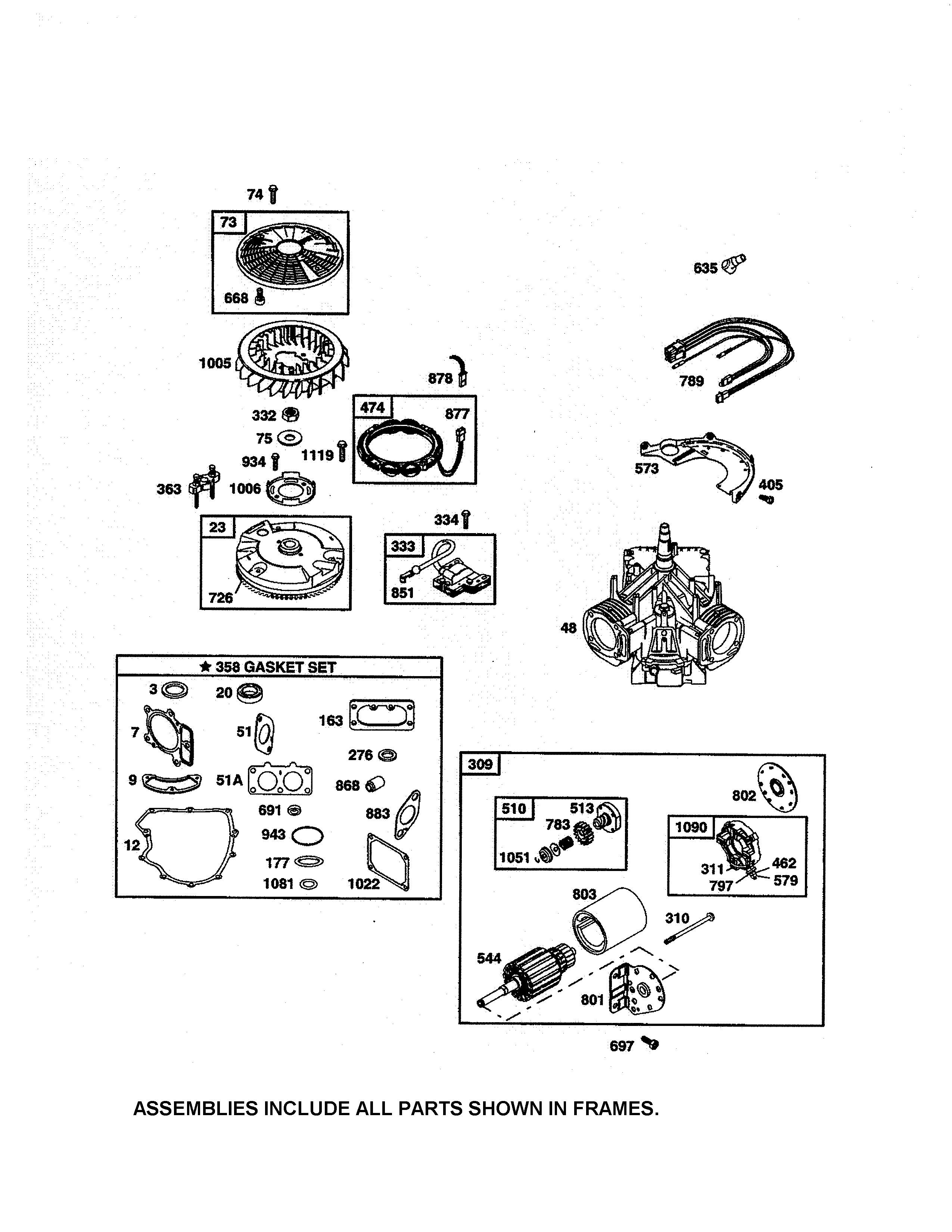

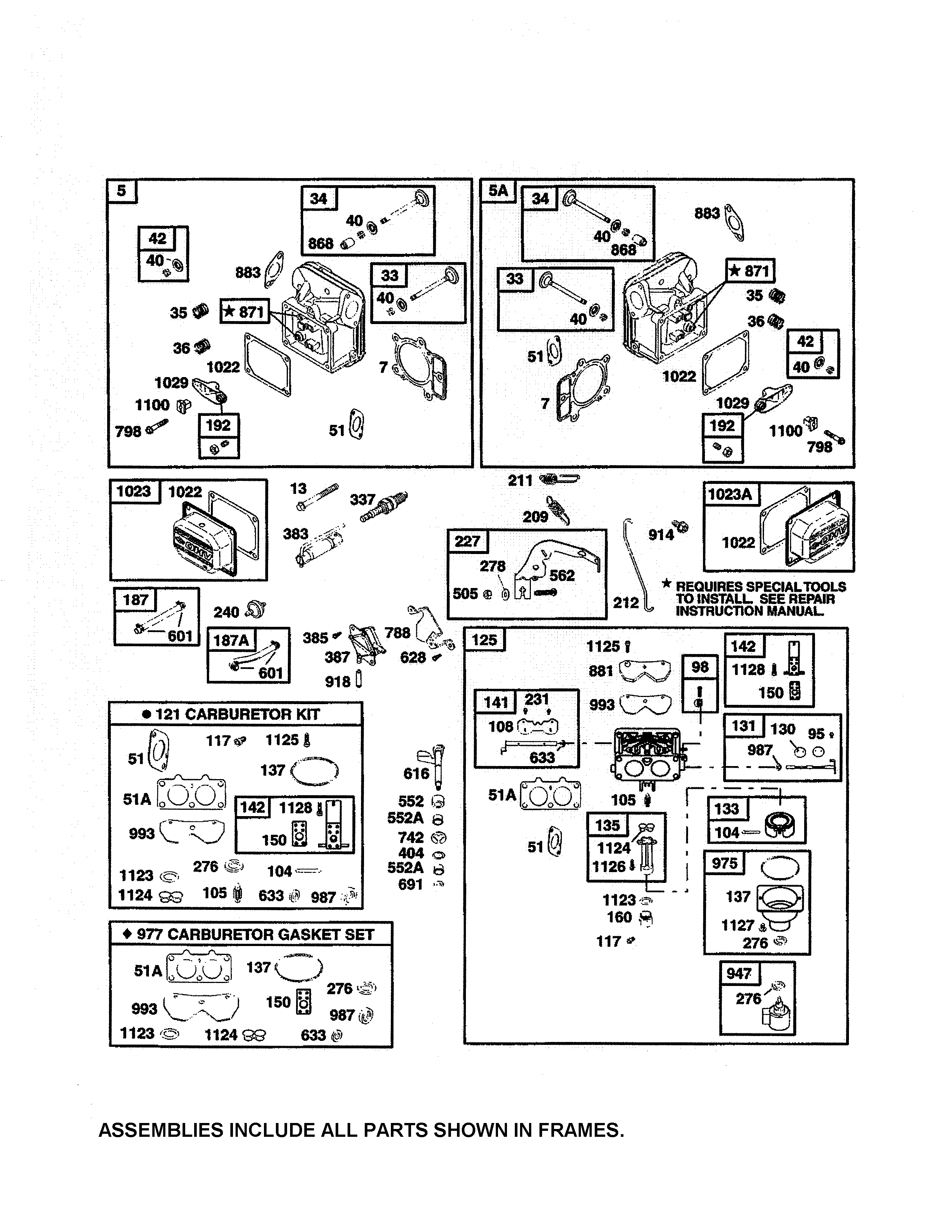

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Air Filter 691007

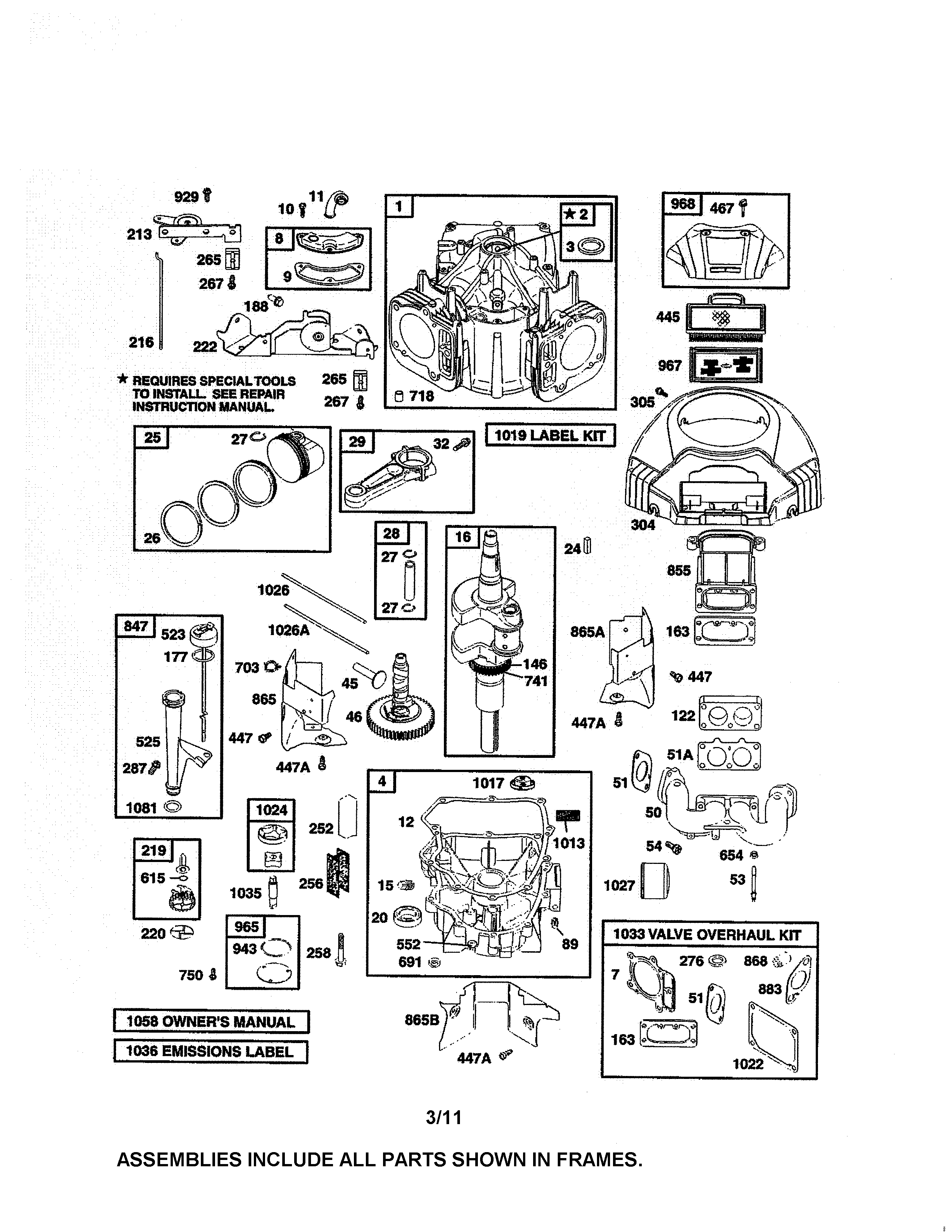

#445

All parts diagram

Air filter

Part #691007

Replaced by #499486S

?
Manufacturer substitution
This part replaces 691007. Substitute parts can look different from the original.
