Poulan
Gas Walk-Behind Mower

Model # PXT22 (96116000600) Official Poulan lawn mower

Here are the diagrams and repair parts for Official Poulan PXT22-96116000600 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Lawn Mower Blade Adapter 851514
#28

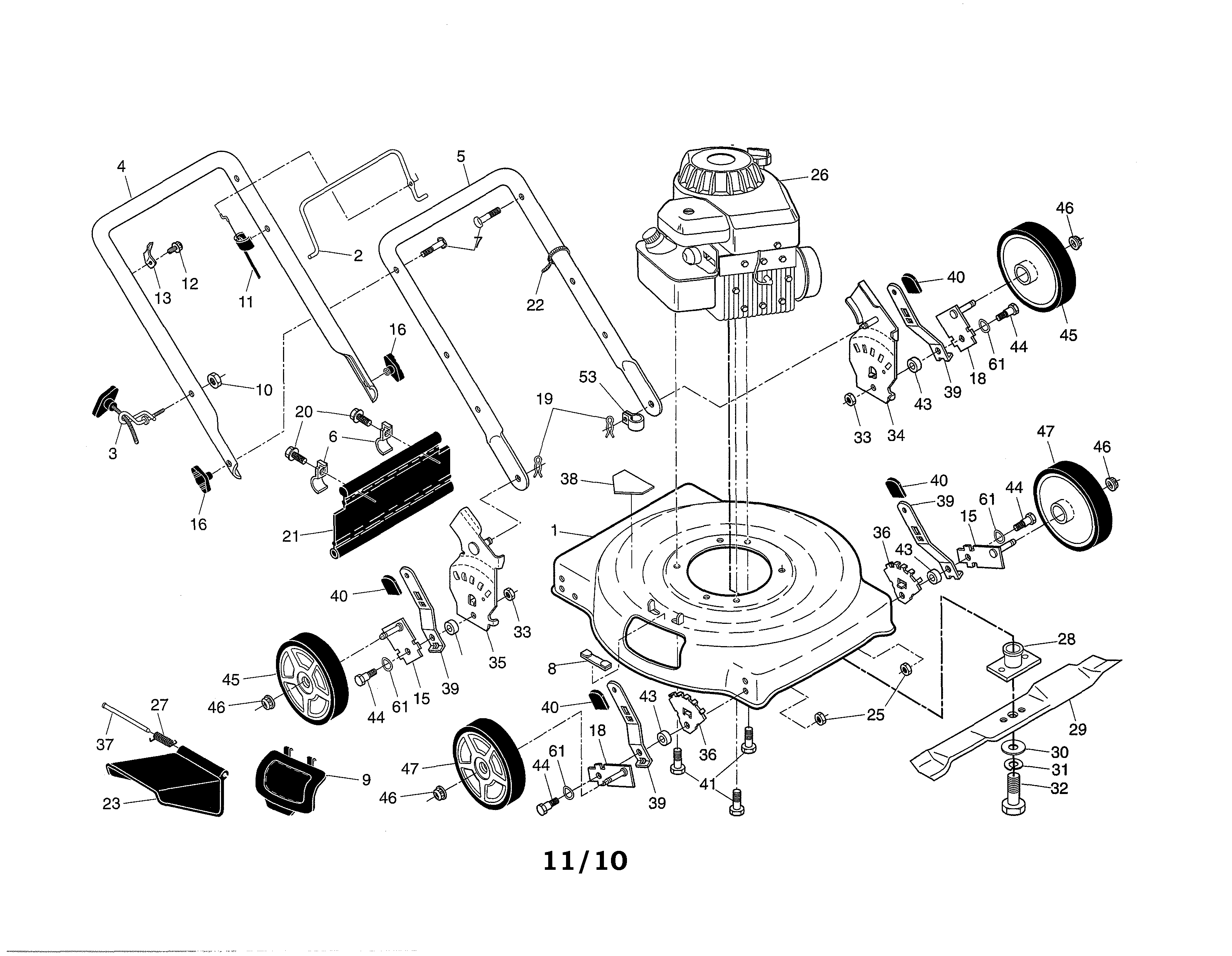

Lawn mower diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Bolt 401638
#44

Lawn mower diagram

Bolt

Part #401638

Replaced by #596203801

?
Manufacturer substitution
This part replaces 401638. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Nut 132004
#10

Lawn mower diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Guide.rope.s 194788
#3

Lawn mower diagram

Guide.rope.s

Part #194788

Replaced by #586122501

?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#40

Lawn mower diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Tapping Screw 750097
#20

Lawn mower diagram

Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Lawn Mower Cable Bracket (replaces 86899x004) 429930X004
#13

Lawn mower diagram

Lawn mower cable bracket (replaces 86899x004)

Part #429930X004

Replaced by #532430034

?
Manufacturer substitution
This part replaces 429930X004. Substitute parts can look different from the original.
$10.26
In Stock
Lawn Mower Selector Spring 401621X004
#39

Lawn mower diagram

Lawn mower selector spring

Part #401621X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 401621X004. Substitute parts can look different from the original.
$8.54
In Stock
Handle Bolt 191574
#7

Lawn mower diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Axle Arm 401175X004
#18

Lawn mower diagram

Axle arm

Part #401175X004

Replaced by #532401175

?
Manufacturer substitution
This part replaces 401175X004. Substitute parts can look different from the original.
$10.26
In Stock
