Model # 90138 Official Hardwick electric range

Here are the diagrams and repair parts for Official Hardwick 90138 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

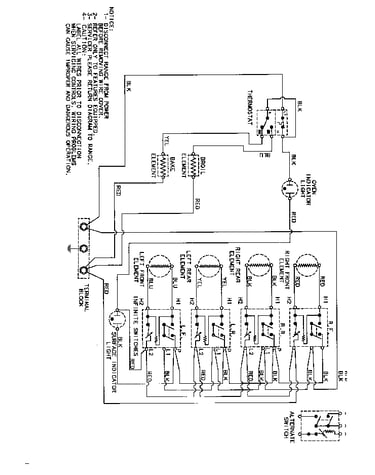

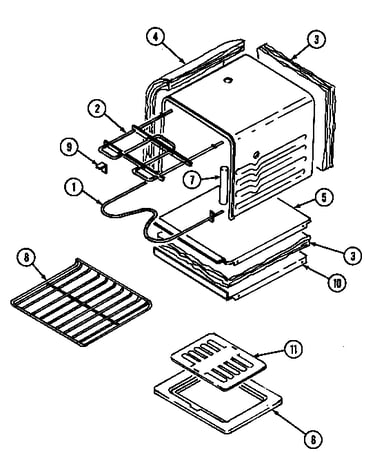

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Terminal Block 7401P039-60
#16

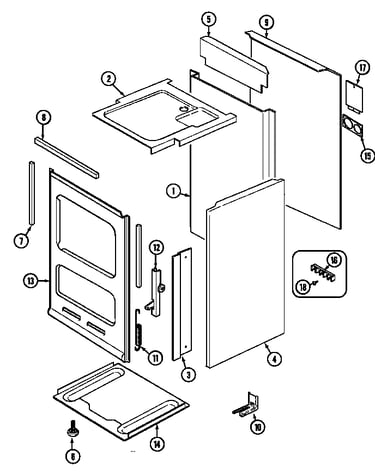

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Receptacle 1430306K
#6

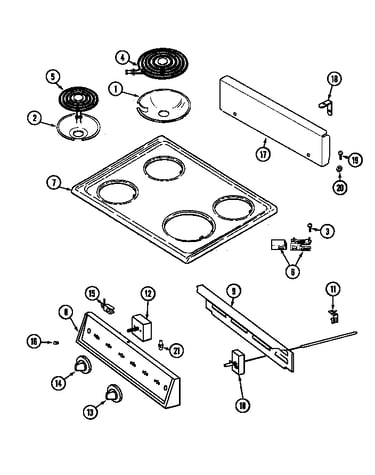

Top assembly/control panel diagram

Receptacle

Part #1430306K

Replaced by #12001676

?
Manufacturer substitution
This part replaces 1430306K. Substitute parts can look different from the original.
$10.73 |
16% OFF Phone Price : $12.73
In Stock
Drip Bowl 74001212
#2

Top assembly/control panel diagram

Drip bowl

Part #74001212

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 74001212. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Screw 74001530
#15A

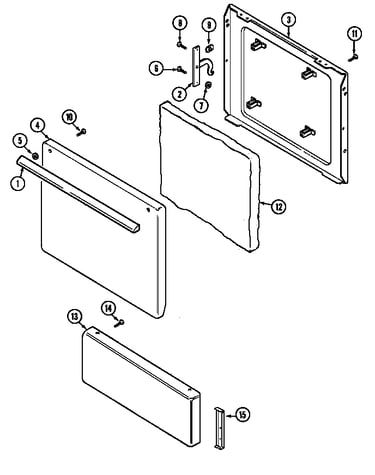

Door/drawer diagram

Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P112-60
#15A

Body diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Element (6"- 74003222
#5

Top assembly/control panel diagram

Element (6"-

Part #74003222

Replaced by #WPW10345407

?
Manufacturer substitution
This part replaces 74003222. Substitute parts can look different from the original.
$68.03 |
8% OFF Phone Price : $74.03
In Stock
Range Oven Temperature Control Knob 74003280
#13

Top assembly/control panel diagram

Range oven temperature control knob

Part #74003280

Replaced by #WP74003280

?
Manufacturer substitution
This part replaces 74003280. Substitute parts can look different from the original.
$19.29 |
9% OFF Phone Price : $21.29
In Stock
Element (8"- 74003223
#4

Top assembly/control panel diagram

Element (8"-

Part #74003223

Replaced by #WPY04000035

?
Manufacturer substitution
This part replaces 74003223. Substitute parts can look different from the original.
$65.19 |
8% OFF Phone Price : $71.19
In Stock
Range Leveling Leg 74002373
#6A

Body diagram

Range leveling leg

Part #74002373

Replaced by #W11665456

?
Manufacturer substitution
This part replaces 74002373. Substitute parts can look different from the original.
$17.74
In Stock
Cooktop Washer Screw 7101P124-60
#13A

Body diagram

Cooktop washer screw

Part #7101P124-60

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 7101P124-60. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
