Hotpoint
Top-Mount Refrigerator

Model # HTS18GBNAWW Official Hotpoint refrigerator - n series

Here are the diagrams and repair parts for Official Hotpoint HTS18GBNAWW refrigerator - n series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Dryer Filter WR86X0096
#740

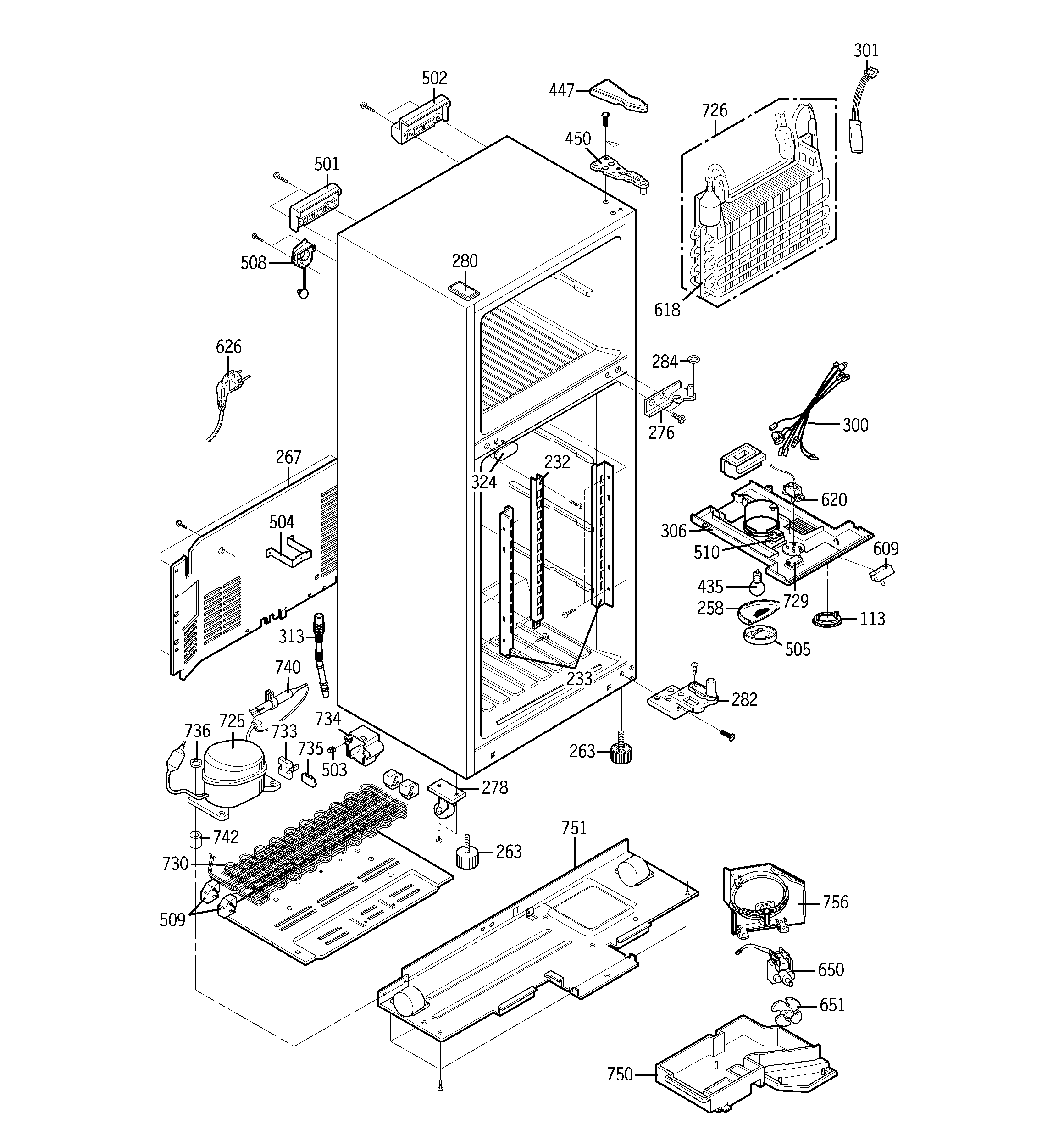

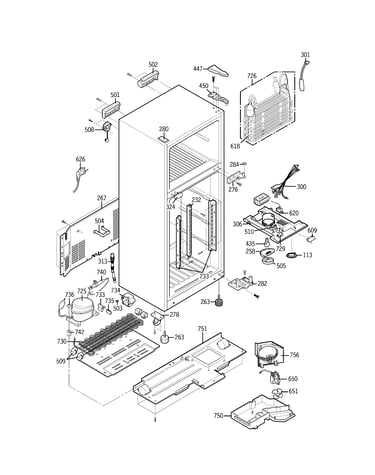

Cabinet diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Defrost Timer WR55X10229
#510

Cabinet diagram

Refrigerator defrost timer

Part #WR55X10229

$85.59 |
7% OFF Phone Price : $91.59
In Stock
Refrigerator Shelf Assembly WR71X10584
#212

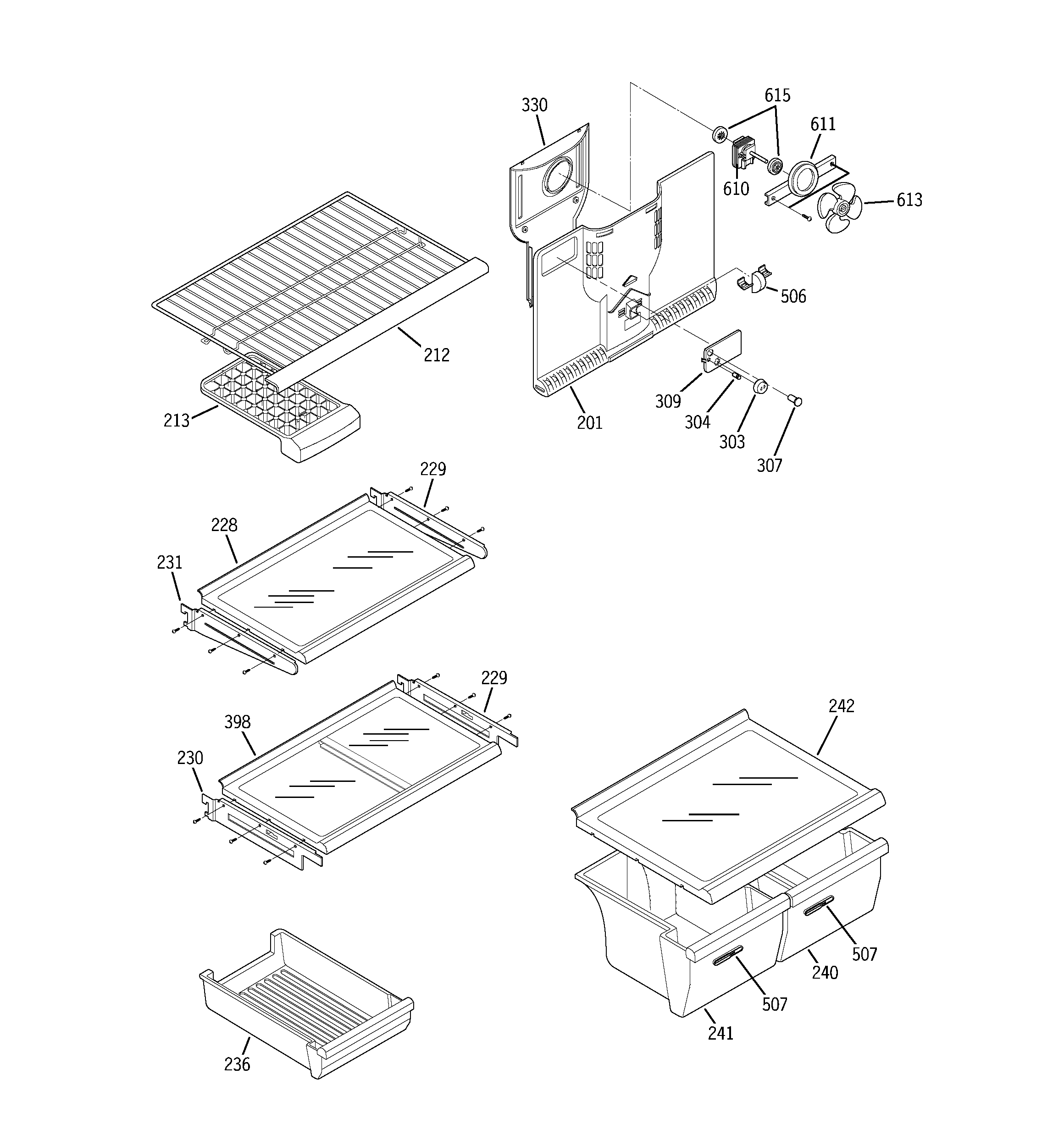

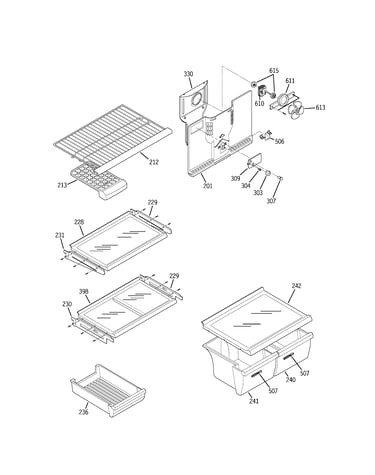

Shelves diagram

Refrigerator shelf assembly

Part #WR71X10584

$86.49
In Stock
Washer,drawi WR01X10321
#284

Cabinet diagram

Washer,drawi

Part #WR01X10321

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Knob Damper WR02X11323
#506

Shelves diagram

Refrigerator knob damper

Part #WR02X11323

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Knob Damper WR02X11322
#505

Cabinet diagram

Refrigerator knob damper

Part #WR02X11322

The manufacturer no longer makes this part, and there's no substitute part

Stopper Cord WR02X11320
#503

Cabinet diagram

Stopper cord

Part #WR02X11320

The manufacturer no longer makes this part, and there's no substitute part

Harness/sock WR23X10362
#300

Cabinet diagram

Harness/sock

Part #WR23X10362

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Basket Assembly WR21X10066
#128

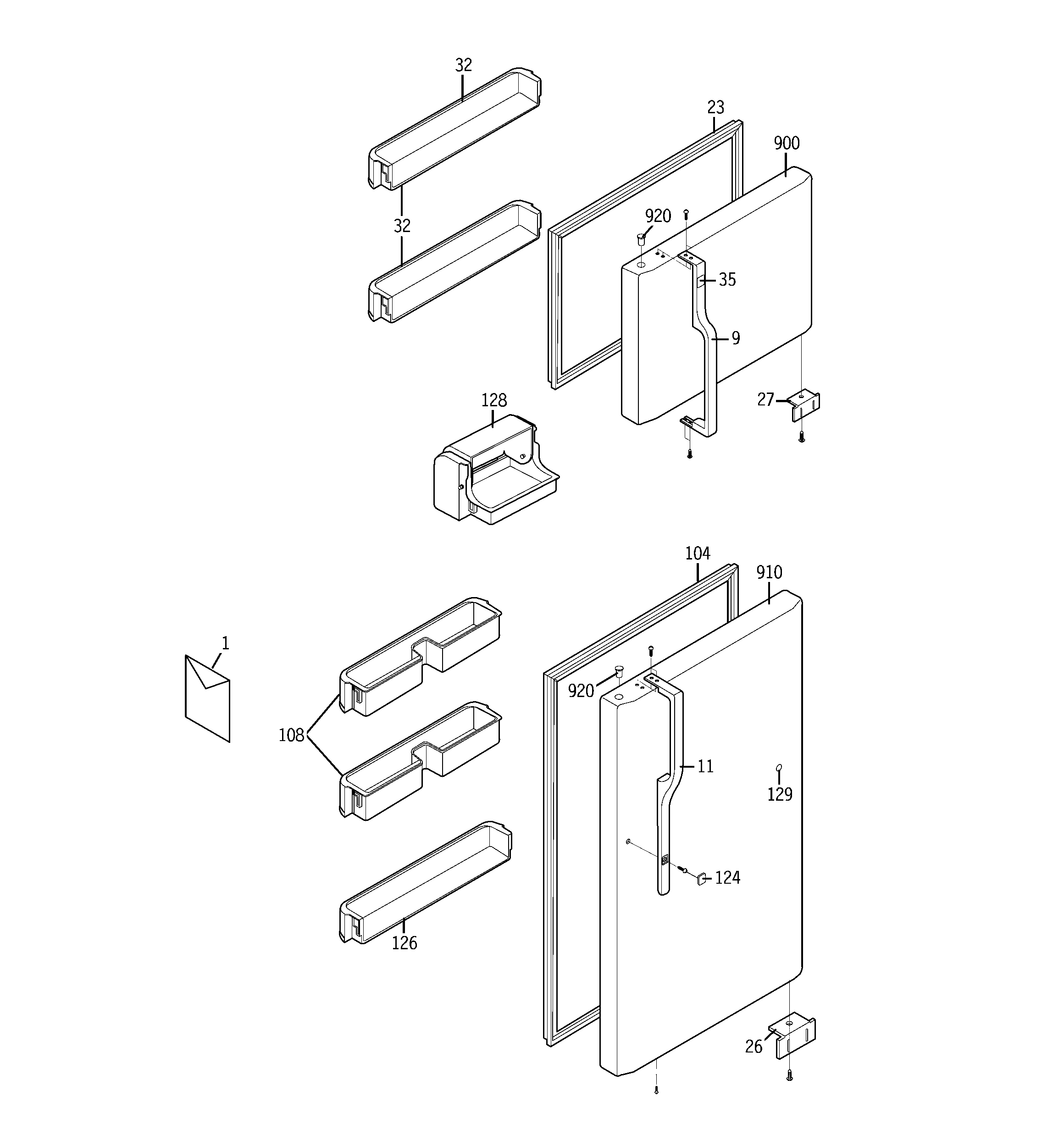

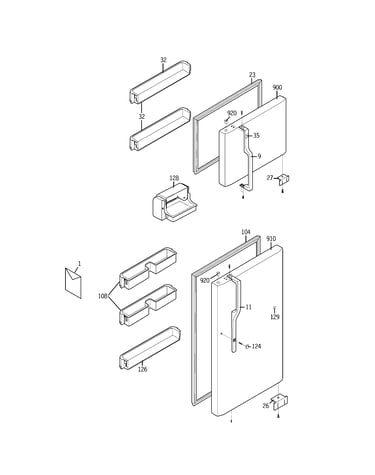

Doors diagram

Refrigerator basket assembly

Part #WR21X10066

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Handle WR12X10572
#502

Cabinet diagram

Refrigerator handle

Part #WR12X10572

The manufacturer no longer makes this part, and there's no substitute part
