Jenn-Air
Bottom-Mount Refrigerator

Model # JFFCF72DKM00 Official Jenn-Air bottom-mount refrigerator

Here are the diagrams and repair parts for Official Jenn-Air JFFCF72DKM00 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

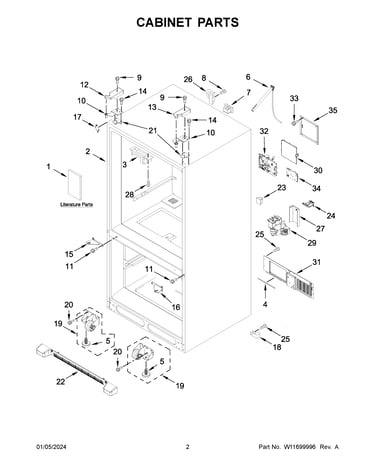

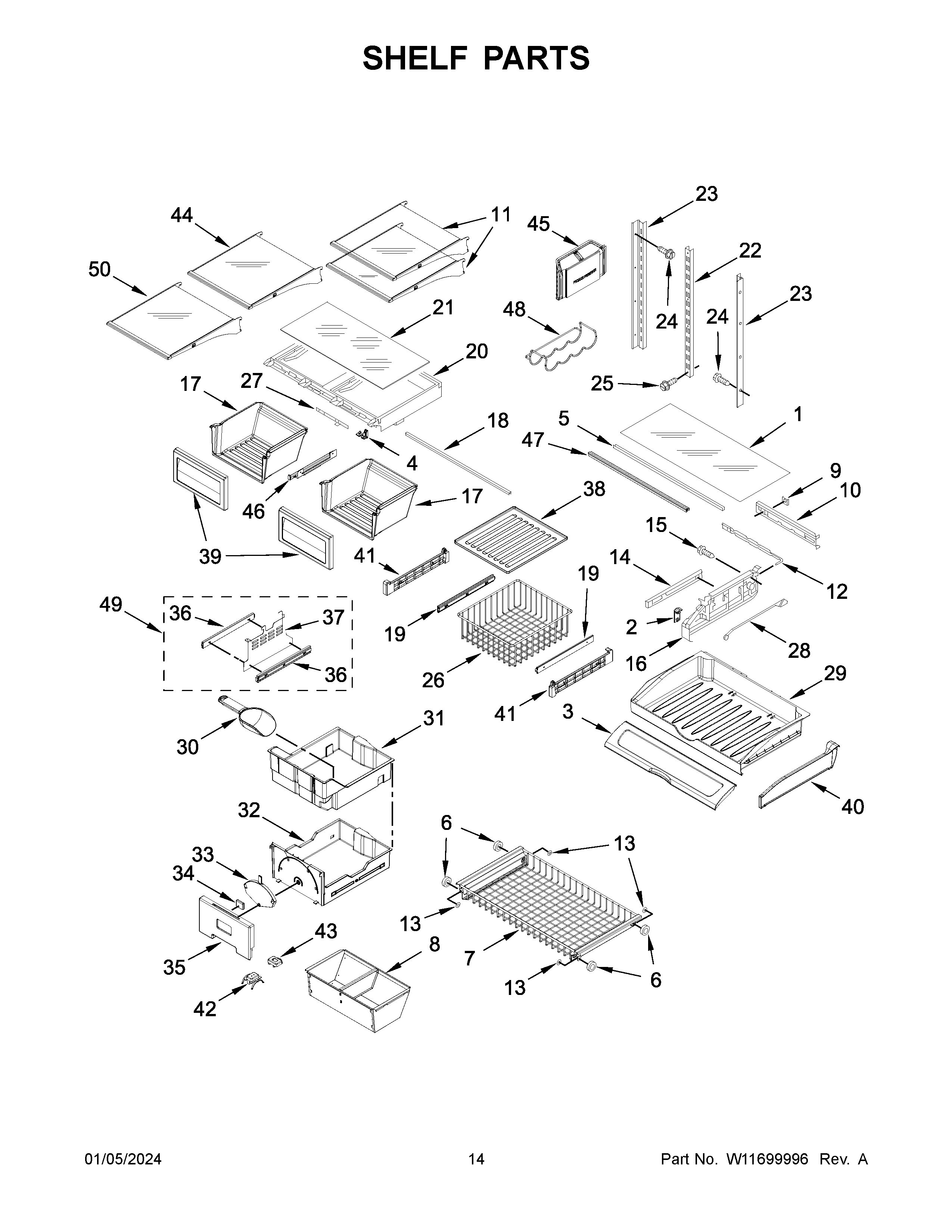

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 234 parts  |
Filter, Water W11256384
#19

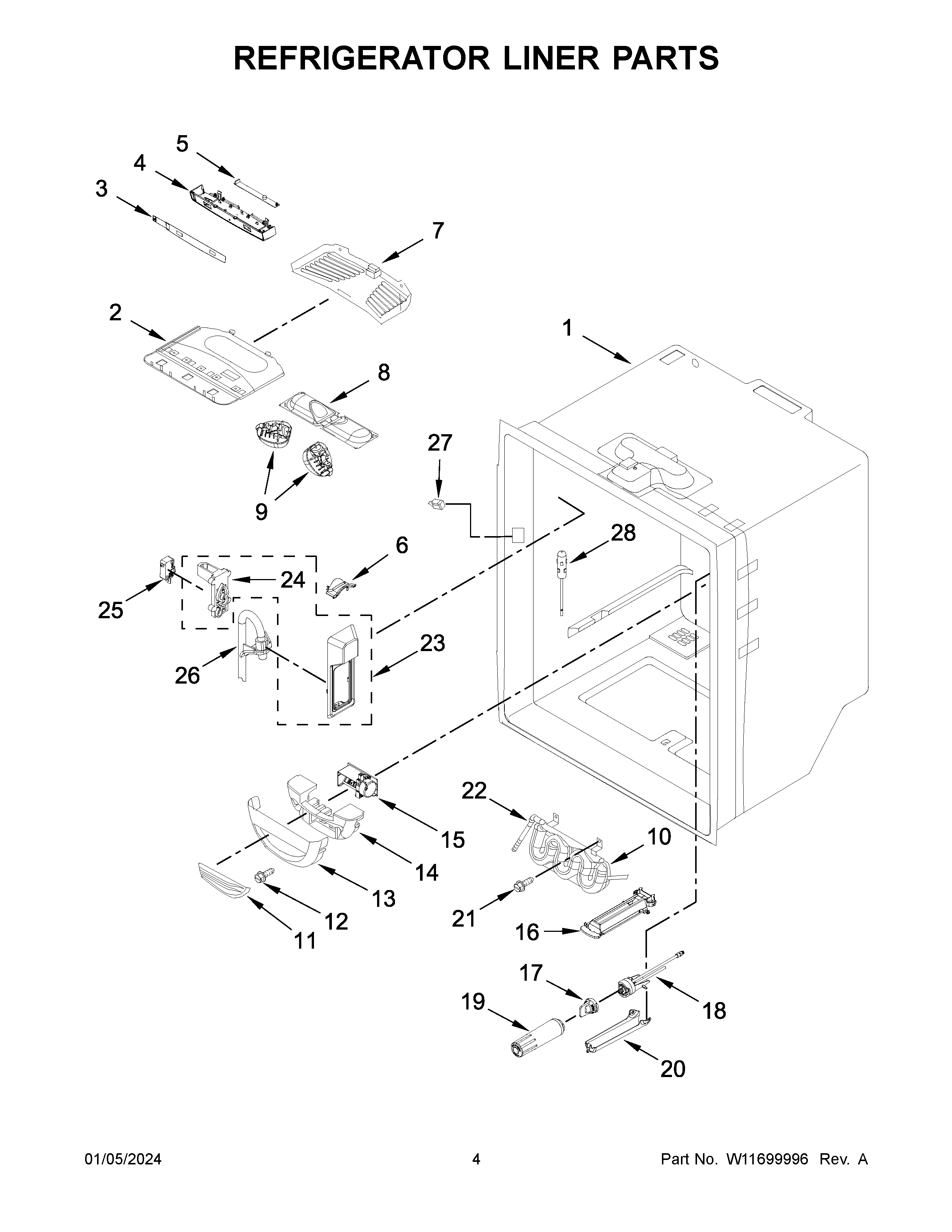

Refrigerator liner parts diagram

Filter, water

Part #W11256384

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces W11256384. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Thermistor 12791419SP
#14

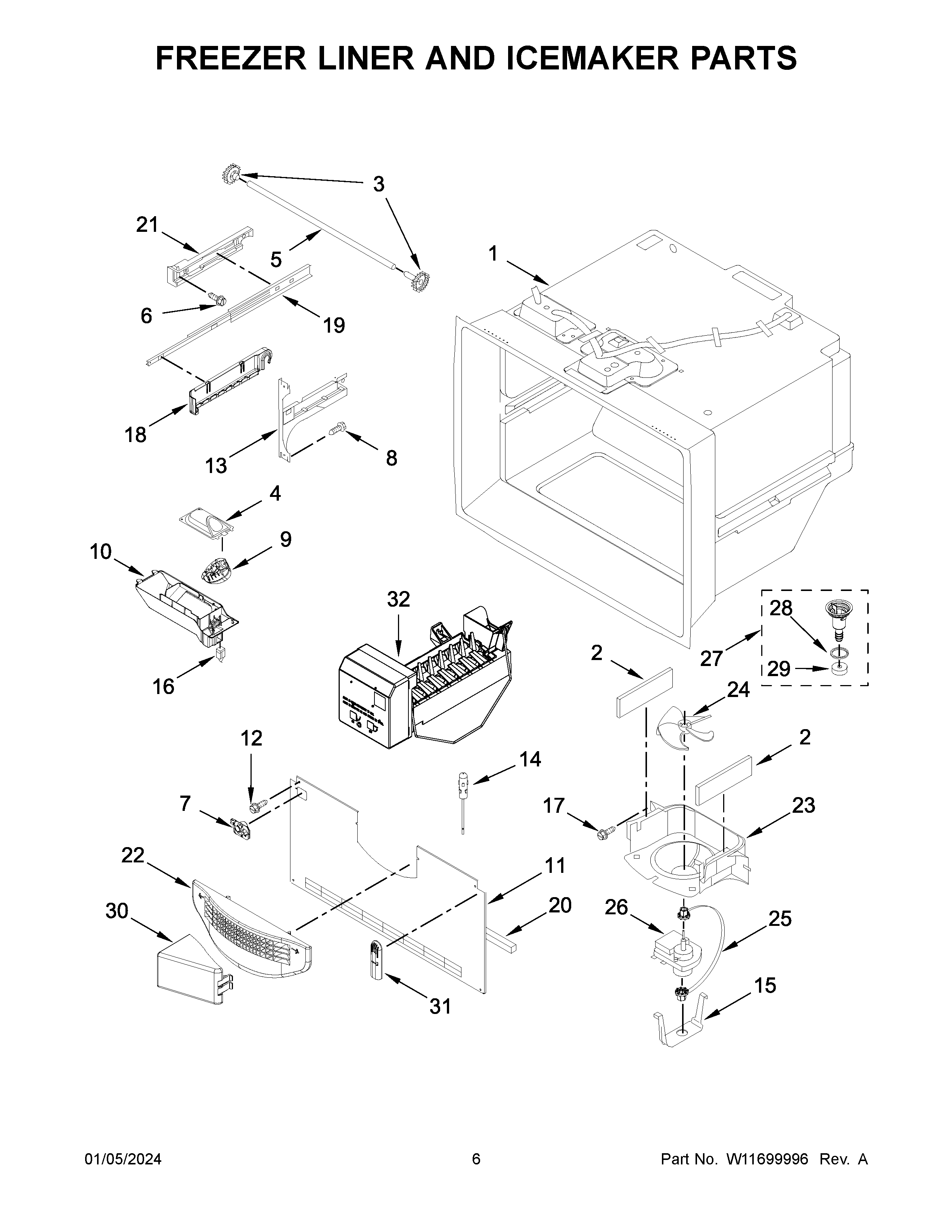

Freezer liner and icemaker parts diagram

Refrigerator thermistor

Part #12791419SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791419SP. Substitute parts can look different from the original.
BEST SELLER
$47.88 |
11% OFF Phone Price : $53.88
In Stock
Dacor Refrigerator Door Gasket W10443320
#3

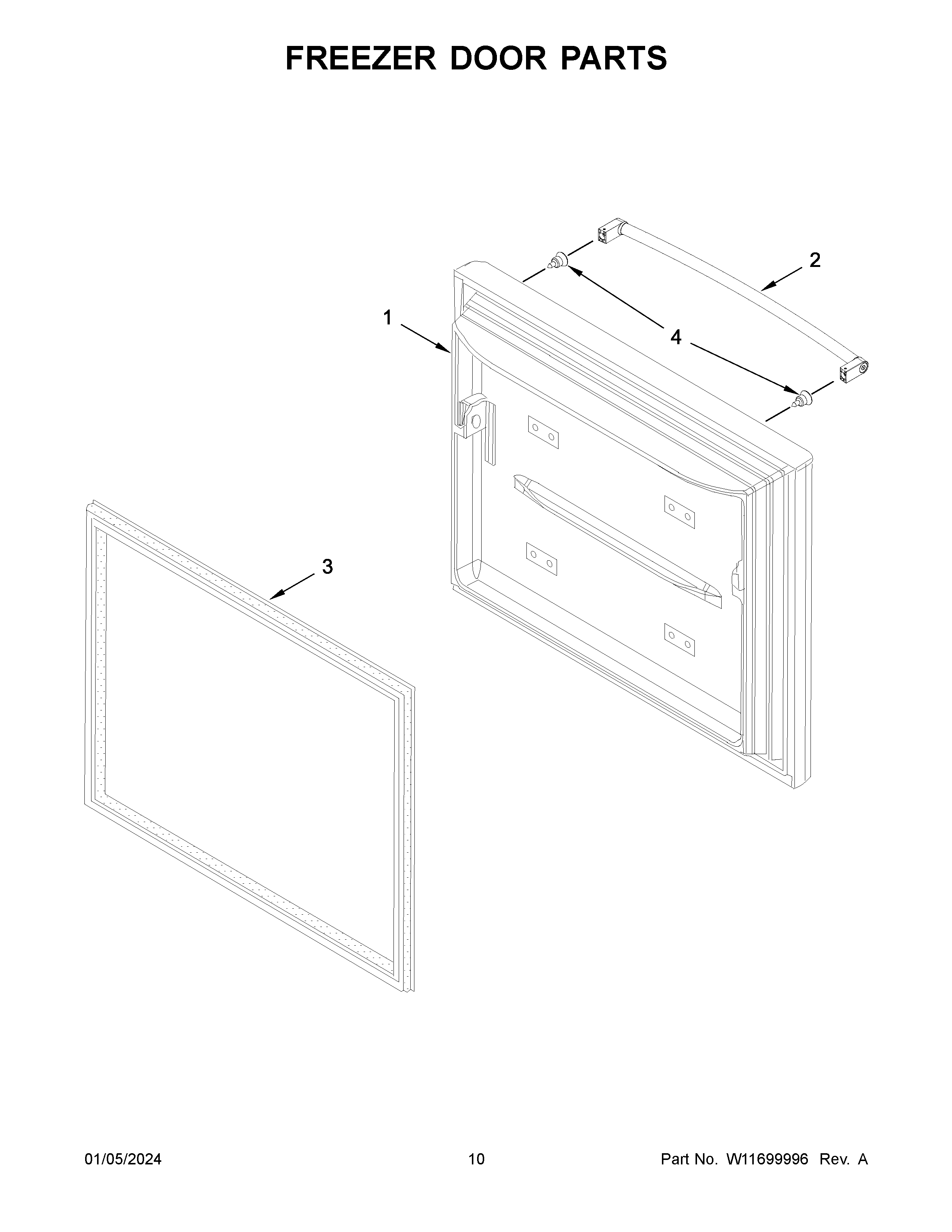

Freezer door parts diagram

Dacor refrigerator door gasket

Part #W10443320

BEST SELLER
$27.08 |
18% OFF Phone Price : $33.08
In Stock
Head, Water Filter (includes Bypass Cartridge) W11308018
#18

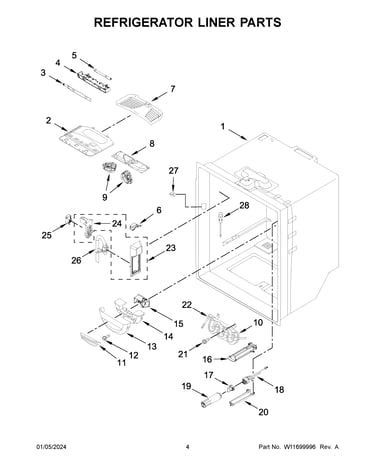

Refrigerator liner parts diagram

Head, water filter (includes bypass cartridge)

Part #W11308018

Replaced by #W11346623

?
Manufacturer substitution
This part replaces W11308018. Substitute parts can look different from the original.
BEST SELLER
$59.02 |
9% OFF Phone Price : $65.02
In Stock
Drier Tube W10805035
#27

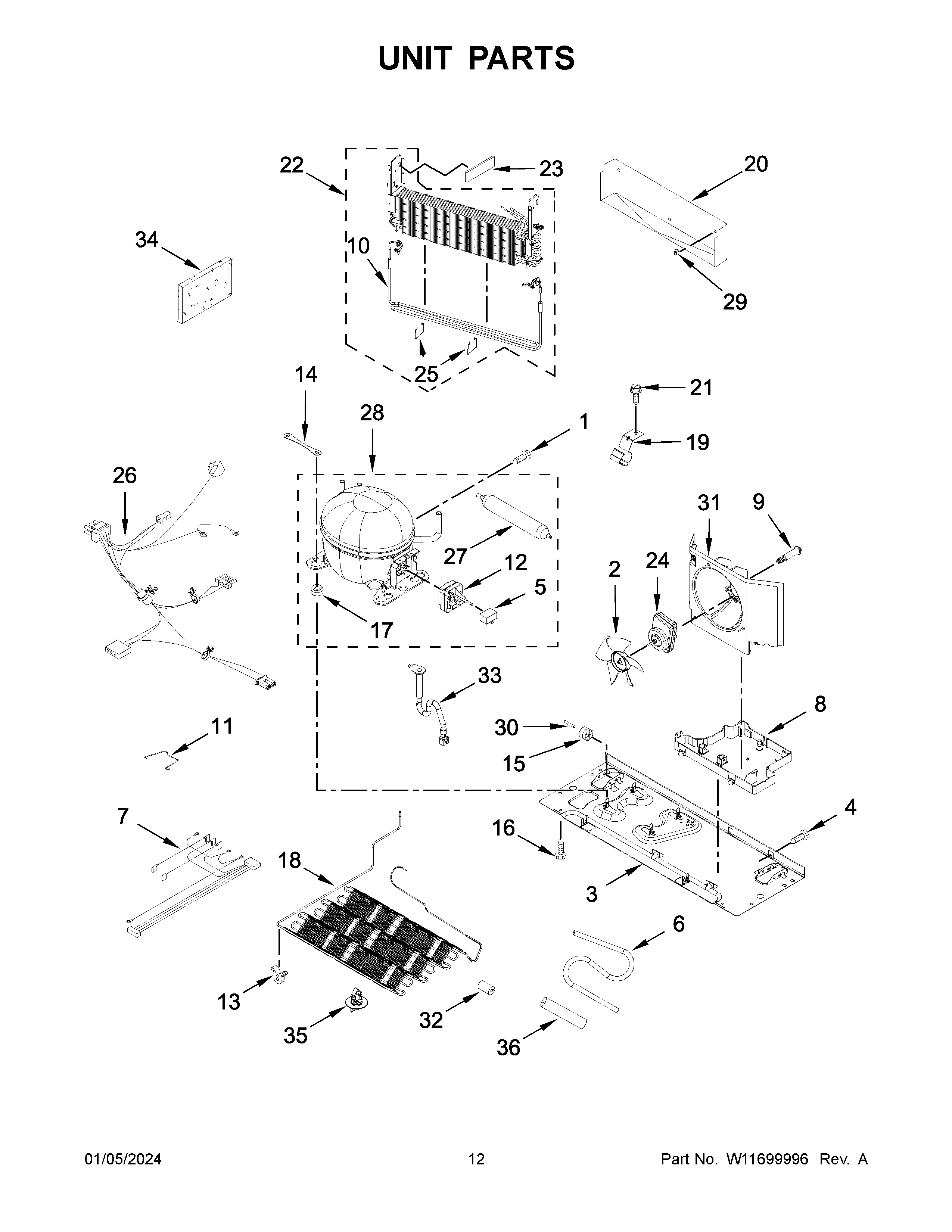

Unit parts diagram

Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Whirlpool Refrigerator Door Gasket (replaces W10443241) W10830046
#8

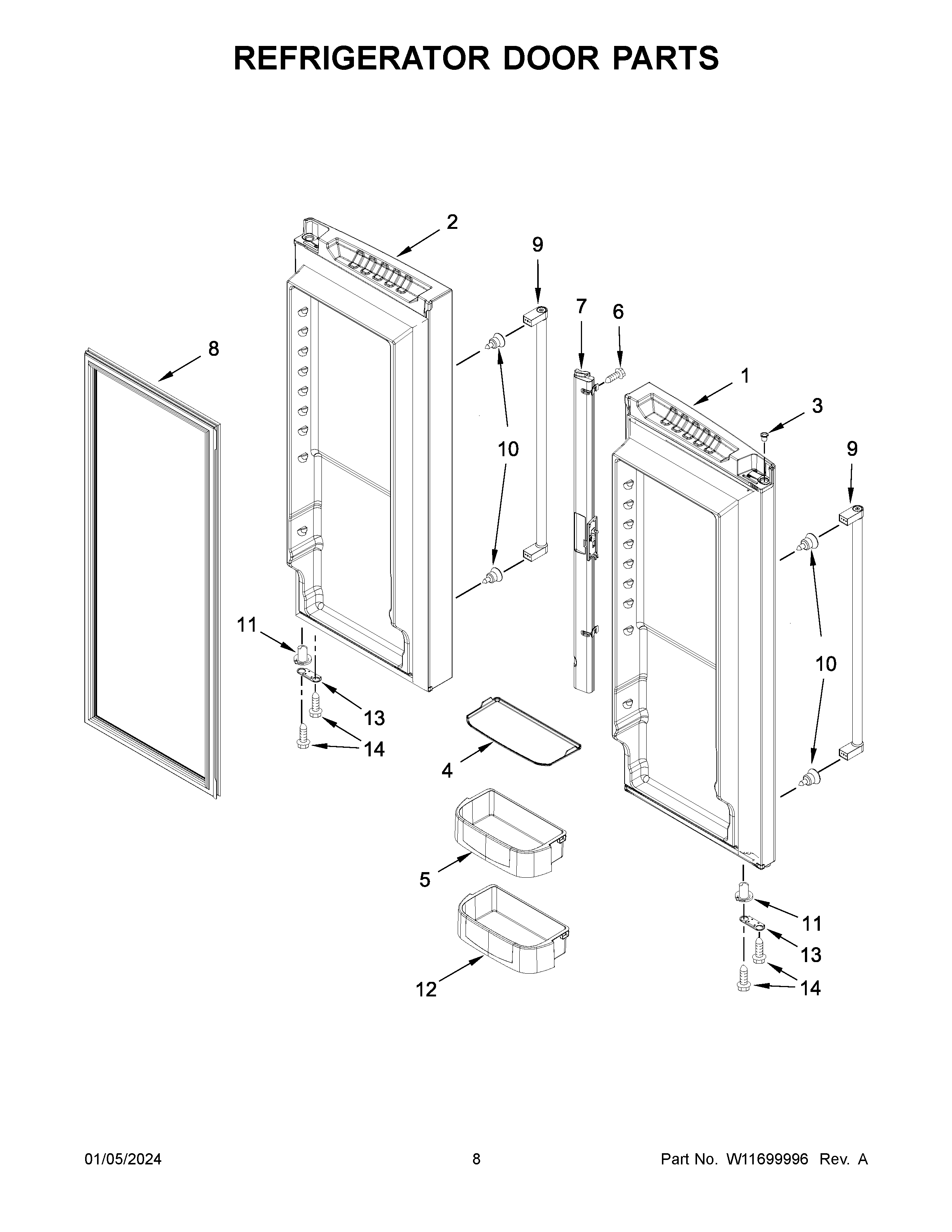

Refrigerator door parts diagram

Whirlpool refrigerator door gasket (replaces w10443241)

Part #W10830046

BEST SELLER
$110.10 |
10% OFF Phone Price : $122.10
In Stock
Refrigerator Water Filter Bypass 12664501SP
#17

Refrigerator liner parts diagram

Refrigerator water filter bypass

Part #12664501SP

Replaced by #W11395888

?
Manufacturer substitution
This part replaces 12664501SP. Substitute parts can look different from the original.
BEST SELLER
$31.98 |
16% OFF Phone Price : $37.98
In Stock
Refrigerator Freezer Drawer Gear 12002497
#3

Freezer liner and icemaker parts diagram

Refrigerator freezer drawer gear

Part #12002497

BEST SELLER
This item is not returnable
$15.49 |
11% OFF Phone Price : $17.49
In Stock
Refrigerator Grille W10534155
#22

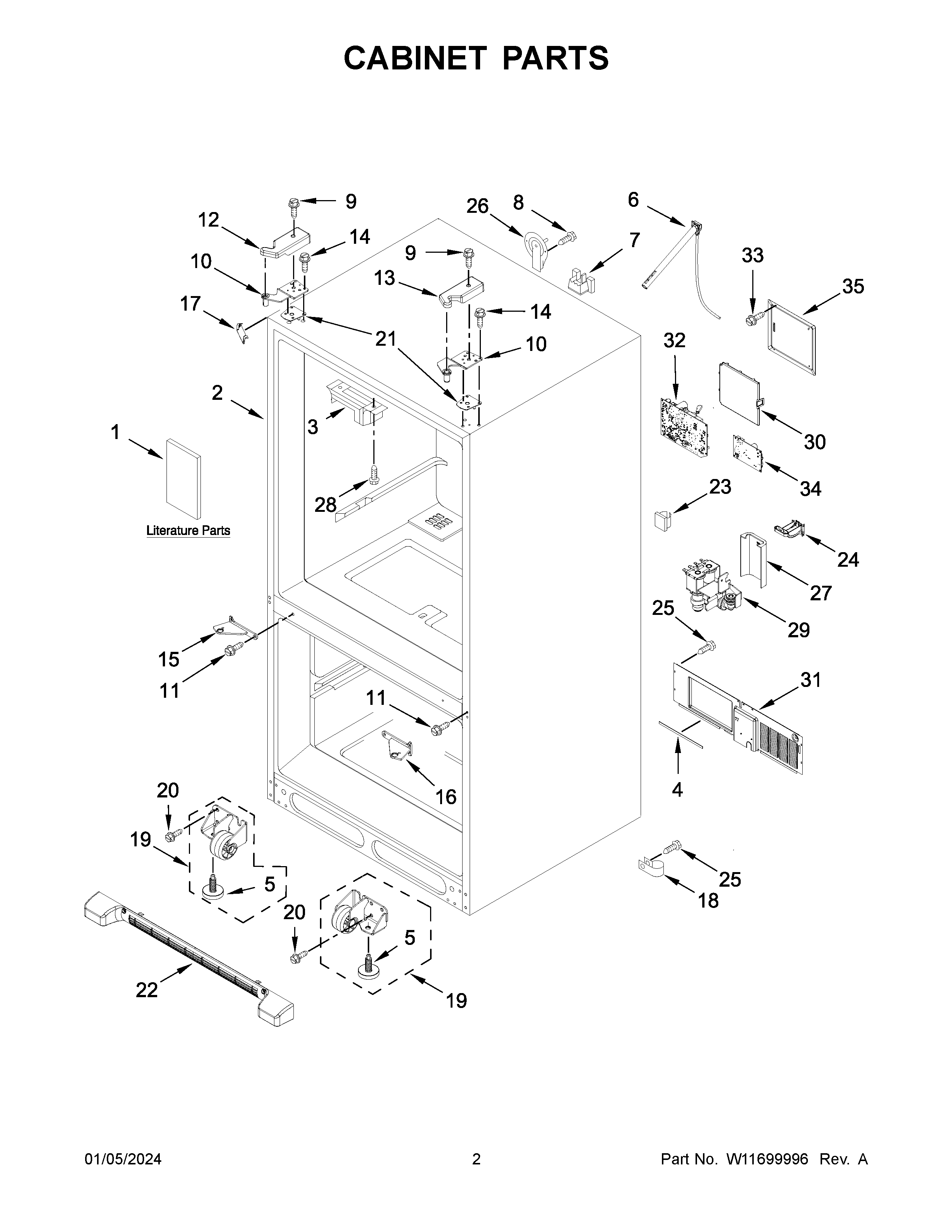

Cabinet parts diagram

Refrigerator grille

Part #W10534155

Replaced by #WPW10534155

?
Manufacturer substitution
This part replaces W10534155. Substitute parts can look different from the original.
BEST SELLER
$54.36 |
10% OFF Phone Price : $60.36
In Stock
6 Mm Chargin W11506635
#28D

Unit parts diagram

6 mm chargin

Part #W11506635

$32.05
In Stock
