Model # AZ75E09EACM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ75E09EACM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Filter Guide WJ05X10029
#1069

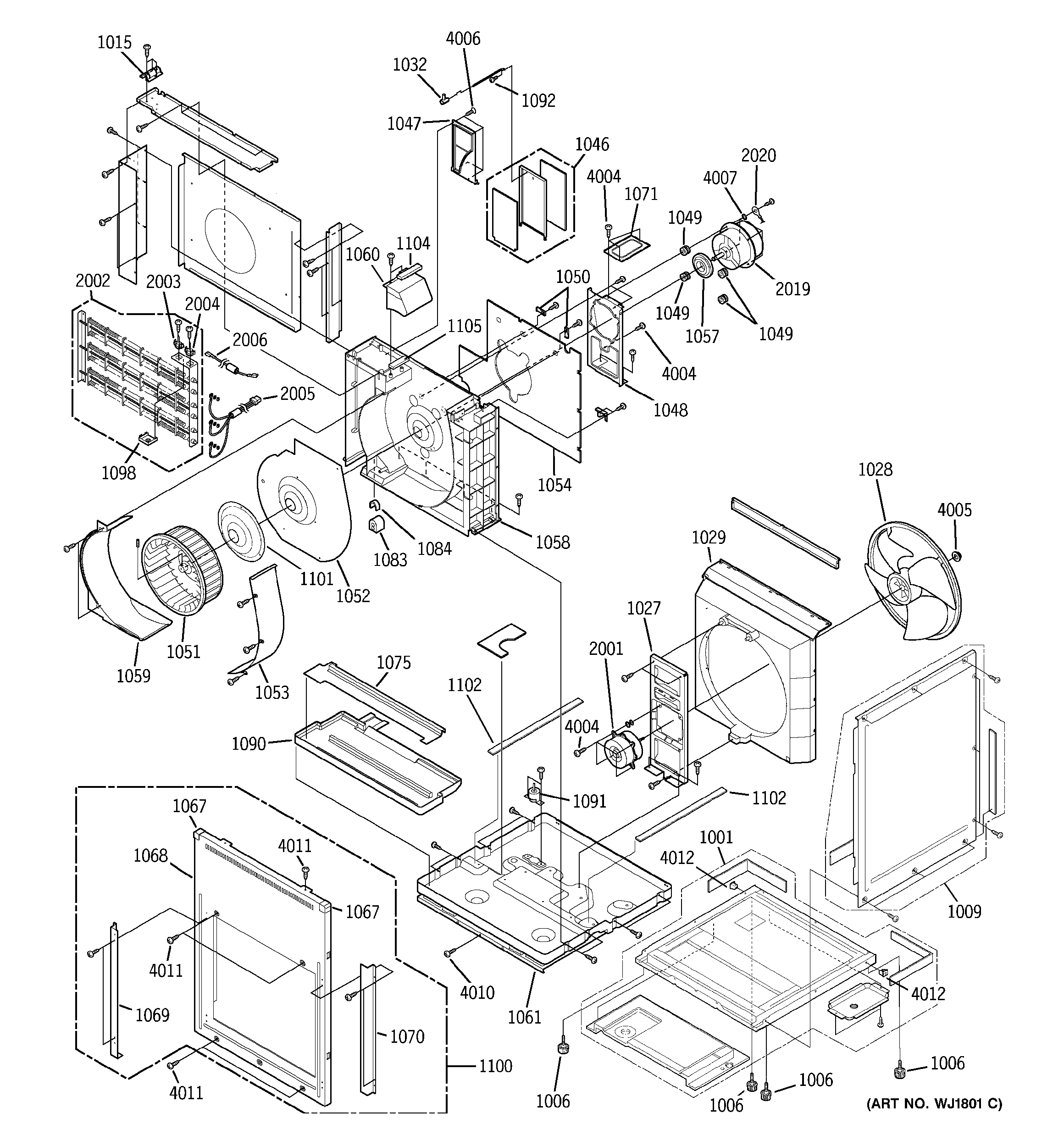

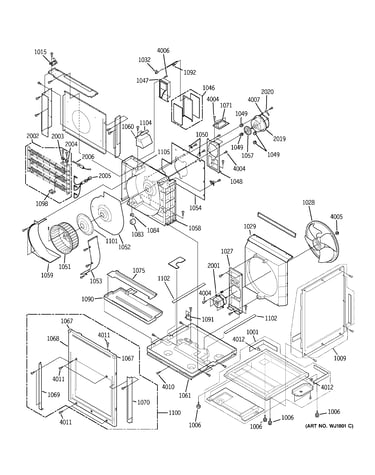

Motor, heater & base pan parts diagram

Filter guide

Part #WJ05X10029

$18.31
In Stock
Special Screw WJ01X10178
#4013

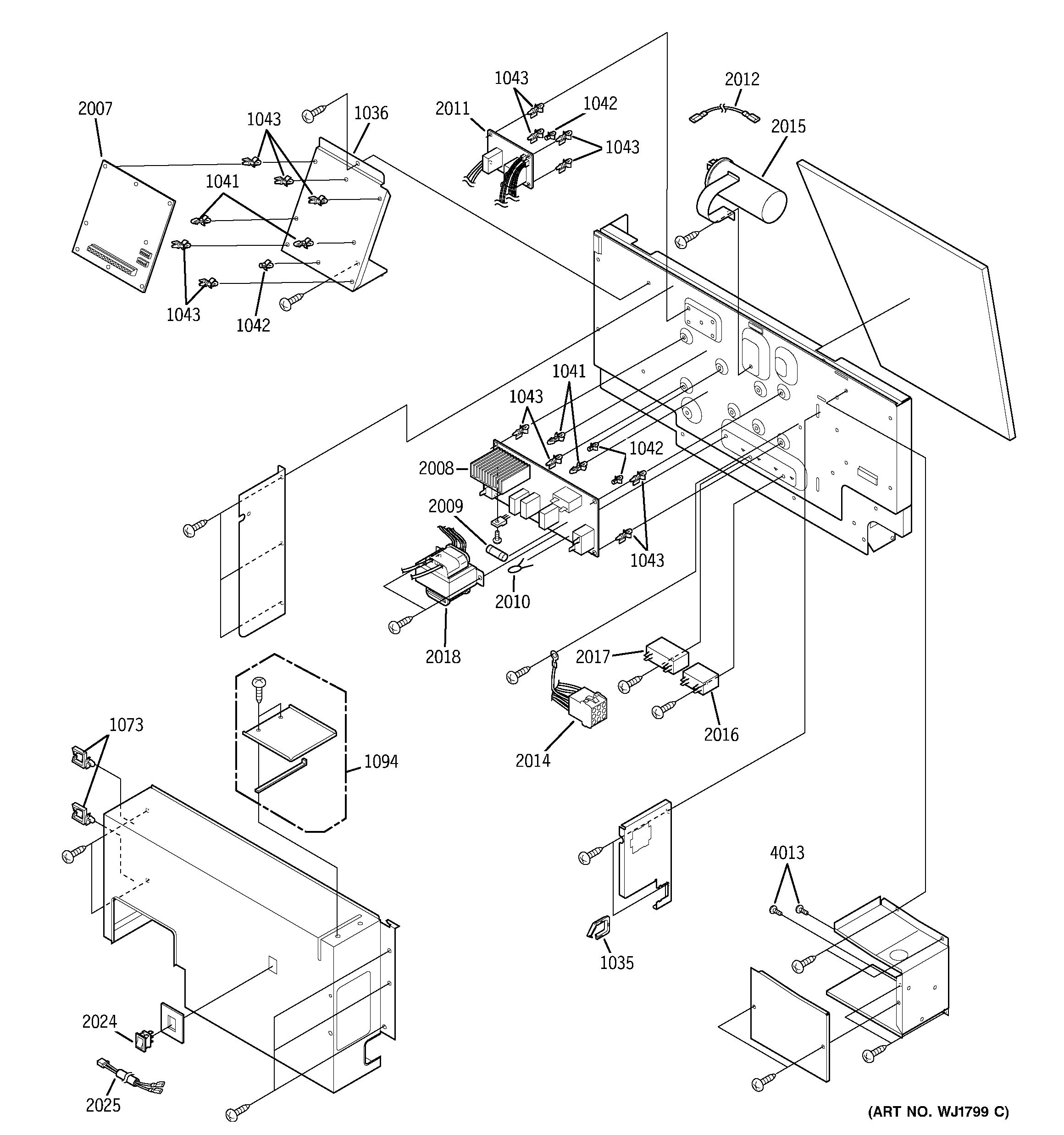

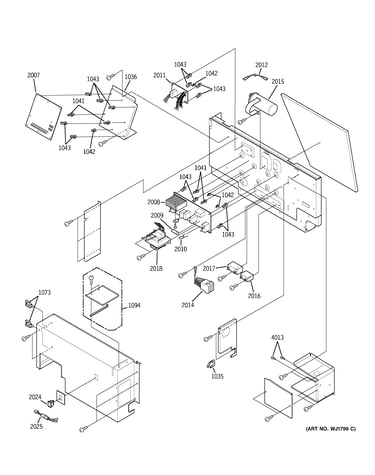

Control parts diagram

Special screw

Part #WJ01X10178

This item is not returnable
$2.70
In Stock
Complete Cushion WJ01X10002
#1066

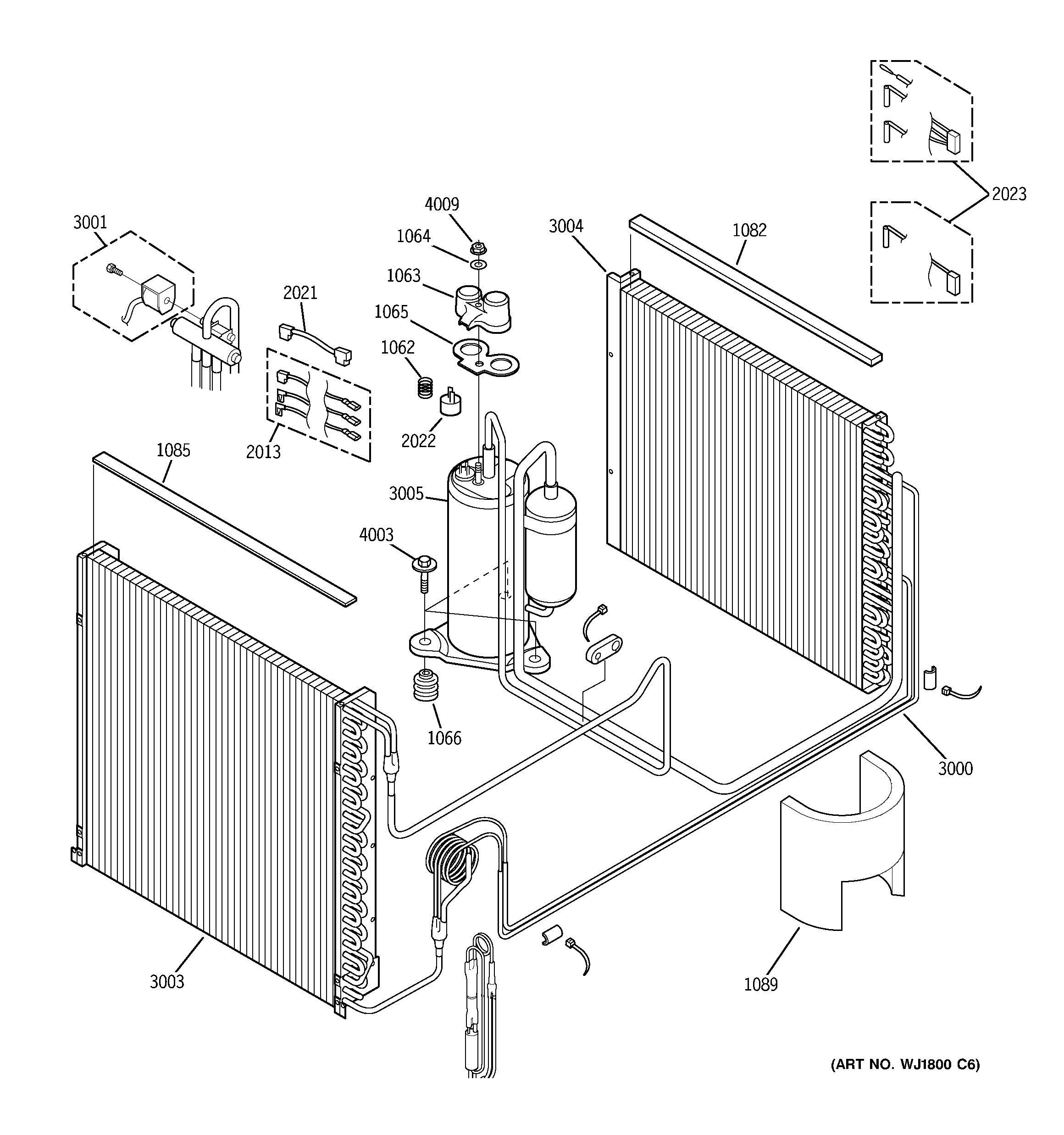

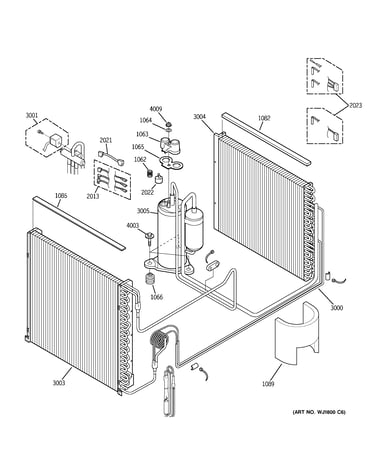

Unit parts diagram

Complete cushion

Part #WJ01X10002

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Compressor WJ98X10026
#3005

Unit parts diagram

Compressor

Part #WJ98X10026

$532.17
In Stock
Plate Assembly WJ11X10008
#1094

Control parts diagram

Plate assembly

Part #WJ11X10008

$28.88
In Stock
Zvac 7500 Se 49-7419
#9999

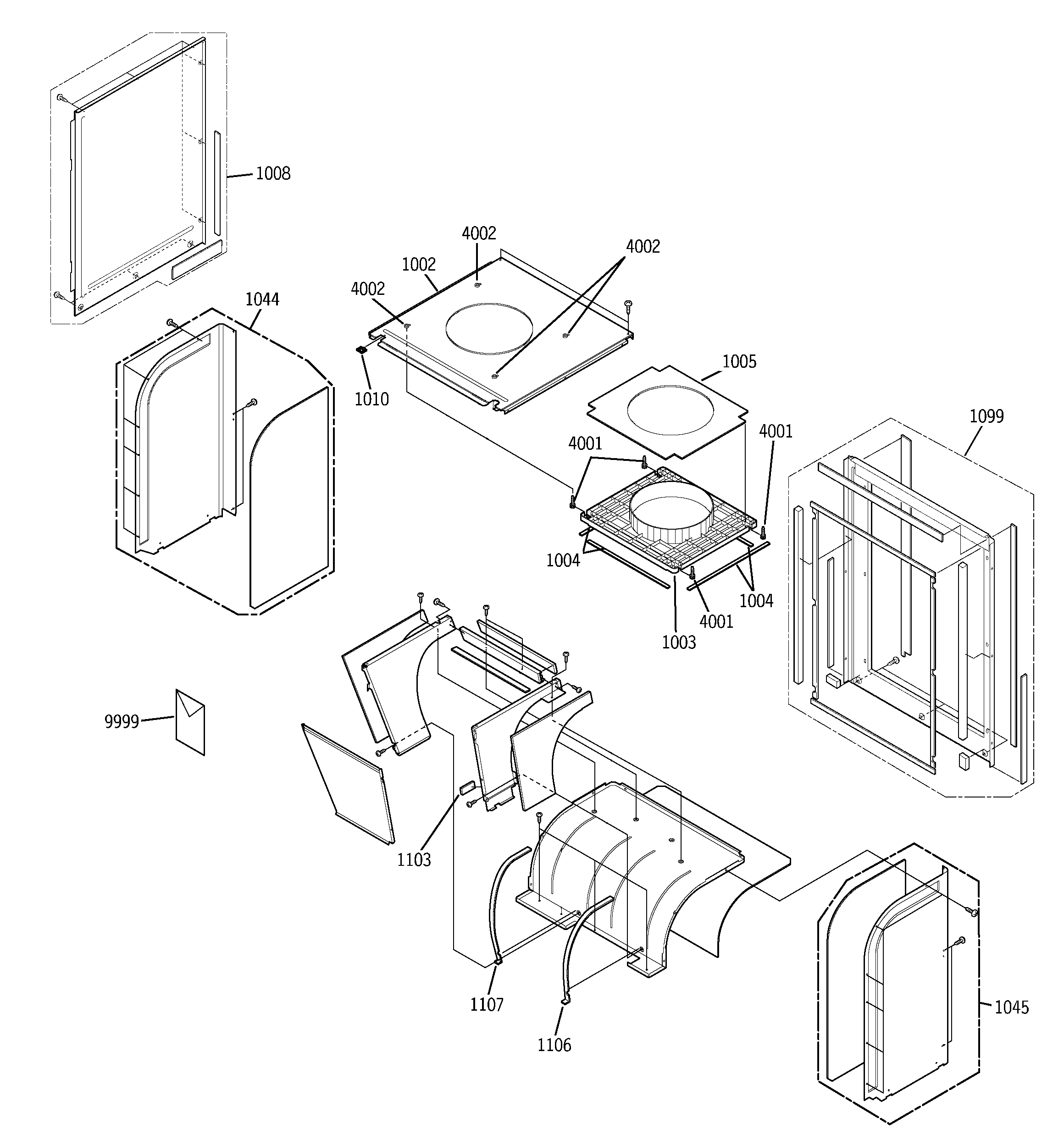

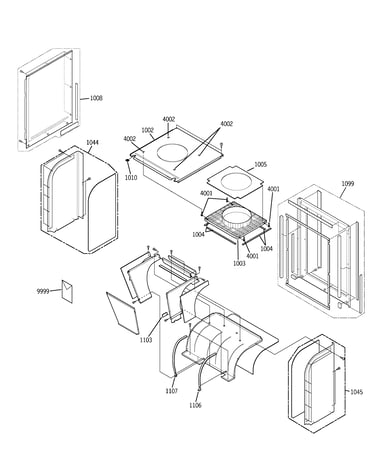

Chassis parts diagram

Zvac 7500 se

Part #49-7419

$8.49
In Stock
Condenser WP88X10038
#3003

Unit parts diagram

Condenser

Part #WP88X10038

$267.72
In Stock
Divider R As WJ01X10169
#1045

Chassis parts diagram

Divider r as

Part #WJ01X10169

$88.94
In Stock
Dark Heater WJ70X10042
#2002

Motor, heater & base pan parts diagram

Dark heater

Part #WJ70X10042

$413.12
In Stock
Cord Holder WP01X10009
#1073

Control parts diagram

Cord holder

Part #WP01X10009

This item is not returnable
$4.35
In Stock
