Model # DM46KG-15T-R Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM46KG-15T-R microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Fuse 51001303
#19

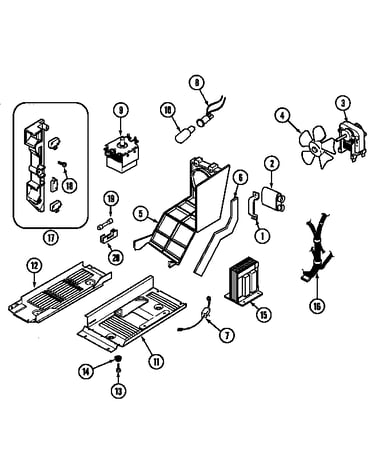

Internal controls diagram

Fuse

Part #51001303

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces 51001303. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Stirrer Blade 51001048
#1

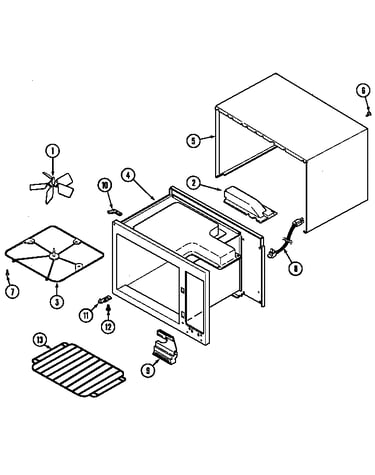

Base diagram

Stirrer blade

Part #51001048

The manufacturer no longer makes this part, and there's no substitute part

Transformer 51001062
#15

Internal controls diagram

Transformer

Part #51001062

The manufacturer no longer makes this part, and there's no substitute part

Switch Control 51001181
#3

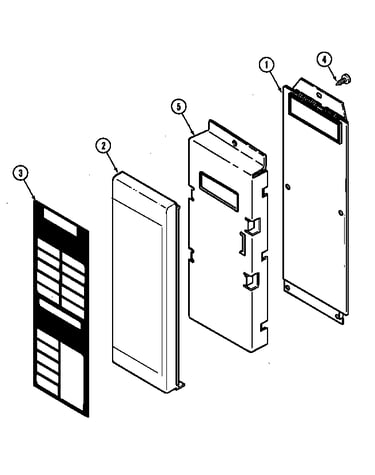

Control board diagram

Switch control

Part #51001181

The manufacturer no longer makes this part, and there's no substitute part

Control Board 51001053
#1

Control board diagram

Control board

Part #51001053

The manufacturer no longer makes this part, and there's no substitute part

Channel Base 51001207
#11

Internal controls diagram

Channel base

Part #51001207

The manufacturer no longer makes this part, and there's no substitute part

Pivot Pin 03070041
#1

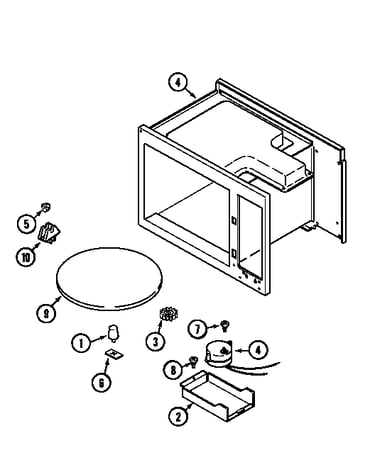

Turntable diagram

Pivot pin

Part #03070041

The manufacturer no longer makes this part, and there's no substitute part

High Voltage Lead Wire 04060535
#20B

Internal controls diagram

High voltage lead wire

Part #04060535

The manufacturer no longer makes this part, and there's no substitute part

Baffle Bulb 51001030
#8B

Internal controls diagram

Baffle bulb

Part #51001030

The manufacturer no longer makes this part, and there's no substitute part

Screw 51001101
#3A

Internal controls diagram

Screw

Part #51001101

The manufacturer no longer makes this part, and there's no substitute part
