GE
Faucet Water Filter

Model # GXK255TBN Official GE water filter

Here are the diagrams and repair parts for Official GE GXK255TBN water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |

Ge 3/8 T-union Treaded 9/16male & 9/16fe WS22X23741
#1

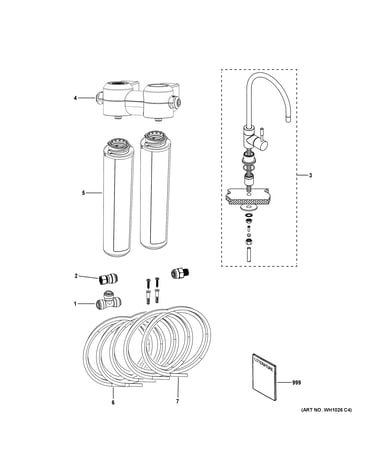

Water filter diagram

Ge 3/8 t-union treaded 9/16male & 9/16fe

Part #WS22X23741

In Stock
Water Filtration System Water Filter Set FQK2J
#5

Water filter diagram

Water filtration system water filter set

Part #FQK2J

$76.13
7% OFF Phone Price : $82.13
In Stock
Faucet WS10X23546
#3

Water filter diagram

Faucet

Part #WS10X23546

The manufacturer no longer makes this part, and there's no substitute part

Pm Install Instructions 31-6000260
#999

Water filter diagram

Pm install instructions

Part #31-6000260

The manufacturer no longer makes this part, and there's no substitute part

Pe Tubing 3/8" X 4ft - Yellow WS07X23611
#7

Water filter diagram

Pe tubing 3/8" x 4ft - yellow

Part #WS07X23611

The manufacturer no longer makes this part, and there's no substitute part

Pe Tubing 3/8" X 4ft - Blue WS07X23609
#6

Water filter diagram

Pe tubing 3/8" x 4ft - blue

Part #WS07X23609

The manufacturer no longer makes this part, and there's no substitute part

3/8" Faucet Union Treaded 7/16" WS22X23612
#2

Water filter diagram

3/8" faucet union treaded 7/16"

Part #WS22X23612

The manufacturer no longer makes this part, and there's no substitute part

Filtration Manifold WS19X21082
#4

Water filter diagram

Filtration manifold

Part #WS19X21082

The manufacturer no longer makes this part, and there's no substitute part
