Model # 706596230 Official Craftsman tool chest

Here are the diagrams and repair parts for Official Craftsman 706596230 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Plug M14593
#10

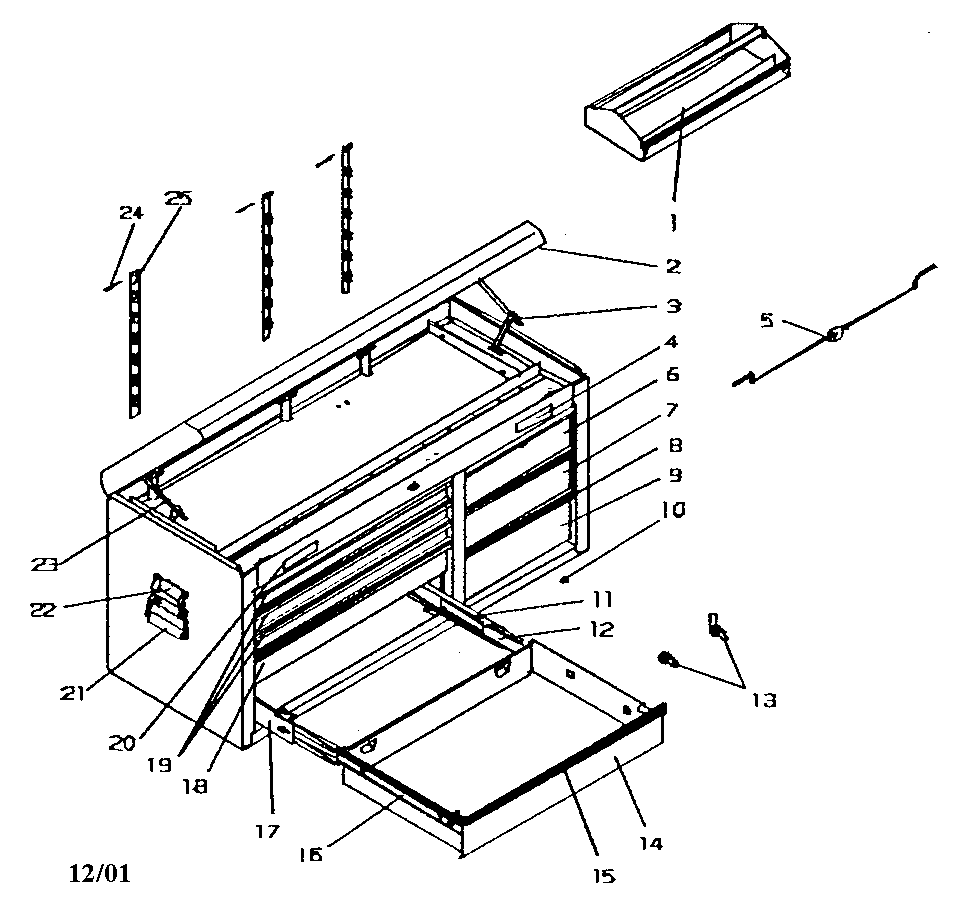

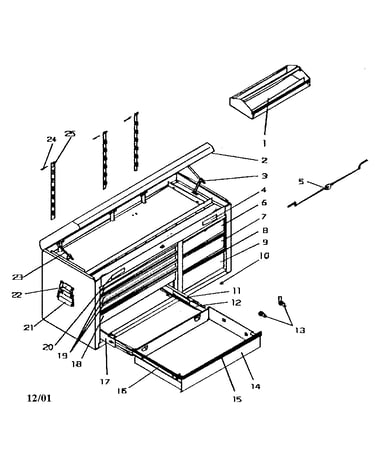

Tool chest diagram

Plug

Part #M14593

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Handle M10647A1
#21

Tool chest diagram

Tool chest handle

Part #M10647A1

The manufacturer no longer makes this part, and there's no substitute part

Tool Chest Clip M9371
#NI

Tool chest diagram

Tool chest clip

Part #M9371

The manufacturer no longer makes this part, and there's no substitute part

Companion Tool Chest Door Hinge Pin M1495
#24

Tool chest diagram

Companion tool chest door hinge pin

Part #M1495

The manufacturer no longer makes this part, and there's no substitute part

Drawer, 4-in A17019A2-EBE
#14

Tool chest diagram

Drawer, 4-in

Part #A17019A2-EBE

The manufacturer no longer makes this part, and there's no substitute part

5"drawer A17019A4-EBE
#9

Tool chest diagram

5"drawer

Part #A17019A4-EBE

The manufacturer no longer makes this part, and there's no substitute part

Drawer, 4-in A17019A5-EBE
#6

Tool chest diagram

Drawer, 4-in

Part #A17019A5-EBE

The manufacturer no longer makes this part, and there's no substitute part

Coverstop M14586
#23

Tool chest diagram

Coverstop

Part #M14586

The manufacturer no longer makes this part, and there's no substitute part

Lock Bar T16514-EBE
#25

Tool chest diagram

Lock bar

Part #T16514-EBE

The manufacturer no longer makes this part, and there's no substitute part

Cover Stop M12903
#3

Tool chest diagram

Cover stop

Part #M12903

The manufacturer no longer makes this part, and there's no substitute part
