Chest Freezer

Model # AFFC1526DW0 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire AFFC1526DW0 freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAFFC1526DW0 Freestanding Freezers

  • Filter Drier 216634500
    #4

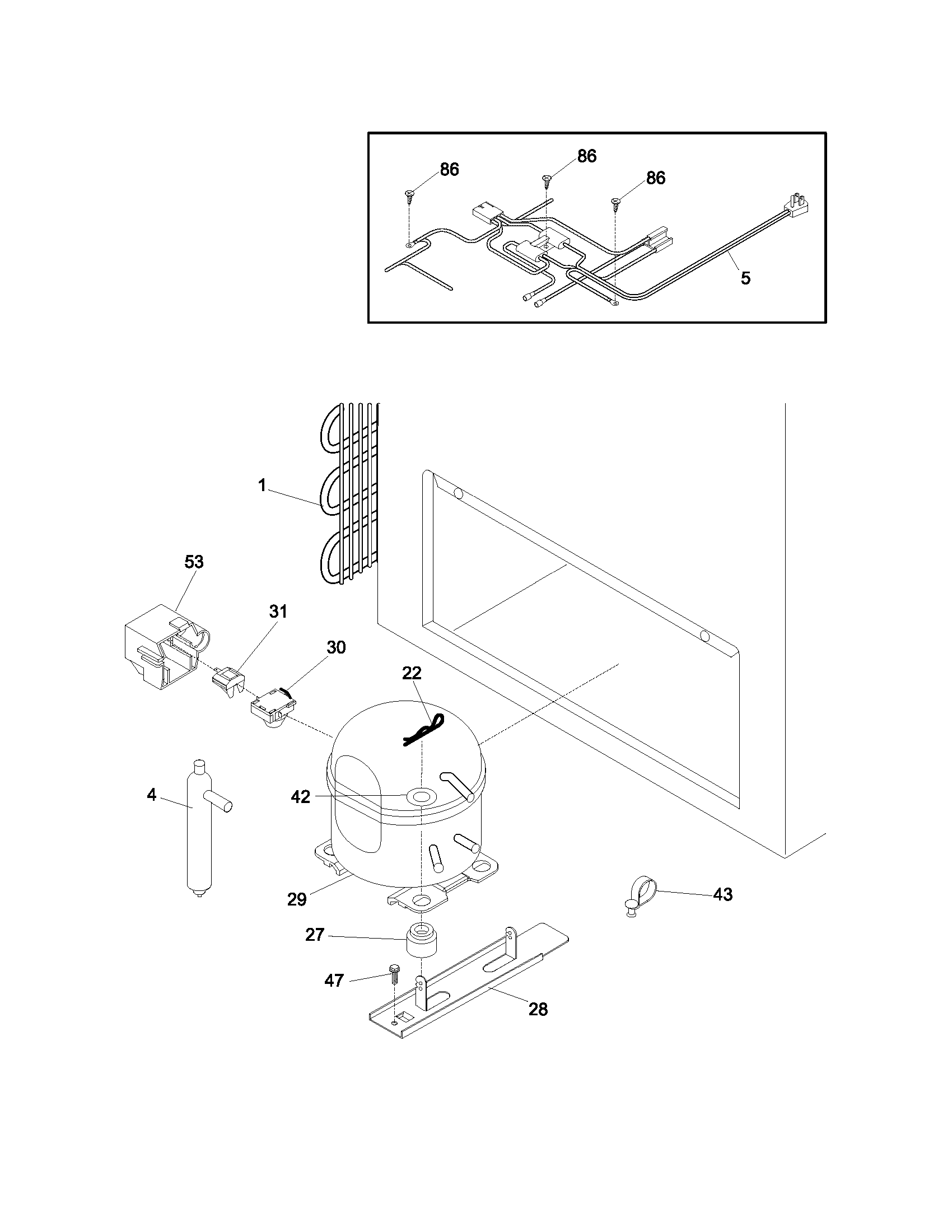

    System diagram

    Filter drier

    Part #216634500

    Replaced by #5303305677

    ?
    Manufacturer substitution
    This part replaces 216634500. Substitute parts can look different from the original.
    BEST SELLER
    $20.18 |
    23% OFF Phone Price : $26.18
    In Stock
  • Freezer Door Key 216702900
    #5

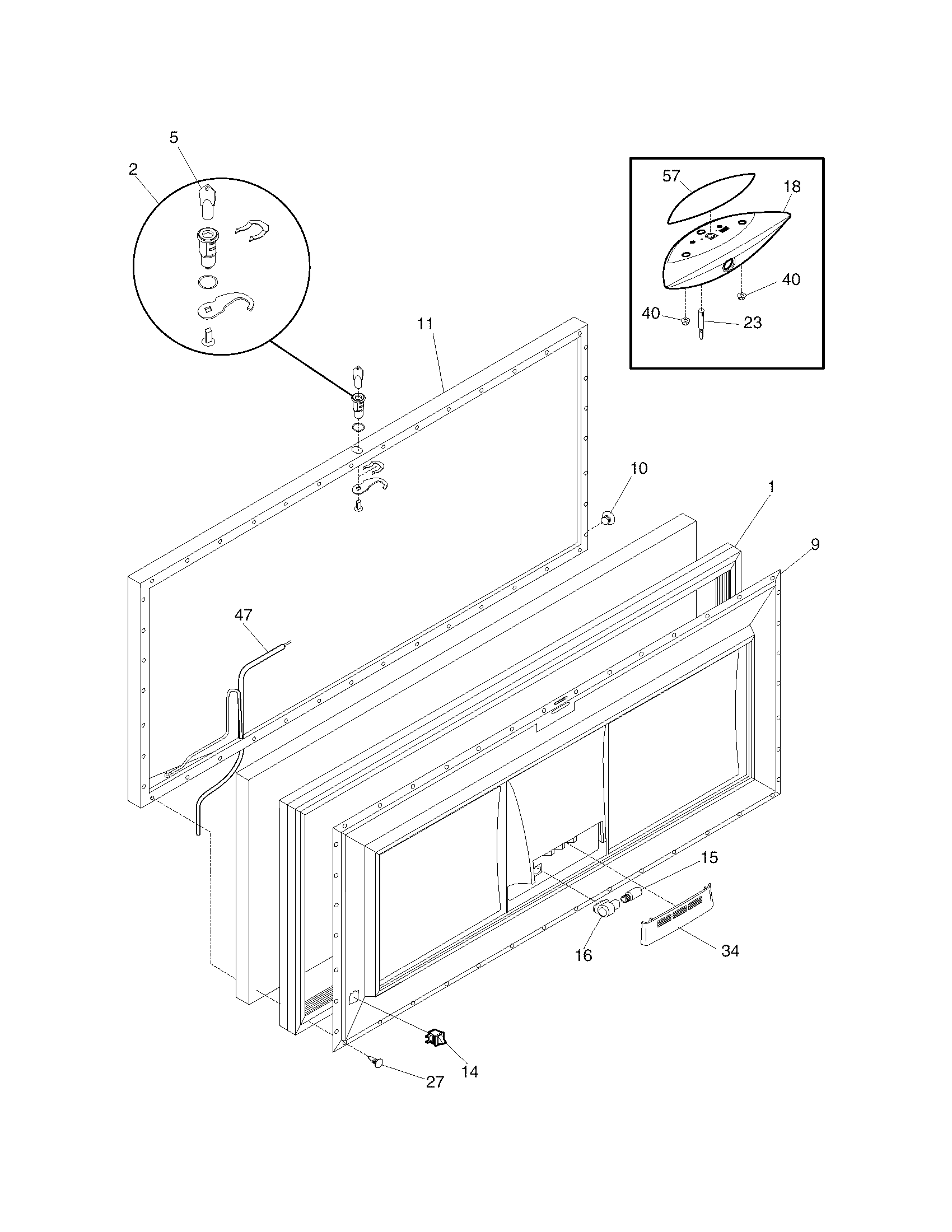

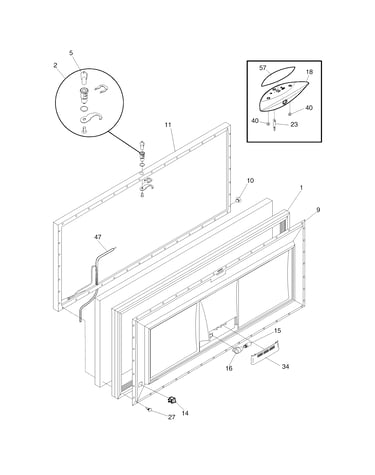

    Door diagram

    Freezer door key

    Part #216702900

    Replaced by #297147700

    ?
    Manufacturer substitution
    This part replaces 216702900. Substitute parts can look different from the original.
    BEST SELLER
    $8.57 |
    10% OFF Phone Price : $9.57
    In Stock
  • Freezer Light Bulb 216846400
    #15

    Door diagram

    Freezer light bulb

    Part #216846400

    Replaced by #5304517886

    ?
    Manufacturer substitution
    This part replaces 216846400. Substitute parts can look different from the original.
    BEST SELLER
    $48.62 |
    11% OFF Phone Price : $54.62
    In Stock
  • Touch Paint 5303305324
    #NI

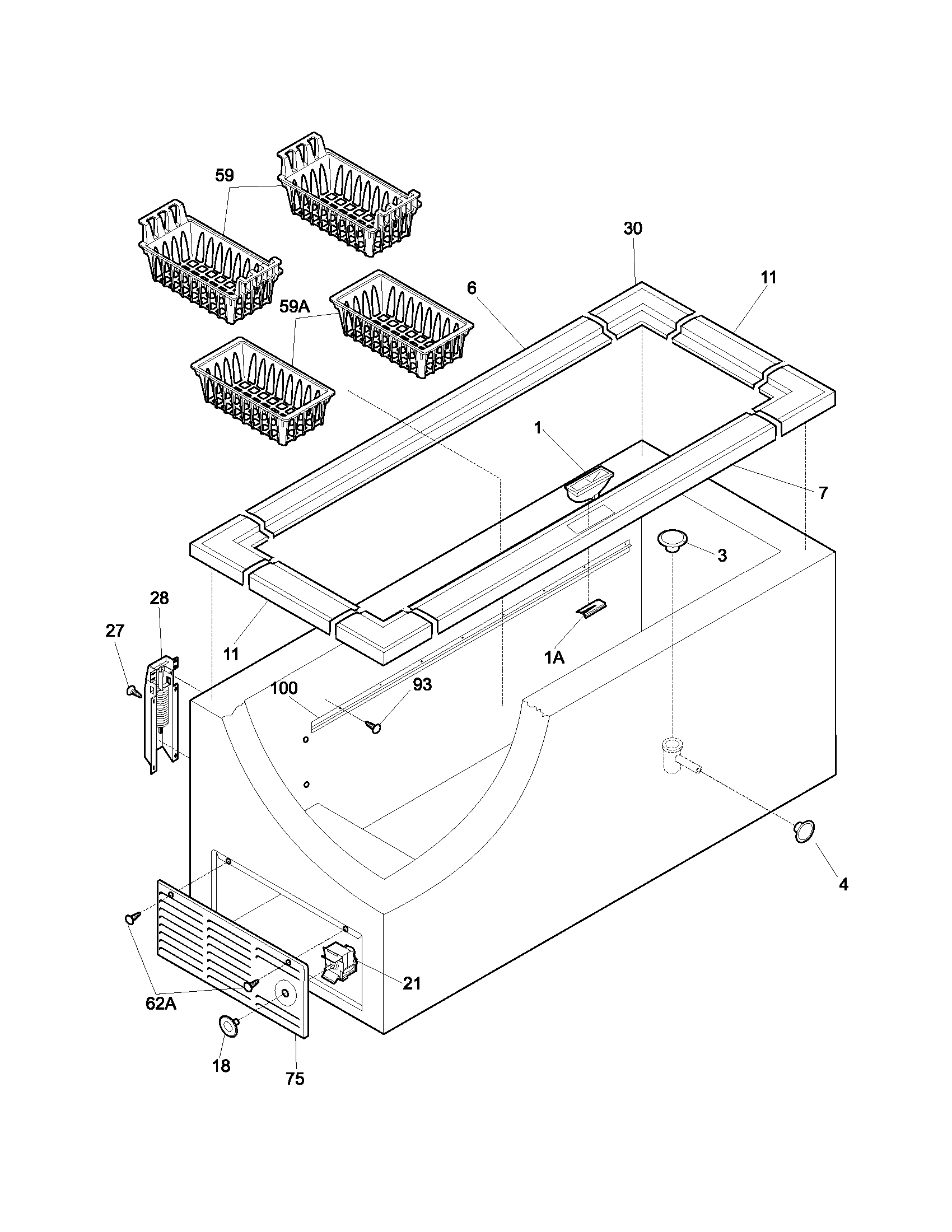

    Cabinet diagram

    Touch paint

    Part #5303305324

    Replaced by #5303321319

    ?
    Manufacturer substitution
    This part replaces 5303305324. Substitute parts can look different from the original.
    This item is not returnable
    $15.15 |
    12% OFF Phone Price : $17.15
    In Stock
  • Light Socket 216817600
    #16

    Door diagram

    Light socket

    Part #216817600

    Replaced by #297139501

    ?
    Manufacturer substitution
    This part replaces 216817600. Substitute parts can look different from the original.
    This item is not returnable
    $21.13 |
    22% OFF Phone Price : $27.13
    In Stock
  • Freezer Temperature Control Thermostat 216714601
    #21#

    Cabinet diagram

    Freezer temperature control thermostat

    Part #216714601

    This item is not returnable
    $93.74 |
    6% OFF Phone Price : $99.74
    In Stock
  • Freezer Temperature Control Knob 216707200
    #18

    Cabinet diagram

    Freezer temperature control knob

    Part #216707200

    $37.98 |
    14% OFF Phone Price : $43.98
    In Stock
  • Basket 216867401
    #59A

    Cabinet diagram

    Basket

    Part #216867401

    Replaced by #216867400

    ?
    Manufacturer substitution
    This part replaces 216867401. Substitute parts can look different from the original.
    $73.90 |
    8% OFF Phone Price : $79.90
    In Stock
  • Grommet 5308002681
    #27

    System diagram

    Grommet

    Part #5308002681

    Replaced by #216498900

    ?
    Manufacturer substitution
    This part replaces 5308002681. Substitute parts can look different from the original.
    This item is not returnable
    $13.44 |
    13% OFF Phone Price : $15.44
    In Stock
  • Freezer Wire Harness Clamp 5303212614
    #43

    System diagram

    Freezer wire harness clamp

    Part #5303212614

    This item is not returnable
    $3.37
    In Stock
