Model # 83841001 Official Weber gas grill

Here are the diagrams and repair parts for Official Weber 83841001 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Gas Grill Burner Knob 30129501
#23

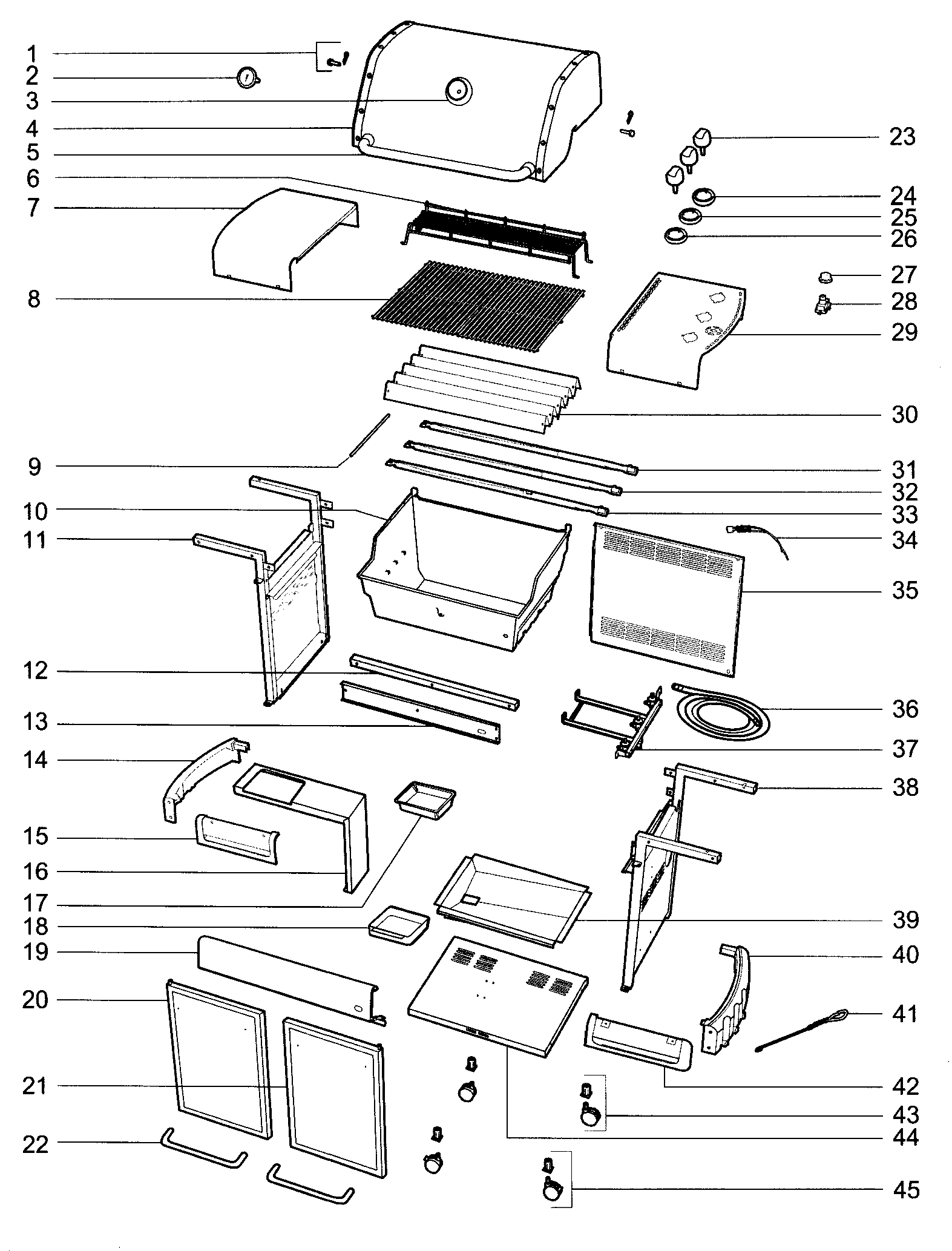

Grill parts diagram

Gas grill burner knob

Part #30129501

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 90902
#NI

Grill parts diagram

Owner's manual

Part #90902

The manufacturer no longer makes this part, and there's no substitute part

Burner Tube 67820
Burner tube

Part #67820

The manufacturer no longer makes this part, and there's no substitute part

Panel 67845
#19

Grill parts diagram

Panel

Part #67845

The manufacturer no longer makes this part, and there's no substitute part

Bezel Fr Cntrl Knob W/hrdwr 67751
#26

Grill parts diagram

Bezel fr cntrl knob w/hrdwr

Part #67751

The manufacturer no longer makes this part, and there's no substitute part

Connector,rr Frame 67844
#12

Grill parts diagram

Connector,rr frame

Part #67844

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Firebox 67829
#10

Grill parts diagram

Gas grill firebox

Part #67829

The manufacturer no longer makes this part, and there's no substitute part

Blocker 67812
#16

Grill parts diagram

Blocker

Part #67812

The manufacturer no longer makes this part, and there's no substitute part

Hardware 67762
#44A

Grill parts diagram

Hardware

Part #67762

The manufacturer no longer makes this part, and there's no substitute part

Handle Hardware 67718
#5

Grill parts diagram

Handle hardware

Part #67718

The manufacturer no longer makes this part, and there's no substitute part
