Model # 83253886 Official Sears typewriter

Here are the diagrams and repair parts for Official Sears 83253886 typewriter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

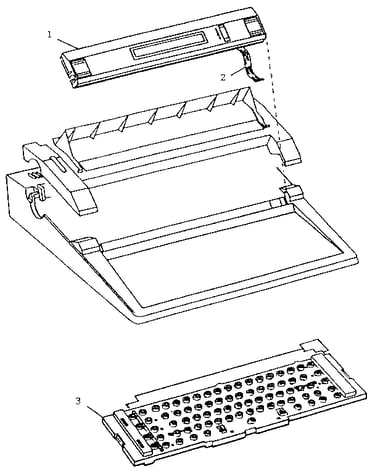

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Clean Kit 8R2454

#NI

All parts diagram

Clean kit

Part #8R2454

The manufacturer no longer makes this part, and there's no substitute part

Carriage Assembly 41N00117
#7

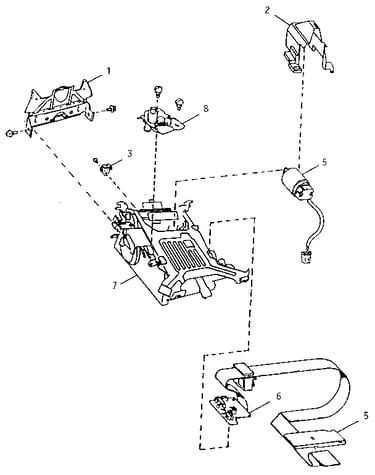

Ribbon deck/carriage assembly diagram

Carriage assembly

Part #41N00117

The manufacturer no longer makes this part, and there's no substitute part

Pwba Assm. 140N01612
#4

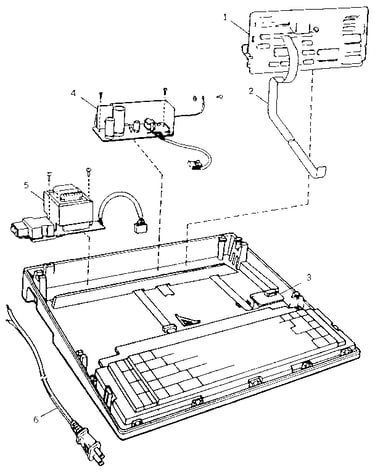

Circuit boards/harness diagram

Pwba assm.

Part #140N01612

The manufacturer no longer makes this part, and there's no substitute part

Motor 127N00274
#12

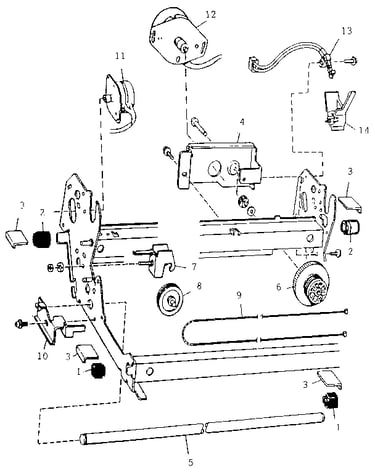

Chassis assembly diagram

Motor

Part #127N00274

The manufacturer no longer makes this part, and there's no substitute part

Pulley 20N00093
#6

Chassis assembly diagram

Pulley

Part #20N00093

The manufacturer no longer makes this part, and there's no substitute part

Pulley 20N00094
#8

Chassis assembly diagram

Pulley

Part #20N00094

The manufacturer no longer makes this part, and there's no substitute part

Carriage Assembly 19N00074
#5

Ribbon deck/carriage assembly diagram

Carriage assembly

Part #19N00074

The manufacturer no longer makes this part, and there's no substitute part

Cover 18N00043
#2

Ribbon deck/carriage assembly diagram

Cover

Part #18N00043

The manufacturer no longer makes this part, and there's no substitute part

Support Assembly 2N00400
#2

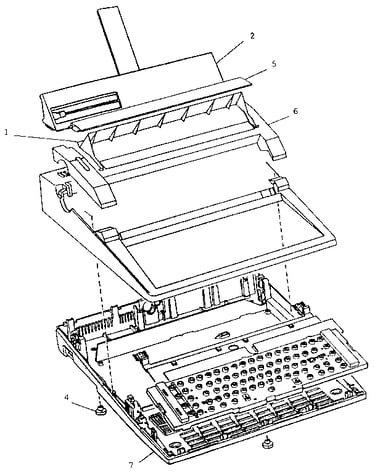

Covers diagram

Support assembly

Part #2N00400

The manufacturer no longer makes this part, and there's no substitute part

Platten 90N00068
#1

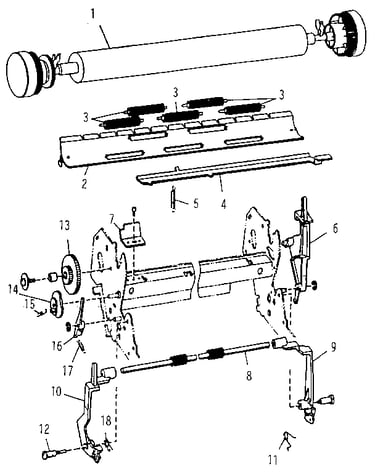

Paper support system diagram

Platten

Part #90N00068

The manufacturer no longer makes this part, and there's no substitute part
