Kenmore
Upright Freezer

Model # 25328262806 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25328262806 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Filter Drier 216987501
#4

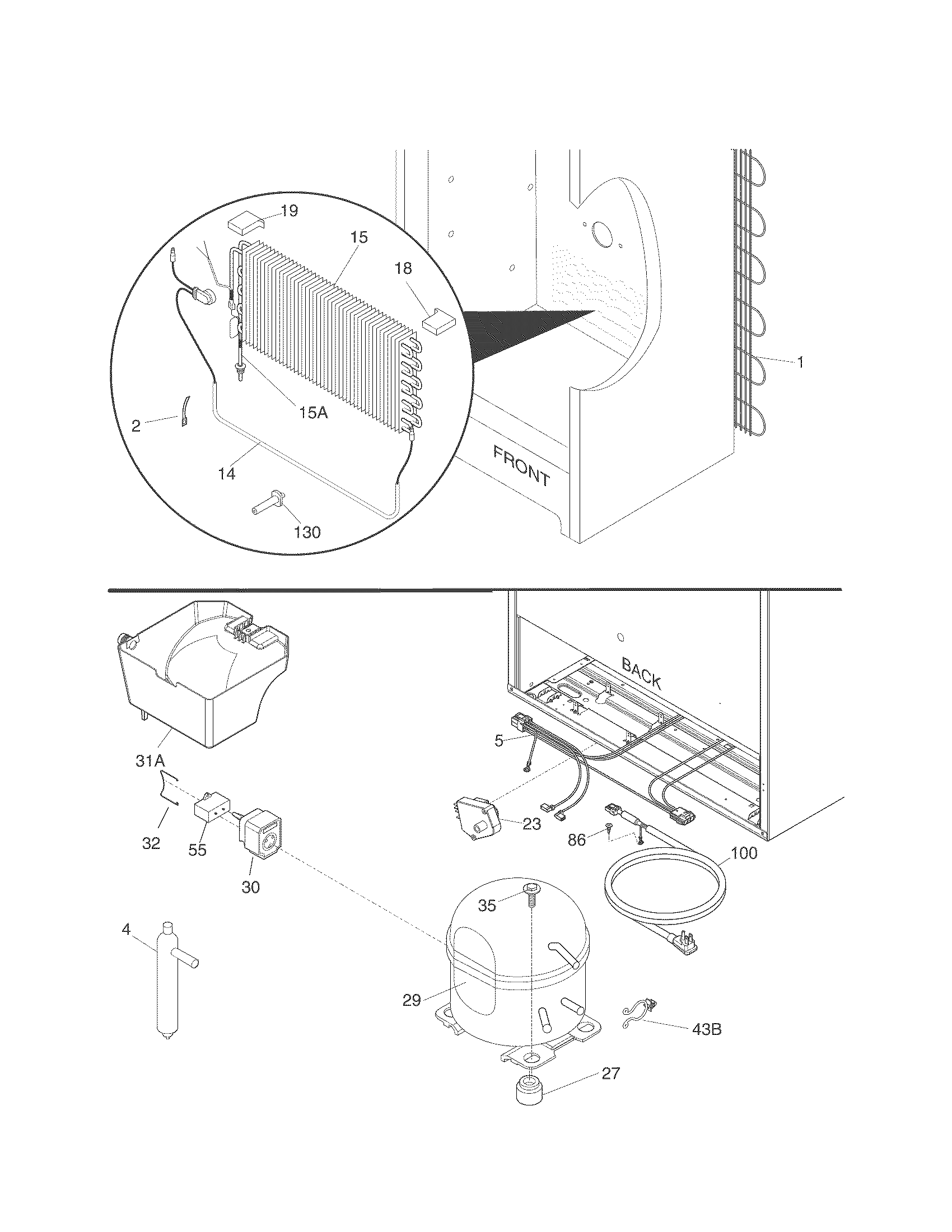

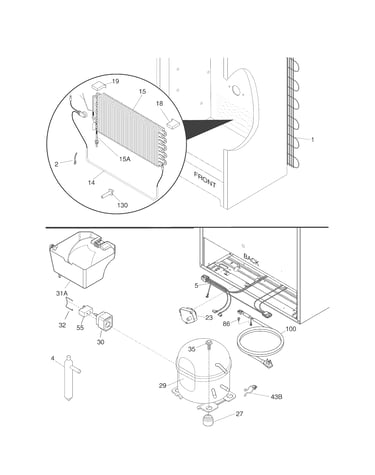

System diagram

Filter drier

Part #216987501

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987501. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Defrost Timer 297318010
#23

System diagram

Freezer defrost timer

Part #297318010

Replaced by #5304518034

?
Manufacturer substitution
This part replaces 297318010. Substitute parts can look different from the original.
BEST SELLER
$45.98 |
12% OFF Phone Price : $51.98
In Stock
Freezer Evaporator Fan Motor 297250000
#13

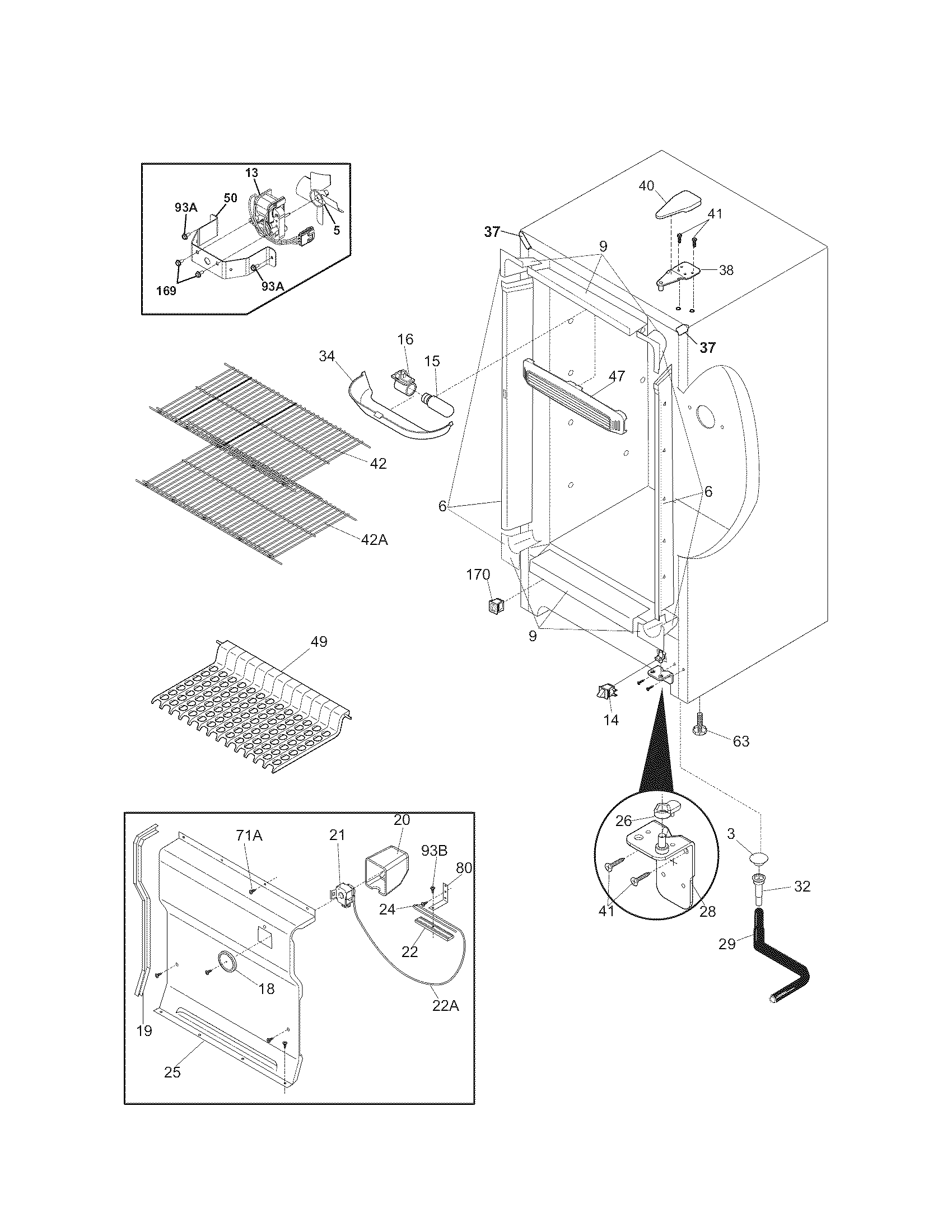

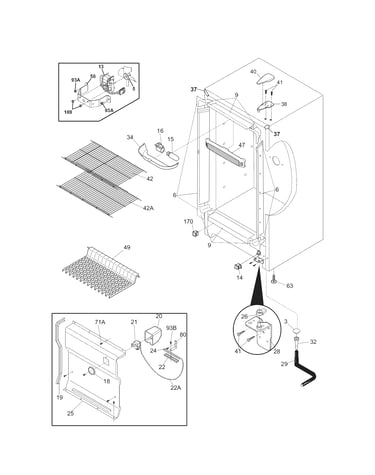

Cabinet diagram

Freezer evaporator fan motor

Part #297250000

Replaced by #297309000

?
Manufacturer substitution
This part replaces 297250000. Substitute parts can look different from the original.
BEST SELLER
$58.41 |
9% OFF Phone Price : $64.41
In Stock
Compressor 297237300
#29

System diagram

Compressor

Part #297237300

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 297237300. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Freezer Door Gasket 216522356
#1

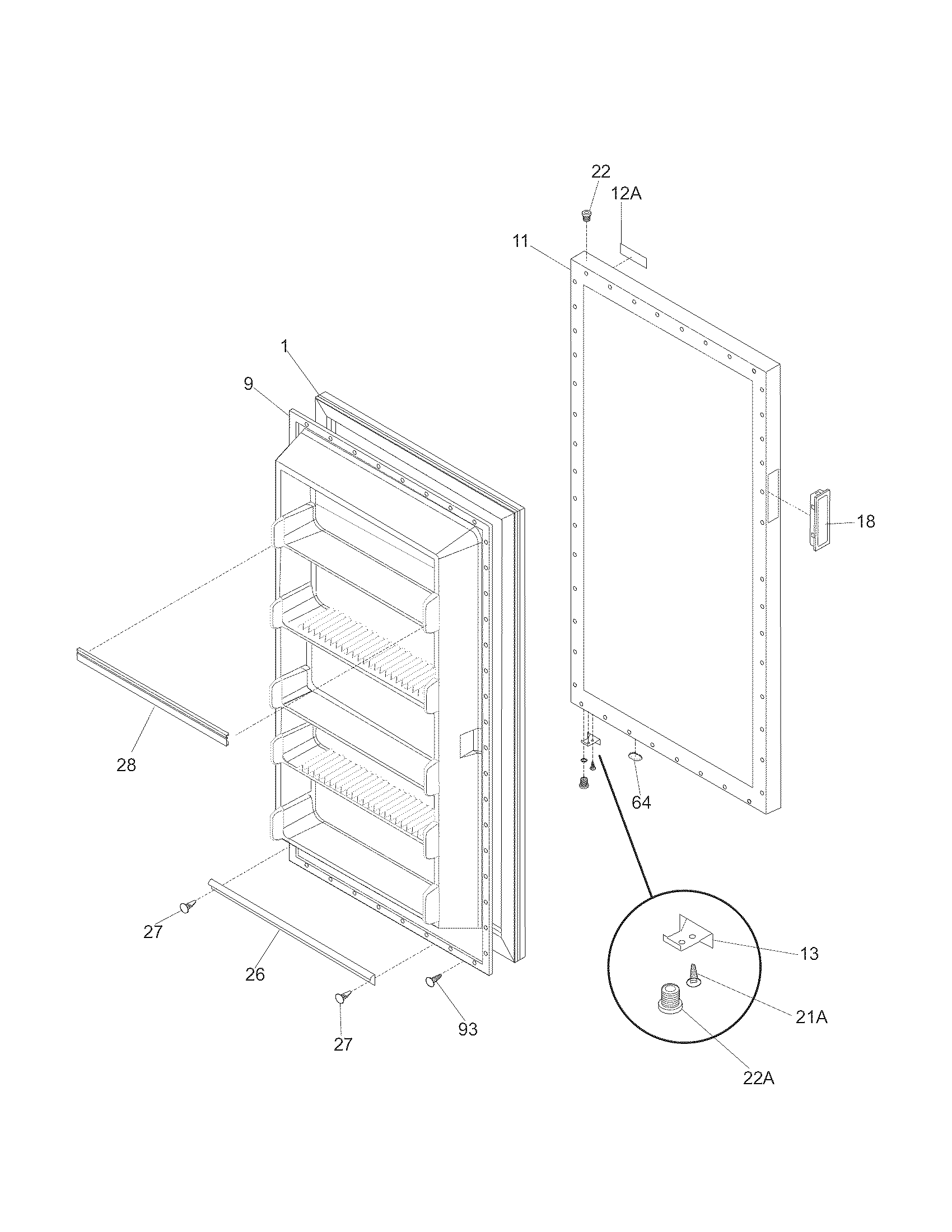

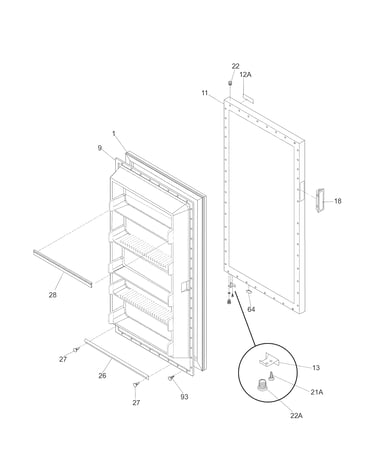

Door diagram

Freezer door gasket

Part #216522356

Replaced by #5304507201

?
Manufacturer substitution
This part replaces 216522356. Substitute parts can look different from the original.
BEST SELLER
$125.82 |
9% OFF Phone Price : $137.82
In Stock
Freezer Gasket And Liner Fastener Kit 5304406520
#NI

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

BEST SELLER
$33.42 |
15% OFF Phone Price : $39.42
In Stock
Freezer Door Switch (replaces 216998000, 7216822900) 216822900
#14

Cabinet diagram

Freezer door switch (replaces 216998000, 7216822900)

Part #216822900

BEST SELLER
$51.35 |
10% OFF Phone Price : $57.35
In Stock
Evaporator 216997200
#15

System diagram

Evaporator

Part #216997200

Replaced by #297414800

?
Manufacturer substitution
This part replaces 216997200. Substitute parts can look different from the original.
BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Freezer Heat Exchanger 297348500
#15A

System diagram

Freezer heat exchanger

Part #297348500

BEST SELLER
$99.62 |
11% OFF Phone Price : $111.62
In Stock
Freezer Door Hinge Bearing (replaces 216503200, 7297006800) 297006800
#22A

Door diagram

Freezer door hinge bearing (replaces 216503200, 7297006800)

Part #297006800

This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
