Countertop Microwave

Model # MT8118XEQ0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT8118XEQ0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Washer 4393278
Washer

Part #4393278

Replaced by #WP8533914

?
Manufacturer substitution
This part replaces 4393278. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Owner's Manual LIT4393140

#NI

All parts diagram

Owner's manual

Part #LIT4393140

Replaced by #4393140

?
Manufacturer substitution
This part replaces LIT4393140. Substitute parts can look different from the original.
This item is not returnable
$2.29
In Stock
Thermal Fuse 4393308
#15

Interior diagram

Thermal fuse

Part #4393308

Replaced by #W11707984

?
Manufacturer substitution
This part replaces 4393308. Substitute parts can look different from the original.
$23.80
In Stock
Screw 4393279
Screw

Part #4393279

Replaced by #8169480

?
Manufacturer substitution
This part replaces 4393279. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Strain-rlf 4393271
#15

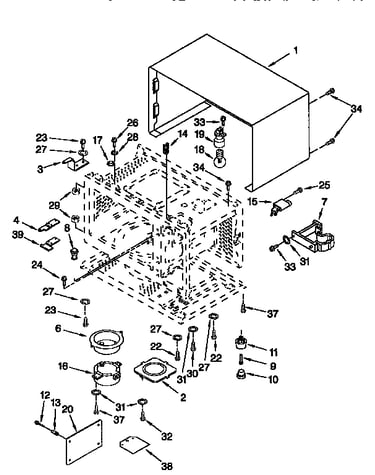

Cabinet diagram

Strain-rlf

Part #4393271

The manufacturer no longer makes this part, and there's no substitute part

Transformer 4393370
#8

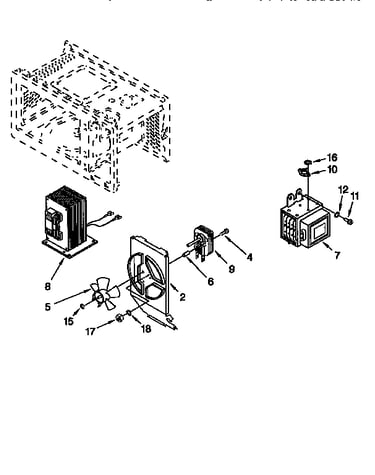

Magnetron and air flow diagram

Transformer

Part #4393370

The manufacturer no longer makes this part, and there's no substitute part

Choke Cover 4393381
#2A

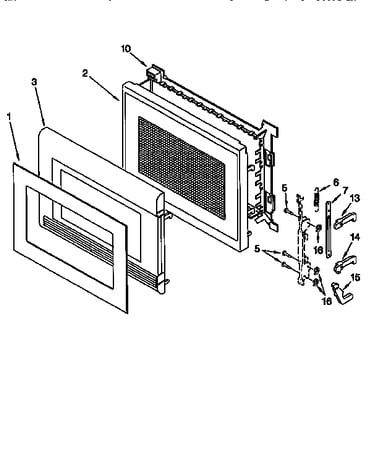

Door diagram

Choke cover

Part #4393381

The manufacturer no longer makes this part, and there's no substitute part

Fuse Block 4393307
#8

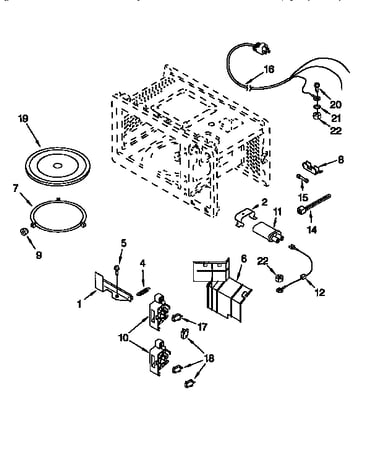

Interior diagram

Fuse block

Part #4393307

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 4393299
#17

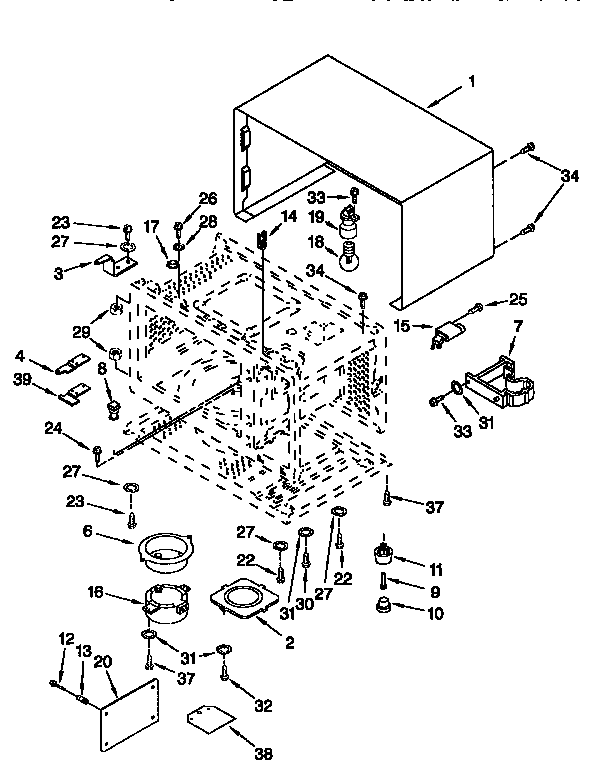

Cabinet diagram

Thermostat

Part #4393299

The manufacturer no longer makes this part, and there's no substitute part

Primary Switch 4393311
#18

Interior diagram

Primary switch

Part #4393311

The manufacturer no longer makes this part, and there's no substitute part
