Compact Refrigerator

Model # 46190445 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 46190445 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Foot 432.21
#24

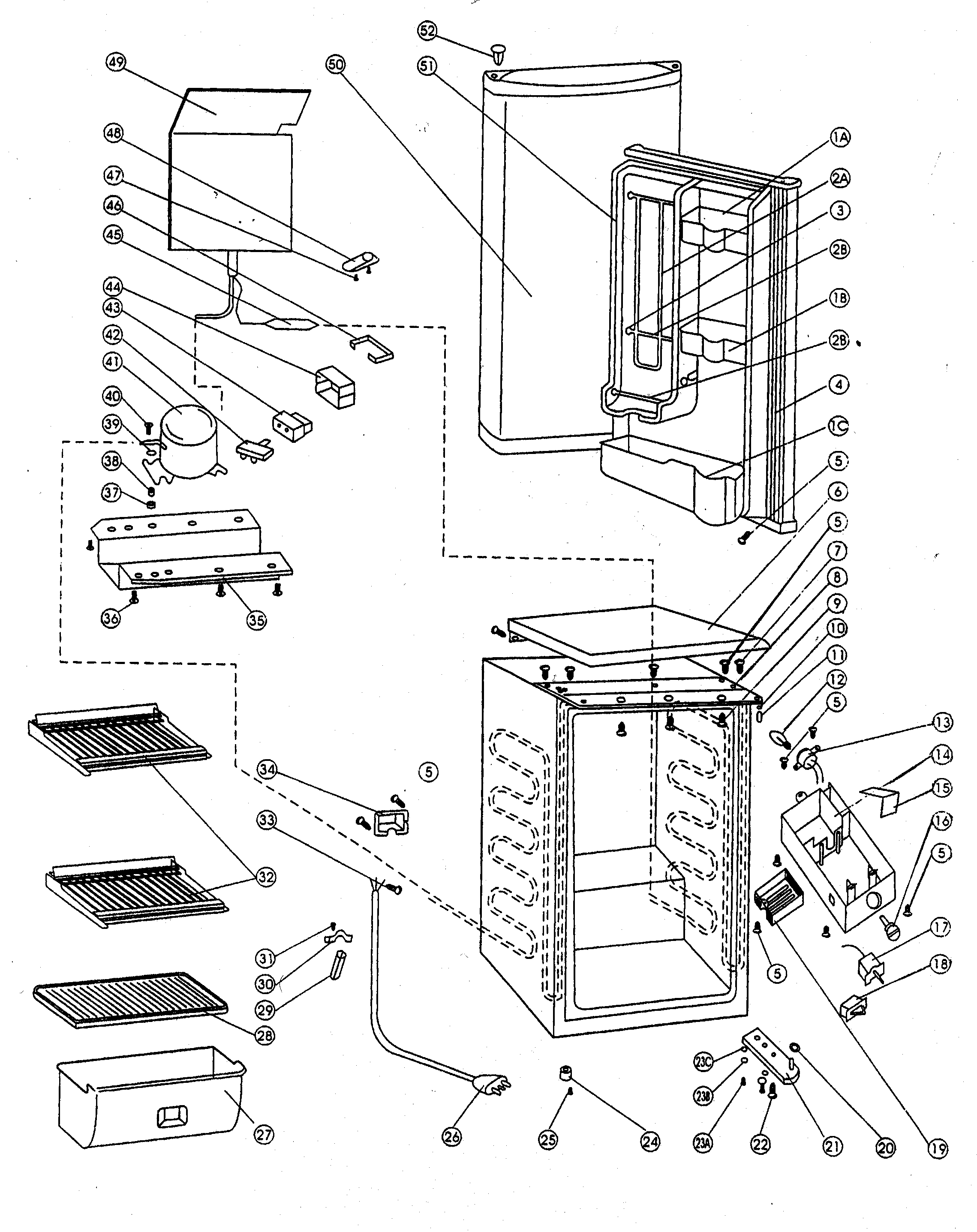

Refrigerator diagram

Foot

Part #432.21

Replaced by #1.25.02.12.06.001

?
Manufacturer substitution
This part replaces 432.21. Substitute parts can look different from the original.
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Ptc Cover 432.46
#44

Refrigerator diagram

Ptc cover

Part #432.46

Replaced by #PJ1-035-A

?
Manufacturer substitution
This part replaces 432.46. Substitute parts can look different from the original.
$70.53
In Stock
Starter 432.45
#43

Refrigerator diagram

Starter

Part #432.45

Replaced by #PJ1-035-A

?
Manufacturer substitution
This part replaces 432.45. Substitute parts can look different from the original.
$70.53
In Stock
Danby Refrigerator Filter Dryer 432.47
#45

Refrigerator diagram

Danby refrigerator filter dryer

Part #432.47

This item is not returnable
$3.80
In Stock
Thermostat 452.17
#17

Refrigerator diagram

Thermostat

Part #452.17

The manufacturer no longer makes this part, and there's no substitute part

Danby Refrigerator Door Bin 432.1A
#1A

Refrigerator diagram

Danby refrigerator door bin

Part #432.1A

Replaced by #1.02.04.03.001

?
Manufacturer substitution
This part replaces 432.1A. Substitute parts can look different from the original.
$20.63
In Stock
Hinge 432.11
#11

Refrigerator diagram

Hinge

Part #432.11

Replaced by #3.2.02.11.002

?
Manufacturer substitution
This part replaces 432.11. Substitute parts can look different from the original.
$8.18
In Stock
Refrigerator Can Support Bushing 432.3
#3

Refrigerator diagram

Refrigerator can support bushing

Part #432.3

Replaced by #1.04.12.03.013

?
Manufacturer substitution
This part replaces 432.3. Substitute parts can look different from the original.
This item is not returnable
$7.06
In Stock
Refrigerator Support Bar 432.2B
#2B

Refrigerator diagram

Refrigerator support bar

Part #432.2B

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Power Cord 432.23
#26

Refrigerator diagram

Refrigerator power cord

Part #432.23

The manufacturer no longer makes this part, and there's no substitute part
