Crosley
Upright Freezer

Model # WCF16W3 Official Crosley upright freezer

Here are the diagrams and repair parts for Official Crosley WCF16W3 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Light Bulb 1-34291-002
#3

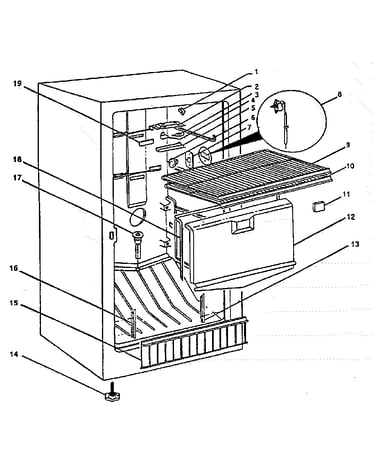

Cabinet parts diagram

Light bulb

Part #1-34291-002

The manufacturer no longer makes this part, and there's no substitute part

Compressor 0-90006-118
#6

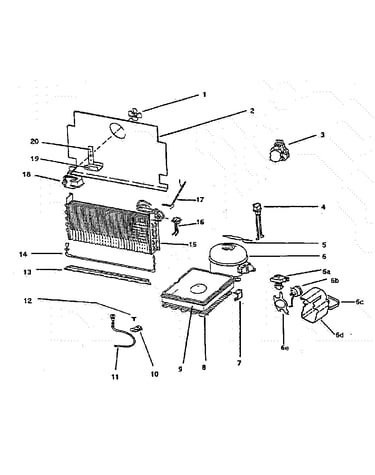

Compressor assy diagram

Compressor

Part #0-90006-118

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 3-60336-001
#18

Compressor assy diagram

Fan motor

Part #3-60336-001

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 1-80250-101
#1

Compressor assy diagram

Fan blade

Part #1-80250-101

The manufacturer no longer makes this part, and there's no substitute part

Heater 3-80405-001
#NI

Cabinet parts diagram

Heater

Part #3-80405-001

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 1-81801-001
#16

Compressor assy diagram

Thermostat

Part #1-81801-001

The manufacturer no longer makes this part, and there's no substitute part

Temperature Control 4-82398-001
#8

Cabinet parts diagram

Temperature control

Part #4-82398-001

The manufacturer no longer makes this part, and there's no substitute part

Gasket Assembly 0-90000-102
#5

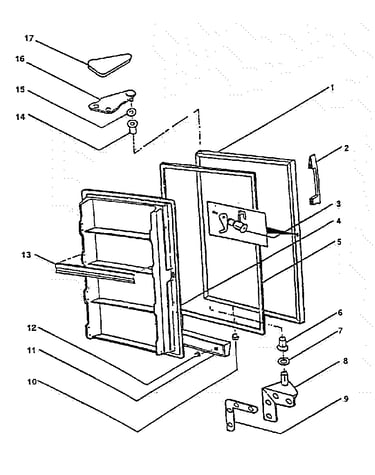

Door assy diagram

Gasket assembly

Part #0-90000-102

The manufacturer no longer makes this part, and there's no substitute part

Protector 2-34286-019
#6B

Compressor assy diagram

Protector

Part #2-34286-019

The manufacturer no longer makes this part, and there's no substitute part

Washer 1-20152
Washer

Part #1-20152

The manufacturer no longer makes this part, and there's no substitute part
