Model # 131974111 Official Craftsman 22" power-propelled lawn mower with rear bagger

Here are the diagrams and repair parts for Official Craftsman 131974111 22" power-propelled lawn mower with rear bagger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 118 parts  |

Selector Knob 77865
#53

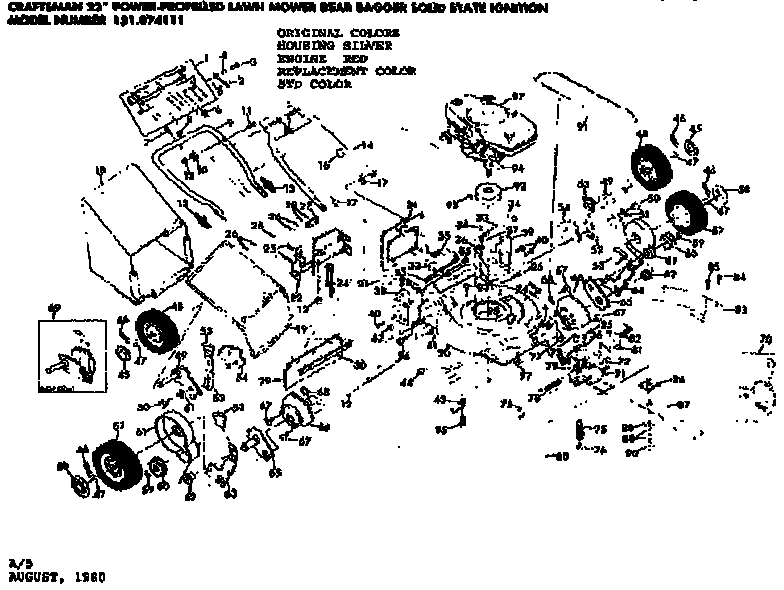

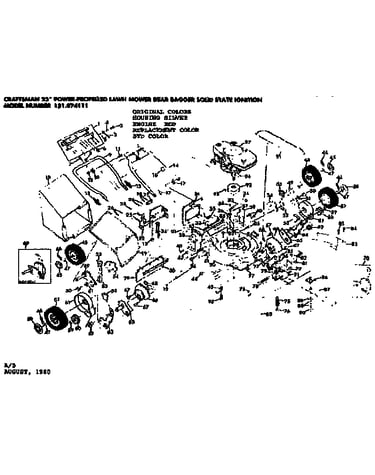

Replacement parts diagram

Selector knob

Part #77865

Replaced by #532701037

?
Manufacturer substitution
This part replaces 77865. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Handle Knob 58715
#13

Replacement parts diagram

Handle knob

Part #58715

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58715. Substitute parts can look different from the original.
This item is not returnable
$11.98
14% OFF Phone Price : $13.98
In Stock
Bolt 58714
#15

Replacement parts diagram

Bolt

Part #58714

Replaced by #532183724

?
Manufacturer substitution
This part replaces 58714. Substitute parts can look different from the original.
This item is not returnable
$11.98
14% OFF Phone Price : $13.98
In Stock
Lawn & Garden Equipment Bearing 77881
#3

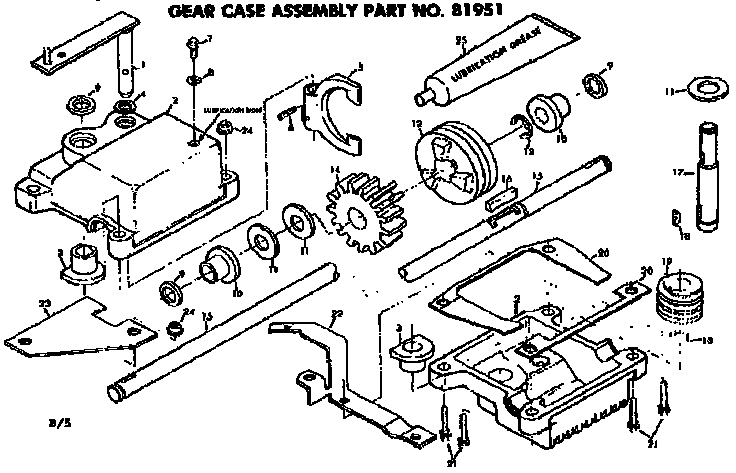

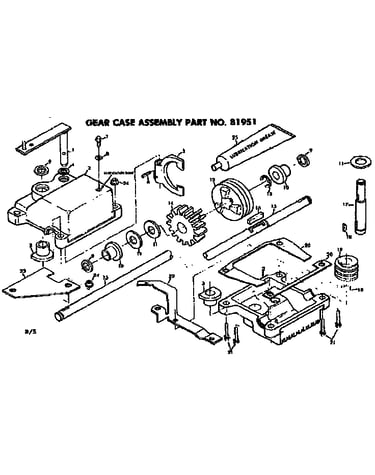

Gear case no 8195 diagram

Lawn & garden equipment bearing

Part #77881

Replaced by #532077881

?
Manufacturer substitution
This part replaces 77881. Substitute parts can look different from the original.
In Stock
Lawn Mower Retainer Clip, 4-pack 55015
#46

Replacement parts diagram

Lawn mower retainer clip, 4-pack

Part #55015

Replaced by #582934801

?
Manufacturer substitution
This part replaces 55015. Substitute parts can look different from the original.
This item is not returnable
In Stock
Decal 78850
#21

Replacement parts diagram

Decal

Part #78850

Replaced by #539913010

?
Manufacturer substitution
This part replaces 78850. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 55187
#40

Replacement parts diagram

Screw

Part #55187

Replaced by #532428867

?
Manufacturer substitution
This part replaces 55187. Substitute parts can look different from the original.
This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Lawn Tractor Transaxle Wheel Axle Oil Seal 57072
#9

Gear case no 8195 diagram

Lawn tractor transaxle wheel axle oil seal

Part #57072

Replaced by #532057072

?
Manufacturer substitution
This part replaces 57072. Substitute parts can look different from the original.
In Stock
Washer 52160
#47

Replacement parts diagram

Washer

Part #52160

Replaced by #596040101

?
Manufacturer substitution
This part replaces 52160. Substitute parts can look different from the original.
This item is not returnable
In Stock
Washer 62335
#51

Replacement parts diagram

Washer

Part #62335

Replaced by #532062335

?
Manufacturer substitution
This part replaces 62335. Substitute parts can look different from the original.
In Stock
