Hoover
Upright Vacuum

Model # U4147002 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4147002 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

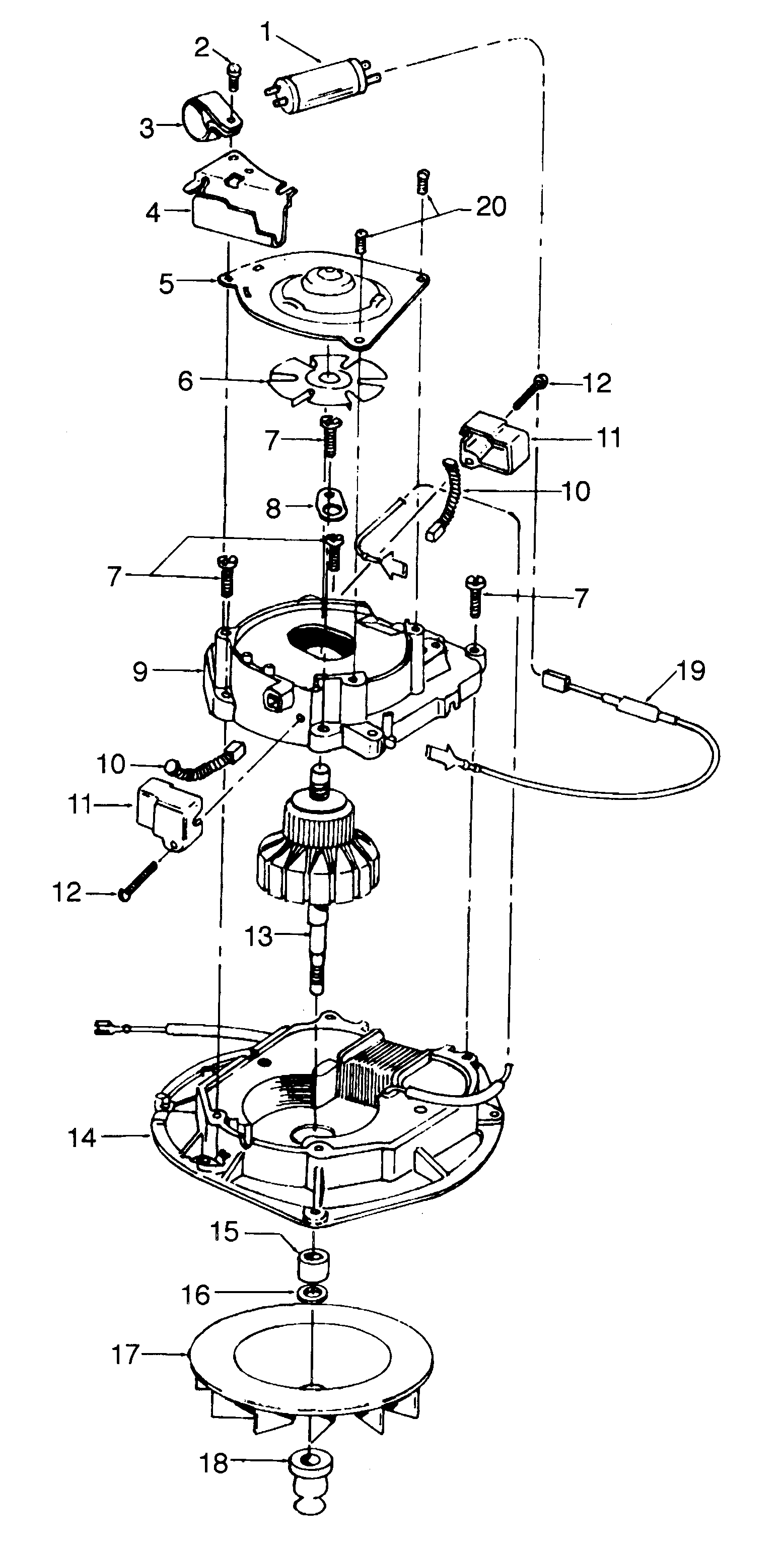

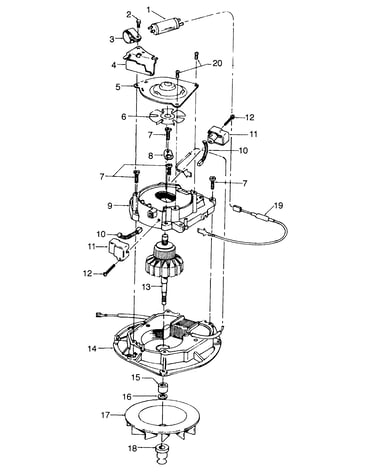

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |

Kenmore Crevice Tool 38617024
#11A

Cleaningtools diagram

Kenmore crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hoover Vacuum Bag, Type A, 3-pack 4010001A
#6

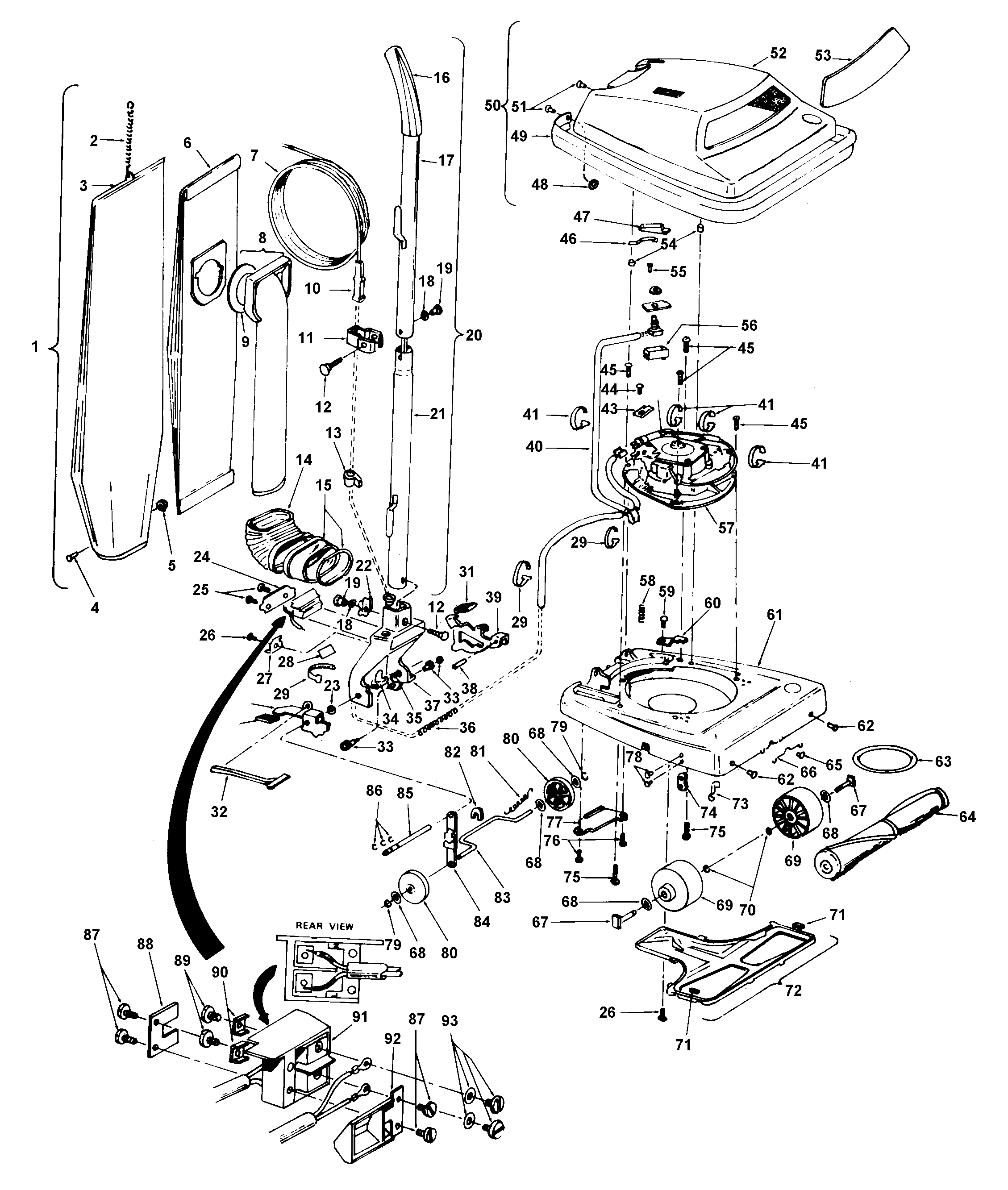

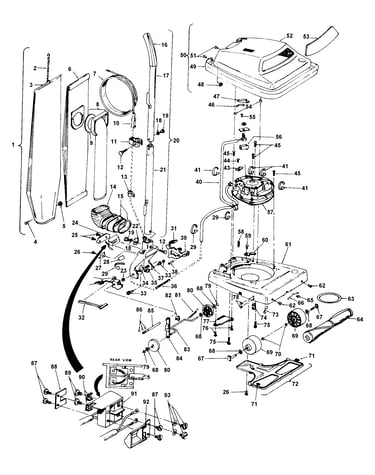

Agitator, handle, mainbody, outerbag diagram

Kenmore hoover vacuum bag, type a, 3-pack

Part #4010001A

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Crevice Tool 38617017
#11

Cleaningtools diagram

Kenmore vacuum crevice tool

Part #38617017

The manufacturer no longer makes this part, and there's no substitute part

Wbd Bag Fl 019907--
#34

Agitator, handle, mainbody, outerbag diagram

Wbd bag fl

Part #019907--

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring 017207AZ
#79

Agitator, handle, mainbody, outerbag diagram

Lock ring

Part #017207AZ

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Yoke 34252005
#82

Agitator, handle, mainbody, outerbag diagram

Kenmore yoke

Part #34252005

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#7A

Cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Handle Bolt 21631302
#12

Agitator, handle, mainbody, outerbag diagram

Kenmore handle bolt

Part #21631302

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Retaining Flange 35434040
#77

Agitator, handle, mainbody, outerbag diagram

Kenmore retaining flange

Part #35434040

The manufacturer no longer makes this part, and there's no substitute part

Support Plate 34355002
#74

Agitator, handle, mainbody, outerbag diagram

Support plate

Part #34355002

The manufacturer no longer makes this part, and there's no substitute part
