Model # DVG55A7700V/A3-00 Official Samsung dryer

Here are the diagrams and repair parts for Official Samsung DVG55A7700V-A3-00 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

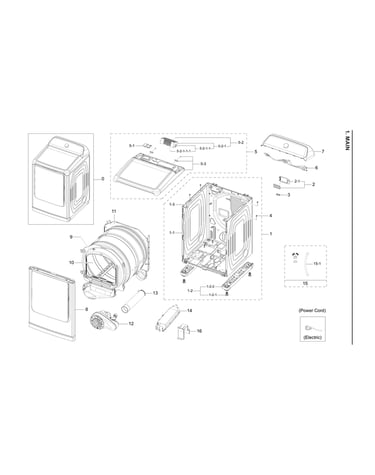

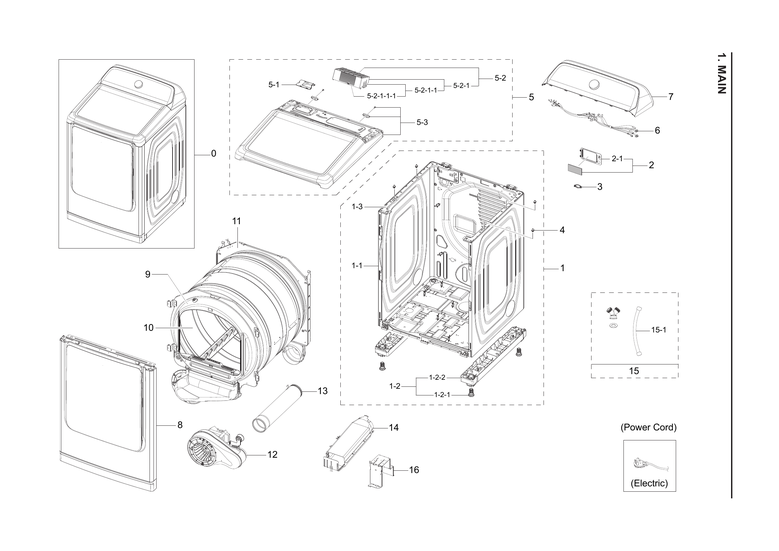

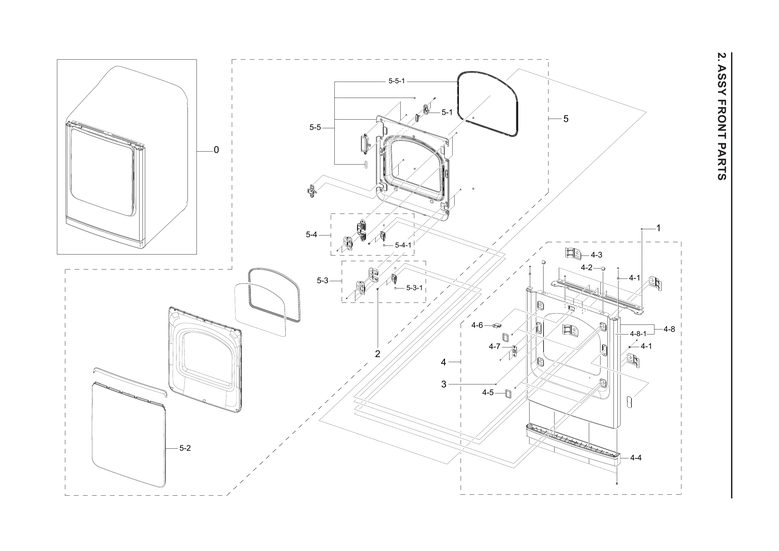

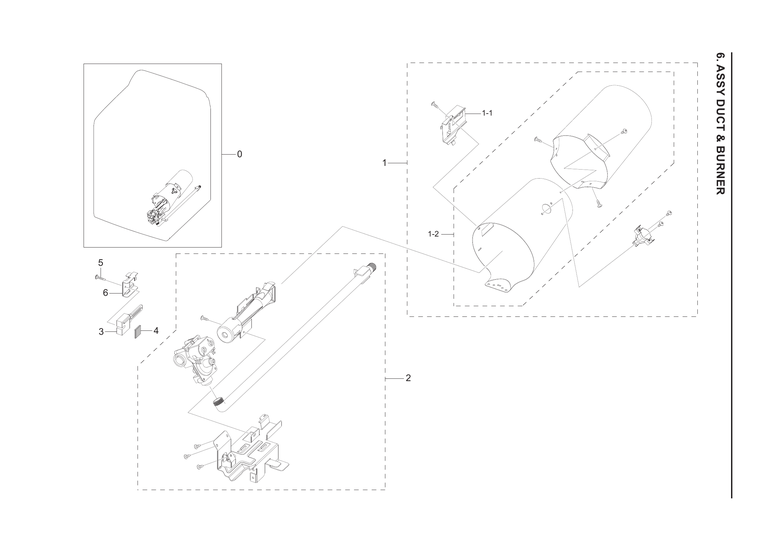

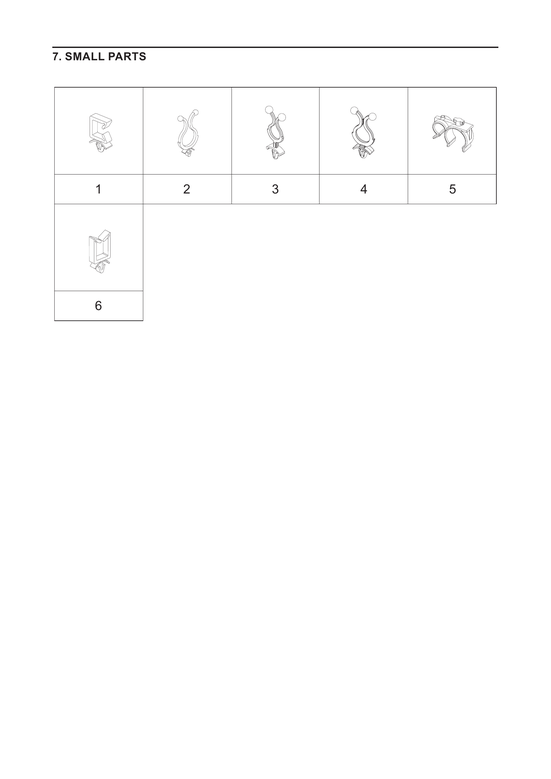

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Dryer Idler Assembly (replaces Dc96-00882b, Dc96-00882c) DC93-00634A
#2-8

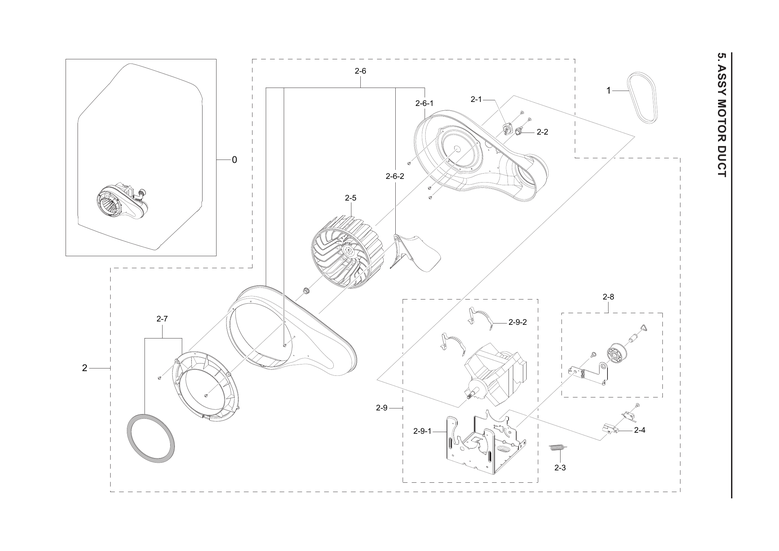

Motor duct assy diagram

Dryer idler assembly (replaces dc96-00882b, dc96-00882c)

Part #DC93-00634A

BEST SELLER
$52.65 |
10% OFF Phone Price : $58.65
In Stock
Dryer Drum Belt (replaces 6602-001314) 6602-001655
#1

Motor duct assy diagram

Dryer drum belt (replaces 6602-001314)

Part #6602-001655

BEST SELLER
$34.83 |
15% OFF Phone Price : $40.83
In Stock
Dryer Thermistor (replaces Dc32-0007a) DC32-00007A
#2-1

Motor duct assy diagram

Dryer thermistor (replaces dc32-0007a)

Part #DC32-00007A

BEST SELLER
$26.59 |
18% OFF Phone Price : $32.59
In Stock
Dryer Thermal Cut-off Thermostat DC47-00016A
#2-2

Motor duct assy diagram

Dryer thermal cut-off thermostat

Part #DC47-00016A

BEST SELLER
$26.34 |
19% OFF Phone Price : $32.34
In Stock
Dryer Drum Support Roller (replaces Dc97-16782b) DC97-16782E
Dryer drum support roller (replaces dc97-16782b)

Part #DC97-16782E

BEST SELLER
$70.49 |
8% OFF Phone Price : $76.49
In Stock
Dryer Motor And Blower Assembly DC93-00101U
#2

Motor duct assy diagram

Dryer motor and blower assembly

Part #DC93-00101U

BEST SELLER
This item is not returnable
$286.04 |
$12.00 OFF Phone Price : $298.04
In Stock
Dryer Blower Wheel (replaces Dc67-00180a) DC67-00180B
#2-5

Motor duct assy diagram

Dryer blower wheel (replaces dc67-00180a)

Part #DC67-00180B

BEST SELLER
$92.59 |
6% OFF Phone Price : $98.59
In Stock
Dryer Drive Motor Assembly DC96-00790G
#2-9

Motor duct assy diagram

Dryer drive motor assembly

Part #DC96-00790G

BEST SELLER
$197.40 |
6% OFF Phone Price : $209.40
In Stock
Dryer User Interface DC92-02401A
#4

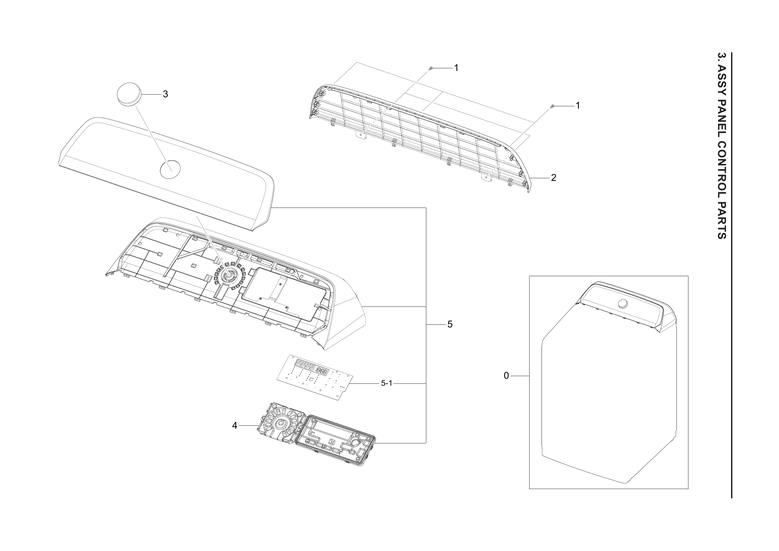

Control panel assy diagram

Dryer user interface

Part #DC92-02401A

BEST SELLER
$120.45 |
9% OFF Phone Price : $132.45
In Stock
Dryer Lint Screen Cover Spring DC61-02740A
#1-10-1

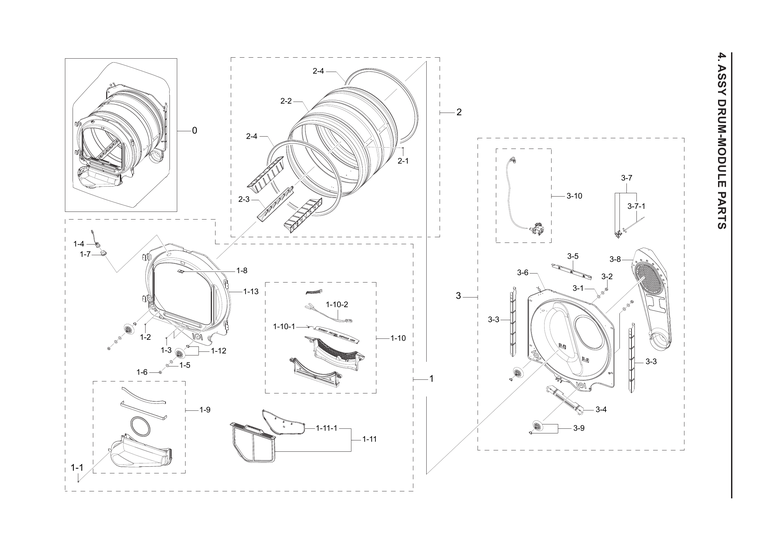

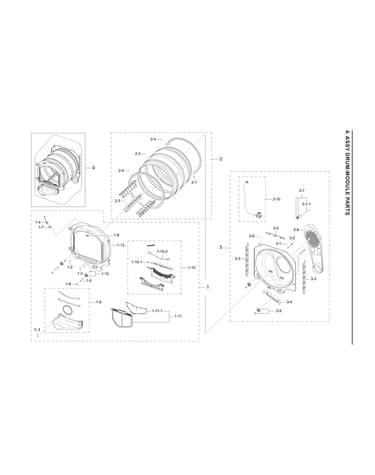

Drum-module assy diagram

Dryer lint screen cover spring

Part #DC61-02740A

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
