Model # 5.0AE Official AFG elliptical

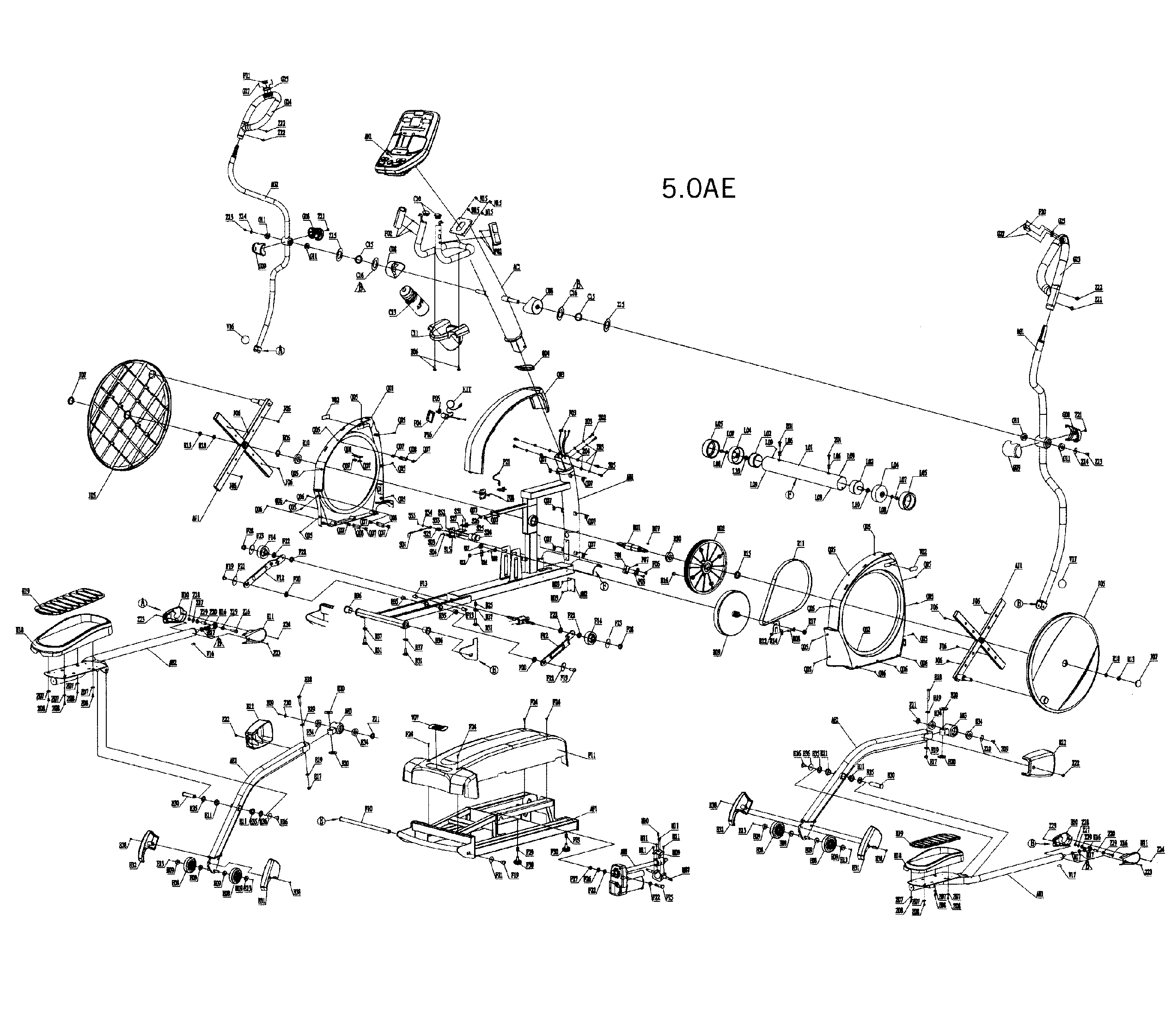

Here are the diagrams and repair parts for Official AFG 5.0AE elliptical, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
5.0AE Fitness & Exercise
Exercise equipment bearing
Part #004074-A4
$10.41
In Stock
#S02A
Elliptical diagram
Elliptical resistance motor
Part #012847-00
$145.89 |
8% OFF Phone Price : $157.89
In Stock
#F22
Elliptical diagram
Exercise equipment washer
Part #005196-00
This item is not returnable
$2.26
In Stock
#Z03
Elliptical diagram
Treadmill washer
Part #005005-00
This item is not returnable
$2.16
In Stock
#R12
Elliptical diagram
Nylon locking nut
Part #004931-00
This item is not returnable
$2.59
In Stock
#G23
Elliptical diagram
Afg cover
Part #098788
This item is not returnable
$7.13
In Stock
#P16
Elliptical diagram
Power socket
Part #063271-A
This item is not returnable
$6.12
In Stock
#NI
Elliptical diagram
Afg quick key
Part #1000095900
This item is not returnable
$5.24
In Stock
#M10
Elliptical diagram
Horizon screw
Part #066767-C
This item is not returnable
$2.16
In Stock
#E12
Elliptical diagram
Afg cover
Part #101702
$11.21
In Stock
Symptoms for elliptical machines
Choose a symptom to see related elliptical repairs.
Main causes: dead batteries, power supply failure, bad wiring connections, faulty control console…
Main causes: faulty reed switch, reed switch needs adjustment, wiring failure, bad control console…
Main cause: lack of lubrication on pivot points…
Main causes: weak batteries, loose wires, faulty control console…
Main causes: loose fastening bolts, damaged handle bars…
Main causes: dirty heart rate sensors, wiring failure, bad control console…
Main causes: leveling feet need to be adjusted, loose frame bolts, unstable flooring…
Main causes: bad resistance motor, faulty control console, wiring failure…
Repair guides for elliptical machines
These step-by-step repair guides will help you safely fix what’s broken on your elliptical.
How to replace an elliptical resistance motor
If the resistance motor is not changing the resistance on your elliptical, replace it using these steps.…
Repair difficulty
Time required
15 minutes or less
How to adjust an elliptical reed switch
If the console doesn't display the correct speed on your elliptical, adjust the reed switch using these steps.…
Repair difficulty
Time required
15 minutes or less
How to replace an elliptical console
If the console on your elliptical doesn't work, replace it by following these 3 easy steps.…
Repair difficulty
Time required
15 minutes or less
