Maytag
Top-Mount Refrigerator

Model # MRT118FFFZ07 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MRT118FFFZ07 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

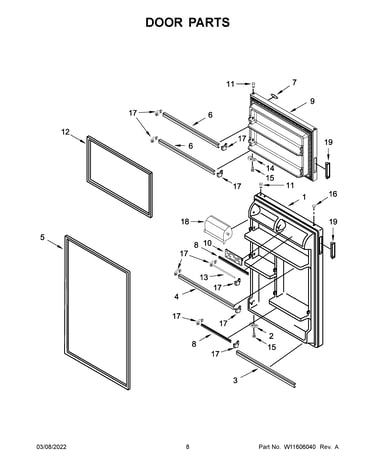

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Refrigerator Capacitor W10590083
#19

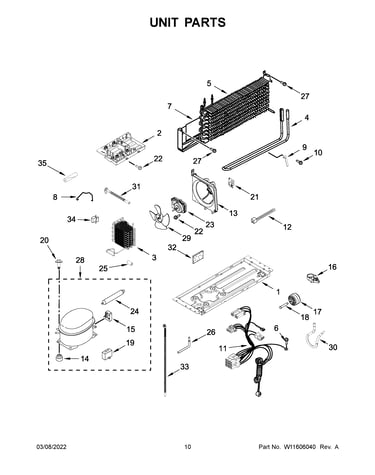

Unit parts diagram

Refrigerator capacitor

Part #W10590083

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Refrigerator Evaporator Fan Blade 2163777
#11

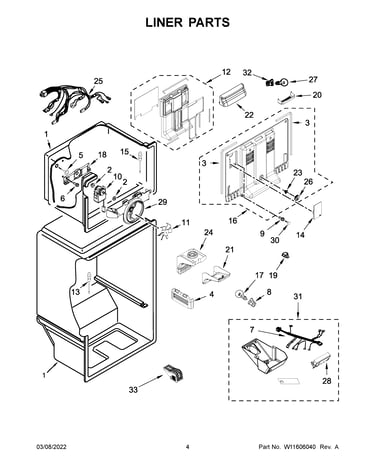

Liner parts diagram

Refrigerator evaporator fan blade

Part #2163777

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Drier Tube W10805035
#24

Unit parts diagram

Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Compressor T W11332033
#28

Unit parts diagram

Compressor t

Part #W11332033

Replaced by #W11580057

?
Manufacturer substitution
This part replaces W11332033. Substitute parts can look different from the original.
BEST SELLER
$273.33
In Stock
Refrigerator Track W10468555
#7

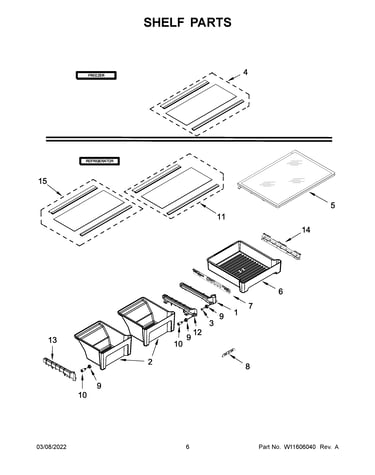

Shelf parts diagram

Refrigerator track

Part #W10468555

Replaced by #WPW10468555

?
Manufacturer substitution
This part replaces W10468555. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.18 |
14% OFF Phone Price : $14.18
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Thermistor, Refrigerator W11108173
#13

Liner parts diagram

Thermistor, refrigerator

Part #W11108173

Replaced by #W11438736

?
Manufacturer substitution
This part replaces W11108173. Substitute parts can look different from the original.
BEST SELLER
$46.67 |
11% OFF Phone Price : $52.67
In Stock
Touch Up Kit 72032
#NI

Optional parts diagram

Touch up kit

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Washer 489341
#13

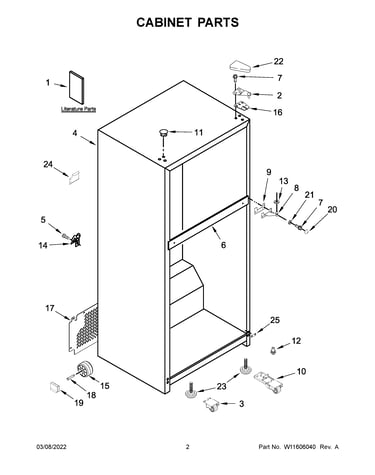

Cabinet parts diagram

Washer

Part #489341

Replaced by #WP489467

?
Manufacturer substitution
This part replaces 489341. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Light Socket 2162085
#8

Liner parts diagram

Light socket

Part #2162085

Replaced by #4387478

?
Manufacturer substitution
This part replaces 2162085. Substitute parts can look different from the original.
$62.74 |
9% OFF Phone Price : $68.74
In Stock
