Porter Cable
Router

Model # 1001-T2 Official Porter Cable router

Here are the diagrams and repair parts for Official Porter Cable 1001-T2 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Guide Pin 800835
#111

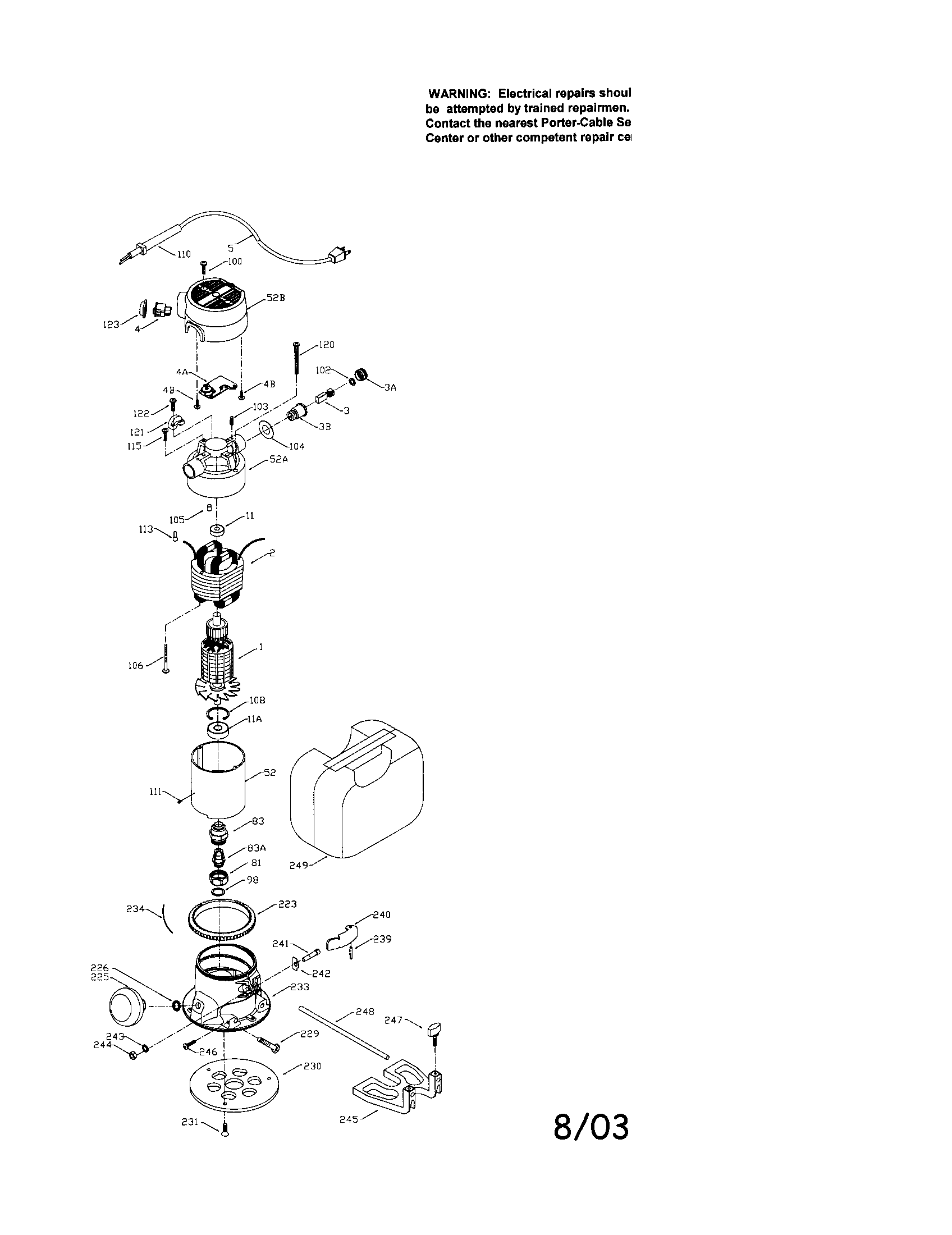

Router diagram

Guide pin

Part #800835

The manufacturer no longer makes this part, and there's no substitute part

Fan 874299

#NI01

All parts diagram

Fan

Part #874299

The manufacturer no longer makes this part, and there's no substitute part

Screw 878262
#122

Router diagram

Screw

Part #878262

The manufacturer no longer makes this part, and there's no substitute part

Ring 872998
#223

Router diagram

Ring

Part #872998

The manufacturer no longer makes this part, and there's no substitute part

Knob Screw 802306
#229

Router diagram

Knob screw

Part #802306

The manufacturer no longer makes this part, and there's no substitute part

Router Collet, 1/2-in 876671
#83D

Router diagram

Router collet, 1/2-in

Part #876671

The manufacturer no longer makes this part, and there's no substitute part

Guide Rod 824588
#248

Router diagram

Guide rod

Part #824588

The manufacturer no longer makes this part, and there's no substitute part

Plug 842597
#105

Router diagram

Plug

Part #842597

The manufacturer no longer makes this part, and there's no substitute part

Connector 682063
#113

Router diagram

Connector

Part #682063

The manufacturer no longer makes this part, and there's no substitute part

Knob 882810
#247

Router diagram

Knob

Part #882810

The manufacturer no longer makes this part, and there's no substitute part
