Model # 234796900 Official Craftsman gas line trimmer

Here are the diagrams and repair parts for Official Craftsman 234796900 gas line trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

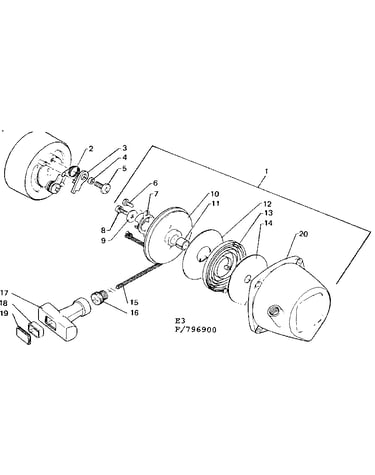

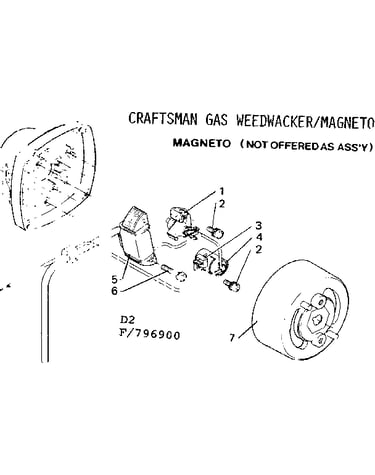

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Diaphragm 6826-00
#4

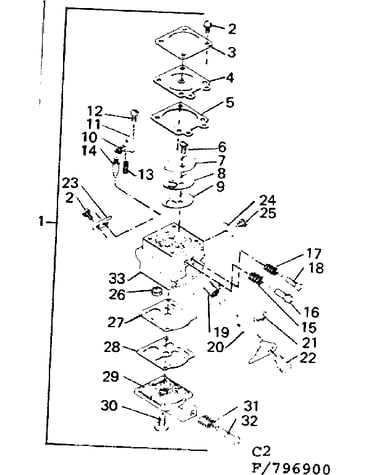

Carburetor diagram

Diaphragm

Part #6826-00

Replaced by #503896701

?
Manufacturer substitution
This part replaces 6826-00. Substitute parts can look different from the original.
This item is not returnable
$65.02
In Stock
Screen 6846-00
#26

Carburetor diagram

Screen

Part #6846-00

Replaced by #530035178

?
Manufacturer substitution
This part replaces 6846-00. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Valve 6836-00
#14

Carburetor diagram

Valve

Part #6836-00

Replaced by #503117001

?
Manufacturer substitution
This part replaces 6836-00. Substitute parts can look different from the original.
$28.89
In Stock
Screw 6834-00
#12

Carburetor diagram

Screw

Part #6834-00

The manufacturer no longer makes this part, and there's no substitute part

Ring 6887-00
#42

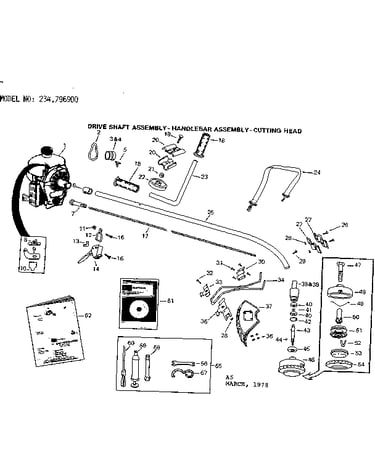

Handlebar and drive shaft assembly diagram

Ring

Part #6887-00

The manufacturer no longer makes this part, and there's no substitute part

Cap 8784-00
#49

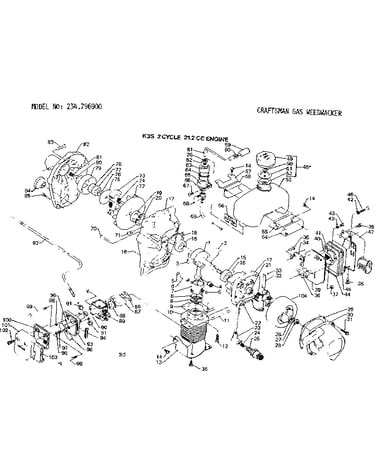

Engine diagram

Cap

Part #8784-00

The manufacturer no longer makes this part, and there's no substitute part

Drive Gear 8583-01
#50

Handlebar and drive shaft assembly diagram

Drive gear

Part #8583-01

The manufacturer no longer makes this part, and there's no substitute part

Shaft 6888-00
#43

Handlebar and drive shaft assembly diagram

Shaft

Part #6888-00

The manufacturer no longer makes this part, and there's no substitute part

Spacer 6886-00
#41

Handlebar and drive shaft assembly diagram

Spacer

Part #6886-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 6843-00
#19

Carburetor diagram

Spring

Part #6843-00

The manufacturer no longer makes this part, and there's no substitute part
