Amana
Top-Mount Refrigerator

Model # ART318FFDS10 Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana ART318FFDS10 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

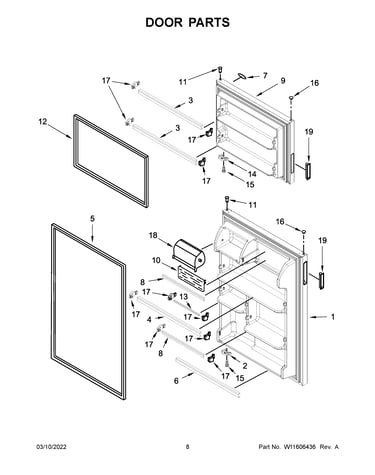

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 161 parts  |
Refrigerator Thermistor W10384183
#15

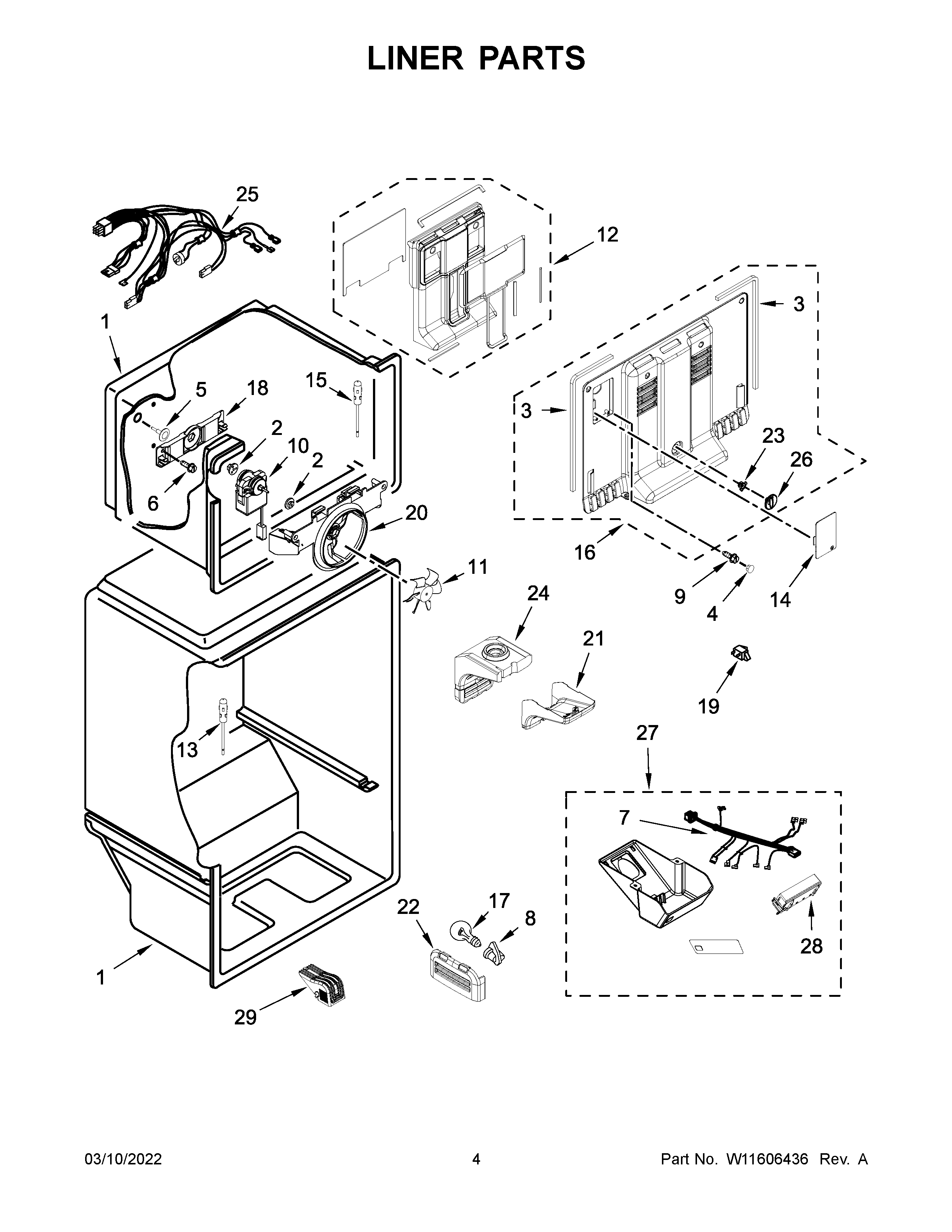

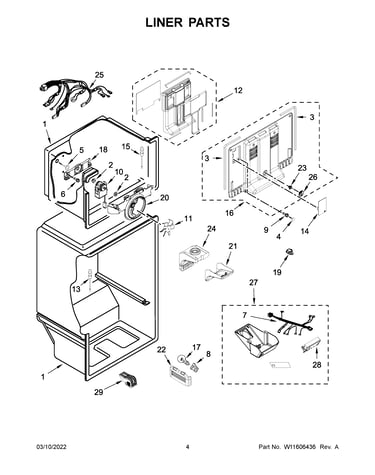

Liner parts diagram

Refrigerator thermistor

Part #W10384183

The manufacturer no longer makes this part, and there's no substitute part

Switch- Rock W10847853
#19

Liner parts diagram

Switch- rock

Part #W10847853

Replaced by #W11384469

?
Manufacturer substitution
This part replaces W10847853. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Refrigerator Ice Maker Kit (replaces W11534202, Wpw10715708) W11510803
#NI

Optional parts diagram

Refrigerator ice maker kit (replaces w11534202, wpw10715708)

Part #W11510803

BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
In Stock
Drier Tube W10805035
#24

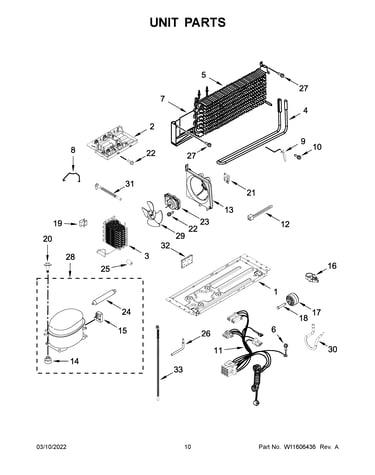

Unit parts diagram

Drier tube

Part #W10805035

Replaced by #W11109499

?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
BEST SELLER
$24.38 |
20% OFF Phone Price : $30.38
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Touch Up Kit 72032
#NI

Optional parts diagram

Touch up kit

Part #72032

Replaced by #72032

?
Manufacturer substitution
This part replaces 72032. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Washer 489341
#13

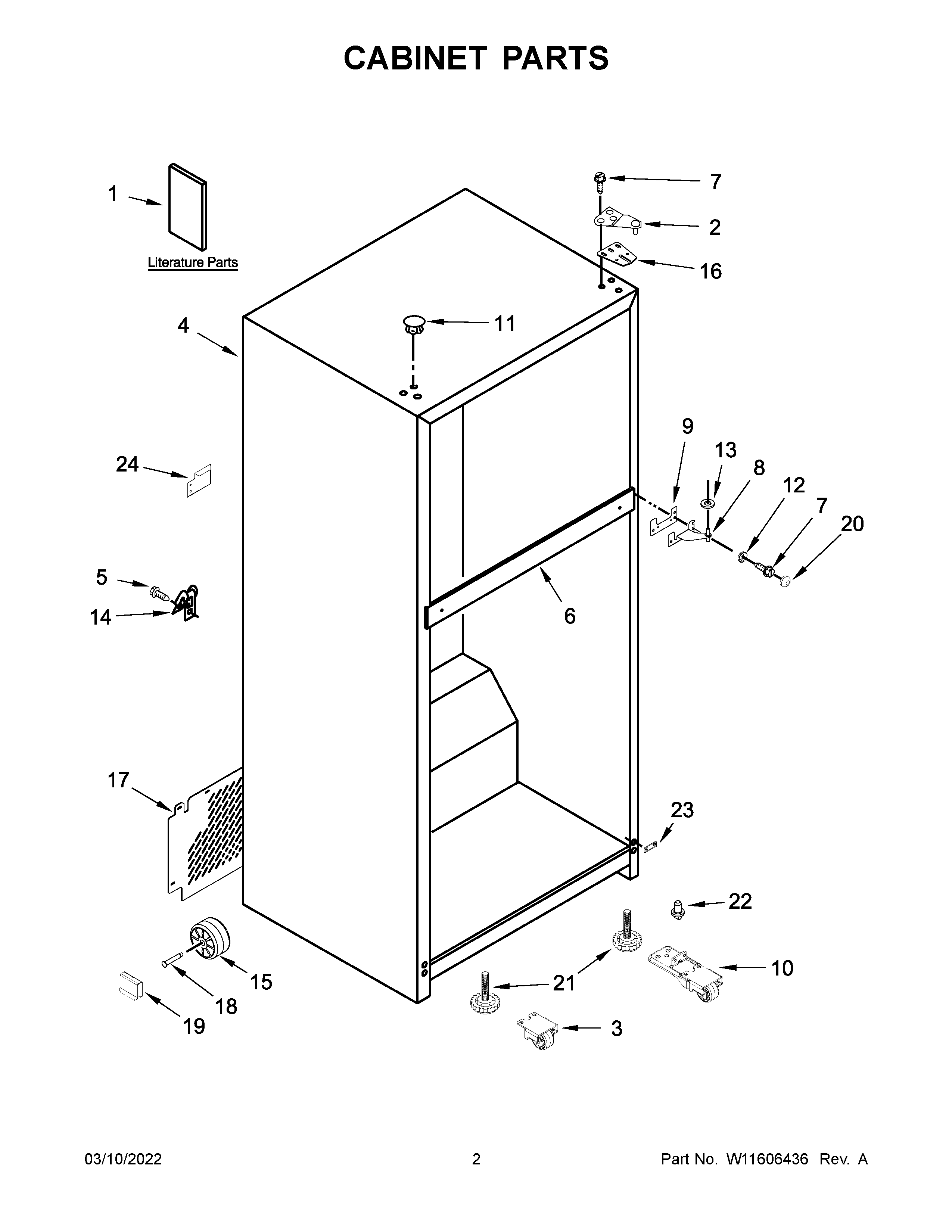

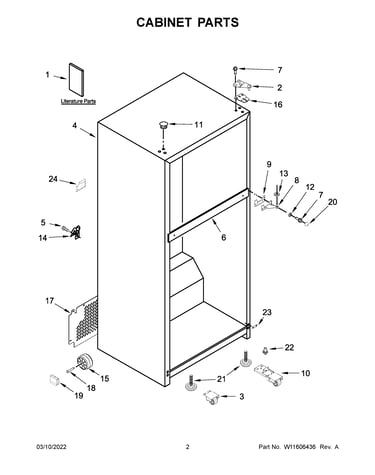

Cabinet parts diagram

Washer

Part #489341

Replaced by #WP489467

?
Manufacturer substitution
This part replaces 489341. Substitute parts can look different from the original.
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Light Socket 2162085
#8

Liner parts diagram

Light socket

Part #2162085

Replaced by #4387478

?
Manufacturer substitution
This part replaces 2162085. Substitute parts can look different from the original.
$62.74 |
9% OFF Phone Price : $68.74
In Stock
Refrigerator Screw 489497
#7

Cabinet parts diagram

Refrigerator screw

Part #489497

Replaced by #WP489497

?
Manufacturer substitution
This part replaces 489497. Substitute parts can look different from the original.
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Pan Roller W10628713
#9

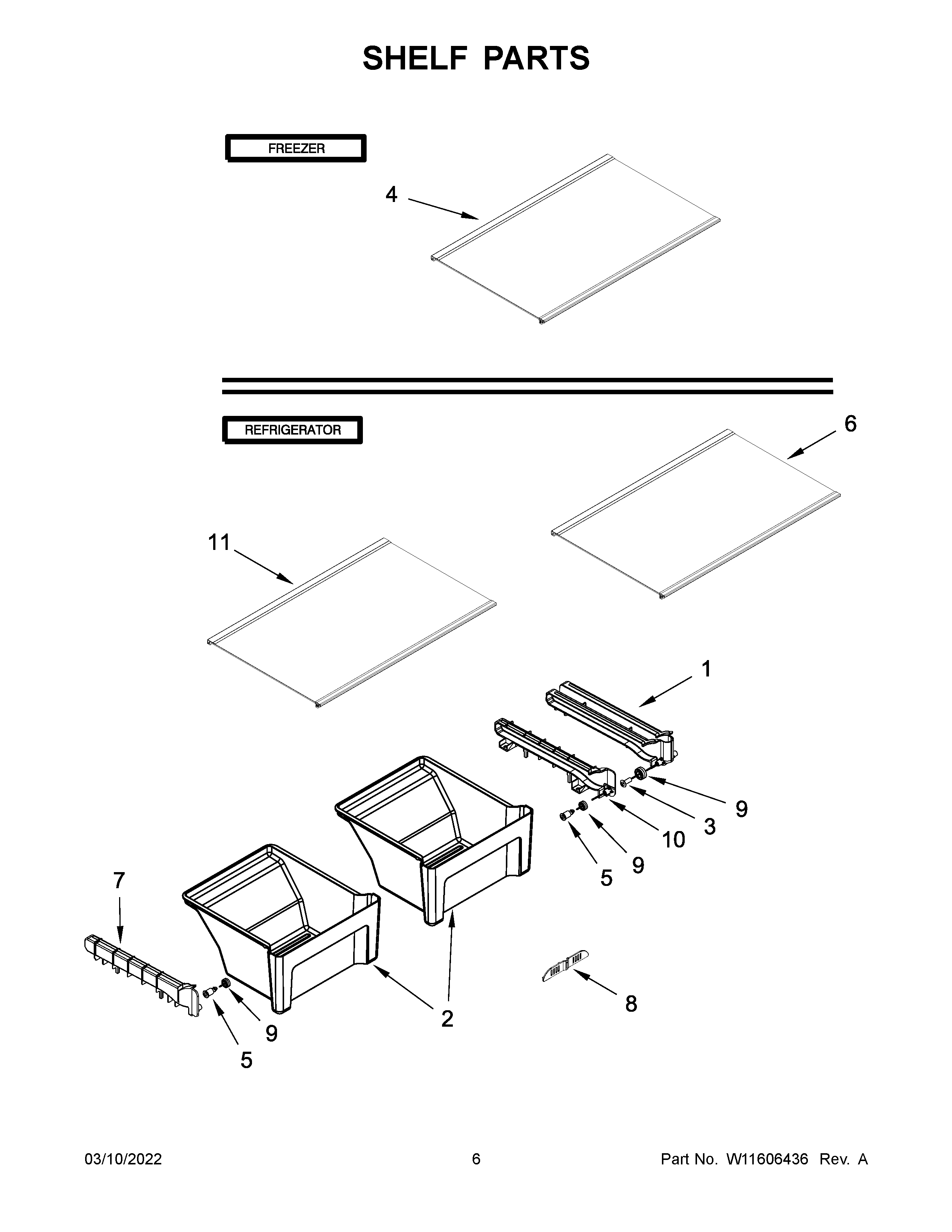

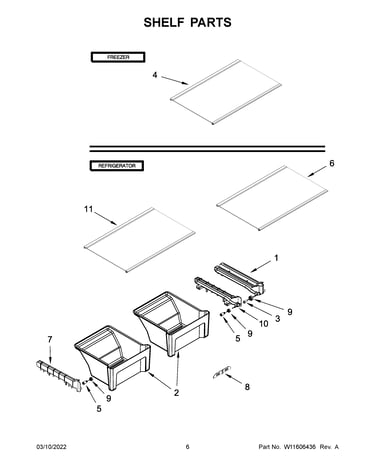

Shelf parts diagram

Pan roller

Part #W10628713

Replaced by #W11164152

?
Manufacturer substitution
This part replaces W10628713. Substitute parts can look different from the original.
$9.80 |
9% OFF Phone Price : $10.80
In Stock
