Model # MDB4651AWB42 Official Maytag dishwasher
Here are the diagrams and repair parts for Official Maytag MDB4651AWB42 dishwasher, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

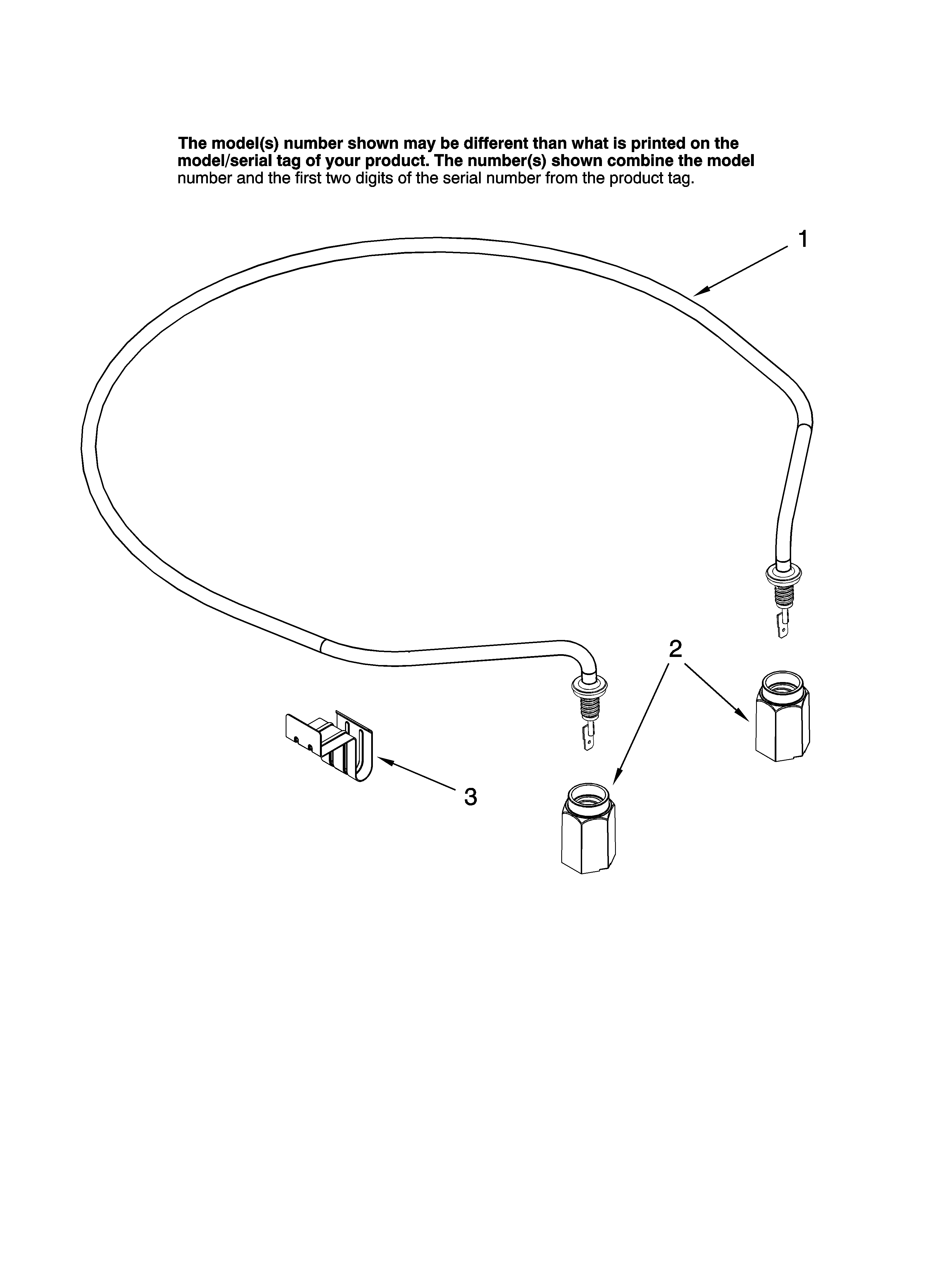

SELECT DIAGRAM
Browse Parts forMDB4651AWB42 Dishwasher
- #2

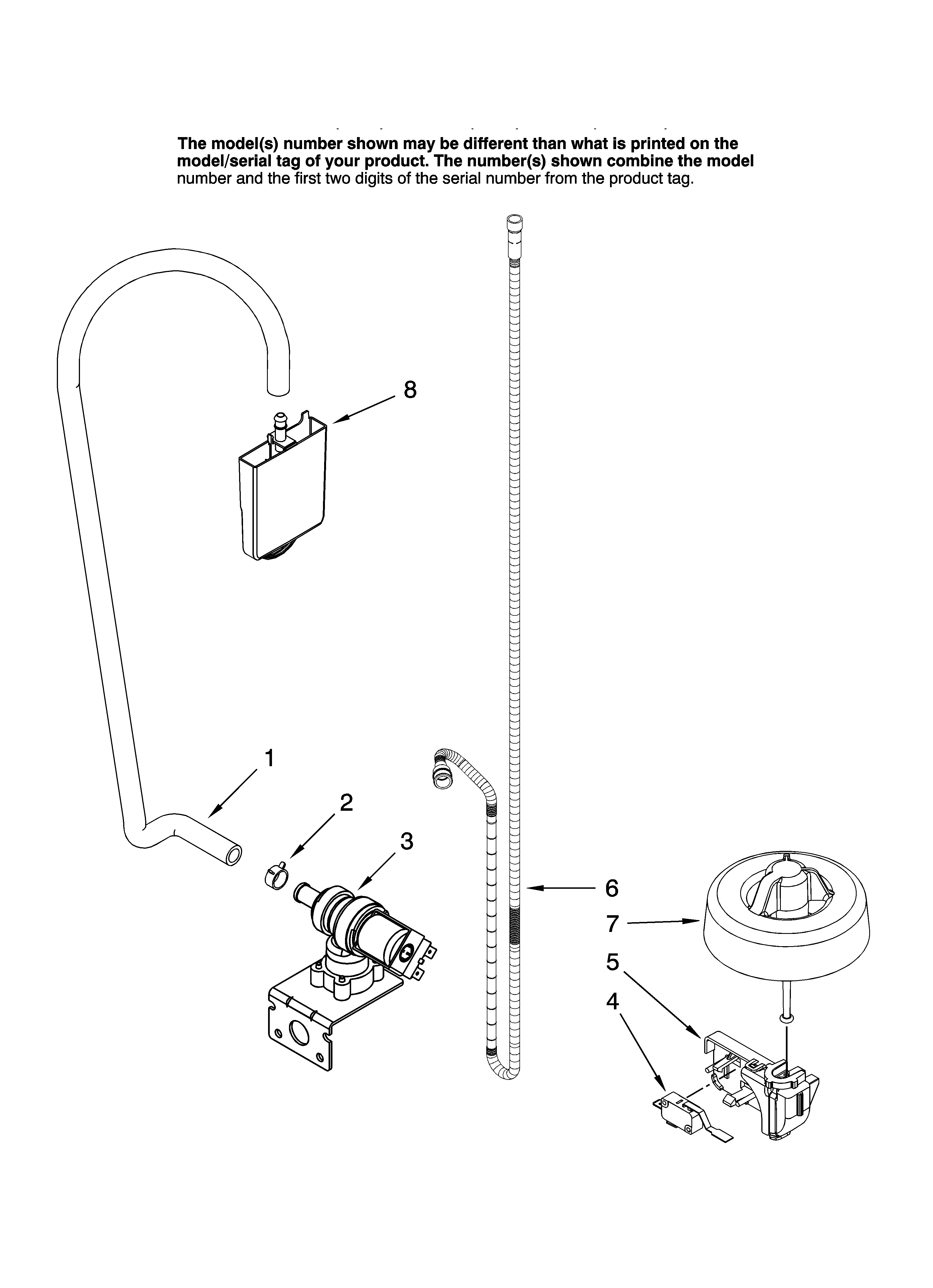

Fill and overfill parts diagram
Clamp springPart #911856
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 911856. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #6

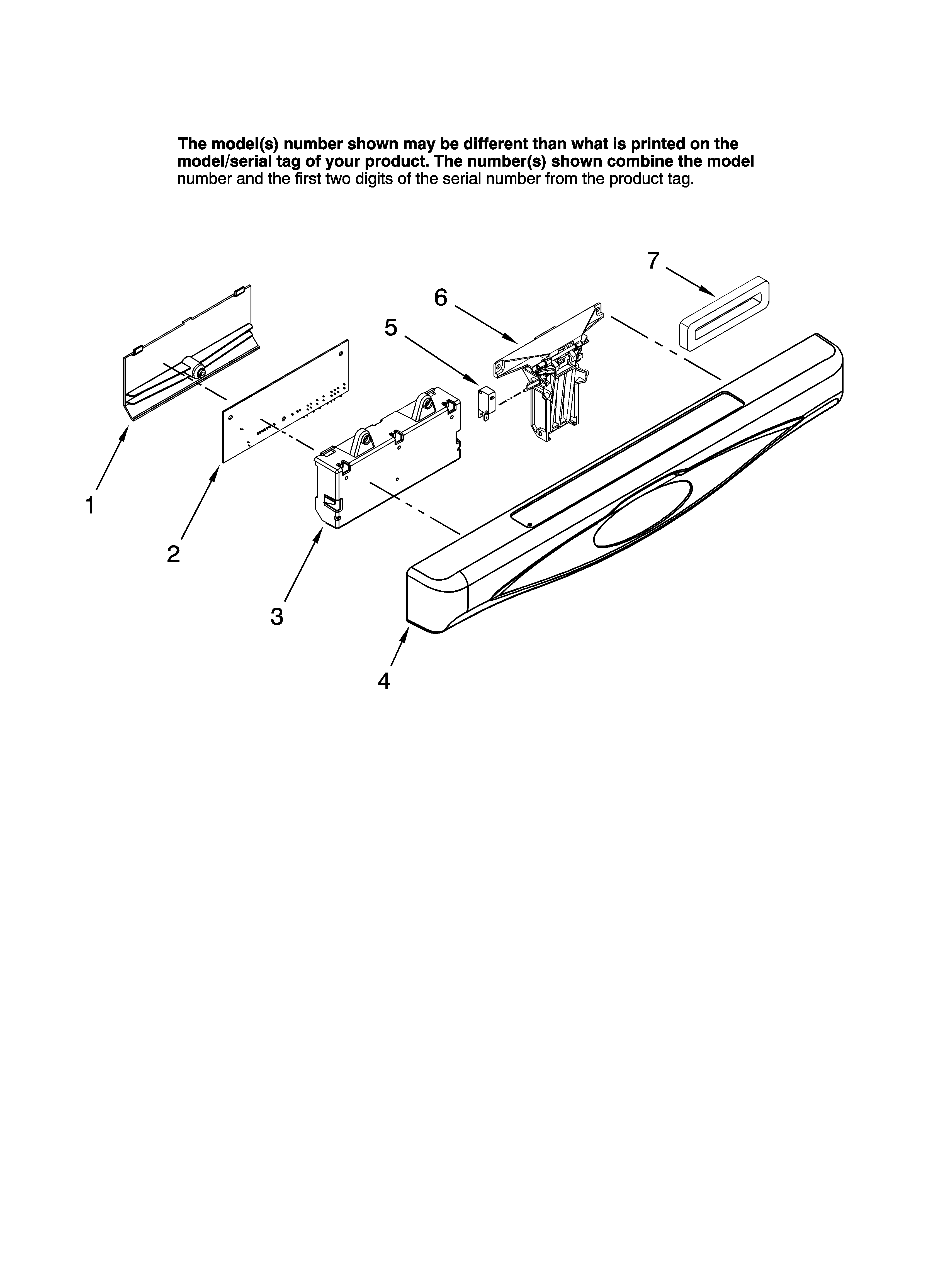

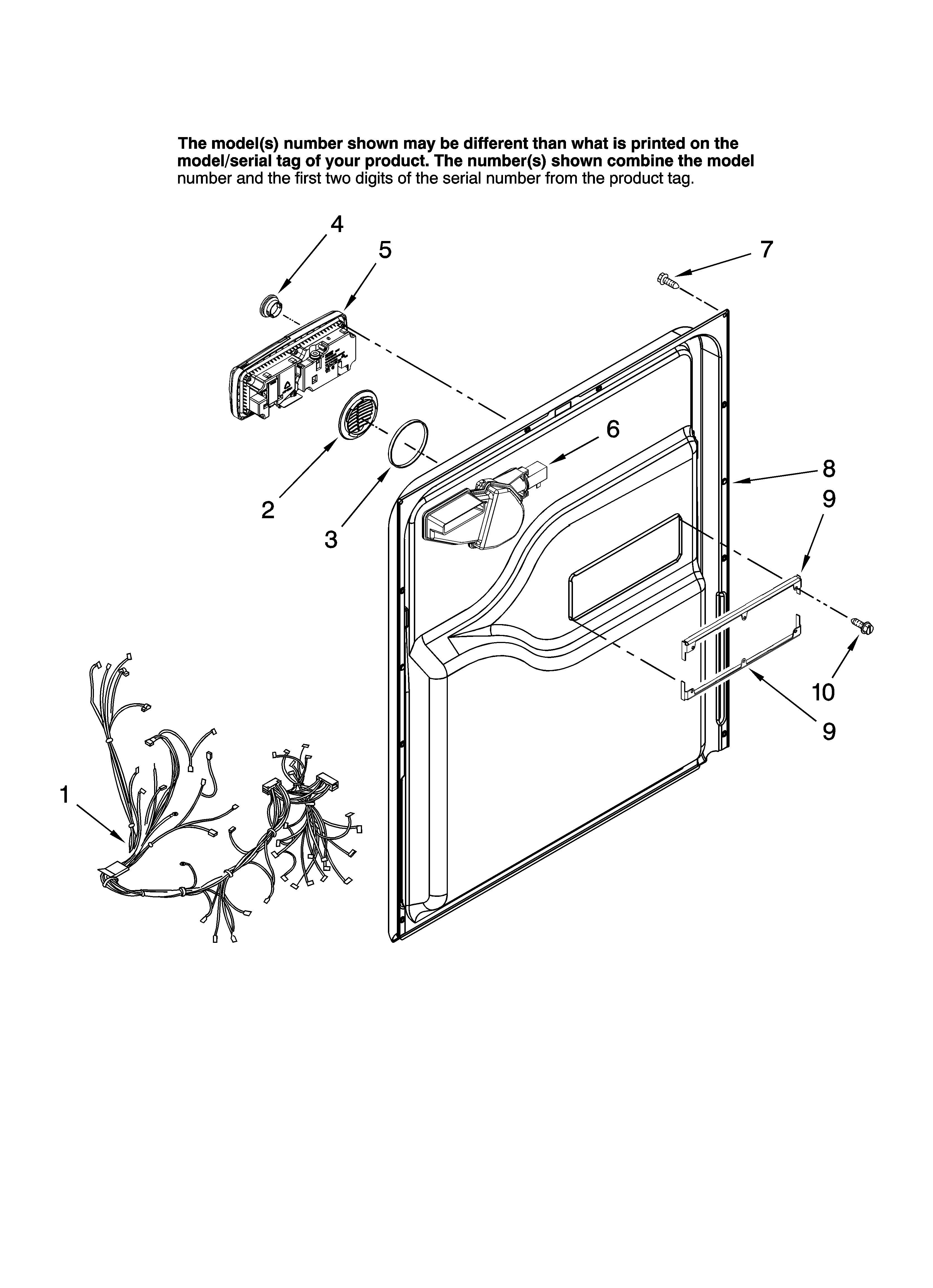

Control panel parts diagram
Dishwasher door latchPart #99003347
Replaced by #WPW10275768
?Manufacturer substitutionThis part replaces 99003347. Substitute parts can look different from the original.$43.27 |12% OFF Phone Price : $49.27In Stock - #10

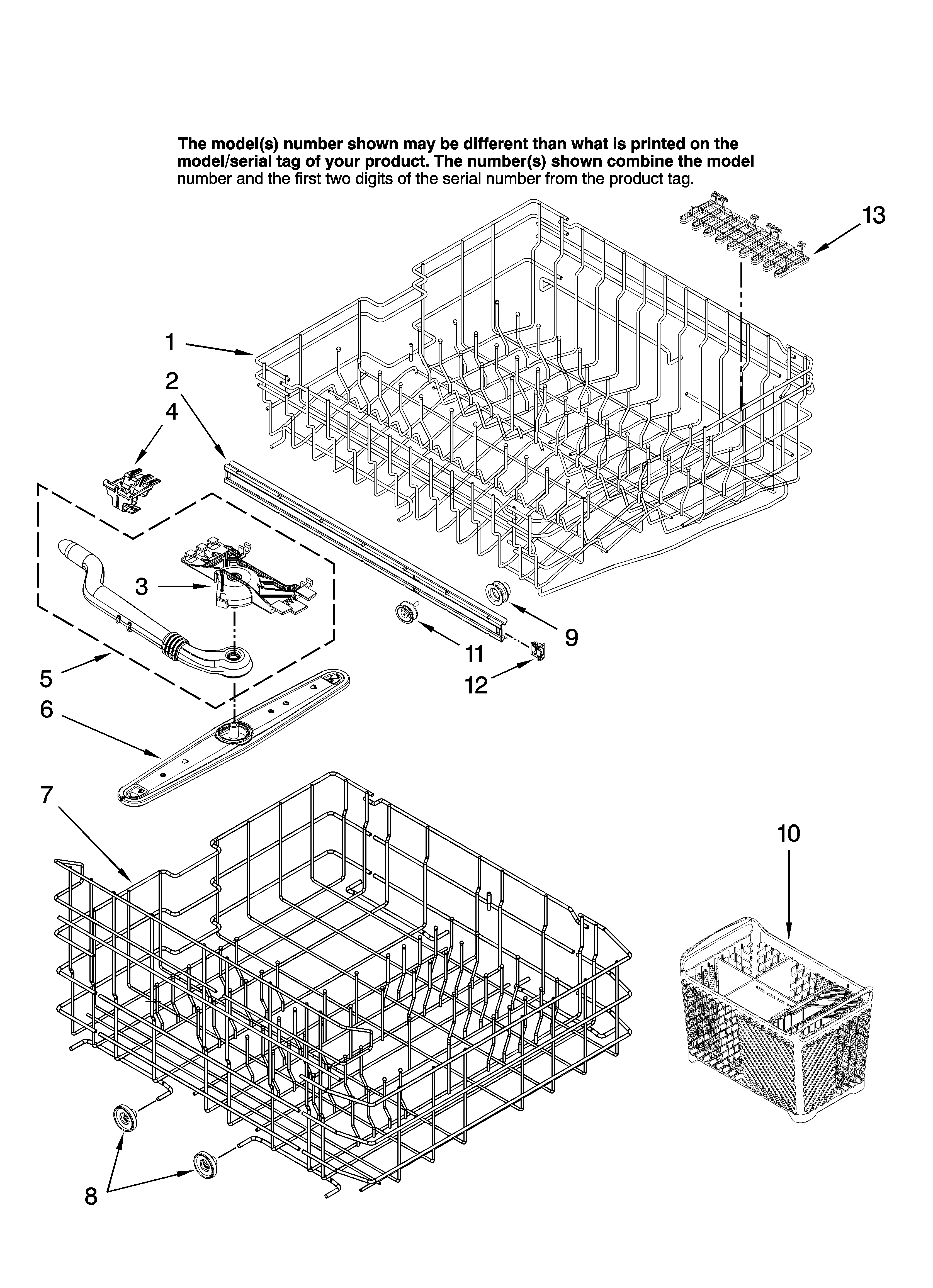

Upper and lower rack parts diagram
Silverware basketPart #W10171734
Replaced by #WP6-918873
?Manufacturer substitutionThis part replaces W10171734. Substitute parts can look different from the original.$27.67 |18% OFF Phone Price : $33.67In Stock - #11

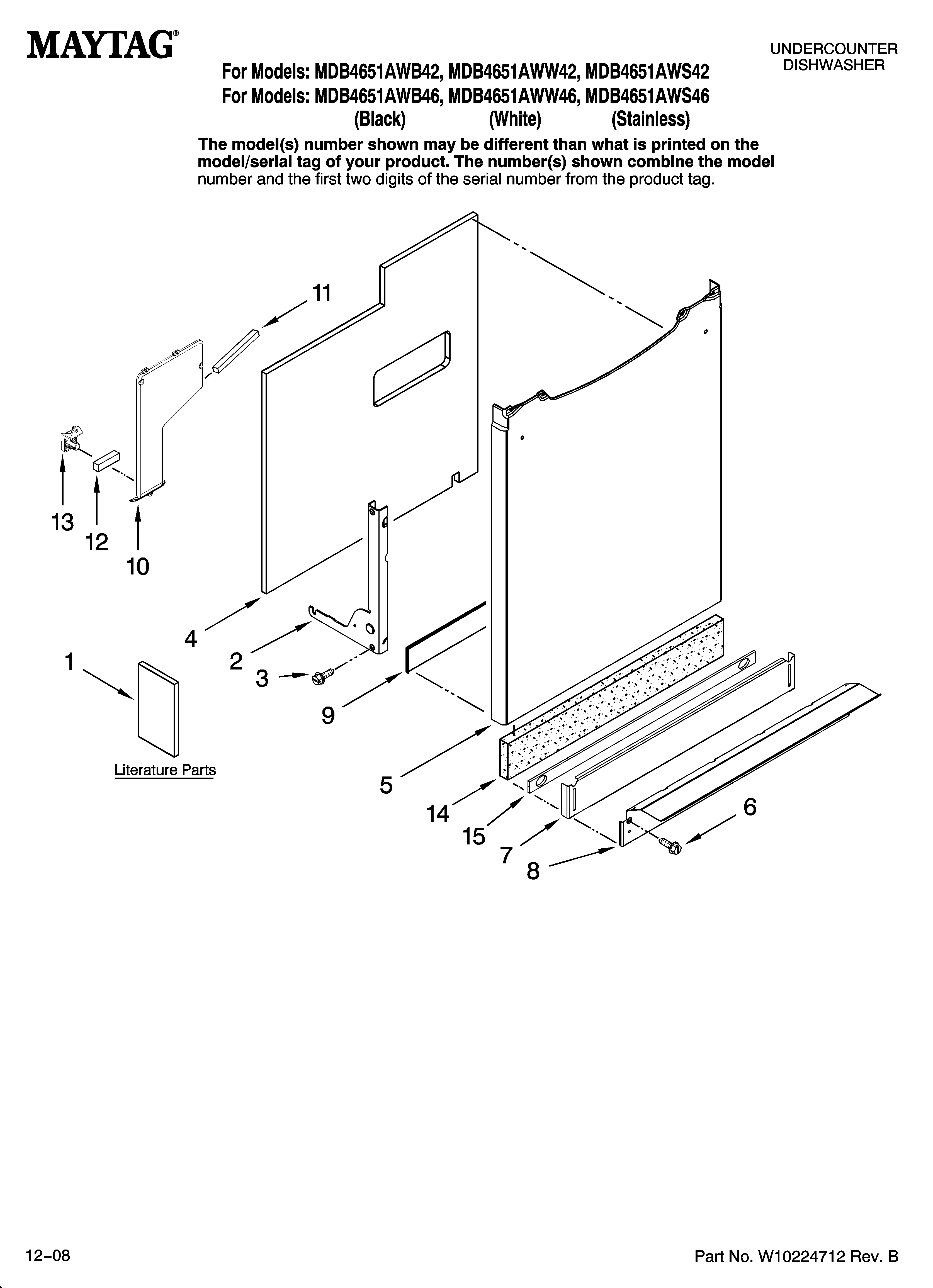

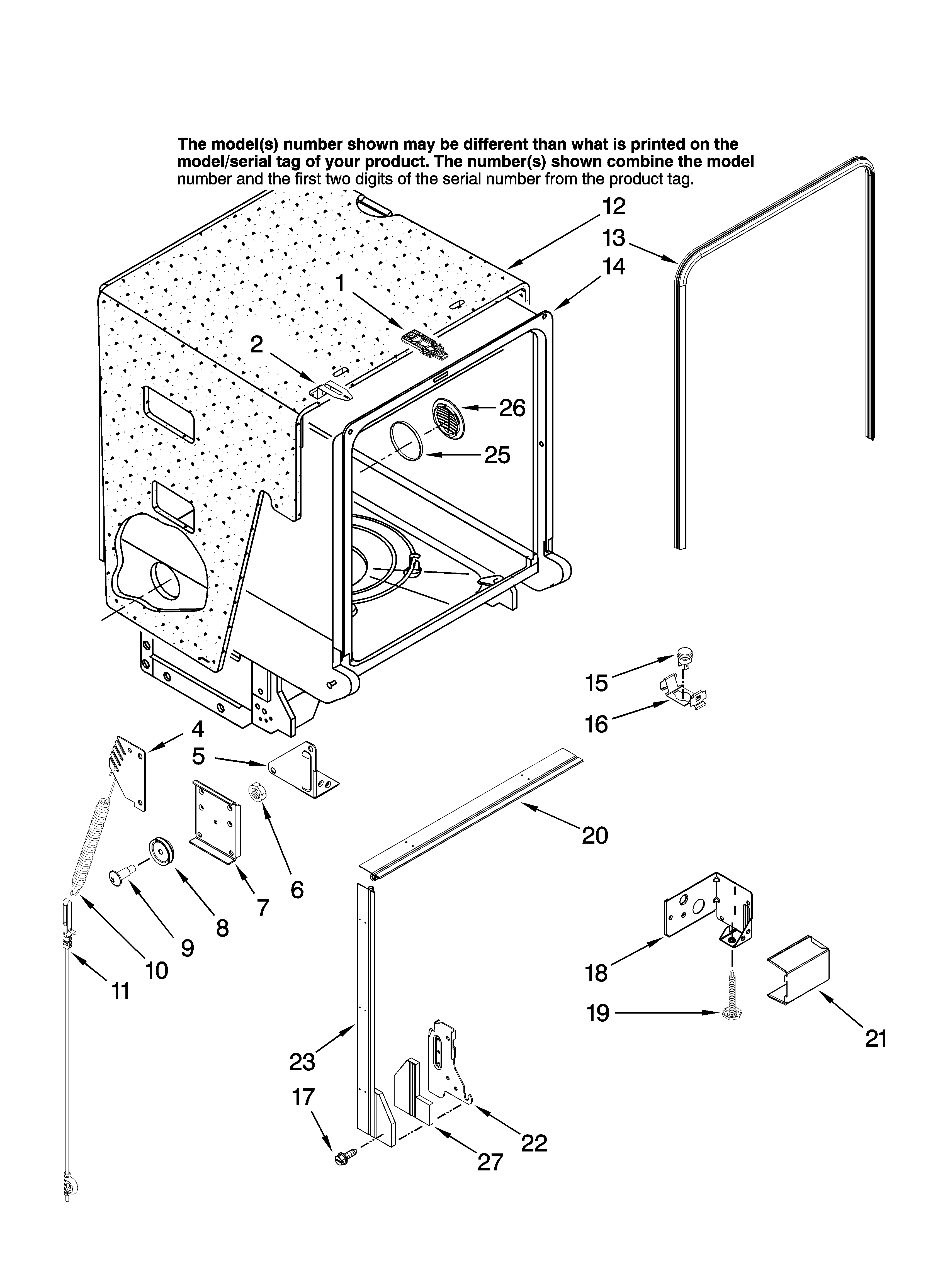

Tub and frame parts diagram
Dishwasher door cablePart #99003446
The manufacturer no longer makes this part, and there's no substitute part
- #1

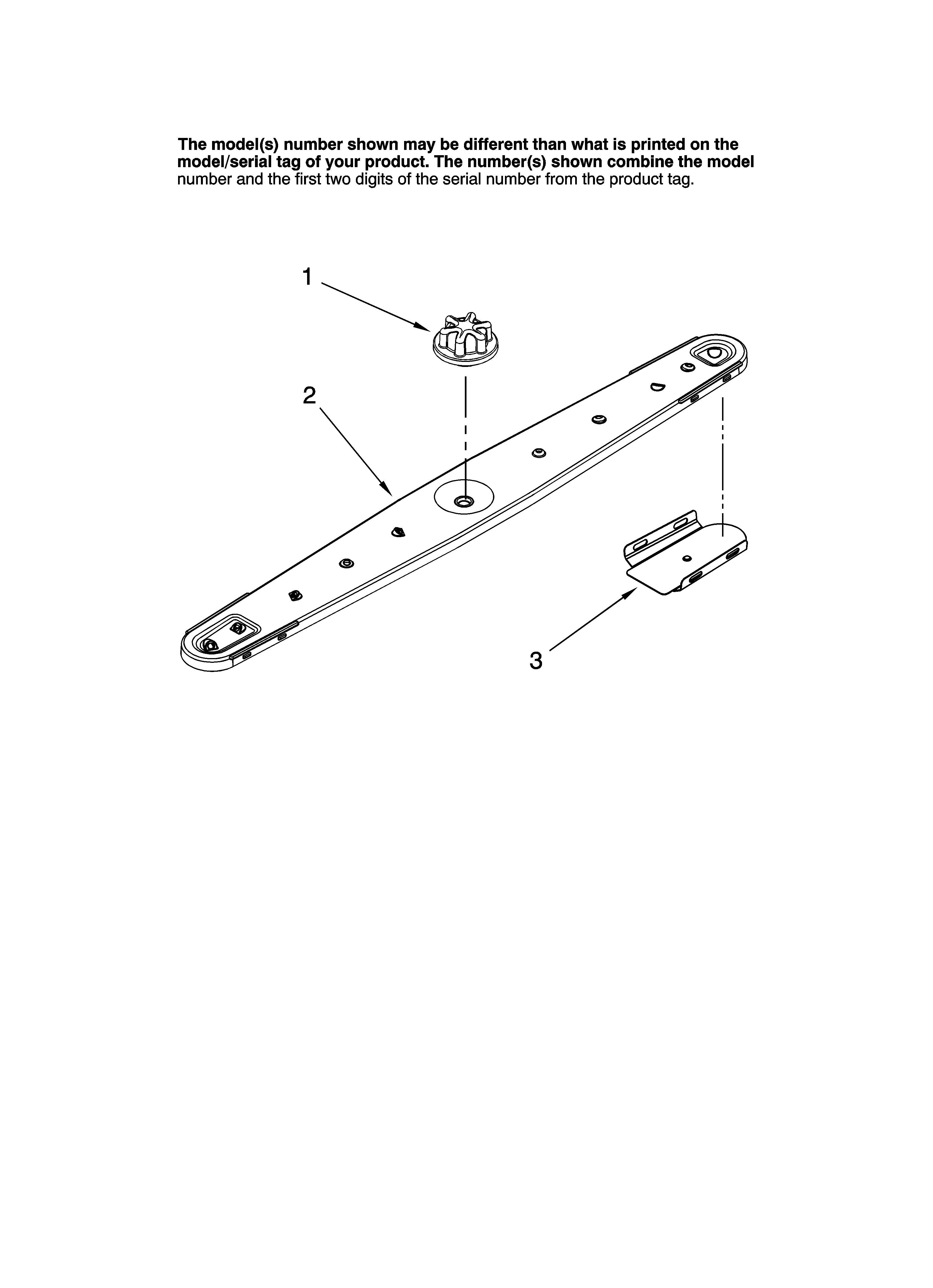

Lower washarm parts diagram
Dishwasher lower spray arm capPart #99002654
Replaced by #WP99002654
?Manufacturer substitutionThis part replaces 99002654. Substitute parts can look different from the original.This item is not returnable$6.69 |13% OFF Phone Price : $7.69In Stock - #5

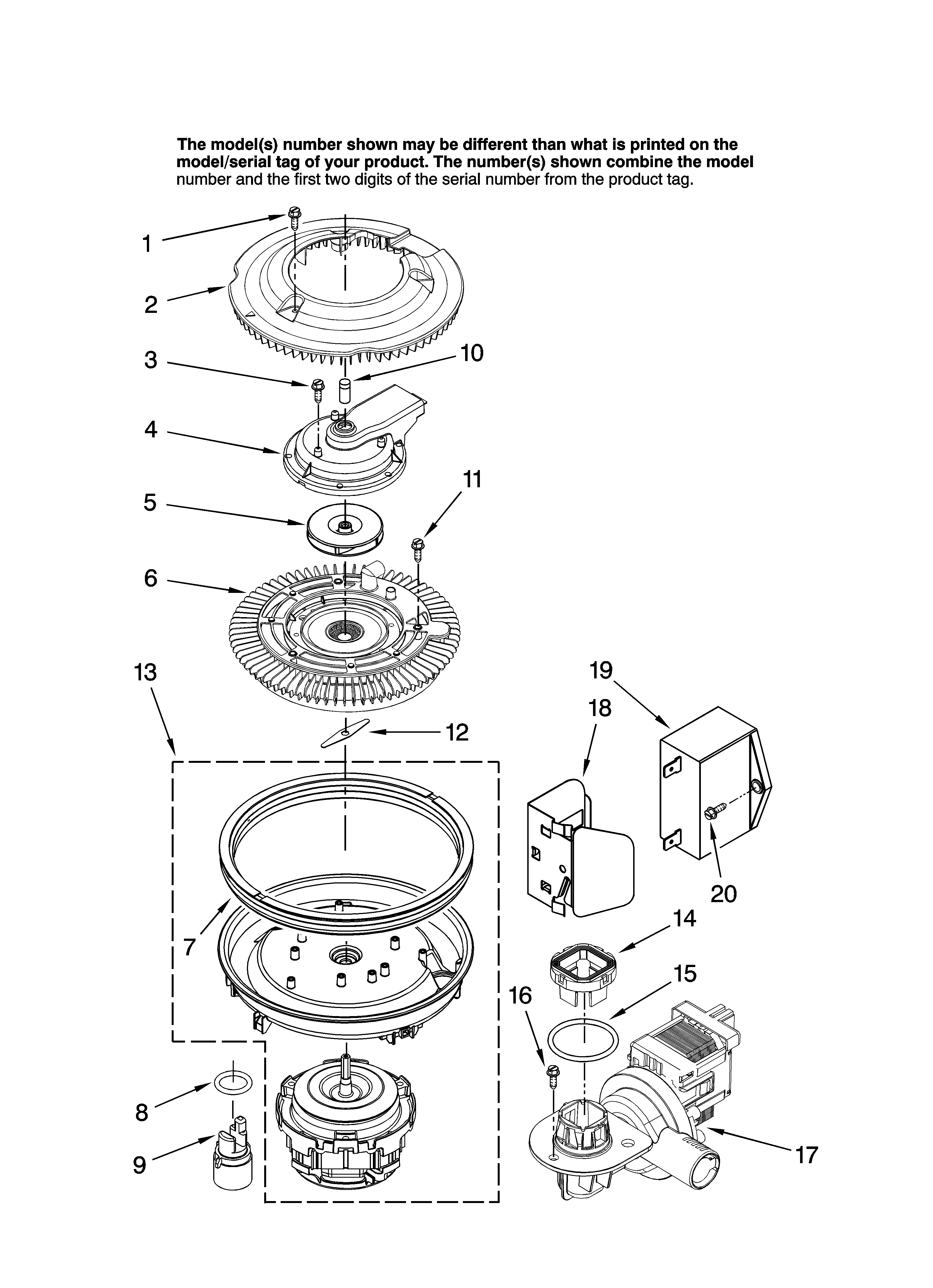

Pump and motor parts diagram
Dishwasher pump impellerPart #99002659
Replaced by #WP99002659
?Manufacturer substitutionThis part replaces 99002659. Substitute parts can look different from the original.$35.26 |15% OFF Phone Price : $41.26In Stock - #8
Upper and lower rack parts diagram
Dishwasher dishrack roller, lowerPart #99002780
Replaced by #WP99002780
?Manufacturer substitutionThis part replaces 99002780. Substitute parts can look different from the original.$7.28 |12% OFF Phone Price : $8.28In Stock - #NI

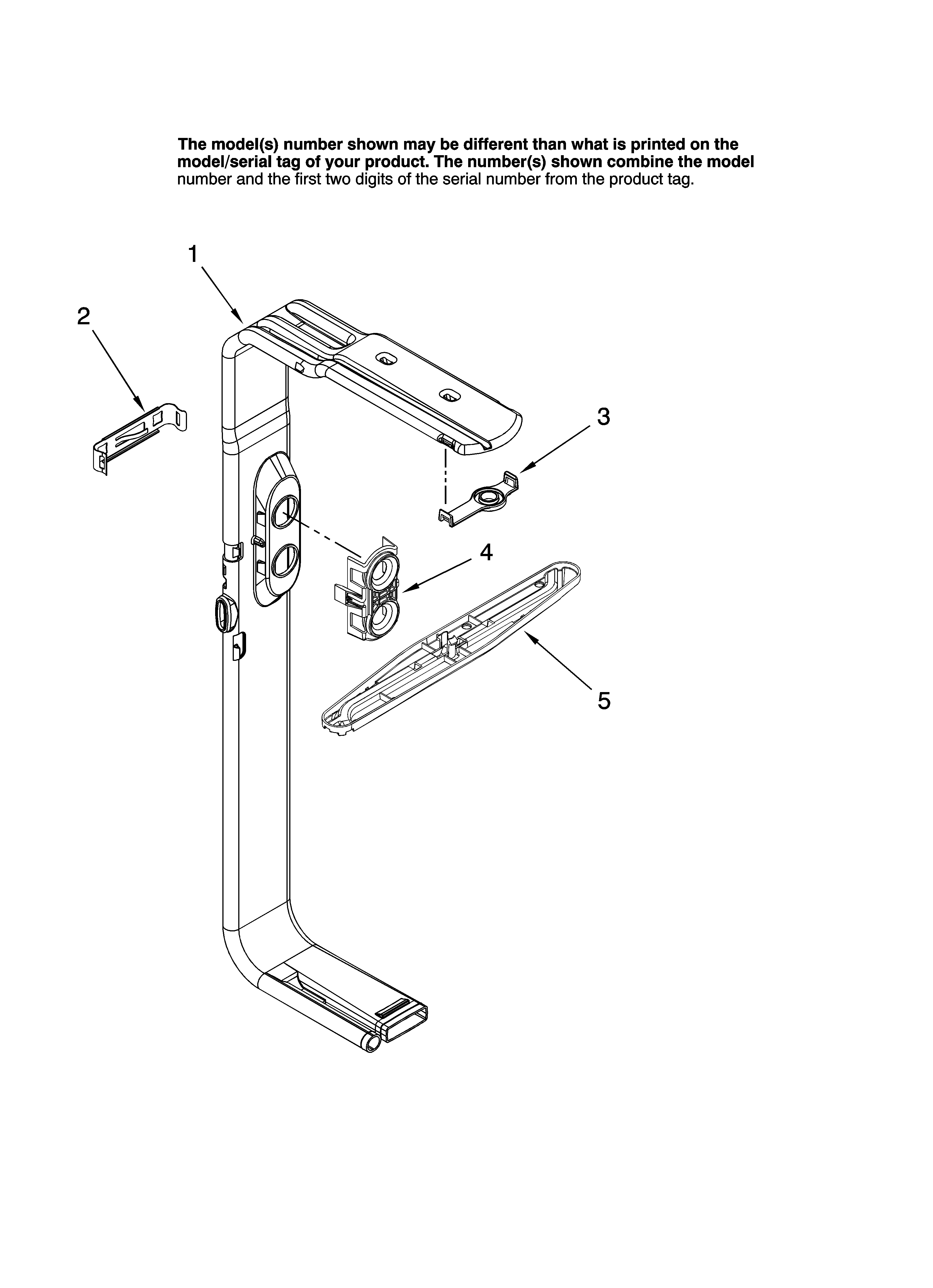

Upper wash and rinse parts, optional parts (not includ diagram
Installation kitPart #4396897RP
Replaced by #W10278635RP
?Manufacturer substitutionThis part replaces 4396897RP. Substitute parts can look different from the original.$30.09 |17% OFF Phone Price : $36.09In Stock - #6
Fill and overfill parts diagram
Dishwasher drain hosePart #99002652
Replaced by #WP99002652
?Manufacturer substitutionThis part replaces 99002652. Substitute parts can look different from the original.$84.94 |7% OFF Phone Price : $90.94In Stock - #NI
Upper wash and rinse parts, optional parts (not includ diagram
Sears dishwasher installation kitPart #8212488RC
$47.69 |11% OFF Phone Price : $53.69In Stock
Most common symptoms to help you fix your dishwashers
Choose a symptom to see related dishwasher repairs.
Main causes: broken door spring, damaged or broken door hinge…
Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…
Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…
Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …
Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…
Main cause: damaged rack height adjuster…
Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…
Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…
Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…
