Part #WB27T11463
Part #WB27X28659
Part #WB56X27480
Part #WB26X35089
Part #WB26X31060
Part #WB10X28391
Part #WB24T10164
Replaced by #WB24X46906
Part #WB02T10303
Part #WB44X21667
Part #WB35X32825

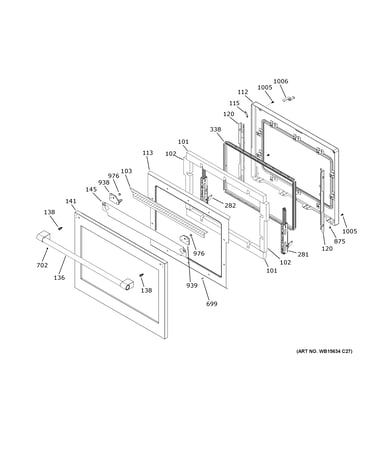

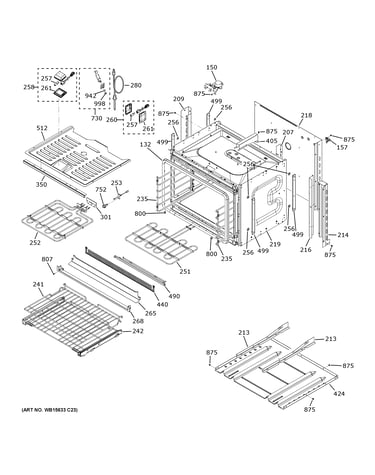

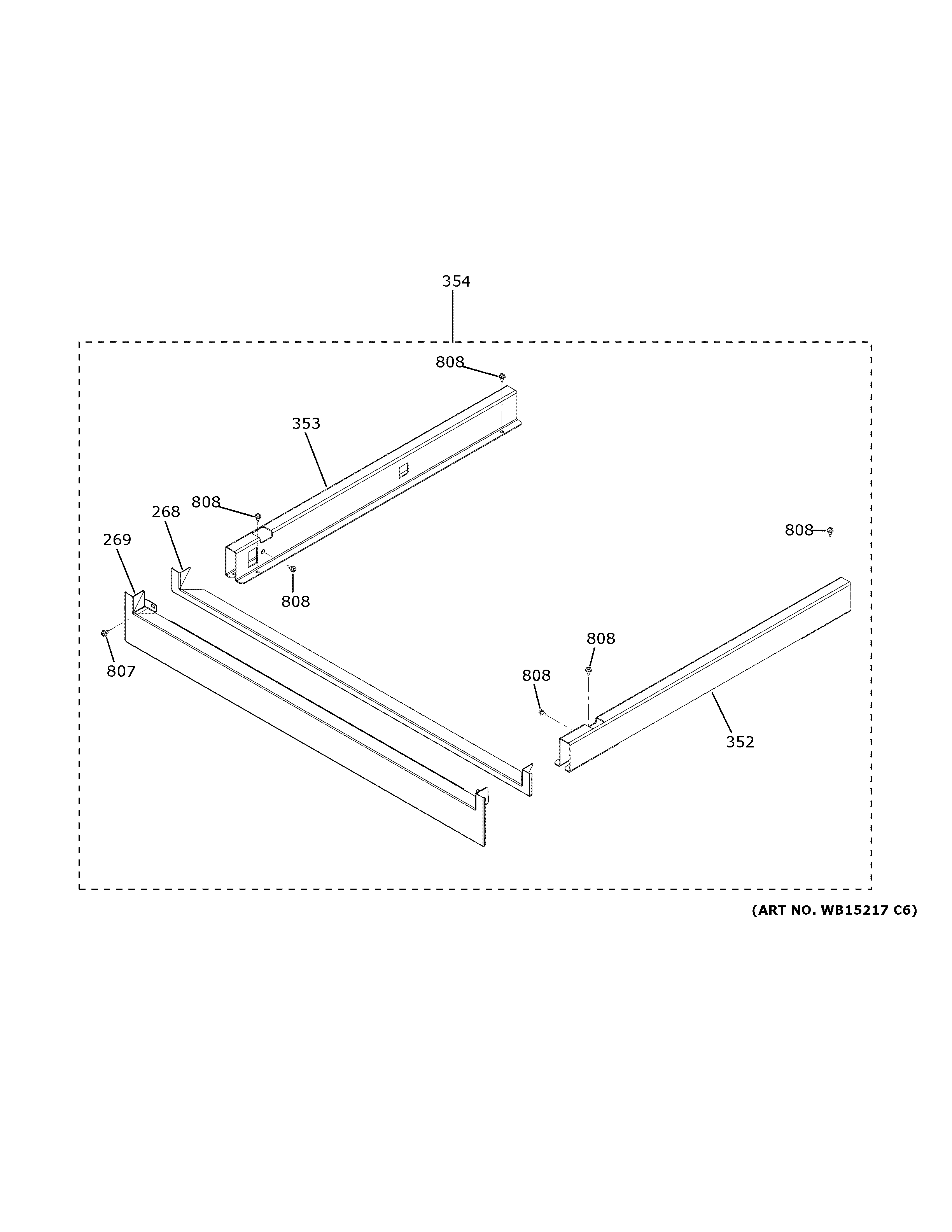

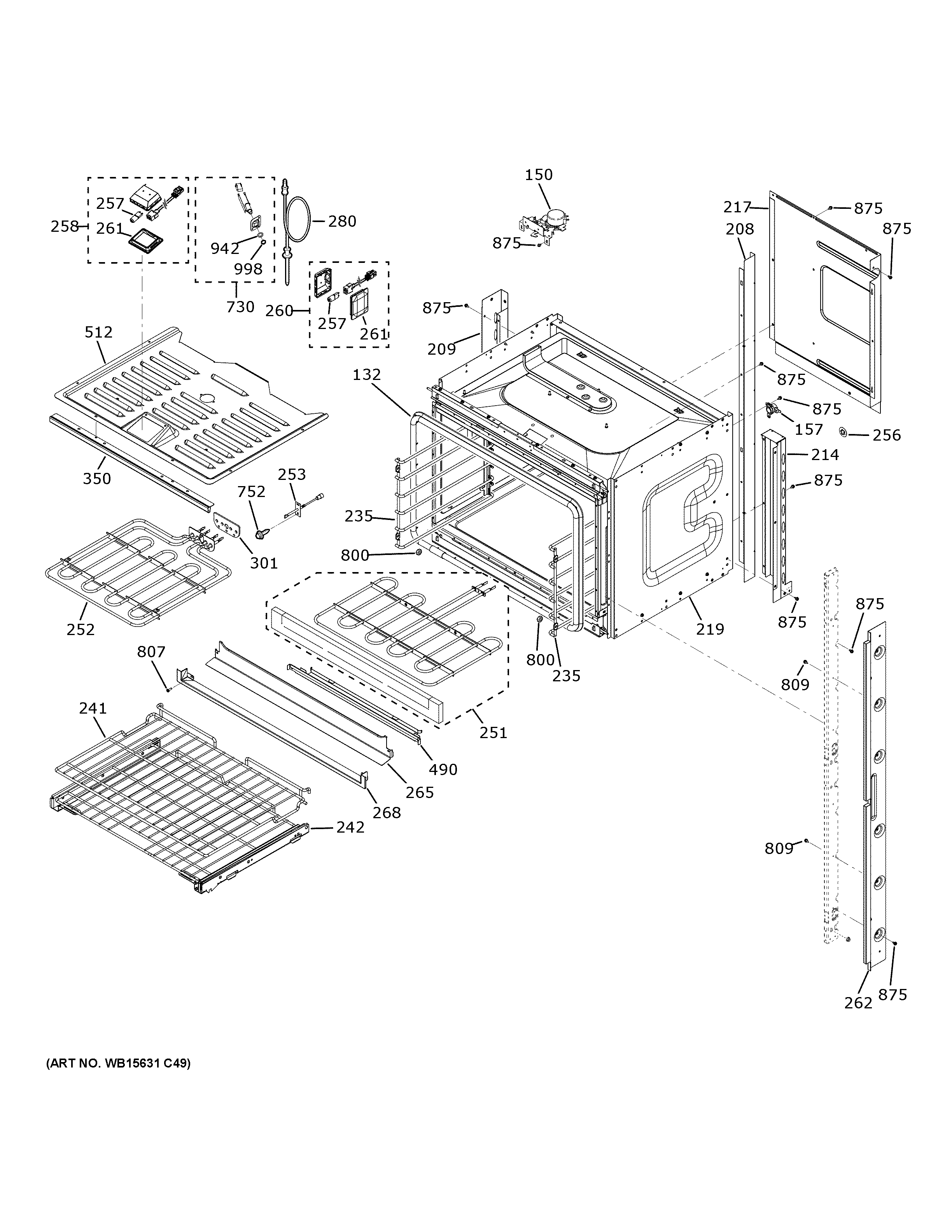

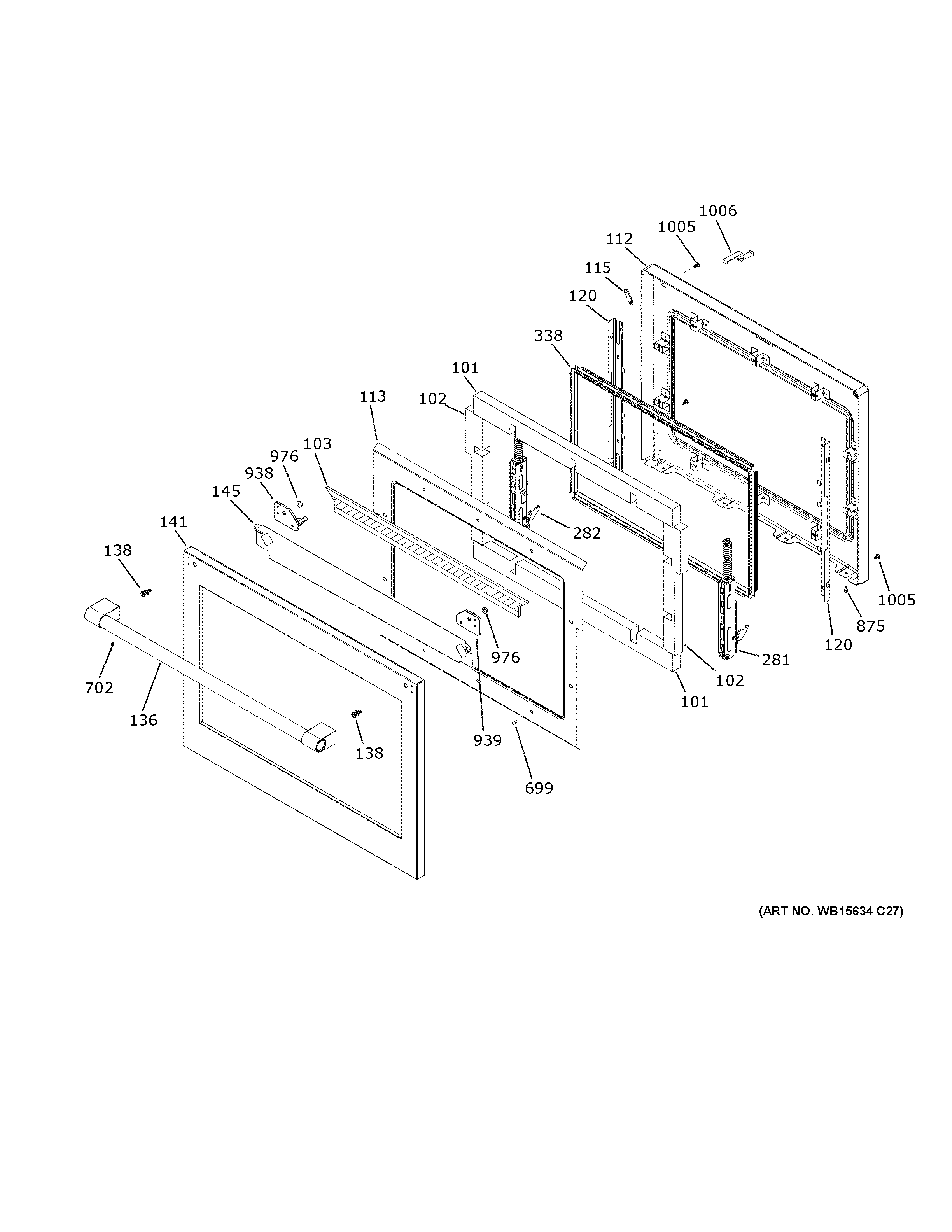

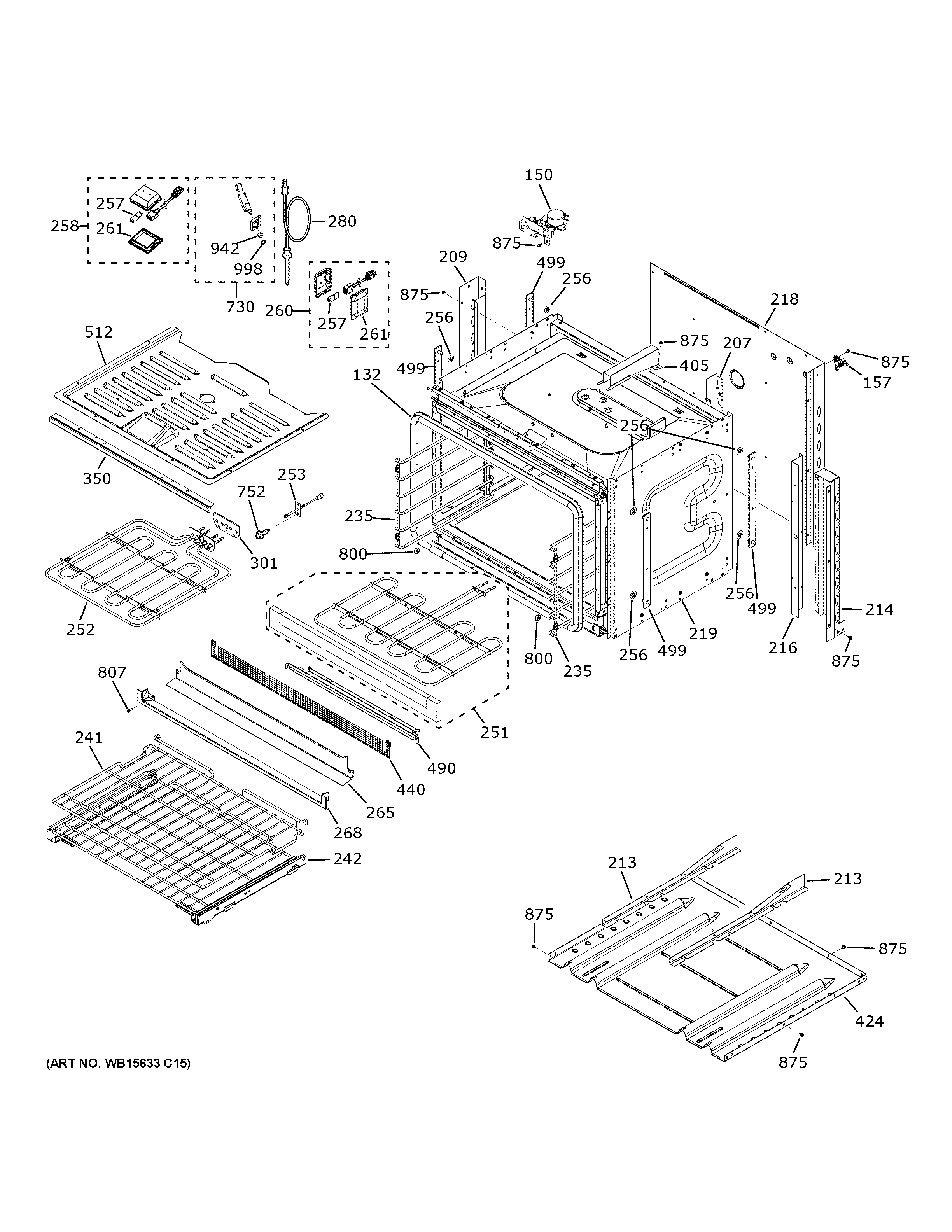

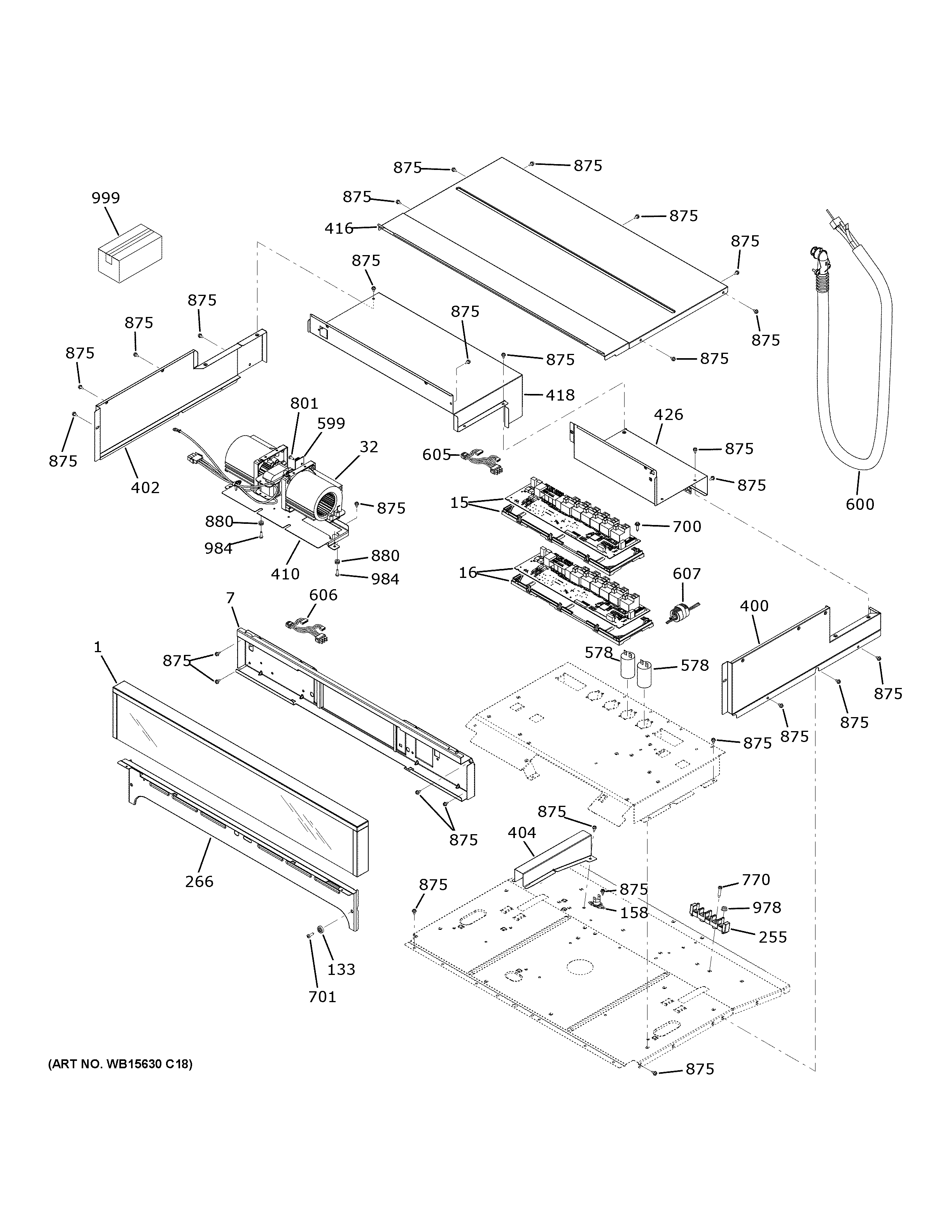

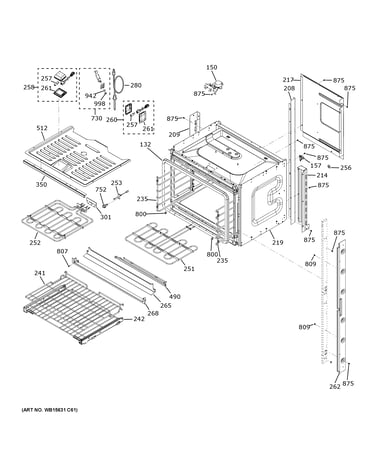

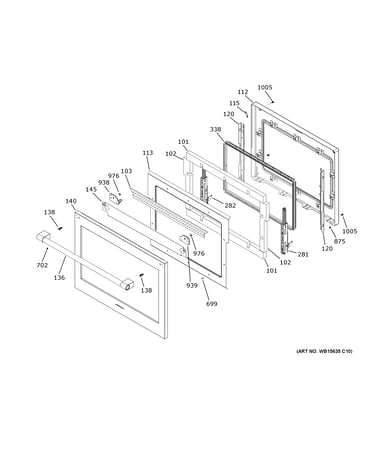

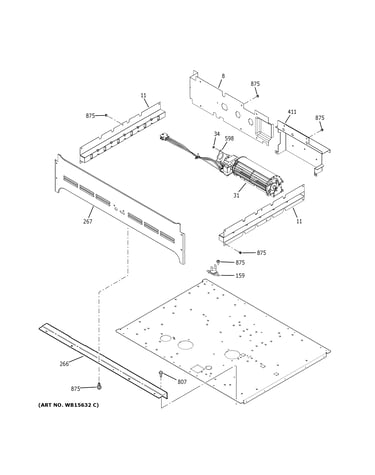

Here are the diagrams and repair parts for Official GE ZTD90DPSN3SS electric wall oven, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Part #WB27T11463
Part #WB27X28659
Part #WB56X27480
Part #WB26X35089
Part #WB26X31060
Part #WB10X28391
Part #WB24T10164
Replaced by #WB24X46906
Part #WB02T10303
Part #WB44X21667
Part #WB35X32825
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
