Craftsman
Water Pump

Model # 390251480 Official Craftsman pump

Here are the diagrams and repair parts for Official Craftsman 390251480 pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
0-ring U9-226
#20

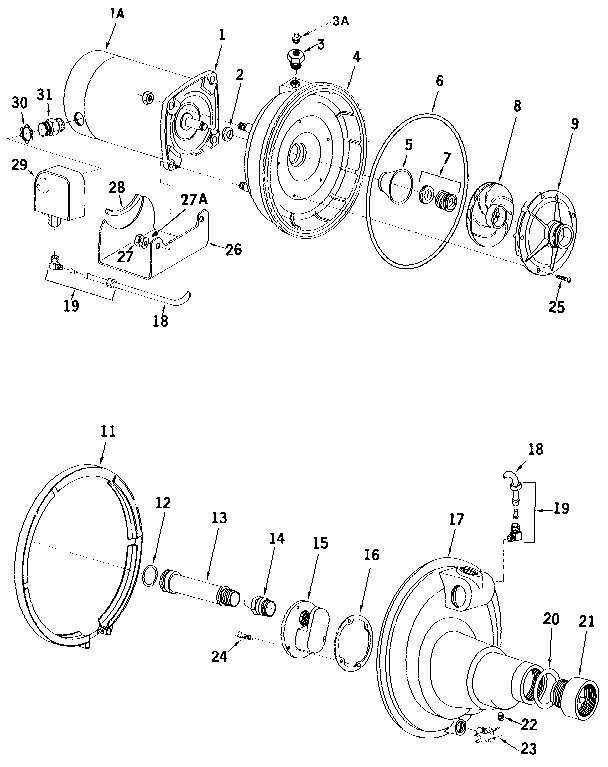

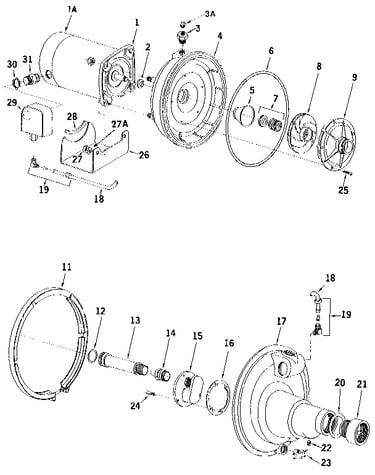

Replacement parts diagram

0-ring

Part #U9-226

$10.71
In Stock
Pump Impeller J105-40PE
#8

Replacement parts diagram

Pump impeller

Part #J105-40PE

$139.59 |
8% OFF Phone Price : $151.59
In Stock
Pump Venturi N32P-66
#13

Replacement parts diagram

Pump venturi

Part #N32P-66

$57.40
In Stock
Lock Nut U36-112ZP
#30

Replacement parts diagram

Lock nut

Part #U36-112ZP

$14.40
Back Order
Connector L43-5C
#31

Replacement parts diagram

Connector

Part #L43-5C

$19.77
Back Order
Pump Body Jet Insert N76-29P
#15

Replacement parts diagram

Pump body jet insert

Part #N76-29P

$71.79 |
8% OFF Phone Price : $77.79
Back Order
Pump Check Valve (replaces N12-12p) N166-5P
#21

Replacement parts diagram

Pump check valve (replaces n12-12p)

Part #N166-5P

$123.89 |
9% OFF Phone Price : $135.89
Back Order
Draincock U212-68T
#23

Replacement parts diagram

Draincock

Part #U212-68T

The manufacturer no longer makes this part, and there's no substitute part

Pump Nozzle N34P-19
#14

Replacement parts diagram

Pump nozzle

Part #N34P-19

$22.73
In Stock
Pump Screw, #8-32 X 7/8-in U30-542SS
#25

Replacement parts diagram

Pump screw, #8-32 x 7/8-in

Part #U30-542SS

This item is not returnable
$5.03
In Stock
