Model # FEF351SADB Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FEF351SADB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

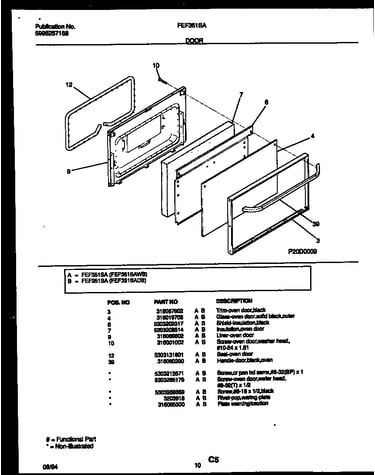

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Range Surface Element Control Switch 316021501
#54A

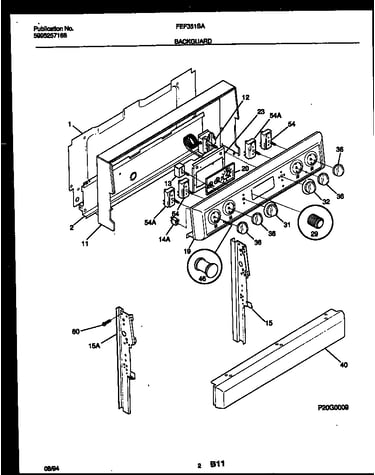

Backguard diagram

Range surface element control switch

Part #316021501

Replaced by #316436001

?
Manufacturer substitution
This part replaces 316021501. Substitute parts can look different from the original.
BEST SELLER
$36.82 |
14% OFF Phone Price : $42.82
In Stock
Oven Switch 316021500
#54

Backguard diagram

Oven switch

Part #316021500

Replaced by #316436000

?
Manufacturer substitution
This part replaces 316021500. Substitute parts can look different from the original.
BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Range Oven Light Bulb 5303013071
#15

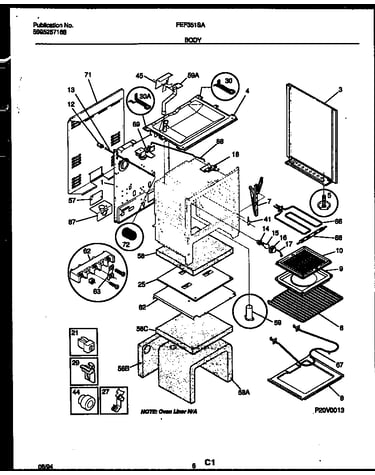

Body parts diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#7

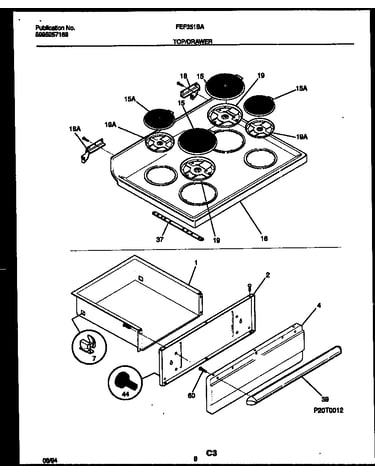

Cooktop and drawer parts diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Socket 3014073
#14

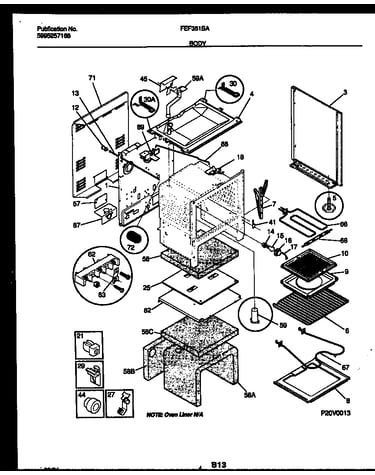

Body parts diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Paint 5303305324

#NI

All parts diagram

Paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Range Broil Element (replaces 08067760, 3012210, 3051140) 5303051140
#66

Body parts diagram

Range broil element (replaces 08067760, 3012210, 3051140)

Part #5303051140

This item is not returnable
$136.99 |
8% OFF Phone Price : $148.99
In Stock
Range Screw (replaces 5303270172, 636t142p01, 75303285179) 5303285179

#NI

All parts diagram

Range screw (replaces 5303270172, 636t142p01, 75303285179)

Part #5303285179

This item is not returnable
$13.29
In Stock
Range Indicator Light 316022503
#14A

Backguard diagram

Range indicator light

Part #316022503

$57.09 |
10% OFF Phone Price : $63.09
In Stock
Insulation 3200847
#58

Body parts diagram

Insulation

Part #3200847

Replaced by #316403803

?
Manufacturer substitution
This part replaces 3200847. Substitute parts can look different from the original.
This item is not returnable
$35.34 |
15% OFF Phone Price : $41.34
In Stock
