Kenmore
Floor Scrubber

Model # 1005000 Official Kenmore floor polisher

Here are the diagrams and repair parts for Official Kenmore 1005000 floor polisher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

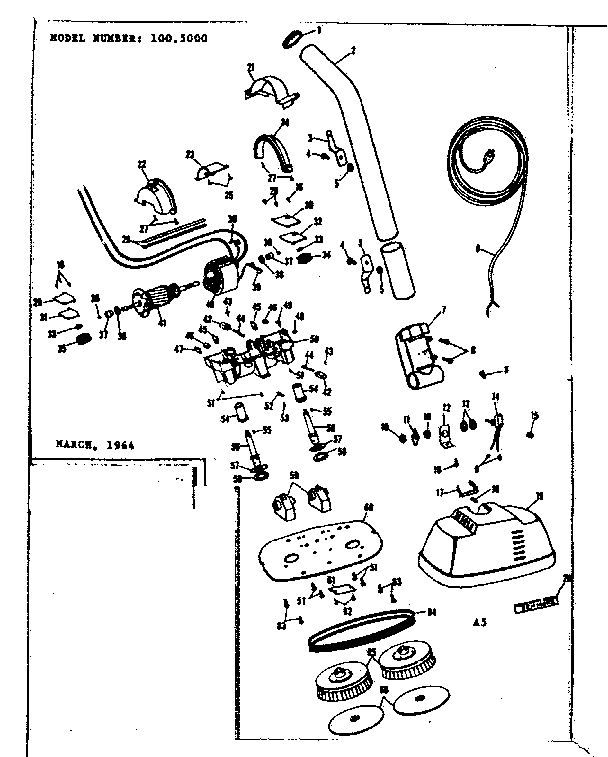

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Connector 3023
#9

Unit parts diagram

Connector

Part #3023

The manufacturer no longer makes this part, and there's no substitute part

Electronic Cord 196-10
#6

Unit parts diagram

Electronic cord

Part #196-10

The manufacturer no longer makes this part, and there's no substitute part

Strn Relief 19-103
#15

Unit parts diagram

Strn relief

Part #19-103

The manufacturer no longer makes this part, and there's no substitute part

Nut 3-507
#33

Unit parts diagram

Nut

Part #3-507

The manufacturer no longer makes this part, and there's no substitute part

Screw 3057
#8

Unit parts diagram

Screw

Part #3057

The manufacturer no longer makes this part, and there's no substitute part

Nut 3-2896-1
#10

Unit parts diagram

Nut

Part #3-2896-1

The manufacturer no longer makes this part, and there's no substitute part

Bracket 3-2898
#12

Unit parts diagram

Bracket

Part #3-2898

The manufacturer no longer makes this part, and there's no substitute part

Thrust Ball 3-59
#36

Unit parts diagram

Thrust ball

Part #3-59

The manufacturer no longer makes this part, and there's no substitute part

Screw 3167
#43

Unit parts diagram

Screw

Part #3167

The manufacturer no longer makes this part, and there's no substitute part

Spring 3-1173
#17

Unit parts diagram

Spring

Part #3-1173

The manufacturer no longer makes this part, and there's no substitute part
