Electric Range

Model # 1034367580 Official Kenmore 36" electric counter unit

Here are the diagrams and repair parts for Official Kenmore 1034367580 36" electric counter unit, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for1034367580 Ranges

  • Bowl 281349
    #48B

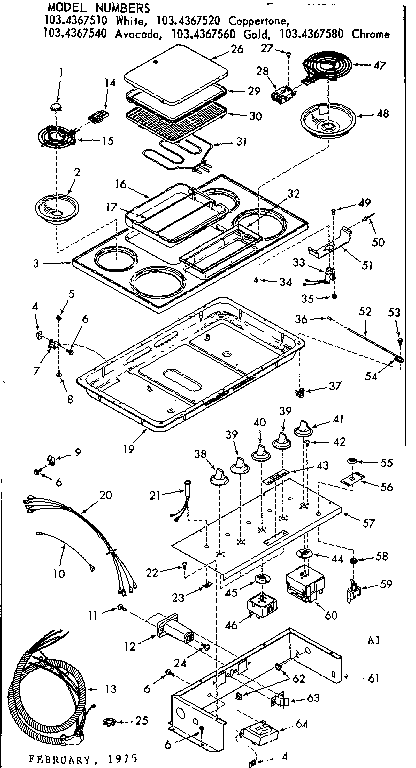

    Cooktop diagram

    Bowl

    Part #281349

    Replaced by #WB32X106

    ?
    Manufacturer substitution
    This part replaces 281349. Substitute parts can look different from the original.
    BEST SELLER
    $18.45
    10% OFF Phone Price : $20.45
    In Stock
  • Bowl 281350
    #48A

    Cooktop diagram

    Bowl

    Part #281350

    Replaced by #WB32X106

    ?
    Manufacturer substitution
    This part replaces 281350. Substitute parts can look different from the original.
    BEST SELLER
    $18.45
    10% OFF Phone Price : $20.45
    In Stock
  • Bowl 281348
    #2

    Cooktop diagram

    Bowl

    Part #281348

    Replaced by #WB32X107

    ?
    Manufacturer substitution
    This part replaces 281348. Substitute parts can look different from the original.
    $11.84
    14% OFF Phone Price : $13.84
    In Stock
  • Seal Control 280157
    #45

    Cooktop diagram

    Seal control

    Part #280157

    Replaced by #WB6X3

    ?
    Manufacturer substitution
    This part replaces 280157. Substitute parts can look different from the original.
    $10.42
    16% OFF Phone Price : $12.42
    In Stock
  • Element 299463
    #47E

    Cooktop diagram

    Element

    Part #299463

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 102430
    #11

    Cooktop diagram

    Screw

    Part #102430

    Replaced by #WB1X1130

    ?
    Manufacturer substitution
    This part replaces 102430. Substitute parts can look different from the original.
    $8.70
    10% OFF Phone Price : $9.70
    In Stock
  • Heat Control 113751
    #46

    Cooktop diagram

    Heat control

    Part #113751

    The manufacturer no longer makes this part, and there's no substitute part

  • Terminal Block 293798
    #14

    Cooktop diagram

    Terminal block

    Part #293798

    Replaced by #WB17X210

    ?
    Manufacturer substitution
    This part replaces 293798. Substitute parts can look different from the original.
    $58.17
    9% OFF Phone Price : $64.17
    In Stock
  • Grid Element 111214
    #31A

    Cooktop diagram

    Grid element

    Part #111214

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw 105771
    #53

    Cooktop diagram

    Screw

    Part #105771

    Replaced by #WB1X1293

    ?
    Manufacturer substitution
    This part replaces 105771. Substitute parts can look different from the original.
    This item is not returnable
    $8.70
    10% OFF Phone Price : $9.70
    In Stock

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
