Model # DSC-T7 Official Sony camera

Here are the diagrams and repair parts for Official Sony DSC-T7 camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Sony Switch 147920011
#9

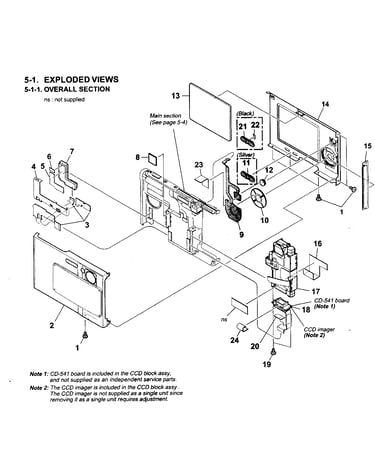

Cabinet parts 1 diagram

Sony switch

Part #147920011

In Stock
Sony Button 259374401
#21

Cabinet parts 1 diagram

Sony button

Part #259374401

In Stock
Sony Pcb Assembly A1116609A
#51C

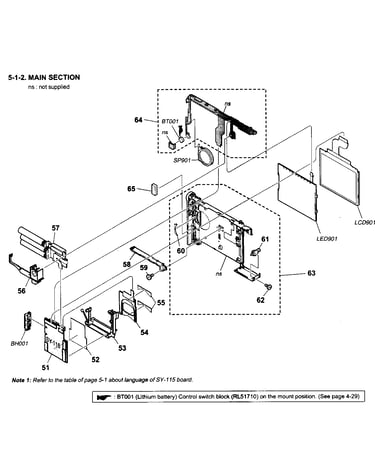

Cabinet parts 2 diagram

Sony pcb assembly

Part #A1116609A

In Stock
Sony Button 259373901
#12

Cabinet parts 1 diagram

Sony button

Part #259373901

In Stock
Sony Button 259373801
#10

Cabinet parts 1 diagram

Sony button

Part #259373801

In Stock
Sony Neck Strap 259374201
#NI

Cabinet parts 1 diagram

Sony neck strap

Part #259374201

In Stock
Sony Pcb Assembly A1116608A
#51B

Cabinet parts 2 diagram

Sony pcb assembly

Part #A1116608A

In Stock
Sony Block 147912511
#NI

Cabinet parts 2 diagram

Sony block

Part #147912511

In Stock
Battery,li 175656611
#BT1

Cabinet parts 2 diagram

Battery,li

Part #175656611

The manufacturer no longer makes this part, and there's no substitute part

Lsv-1040a A1118808A
#17

Cabinet parts 1 diagram

Lsv-1040a

Part #A1118808A

The manufacturer no longer makes this part, and there's no substitute part
