Carrier
Heating & Cooling Combined Unit

Model # 50GS024300 Official Carrier central package

Here are the diagrams and repair parts for Official Carrier 50GS024300 central package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

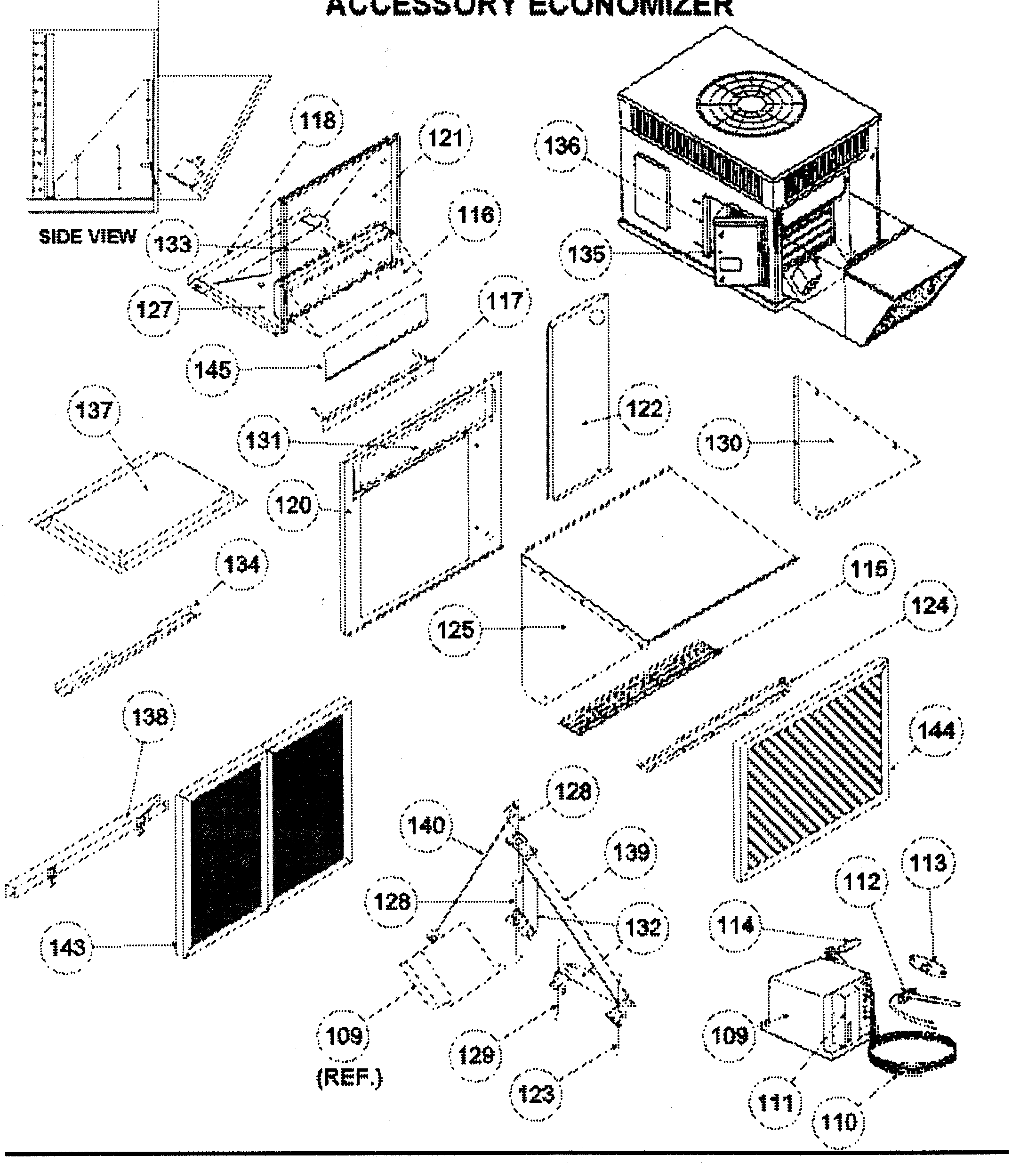

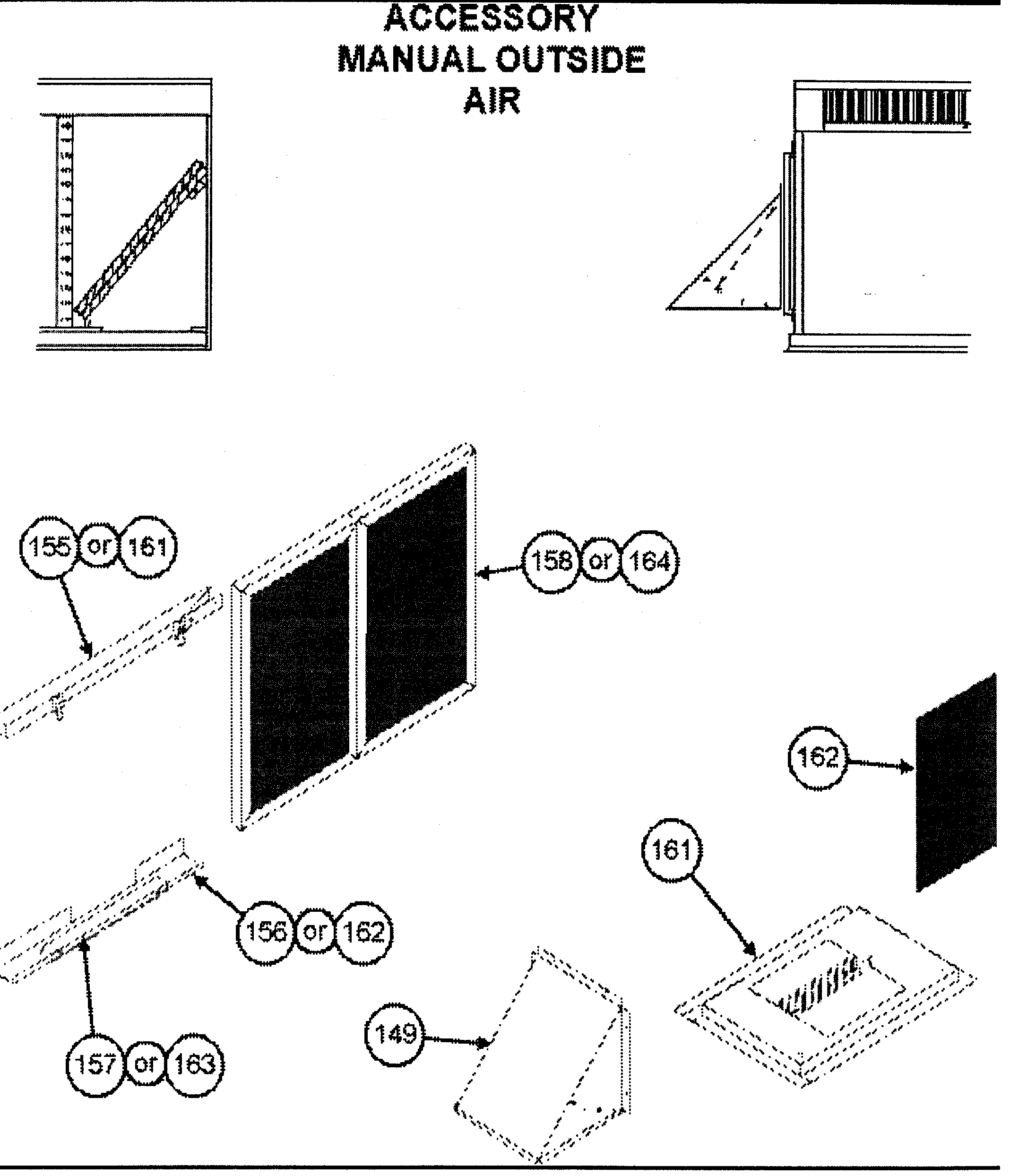

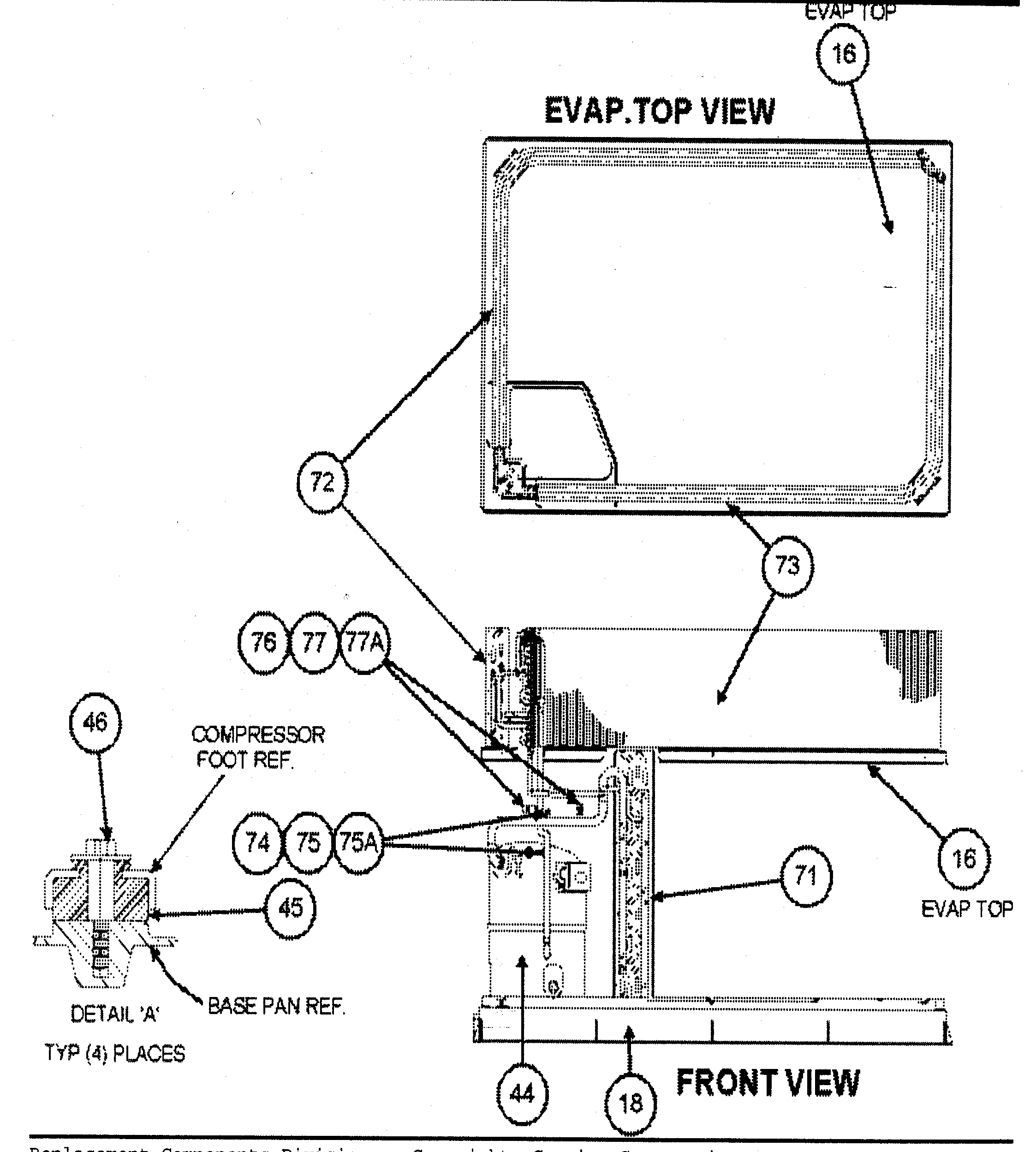

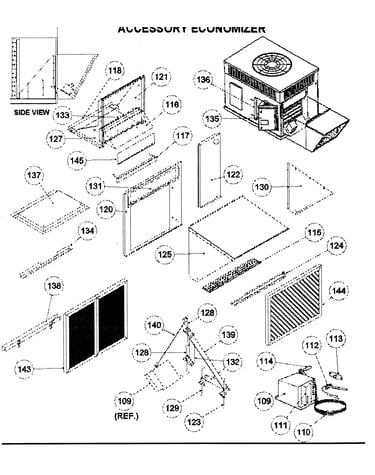

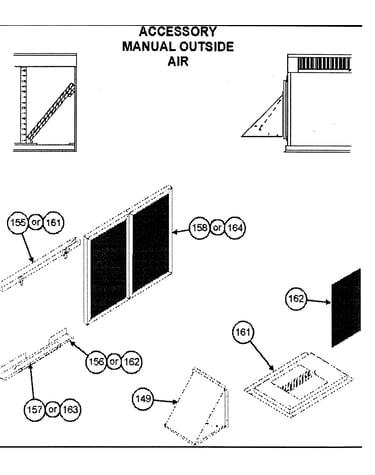

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Capactr Dual P291-3553
#55

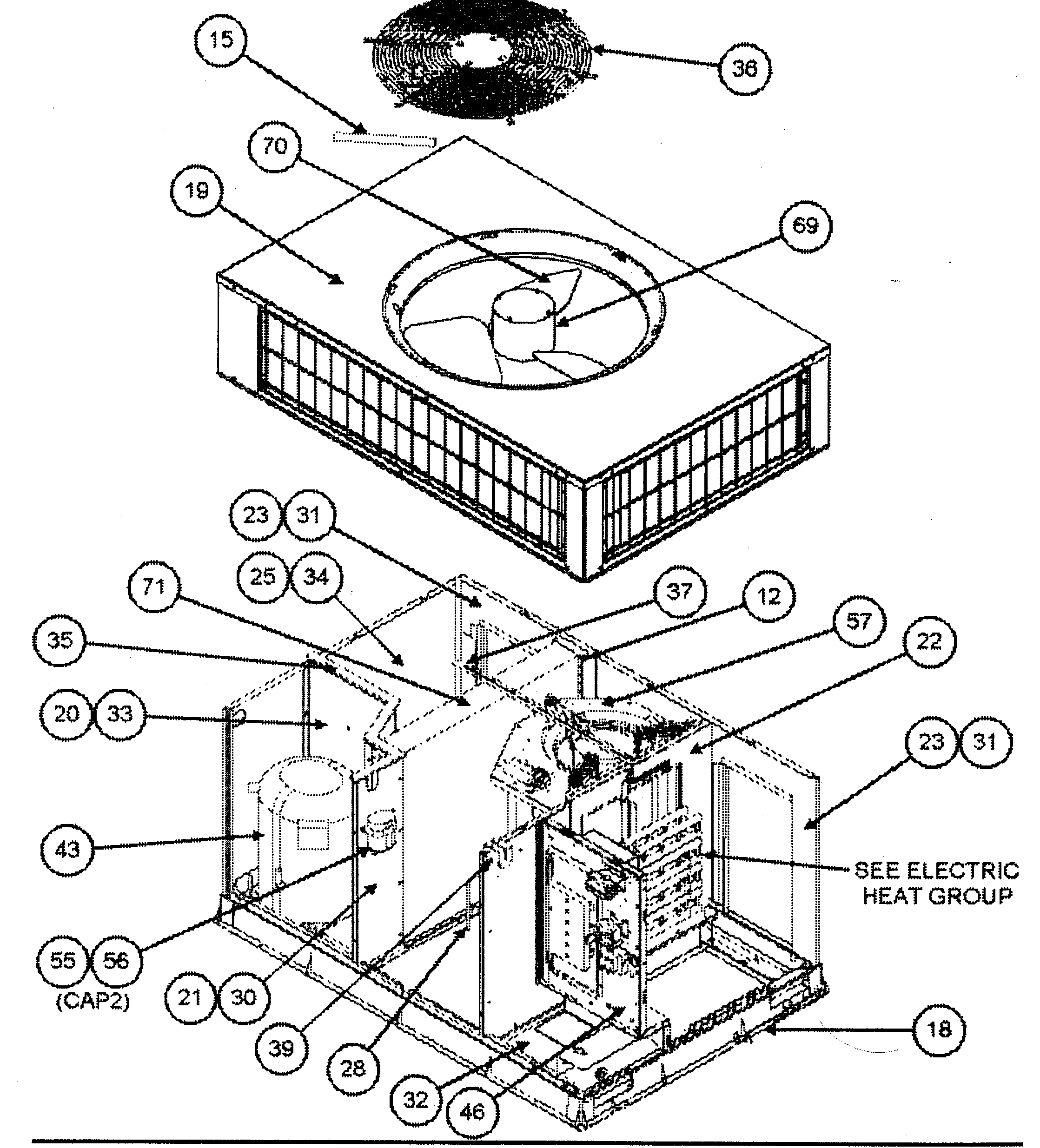

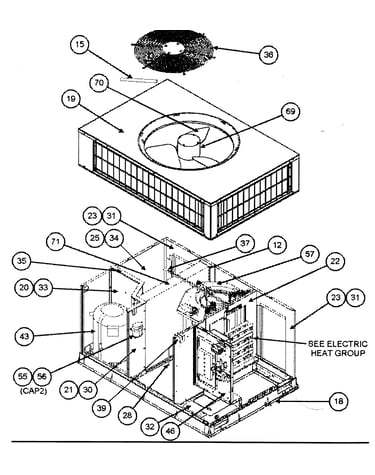

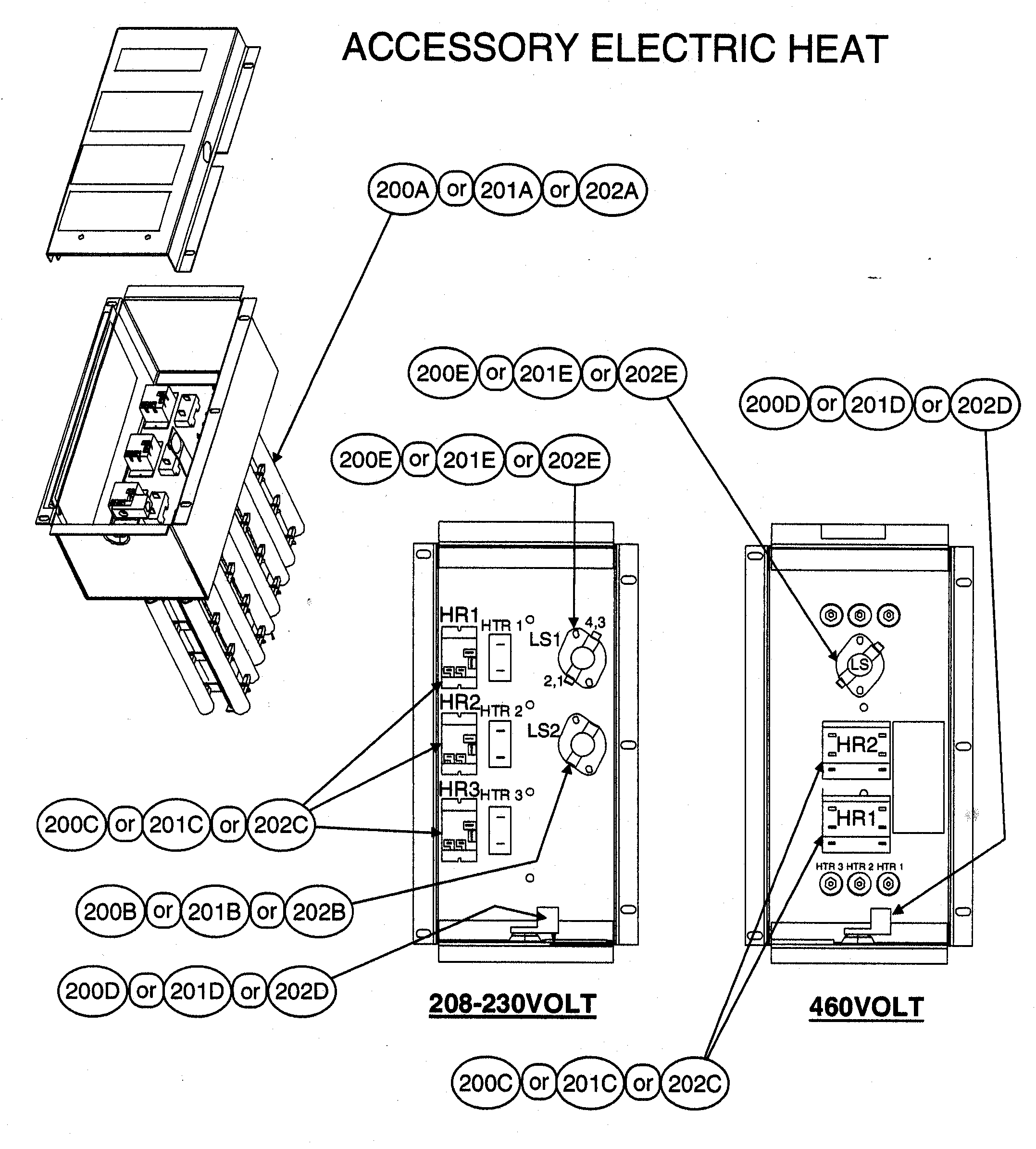

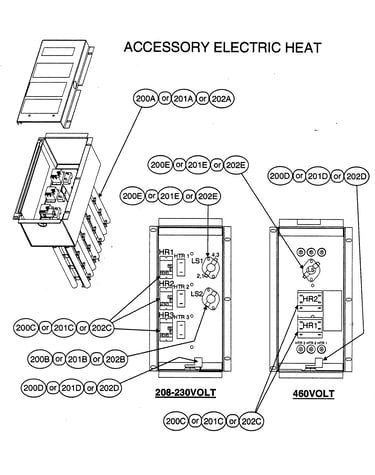

Elect heat group diagram

Capactr dual

Part #P291-3553

Replaced by #PAKTRCFD355

?
Manufacturer substitution
This part replaces P291-3553. Substitute parts can look different from the original.
BEST SELLER
$14.47 |
12% OFF Phone Price : $16.47
In Stock
Contactor HN51JD024
#52

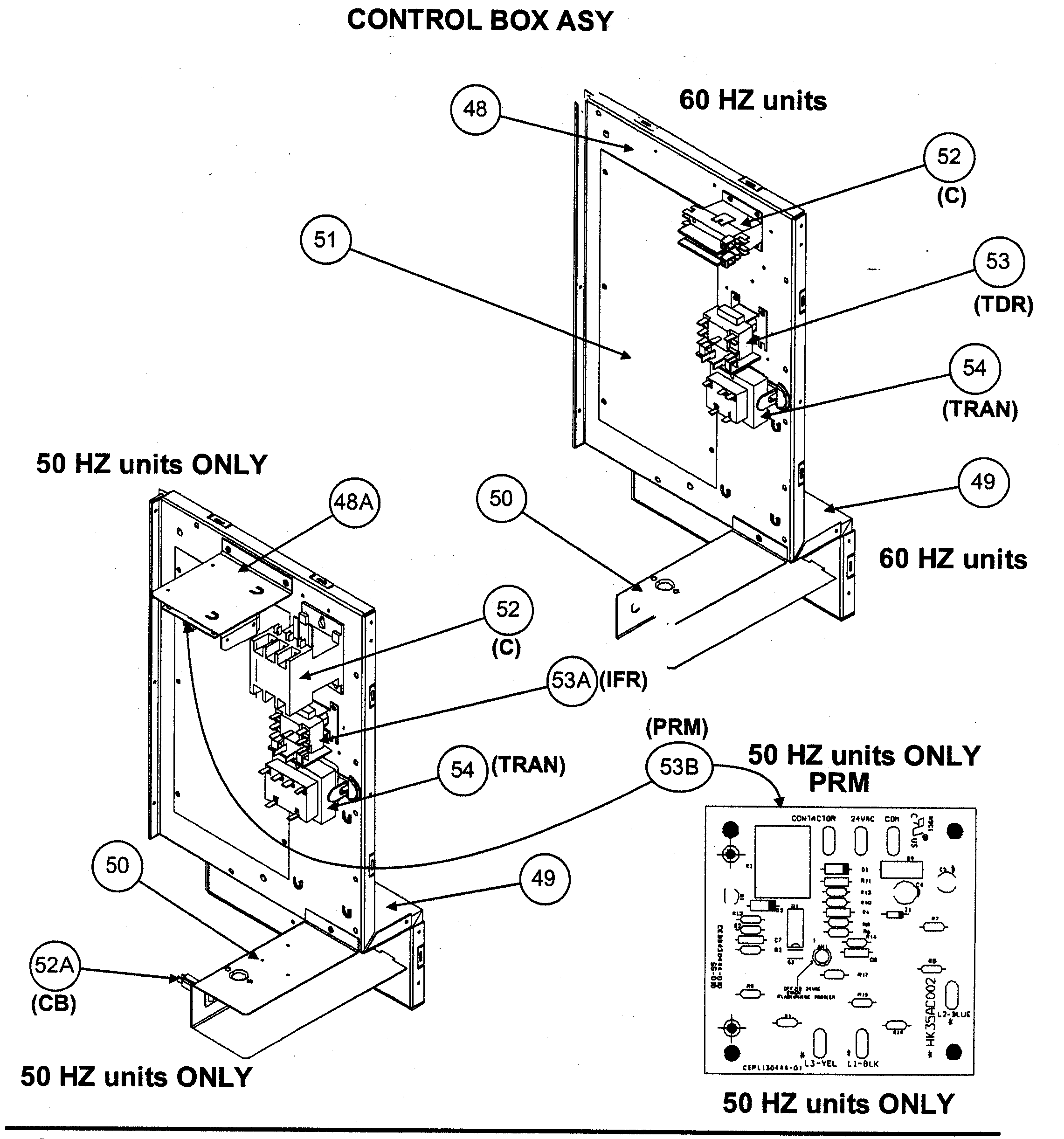

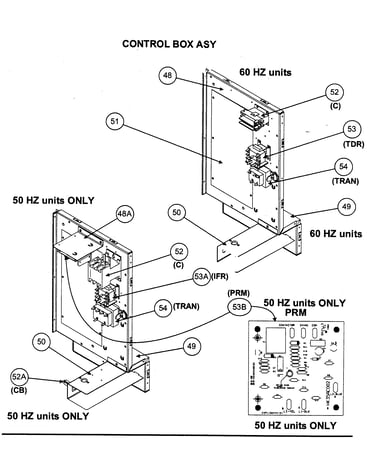

Control box assy diagram

Contactor

Part #HN51JD024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51JD024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Rely Tim Dly HN67KJ077
#53

Control box assy diagram

Rely tim dly

Part #HN67KJ077

The manufacturer no longer makes this part, and there's no substitute part

Grommet KA56DS001
#39

Elect heat group diagram

Grommet

Part #KA56DS001

This item is not returnable
$2.63
In Stock
Furnace Blower Fan Motor Mounting Bracket P251-0077
#65

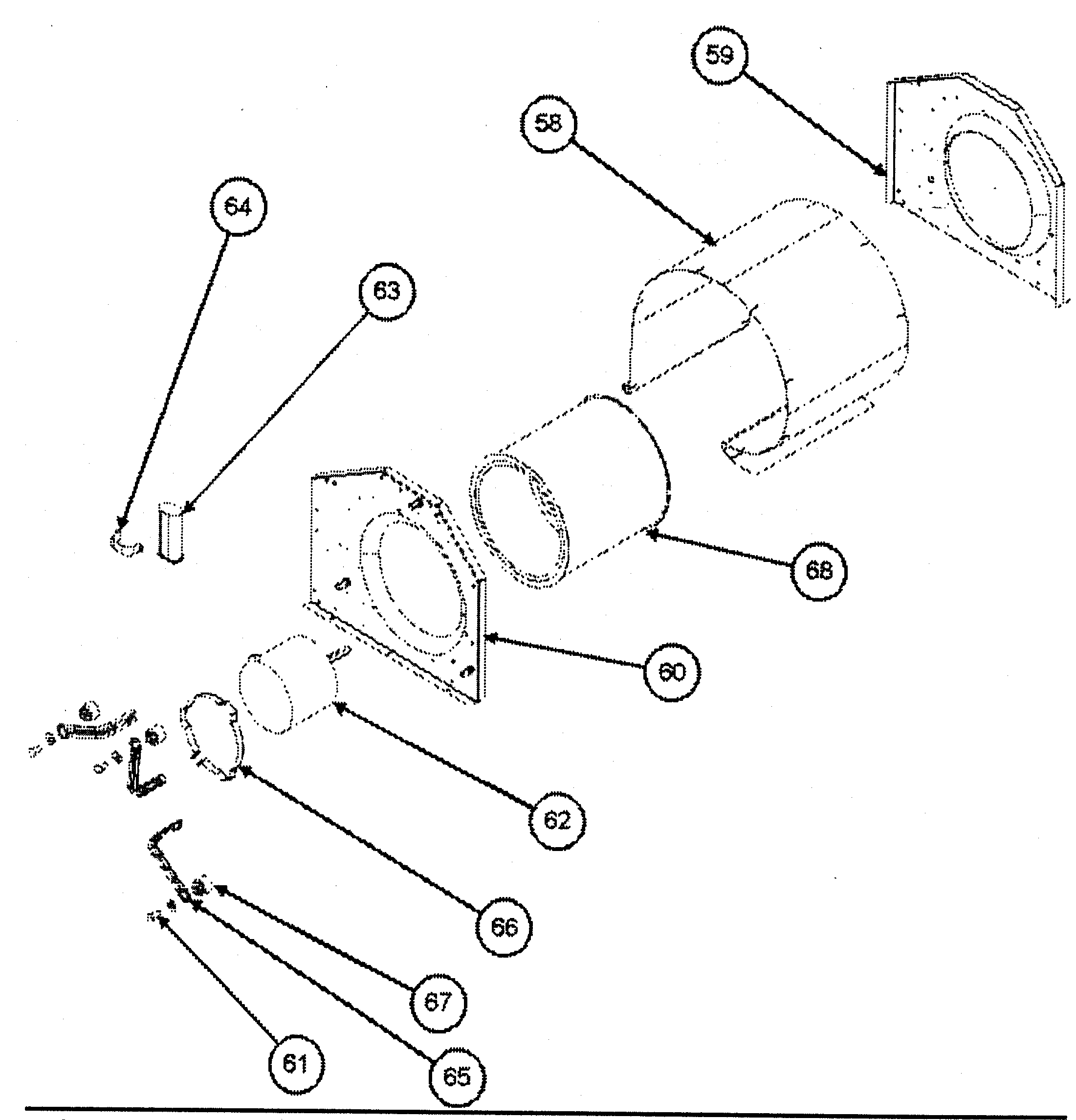

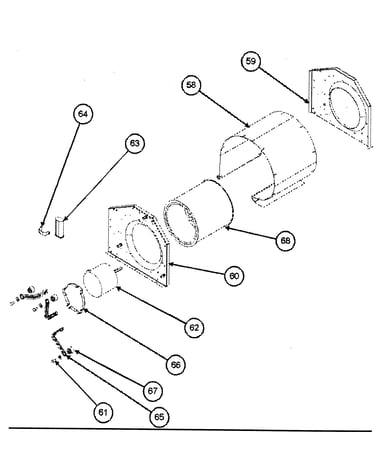

Blower assy diagram

Furnace blower fan motor mounting bracket

Part #P251-0077

This item is not returnable
$5.34
In Stock
Filter 9460-6400
Filter

Part #9460-6400

$172.99
In Stock
Propeller LA01RA028
#70

Elect heat group diagram

Propeller

Part #LA01RA028

$178.72
In Stock
Grille 50HJ501200
#36

Elect heat group diagram

Grille

Part #50HJ501200

$163.72
In Stock
Payne Panel 48GS400484
#10

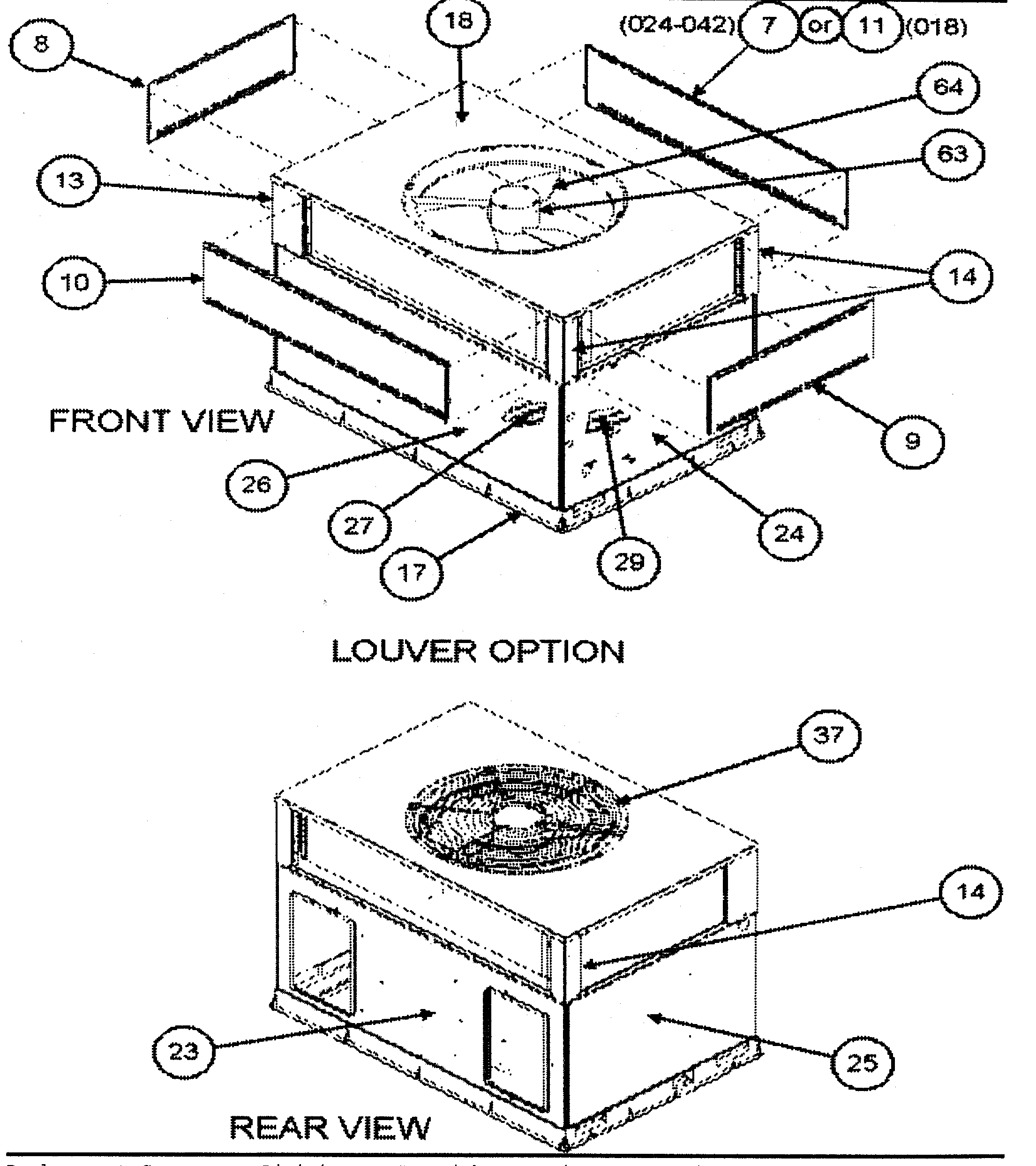

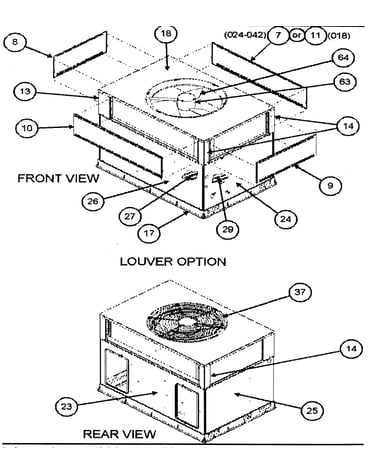

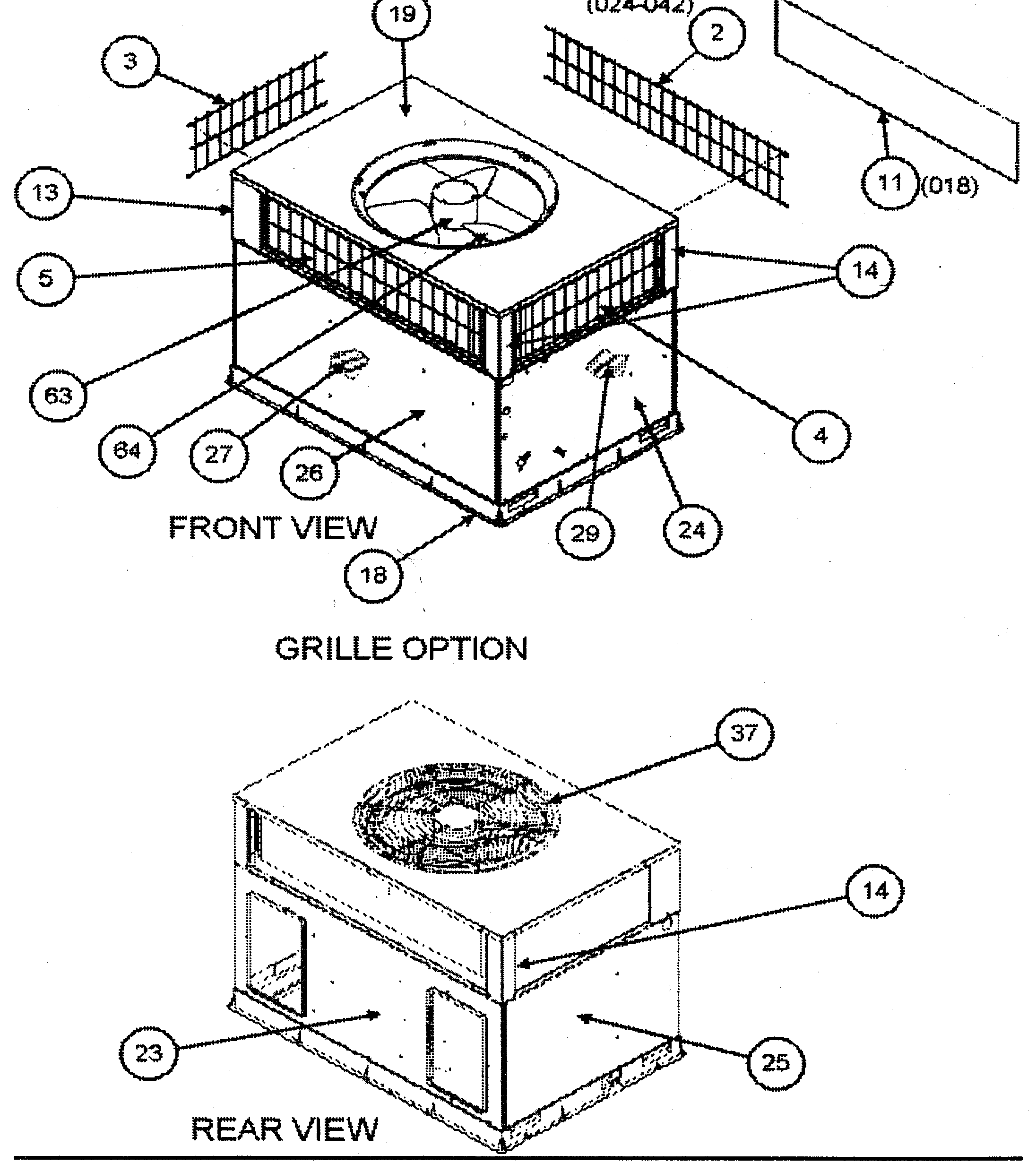

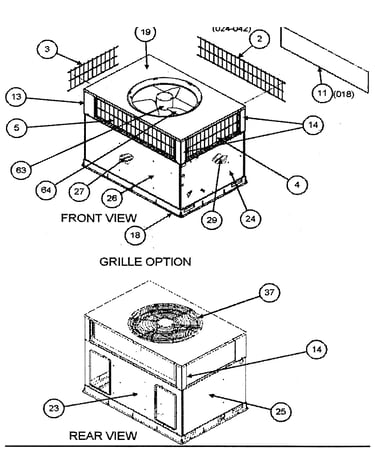

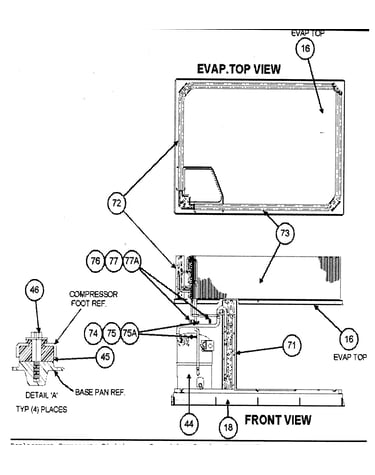

Front view/louver option/rear view diagram

Payne panel

Part #48GS400484

$201.20
In Stock
Bolt AA06BS228
#61

Blower assy diagram

Bolt

Part #AA06BS228

This item is not returnable
$3.83
In Stock
