Model # 42PC3DUEAUSRLJR Official LG plasma television

Here are the diagrams and repair parts for Official LG 42PC3DUEAUSRLJR plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Cover 3550V00426A
#501

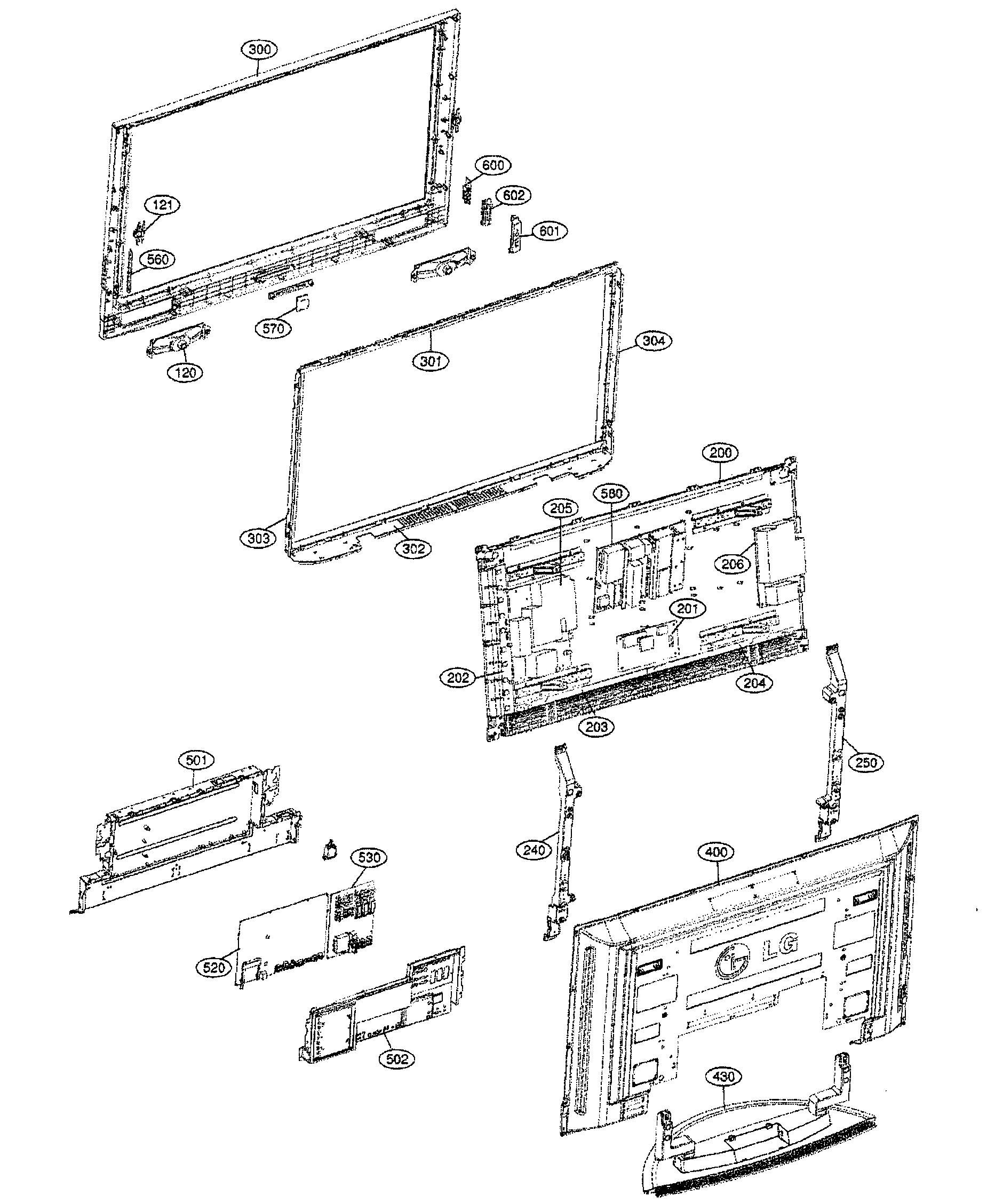

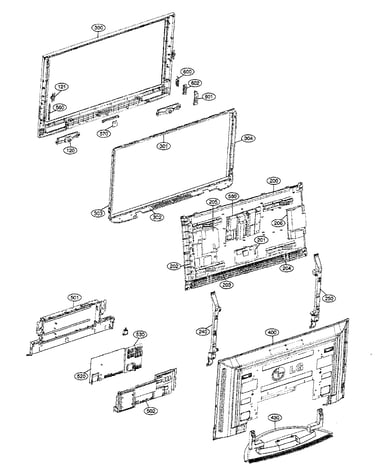

Cabinet parts diagram

Cover

Part #3550V00426A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Control 6871QCH077D
#201

Cabinet parts diagram

Pcb control

Part #6871QCH077D

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 6410TUW008A
#NI

Cabinet parts diagram

Ac cord

Part #6410TUW008A

The manufacturer no longer makes this part, and there's no substitute part

Filter,ac 6200J000115
#NI

Cabinet parts diagram

Filter,ac

Part #6200J000115

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly 6871VSMFA8A
#NI

Cabinet parts diagram

Pcb assembly

Part #6871VSMFA8A

The manufacturer no longer makes this part, and there's no substitute part

Pcb Y-sus EBR31872801
#205

Cabinet parts diagram

Pcb y-sus

Part #EBR31872801

The manufacturer no longer makes this part, and there's no substitute part

Speaker,wo EAB30829201
#120

Cabinet parts diagram

Speaker,wo

Part #EAB30829201

The manufacturer no longer makes this part, and there's no substitute part

Plate 48149V0003A
#602

Cabinet parts diagram

Plate

Part #48149V0003A

The manufacturer no longer makes this part, and there's no substitute part

Coaxial Cable 68509A0004A
#NI

Cabinet parts diagram

Coaxial cable

Part #68509A0004A

The manufacturer no longer makes this part, and there's no substitute part

Cable 6850TD9007E
#NI

Cabinet parts diagram

Cable

Part #6850TD9007E

The manufacturer no longer makes this part, and there's no substitute part
