Model # 545474261 Official Sears 26" men's atb

Here are the diagrams and repair parts for Official Sears 545474261 26" men's atb, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Front Wheel Assembly 045011
#13

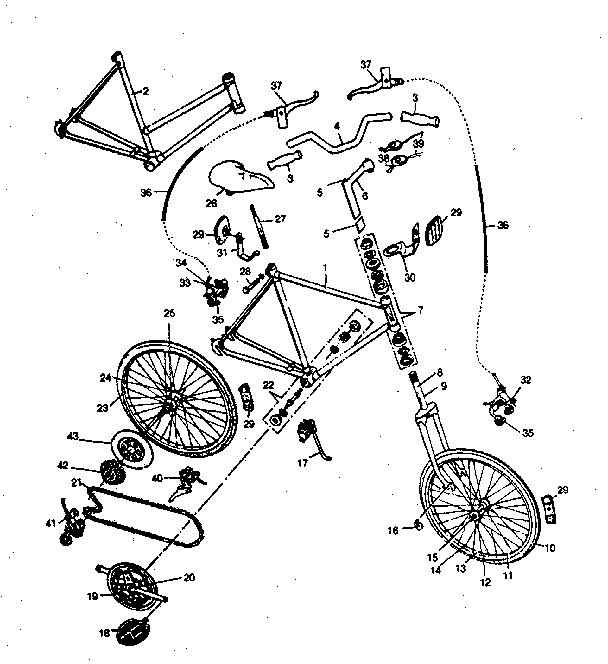

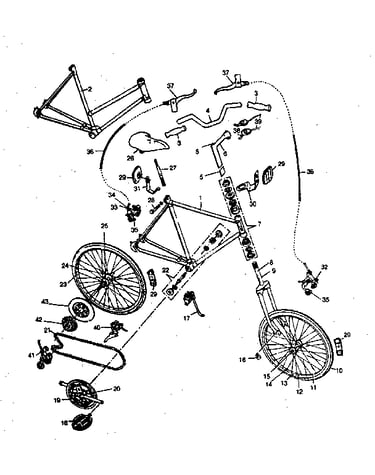

Unit parts diagram

Front wheel assembly

Part #045011

The manufacturer no longer makes this part, and there's no substitute part

Roadmaster Rear Axle And Bearing Set 054001
#25

Unit parts diagram

Roadmaster rear axle and bearing set

Part #054001

The manufacturer no longer makes this part, and there's no substitute part

Western Auto Rr Refl Brkt 082010
#31

Unit parts diagram

Western auto rr refl brkt

Part #082010

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Bicycle Tire, 26 X 1.5-in 040021
#10

Unit parts diagram

Craftsman bicycle tire, 26 x 1.5-in

Part #040021

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Pedal 070013
#18

Unit parts diagram

Ming ta pedal

Part #070013

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Shft Bolt&nt 086009

#NI

All parts diagram

Lifestyler shft bolt&nt

Part #086009

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Brake Tool 103015

#NI

All parts diagram

Lifestyler brake tool

Part #103015

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Bicycle Brake Shoe Set 104002
#35

Unit parts diagram

Ming ta bicycle brake shoe set

Part #104002

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Spoke/nipple 049513
#24

Unit parts diagram

Lifestyler spoke/nipple

Part #049513

The manufacturer no longer makes this part, and there's no substitute part

Exp Blt/wdg 008024
#5

Unit parts diagram

Exp blt/wdg

Part #008024

The manufacturer no longer makes this part, and there's no substitute part
