AO Smith
Gas Water Heater

Model # GPCR40101 Official AO Smith water heater

Here are the diagrams and repair parts for Official AO Smith GPCR40101 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Burner,pg. 183325
#16

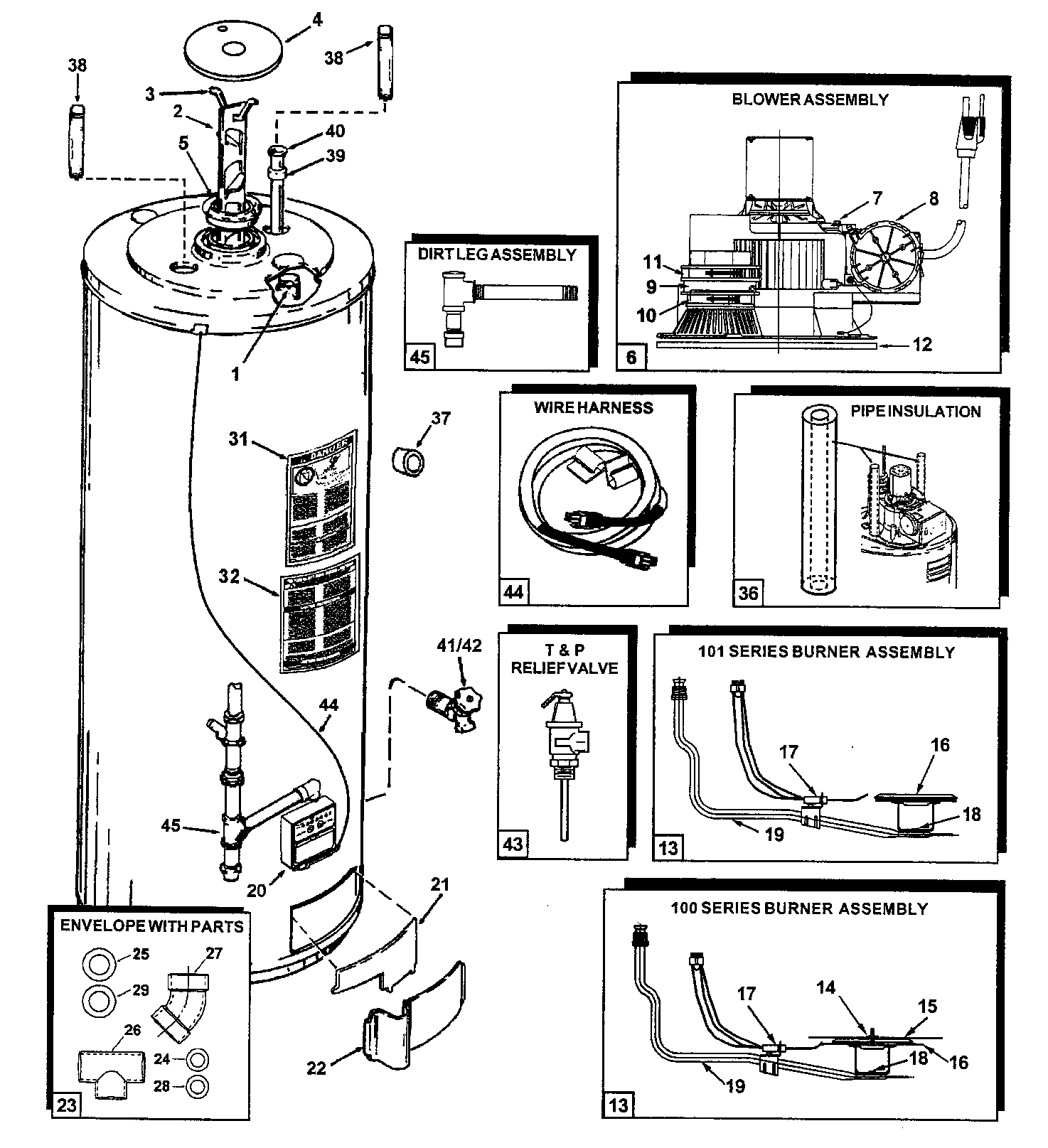

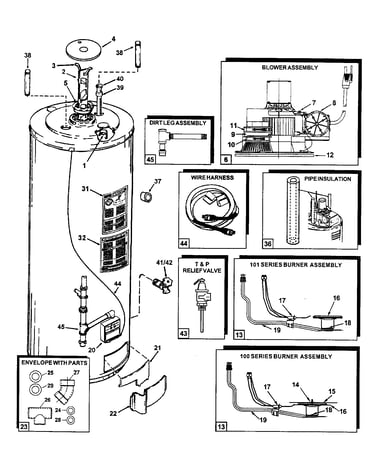

Water heater diagram

Burner,pg.

Part #183325

Replaced by #9003631005

?
Manufacturer substitution
This part replaces 183325. Substitute parts can look different from the original.
$46.79 |
11% OFF Phone Price : $52.79
In Stock
Access Parts 183509-002
#23

Water heater diagram

Access parts

Part #183509-002

$54.49
In Stock
Restrictor 184502-000
#29

Water heater diagram

Restrictor

Part #184502-000

$10.99
In Stock
Water Heater Owner's Manual 184674-001
#NI

Water heater diagram

Water heater owner's manual

Part #184674-001

$8.49
In Stock
Restrictor 184501-000
#28

Water heater diagram

Restrictor

Part #184501-000

This item is not returnable
$2.16
In Stock
Wiring Harness 183506-1
#44

Water heater diagram

Wiring harness

Part #183506-1

Replaced by #9006022015

?
Manufacturer substitution
This part replaces 183506-1. Substitute parts can look different from the original.
$40.60
In Stock
Insulation 181639-003
#36

Water heater diagram

Insulation

Part #181639-003

Replaced by #9003971005

?
Manufacturer substitution
This part replaces 181639-003. Substitute parts can look different from the original.
$21.99
In Stock
Inlet Tube 183359-41
#40

Water heater diagram

Inlet tube

Part #183359-41

Replaced by #183359-041

?
Manufacturer substitution
This part replaces 183359-41. Substitute parts can look different from the original.
This item is not returnable
$6.49
In Stock
Vent 183571
#26

Water heater diagram

Vent

Part #183571

Replaced by #183571-000

?
Manufacturer substitution
This part replaces 183571. Substitute parts can look different from the original.
$19.99
In Stock
Gas Valve 183760-3
#20

Water heater diagram

Gas valve

Part #183760-3

Replaced by #100109867

?
Manufacturer substitution
This part replaces 183760-3. Substitute parts can look different from the original.
$383.33
In Stock
