Model # JBS02BB1 Official GE electric range

Here are the diagrams and repair parts for Official GE JBS02BB1 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Range Drip Pan (replaces Wb32x10014) WB31T10011
#158

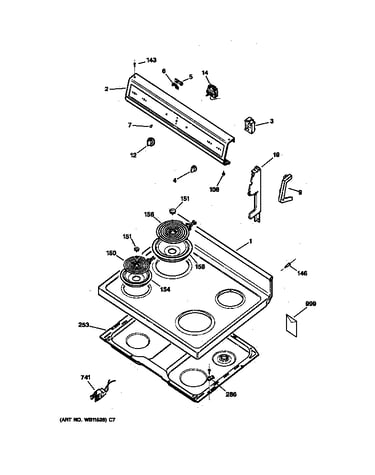

Control panel & cooktop diagram

Range drip pan (replaces wb32x10014)

Part #WB31T10011

BEST SELLER
$15.02 |
12% OFF Phone Price : $17.02
In Stock
Range Drip Pan (replaces Wb32t10008, Wb32x10015) WB31T10010
#154

Control panel & cooktop diagram

Range drip pan (replaces wb32t10008, wb32x10015)

Part #WB31T10010

BEST SELLER
$17.64 |
10% OFF Phone Price : $19.64
In Stock
Infinite Control Switch WB23X5092
#3A

Control panel & cooktop diagram

Infinite control switch

Part #WB23X5092

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB23X5092. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Infinite Control Switch WB32X5095
#3B

Control panel & cooktop diagram

Infinite control switch

Part #WB32X5095

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces WB32X5095. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
8" Surf Elem WB30X5120
#156

Control panel & cooktop diagram

8" surf elem

Part #WB30X5120

Replaced by #WB30M2

?
Manufacturer substitution
This part replaces WB30X5120. Substitute parts can look different from the original.
BEST SELLER
$46.48 |
11% OFF Phone Price : $52.48
In Stock
Unit Asm 6" WB30X5119
#150

Control panel & cooktop diagram

Unit asm 6"

Part #WB30X5119

Replaced by #WB30M1

?
Manufacturer substitution
This part replaces WB30X5119. Substitute parts can look different from the original.
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Range Surface Element Receptacle (replaces Wb02x8228, Wb62x5358, Wb62x5393, Wb62x5394, Wb62x5397, Wb62x5401, Wb62x5405) WB2X8228
#741

Control panel & cooktop diagram

Range surface element receptacle (replaces wb02x8228, wb62x5358, wb62x5393, wb62x5394, wb62x5397, wb62x5401, wb62x5405)

Part #WB2X8228

This item is not returnable
$30.23 |
17% OFF Phone Price : $36.23
In Stock
Trim WB7X7195
#359

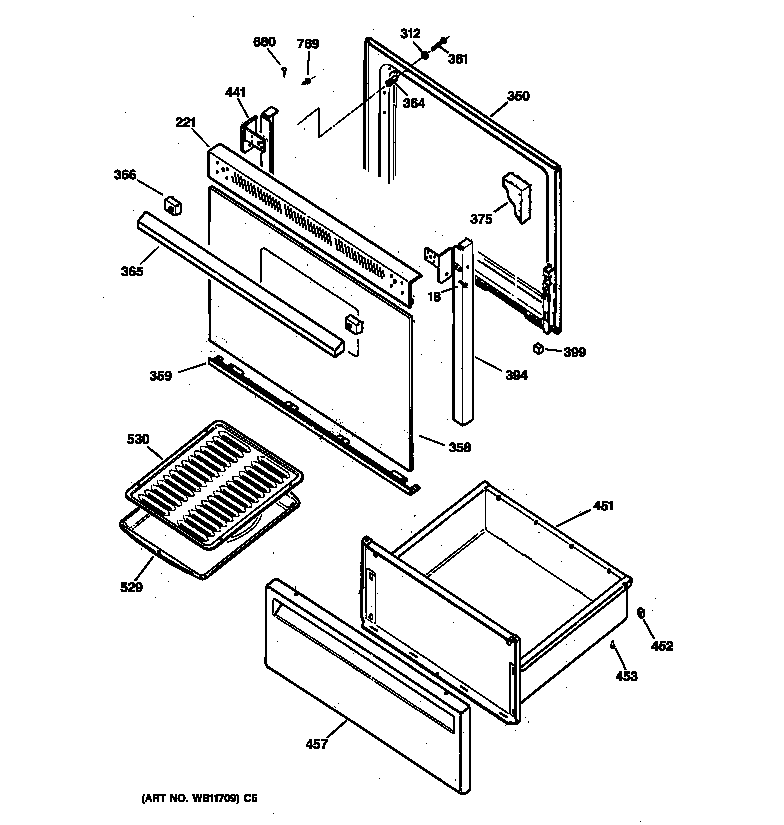

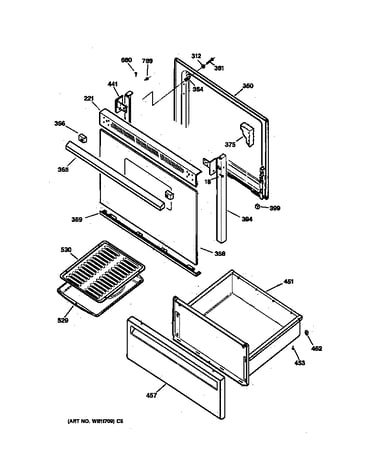

Door & drawer parts diagram

Trim

Part #WB7X7195

Replaced by #WB07K10232

?
Manufacturer substitution
This part replaces WB7X7195. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
Range Broil Element Support WB2X1452
#652

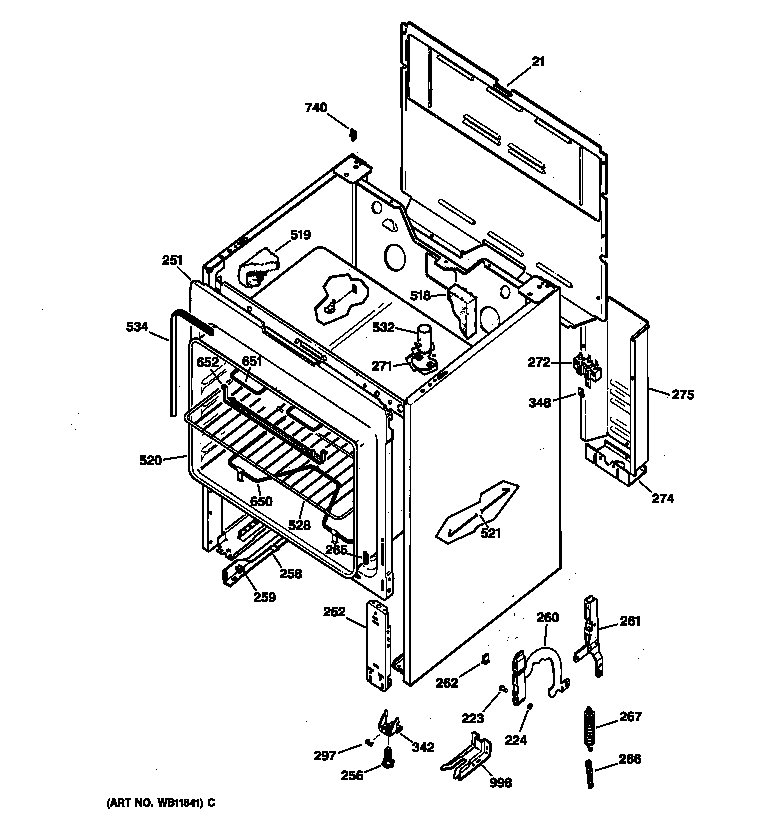

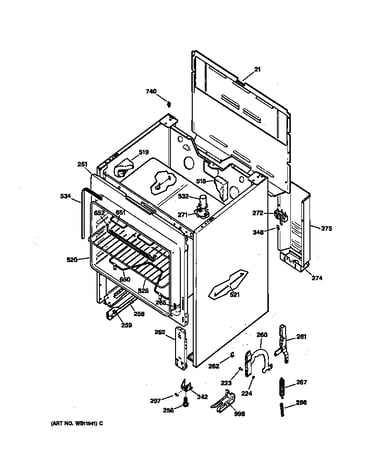

Body parts diagram

Range broil element support

Part #WB2X1452

$26.02 |
19% OFF Phone Price : $32.02
In Stock
Washer WB1X119
#312

Door & drawer parts diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
