Model # D55167 TYPE 3 Official DeWalt air compressor

Here are the diagrams and repair parts for Official DeWalt D55167-TYPE-3 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 75 parts |

#45

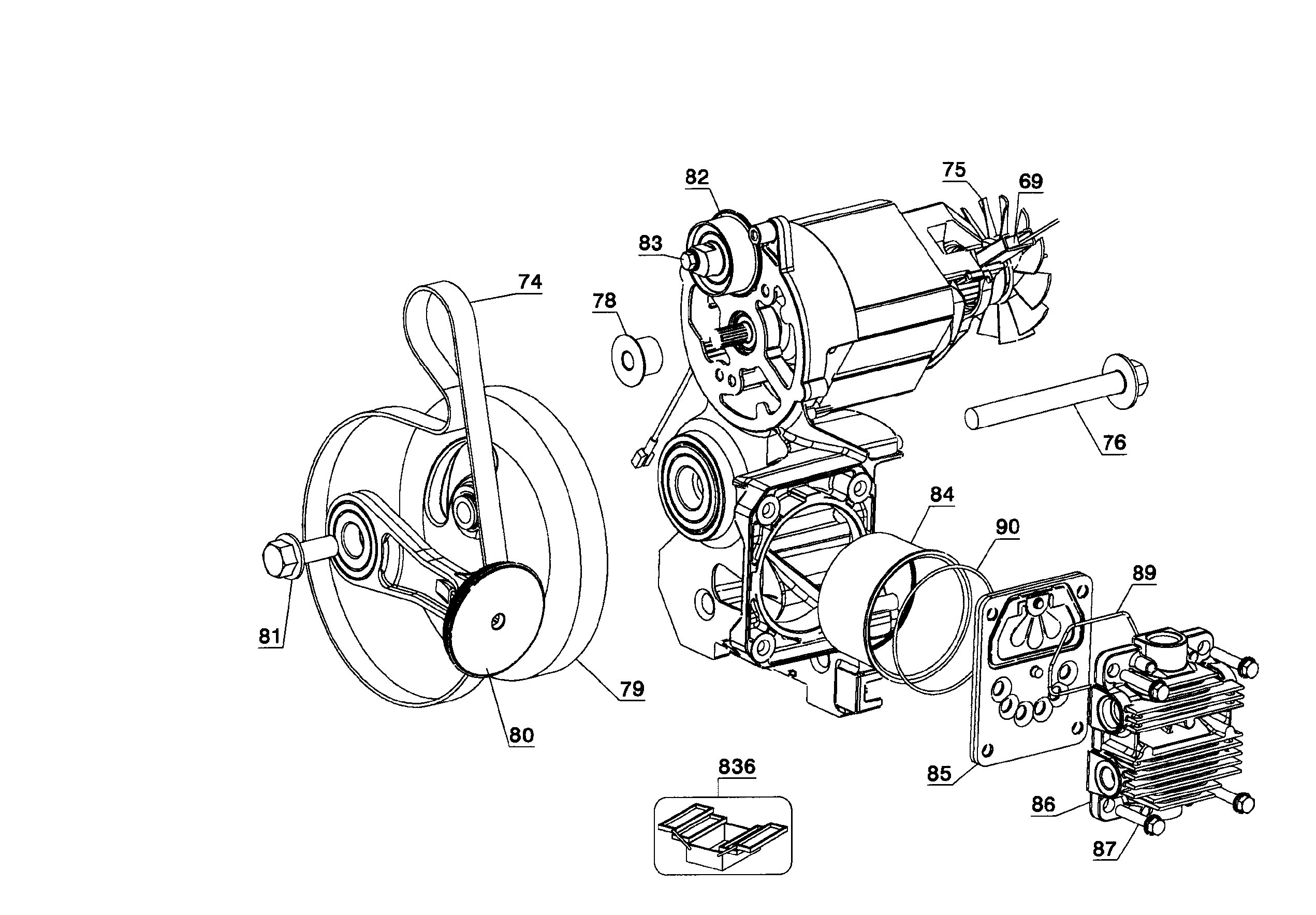

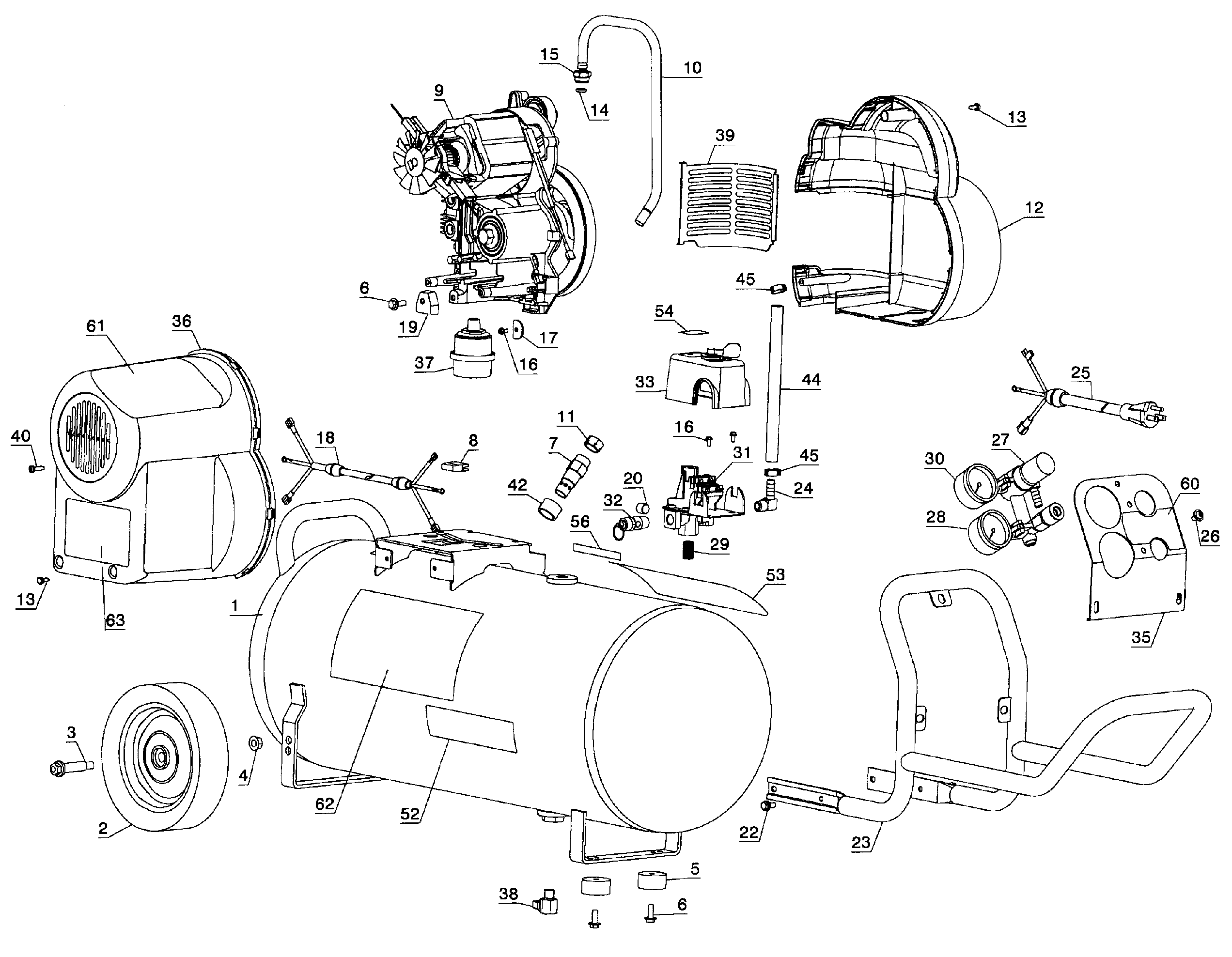

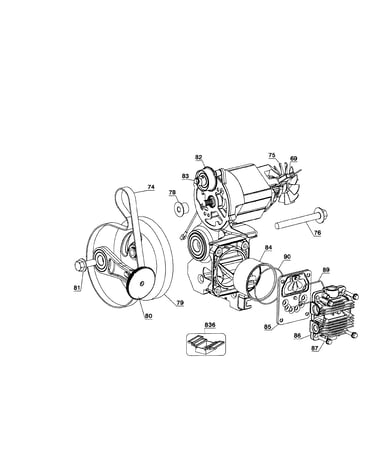

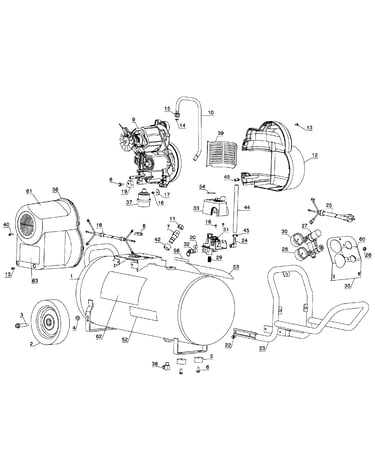

Compressor diagram

Clamp

Part #A20009

The manufacturer no longer makes this part, and there's no substitute part

#53

Compressor diagram

Label

Part #N000231

The manufacturer no longer makes this part, and there's no substitute part

#58

Compressor diagram

Label

Part #N034746

The manufacturer no longer makes this part, and there's no substitute part

#10

Compressor diagram

Tube

Part #A14226

The manufacturer no longer makes this part, and there's no substitute part

#52

Compressor diagram

Label

Part #A17566

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Pressure Regulator Knob 5140067-14

#27C

Compressor diagram

Air compressor pressure regulator knob

Part #5140067-14

The manufacturer no longer makes this part, and there's no substitute part

#35

Compressor diagram

Cover

Part #N012782

The manufacturer no longer makes this part, and there's no substitute part

#39

Compressor diagram

Air compressor grill

Part #A14935

The manufacturer no longer makes this part, and there's no substitute part

#44

Compressor diagram

Hose

Part #A18614

The manufacturer no longer makes this part, and there's no substitute part

#12

Compressor diagram

Shroud

Part #A15533

The manufacturer no longer makes this part, and there's no substitute part
