Craftsman
Front-Engine Lawn Tractor

Model # 9172552704 Official Craftsman 36" 10-hp riding lawn tractor with electric start

Here are the diagrams and repair parts for Official Craftsman 9172552704 36" 10-hp riding lawn tractor with electric start, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

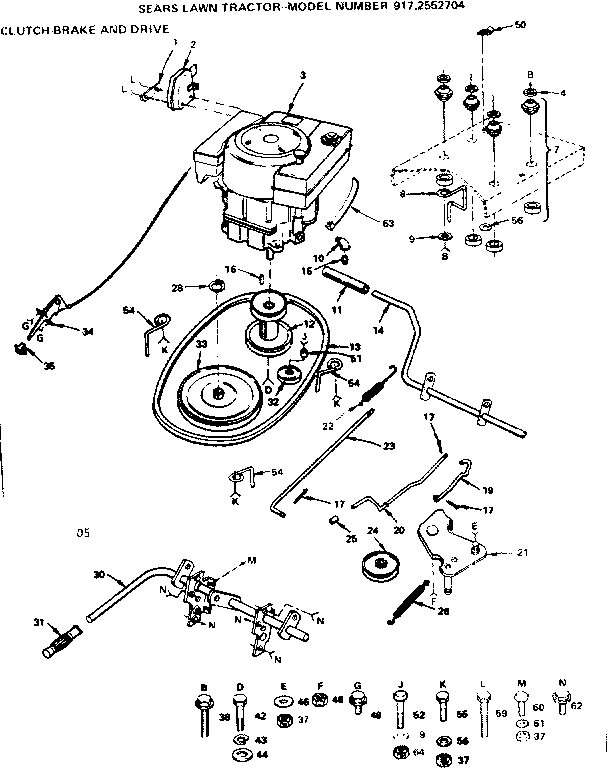

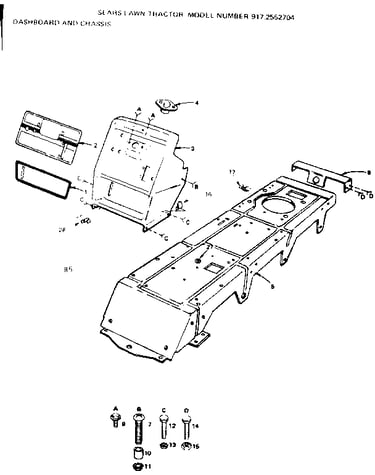

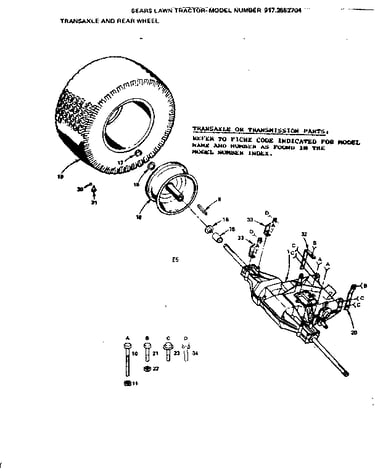

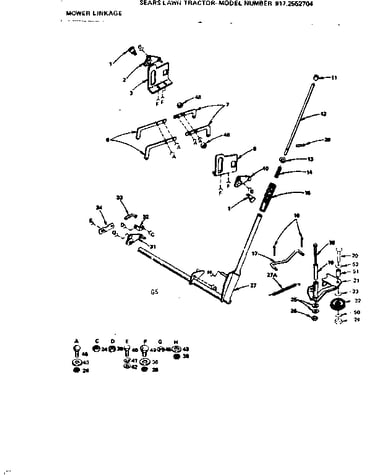

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 269 parts  |
Latch 100225L
#4

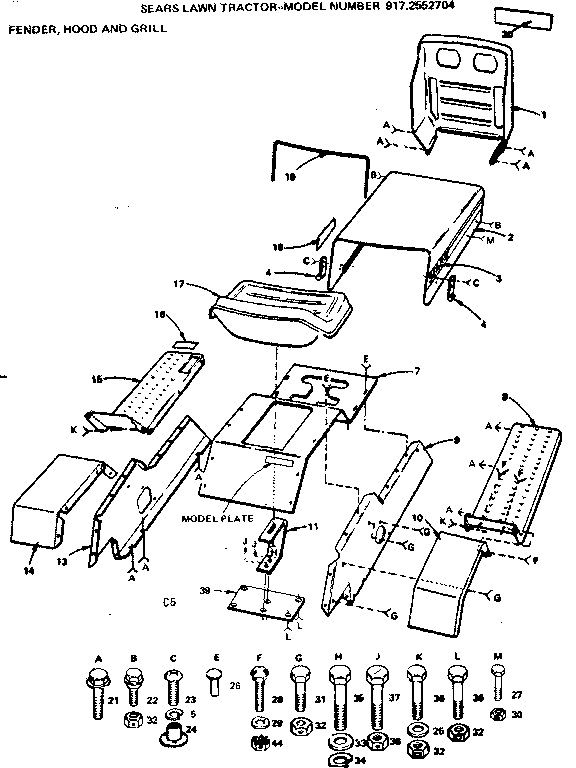

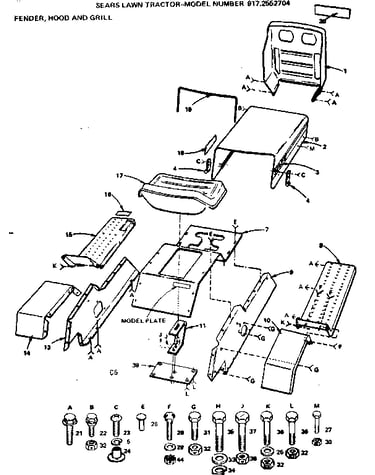

Fender, hood and grill diagram

Latch

Part #100225L

Replaced by #532109808

?
Manufacturer substitution
This part replaces 100225L. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Tire 106217X
#24

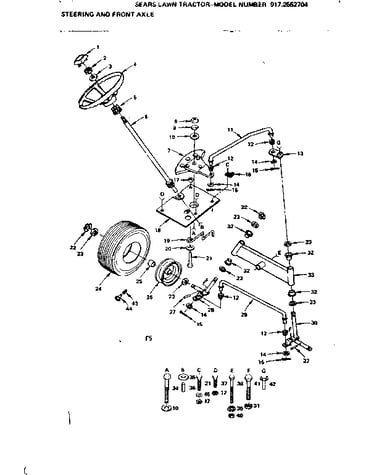

Steering and front axle diagram

Tire

Part #106217X

Replaced by #532122073

?
Manufacturer substitution
This part replaces 106217X. Substitute parts can look different from the original.
BEST SELLER
$61.64 |
9% OFF Phone Price : $67.64
In Stock
Lawn Tractor Bearing 3366R
#32

Steering and front axle diagram

Lawn tractor bearing

Part #3366R

Replaced by #532003366

?
Manufacturer substitution
This part replaces 3366R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Tractor Grass Catcher Left Gauge Wheel Bracket 2029J
#24

Fender, hood and grill diagram

Lawn tractor grass catcher left gauge wheel bracket

Part #2029J

Replaced by #596987401

?
Manufacturer substitution
This part replaces 2029J. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Lawn Tractor Ignition Switch STD365402
#10

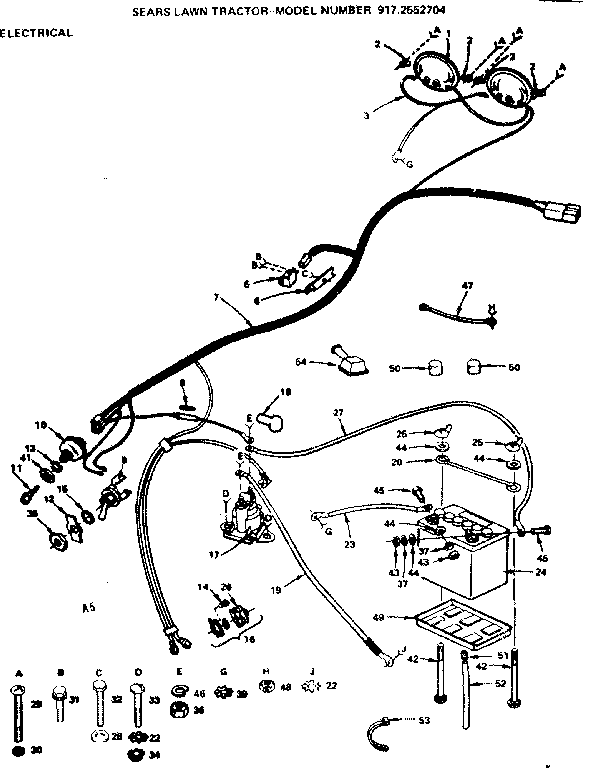

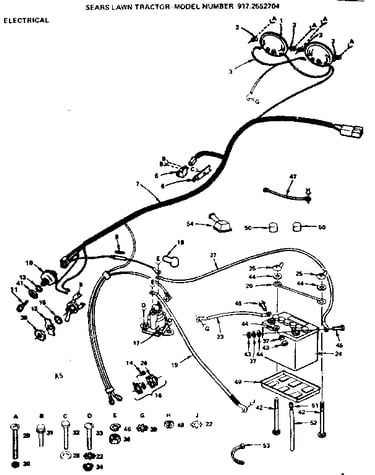

Electrical diagram

Lawn tractor ignition switch

Part #STD365402

Replaced by #532365402

?
Manufacturer substitution
This part replaces STD365402. Substitute parts can look different from the original.
BEST SELLER
$28.82 |
17% OFF Phone Price : $34.82
In Stock
Battery 9272R
#24

Electrical diagram

Battery

Part #9272R

The manufacturer no longer makes this part, and there's no substitute part

Bolt 72140505
#23

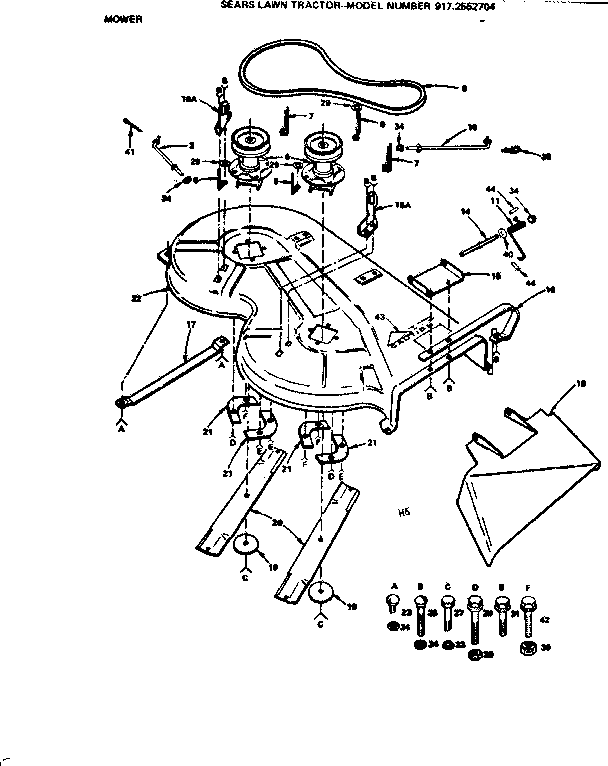

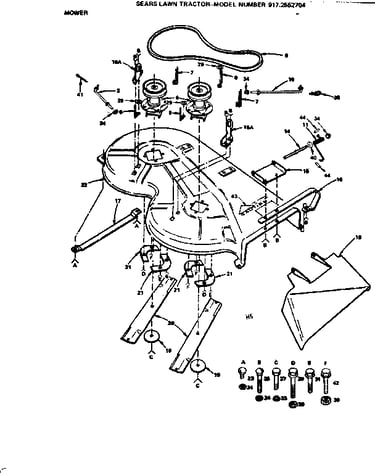

Mower deck diagram

Bolt

Part #72140505

Replaced by #596136401

?
Manufacturer substitution
This part replaces 72140505. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Wizard Lawn Tractor Axle Flange Bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, P-1246, P-1622) 9040H
#25

Steering and front axle diagram

Wizard lawn tractor axle flange bearing (replaces 532009040, 5320090-40, 532124959, 577203109, 5920h, 5920h1, p-1246, p-1622)

Part #9040H

Replaced by #532009040

?
Manufacturer substitution
This part replaces 9040H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Husqvarna Lawn Tractor Ring Clip (replaces 5022p, 53212000029, 812000029, 8120000-29) 12000029
#22

Steering and front axle diagram

Husqvarna lawn tractor ring clip (replaces 5022p, 53212000029, 812000029, 8120000-29)

Part #12000029

Replaced by #812000029

?
Manufacturer substitution
This part replaces 12000029. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Nut 5846R
#34

Mower deck diagram

Nut

Part #5846R

Replaced by #532110452

?
Manufacturer substitution
This part replaces 5846R. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
88% OFF Was : $33.51
In Stock
