Dacor
Electric Wall Oven

Model # ORS136SCH Official Dacor oven

Here are the diagrams and repair parts for Official Dacor ORS136SCH oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

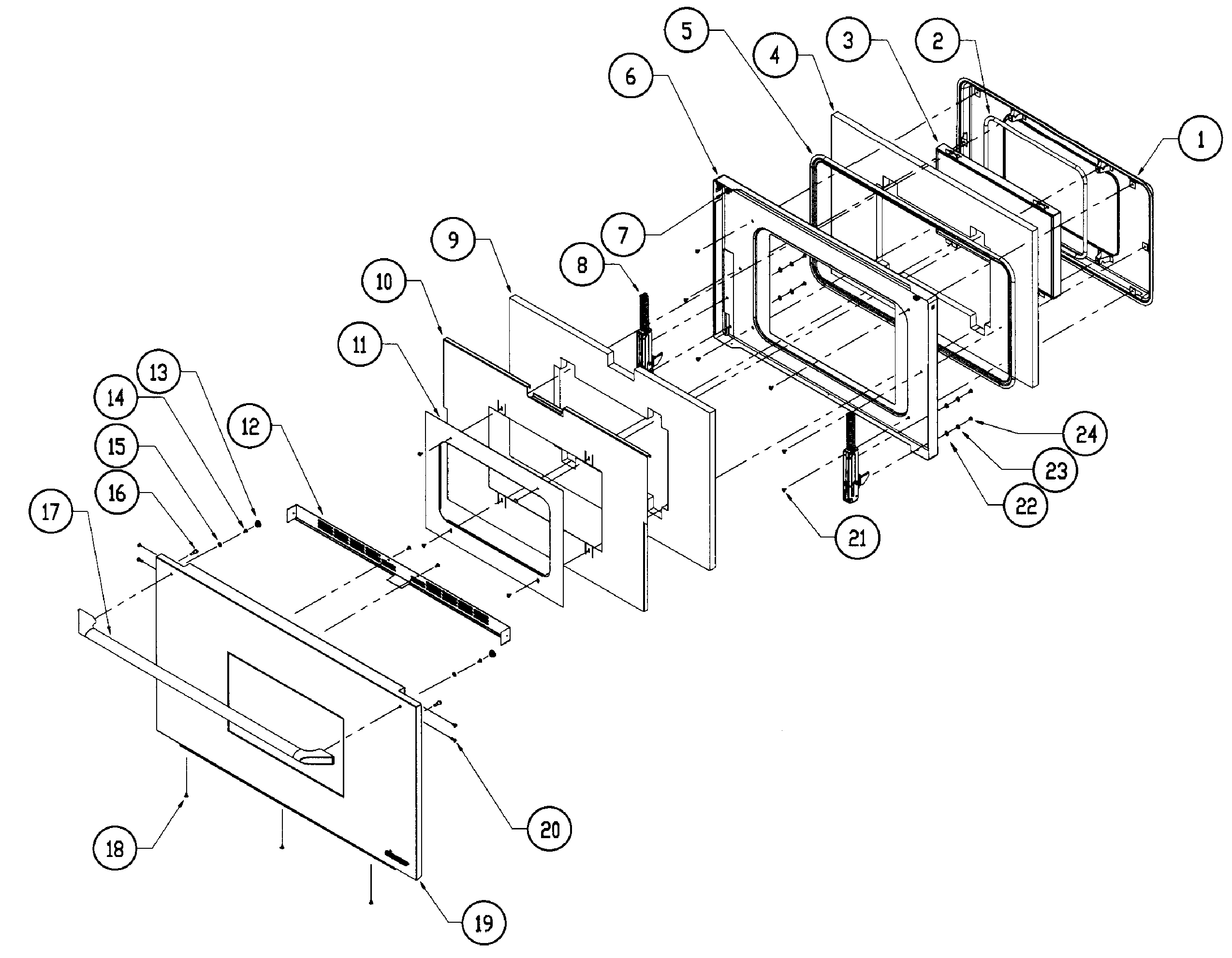

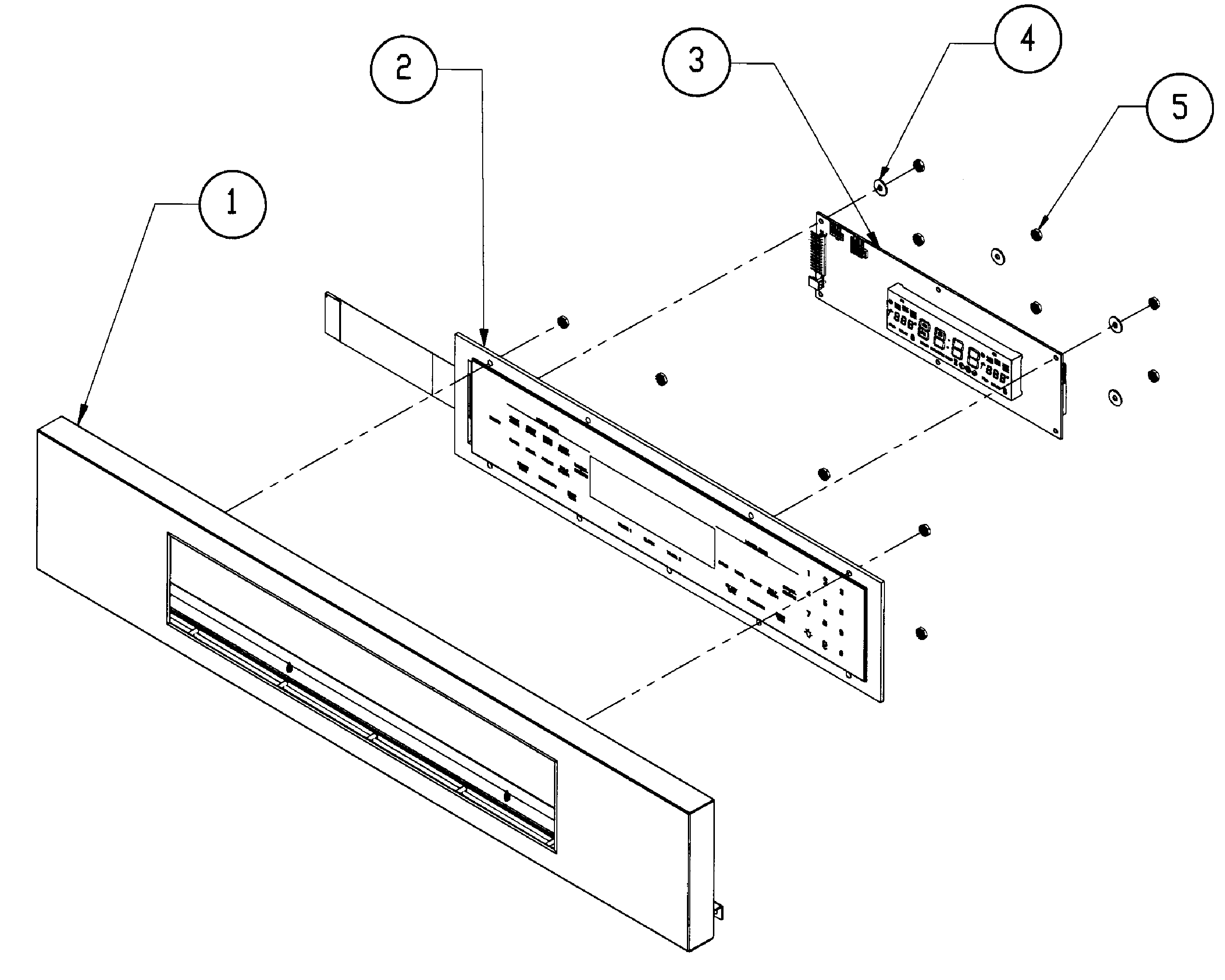

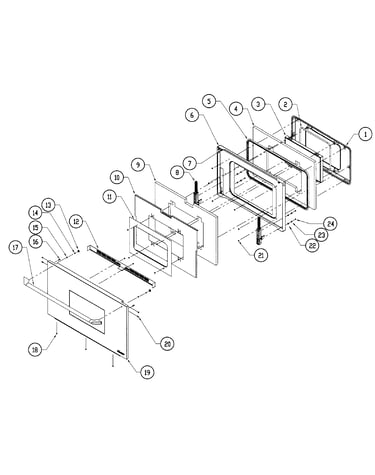

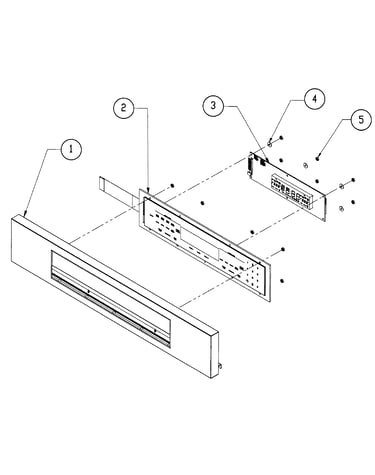

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |
Door Latch 100090
#11

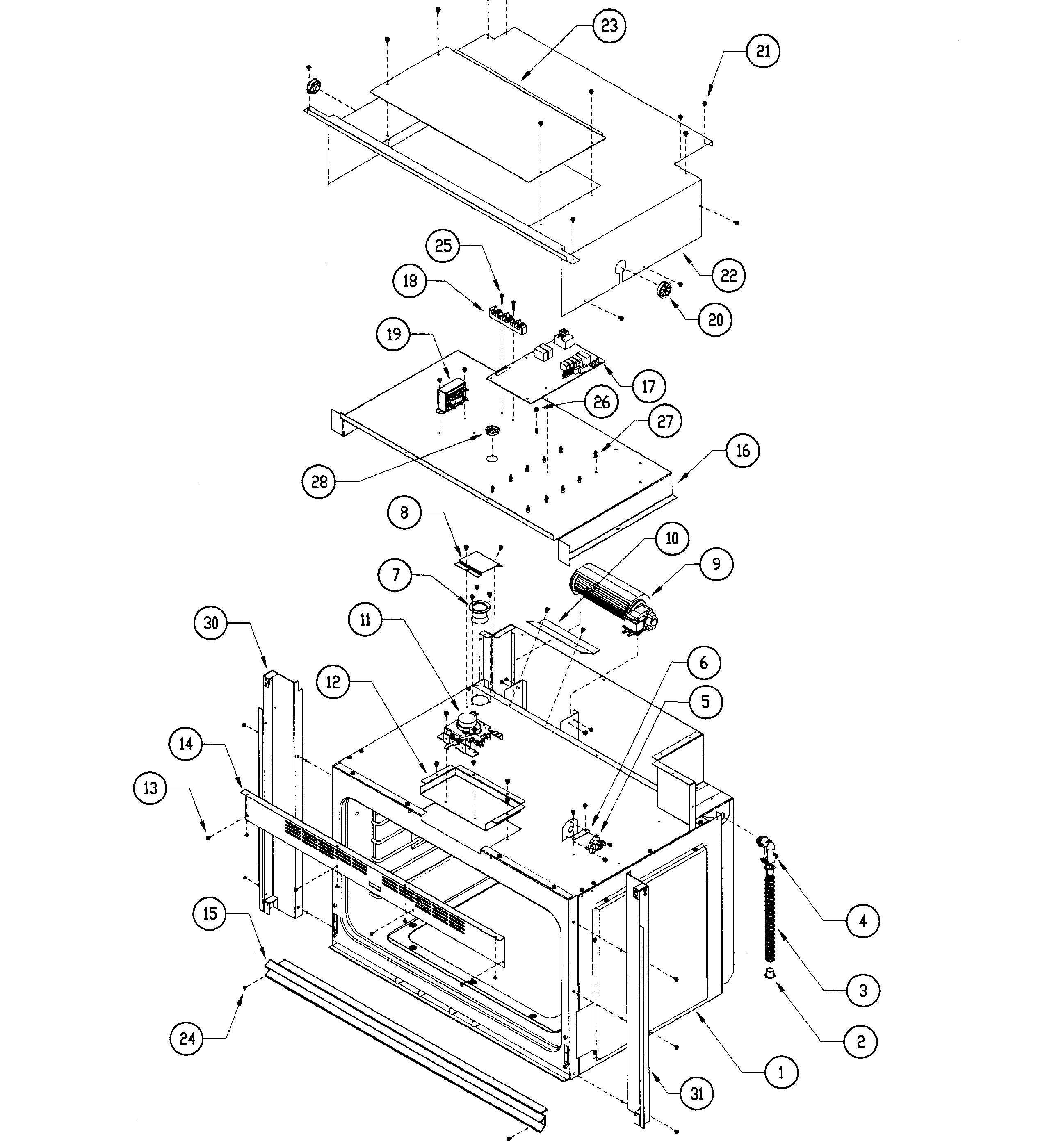

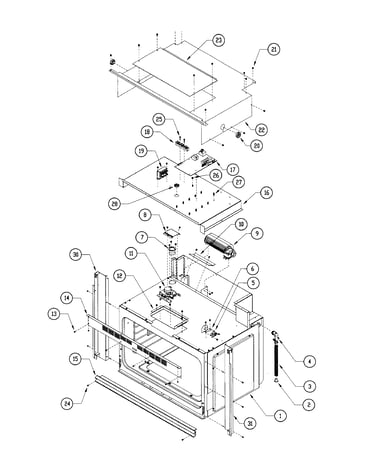

Oven assy diagram

Door latch

Part #100090

Replaced by #101339

?
Manufacturer substitution
This part replaces 100090. Substitute parts can look different from the original.
$82.99
In Stock
Range Oven Light Bulb 100429
#17

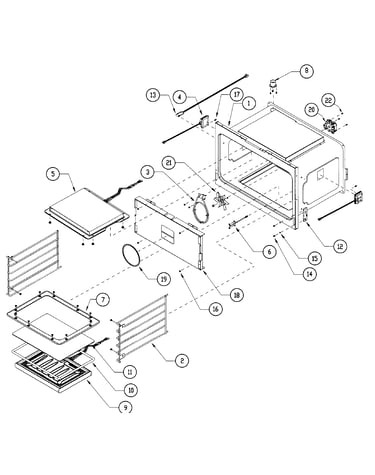

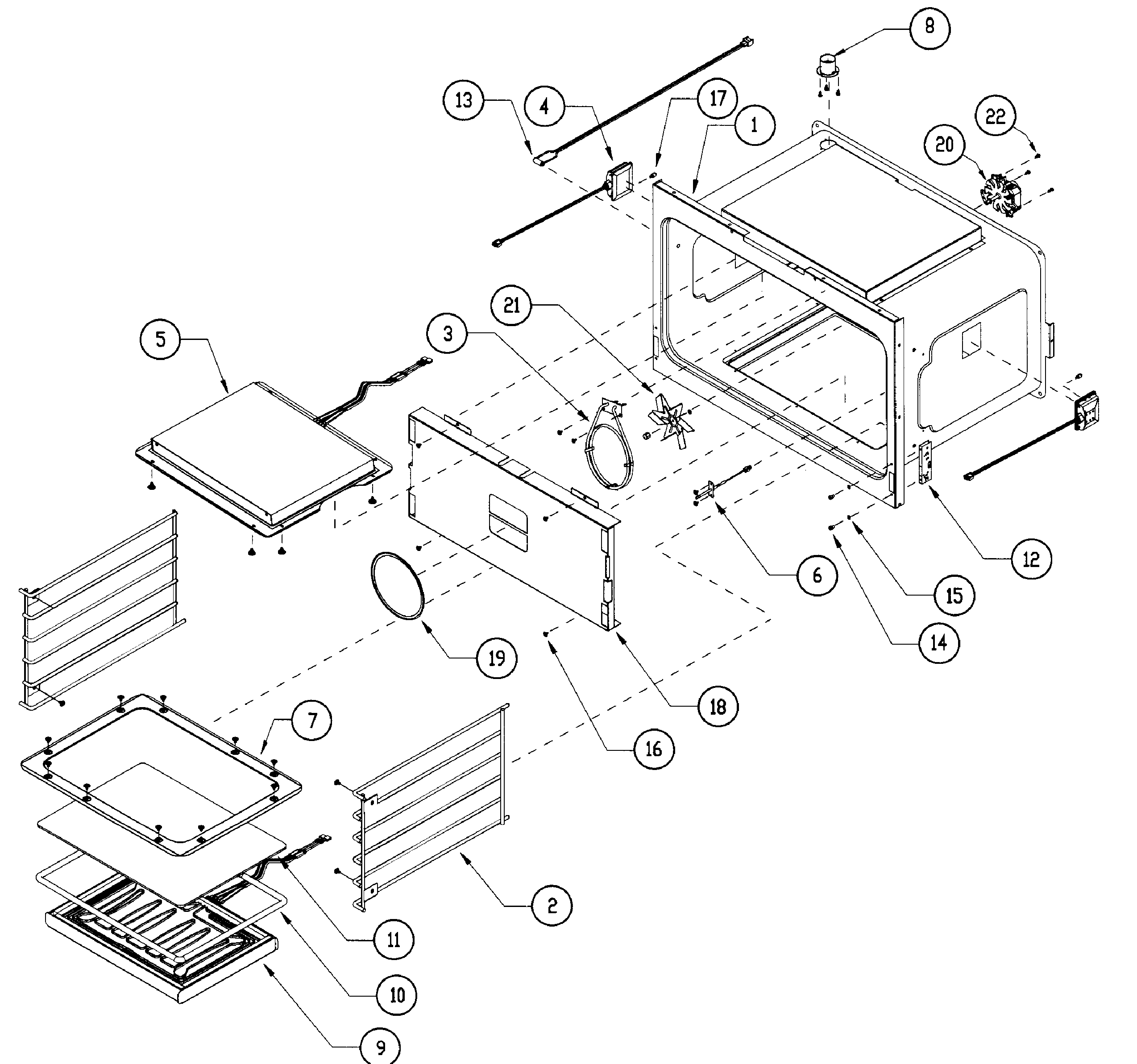

Oven cell diagram

Range oven light bulb

Part #100429

$27.49
In Stock
Wall Oven Bake Glass 72898
#11

Oven cell diagram

Wall oven bake glass

Part #72898

$153.49
Back Order
Wall Oven Convection Fan Cover 82891
#19

Oven cell diagram

Wall oven convection fan cover

Part #82891

$62.49
Back Order
Duct 46320
#8

Oven assy diagram

Duct

Part #46320

$8.49
In Stock
Screw 83026
Screw

Part #83026

This item is not returnable
$2.16
In Stock
Washer 83080
Washer

Part #83080

This item is not returnable
$2.16
In Stock
Washer 102136
#3B

Oven cell diagram

Washer

Part #102136

This item is not returnable
$2.16
In Stock
Pan Porcel 82107
#6

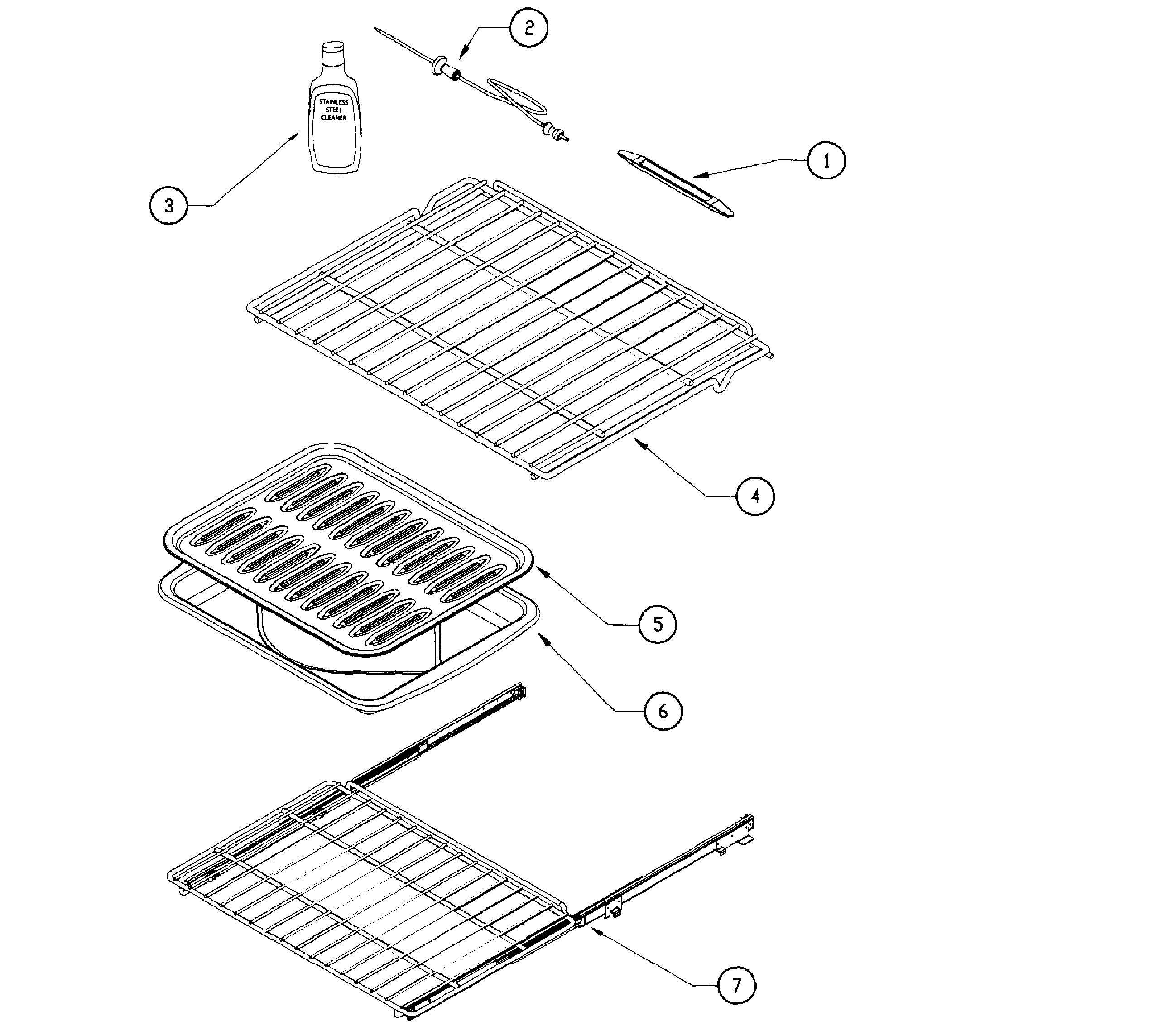

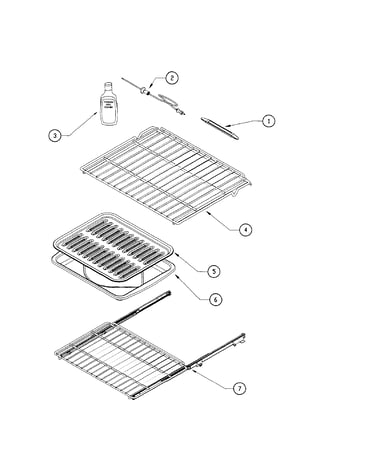

Accessories diagram

Pan porcel

Part #82107

$41.99
In Stock
Pan Base 36318
#23

Oven assy diagram

Pan base

Part #36318

$19.49
In Stock
