Sharp
LCD Television

Model # LC-26D5U Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-26D5U lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Sharp Cord,33p QCNW-D087WJQZ
#76

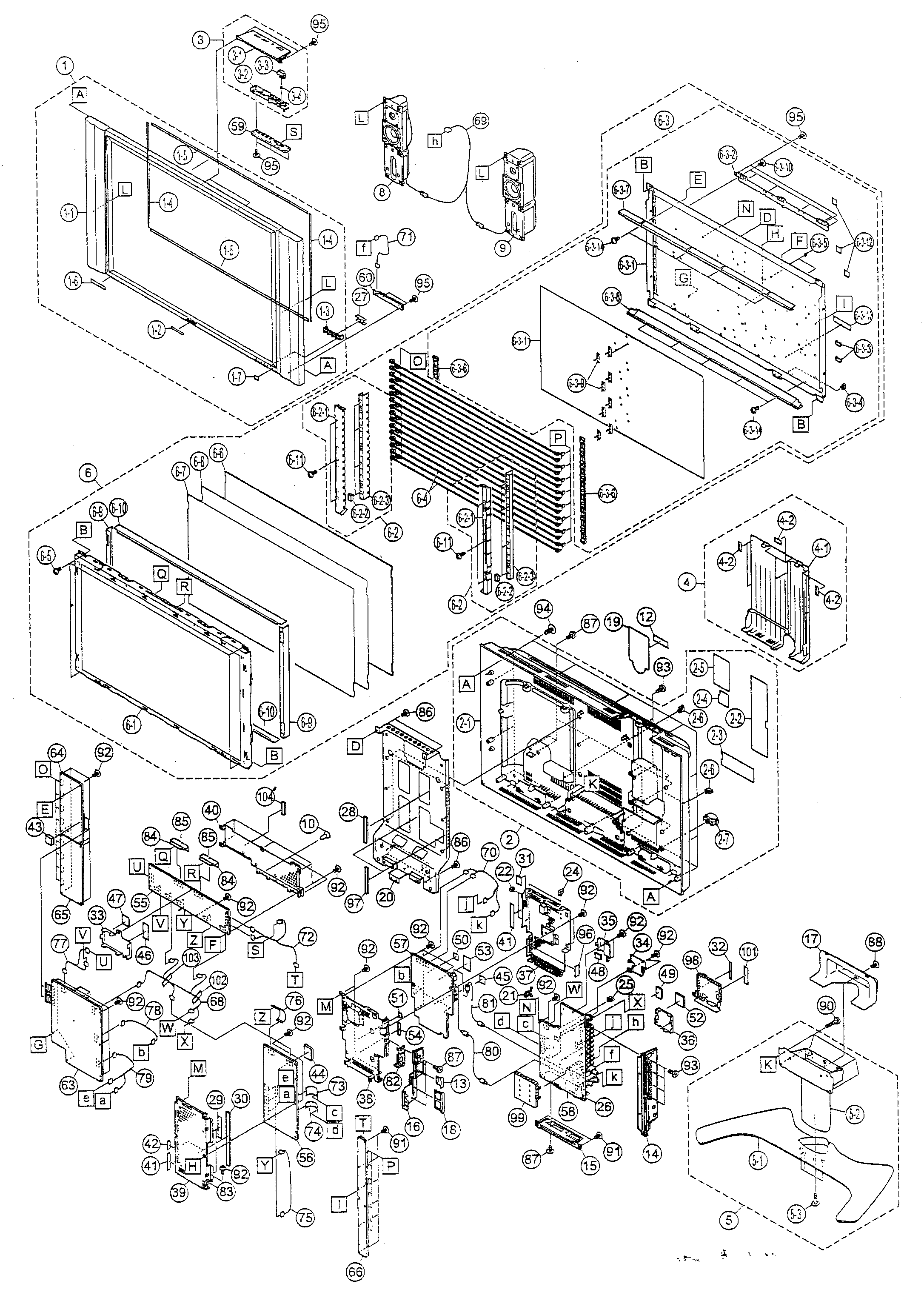

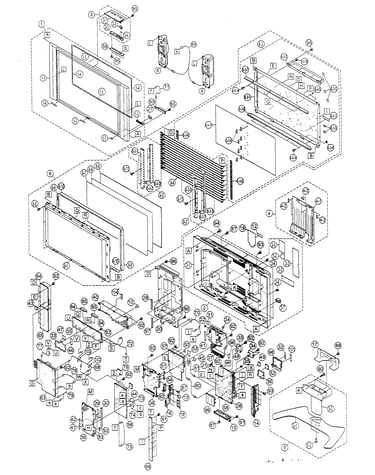

Cabinet patrs diagram

Sharp cord,33p

Part #QCNW-D087WJQZ

The manufacturer no longer makes this part, and there's no substitute part

Screw XBPS730P04WS0
#91

Cabinet patrs diagram

Screw

Part #XBPS730P04WS0

The manufacturer no longer makes this part, and there's no substitute part

Rfl Mirror PMIR-A057WJZZ
#6311

Cabinet patrs diagram

Rfl mirror

Part #PMIR-A057WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Sharp Jack Audio Video HINDPB237WJSA
#2-3

Cabinet patrs diagram

Sharp jack audio video

Part #HINDPB237WJSA

The manufacturer no longer makes this part, and there's no substitute part

Sharp Television LHLDZA477WJKZ
#638

Cabinet patrs diagram

Sharp television

Part #LHLDZA477WJKZ

The manufacturer no longer makes this part, and there's no substitute part

Inverter RUNTKA098WJZZ
#66

Cabinet patrs diagram

Inverter

Part #RUNTKA098WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Sharp Lamp CHLDZA446WJ01
#6-2

Cabinet patrs diagram

Sharp lamp

Part #CHLDZA446WJ01

The manufacturer no longer makes this part, and there's no substitute part

Sharp Bottom PSLDMA602WJFW
#99

Cabinet patrs diagram

Sharp bottom

Part #PSLDMA602WJFW

The manufacturer no longer makes this part, and there's no substitute part

Sharp Panel,fpc RCORFA039WJZZ
#85

Cabinet patrs diagram

Sharp panel,fpc

Part #RCORFA039WJZZ

The manufacturer no longer makes this part, and there's no substitute part

12p Cable QCNW-D080WJQZ
#70

Cabinet patrs diagram

12p cable

Part #QCNW-D080WJQZ

The manufacturer no longer makes this part, and there's no substitute part
