Model # LGHT2137LE4 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire LGHT2137LE4 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |
Refrigerator Filter Drier 218944001
#4

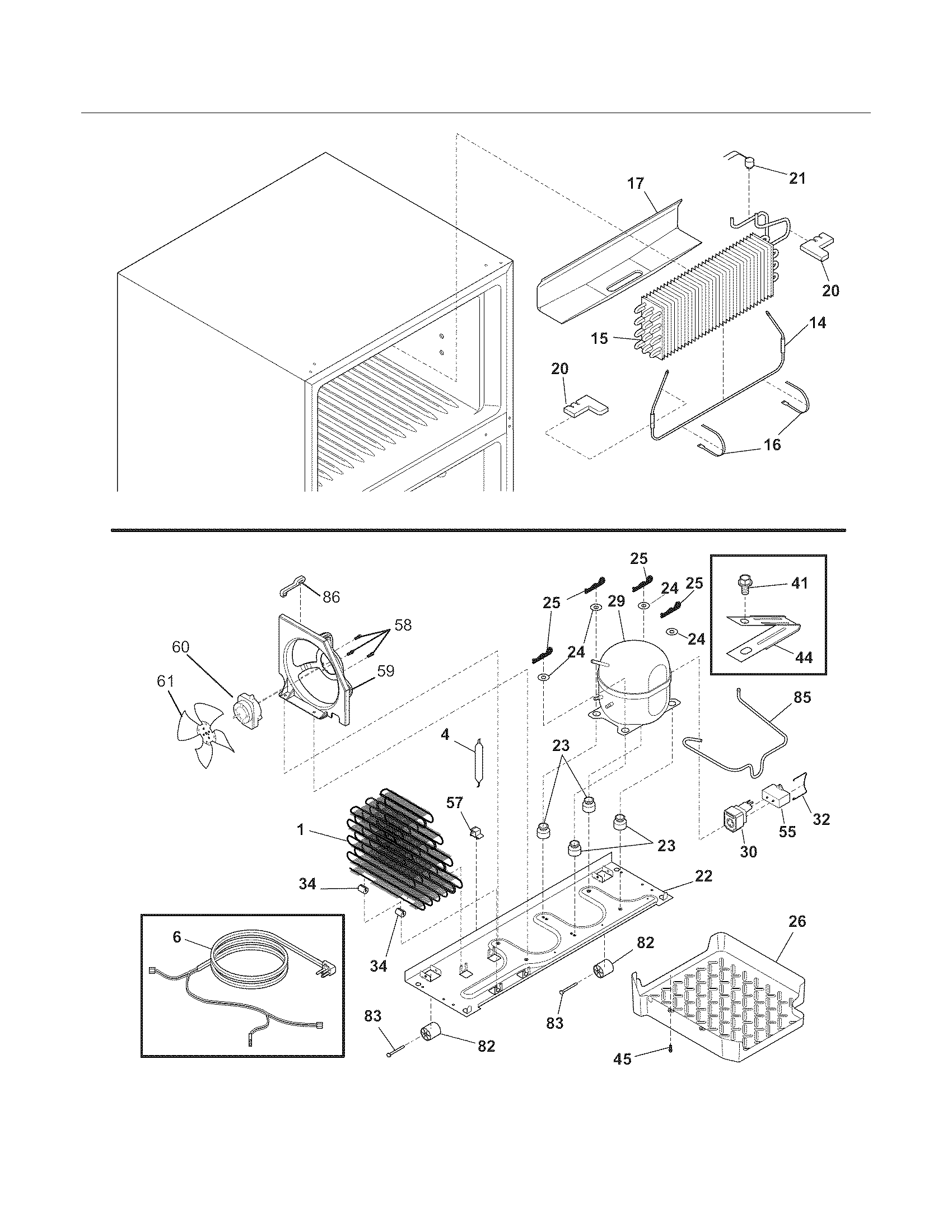

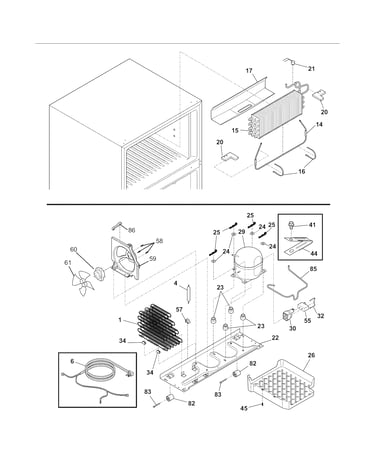

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

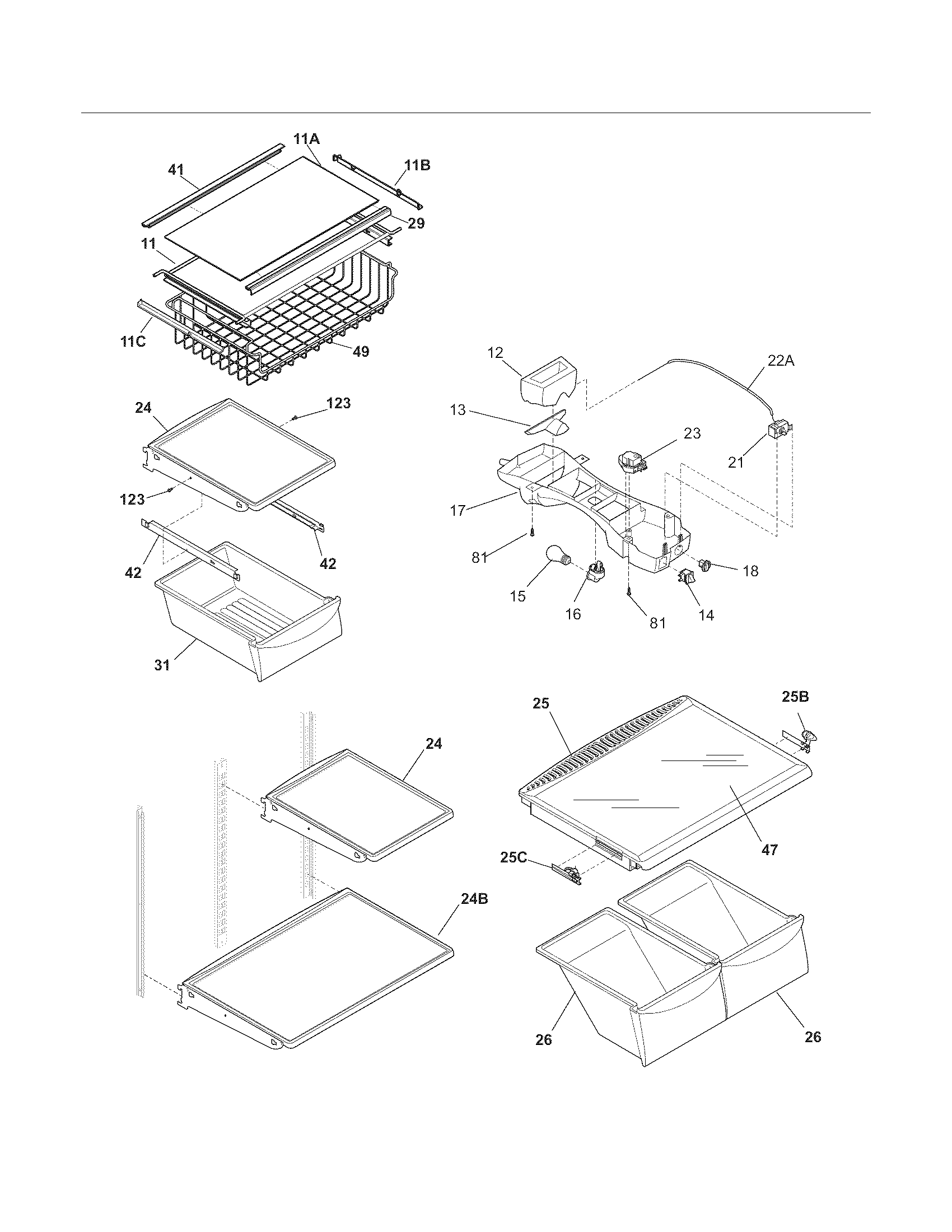

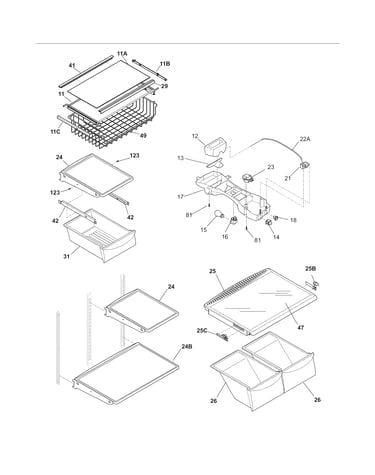

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$36.46 |
14% OFF Phone Price : $42.46
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

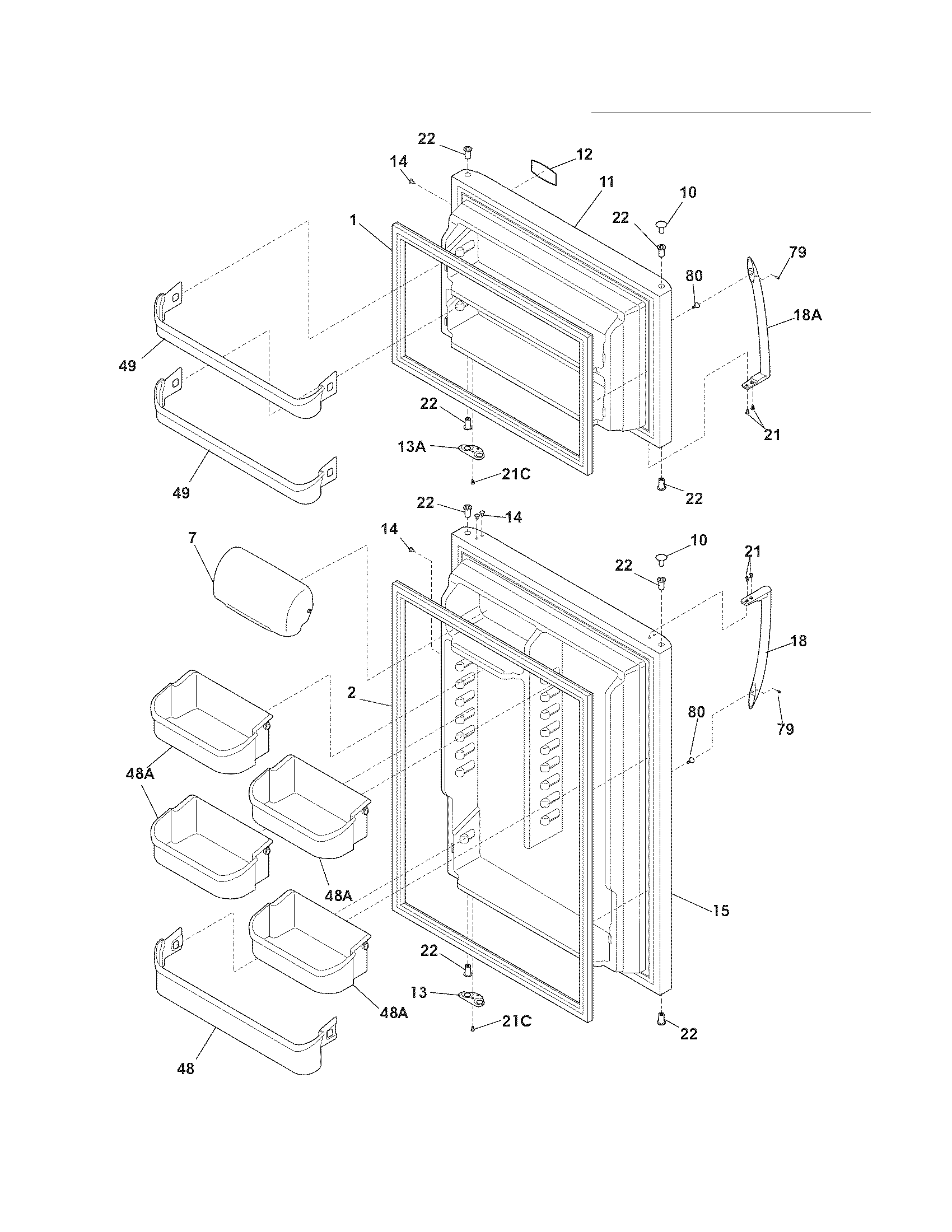

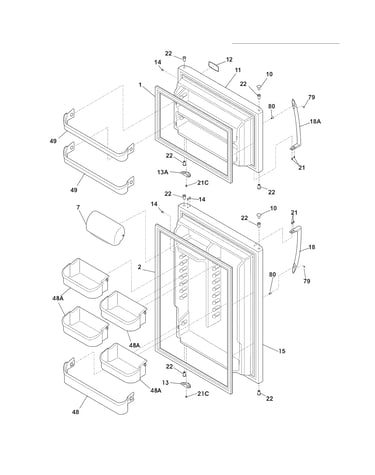

Doors diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$49.71 |
11% OFF Phone Price : $55.71
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

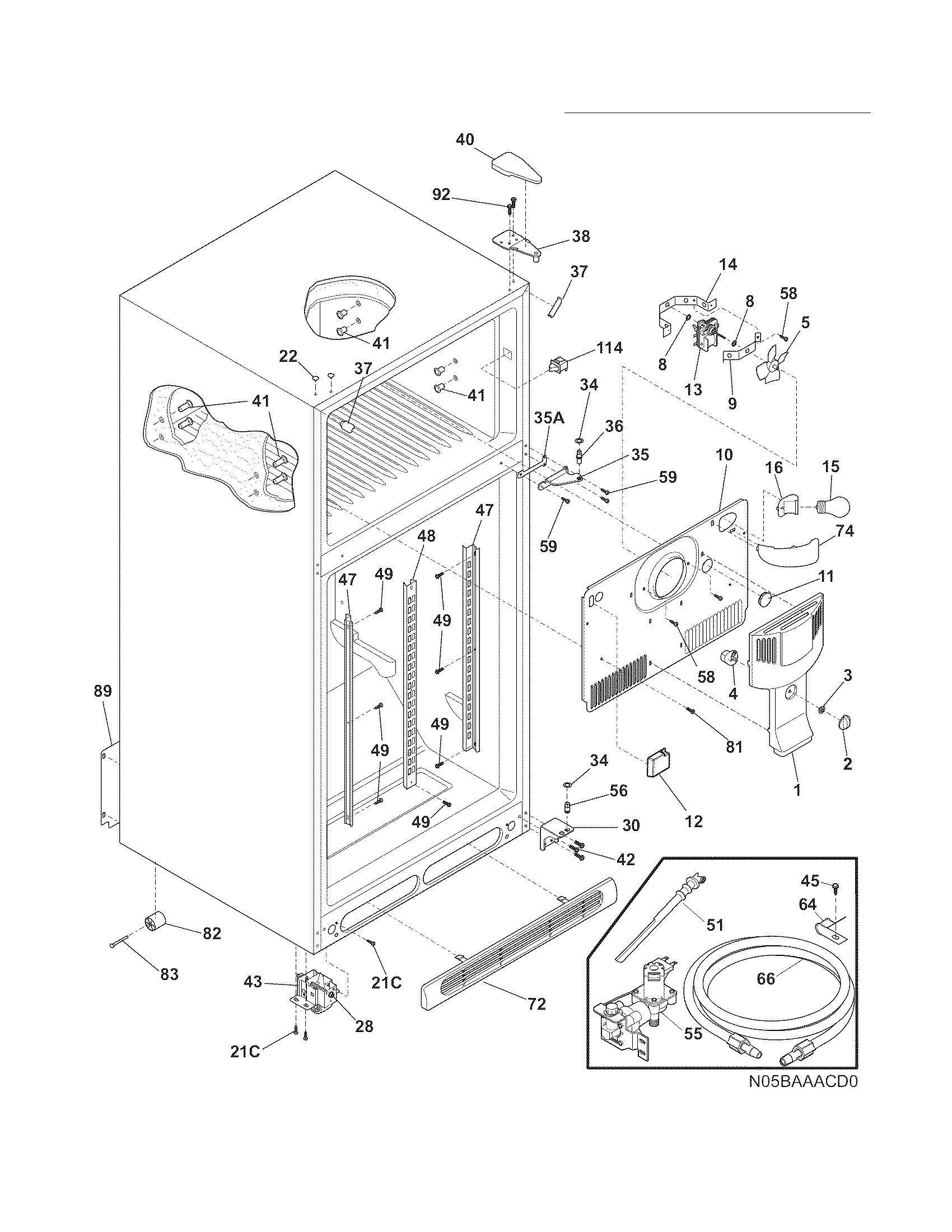

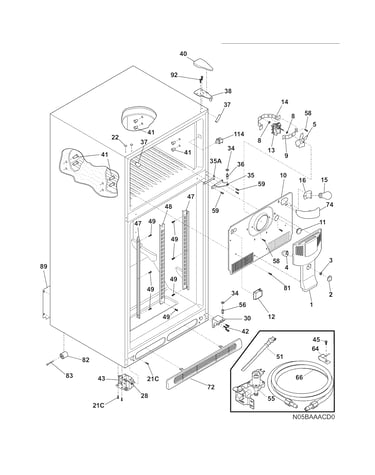

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Water Inlet Valve Assembly 241803701
#55

Cabinet diagram

Refrigerator water inlet valve assembly

Part #241803701

Replaced by #242252603

?
Manufacturer substitution
This part replaces 241803701. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Condenser Fan Motor 242018301
#60

System diagram

Refrigerator condenser fan motor

Part #242018301

Replaced by #242018304

?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
$91.38 |
6% OFF Phone Price : $97.38
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 241619705) 5303918202
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 241619705)

Part #5303918202

BEST SELLER
$27.56 |
18% OFF Phone Price : $33.56
In Stock
Refrigerator Crisper Drawer Cover Insert (replaces 240350654, 240350689, 240443301) 240350609
#47

Shelves diagram

Refrigerator crisper drawer cover insert (replaces 240350654, 240350689, 240443301)

Part #240350609

BEST SELLER
$101.70 |
11% OFF Phone Price : $113.70
In Stock
