Amana
Built-In Microwave

Model # 827.000 Official Amana built-in microwave

Here are the diagrams and repair parts for Official Amana 827000 built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Microwave Thermostat M18D29
#13

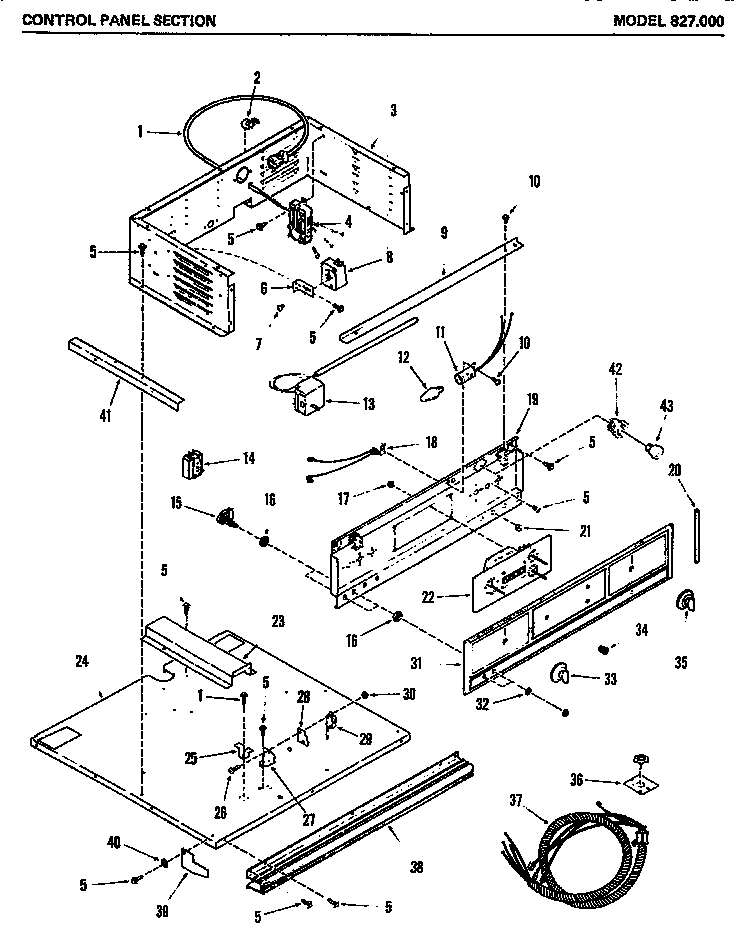

(827.000) diagram

Microwave thermostat

Part #M18D29

The manufacturer no longer makes this part, and there's no substitute part

Lens-indicator Light M2D615
#21

(827.000) diagram

Lens-indicator light

Part #M2D615

The manufacturer no longer makes this part, and there's no substitute part

Screw 10-32 X 5/8 Flat Hd M1D71
#31

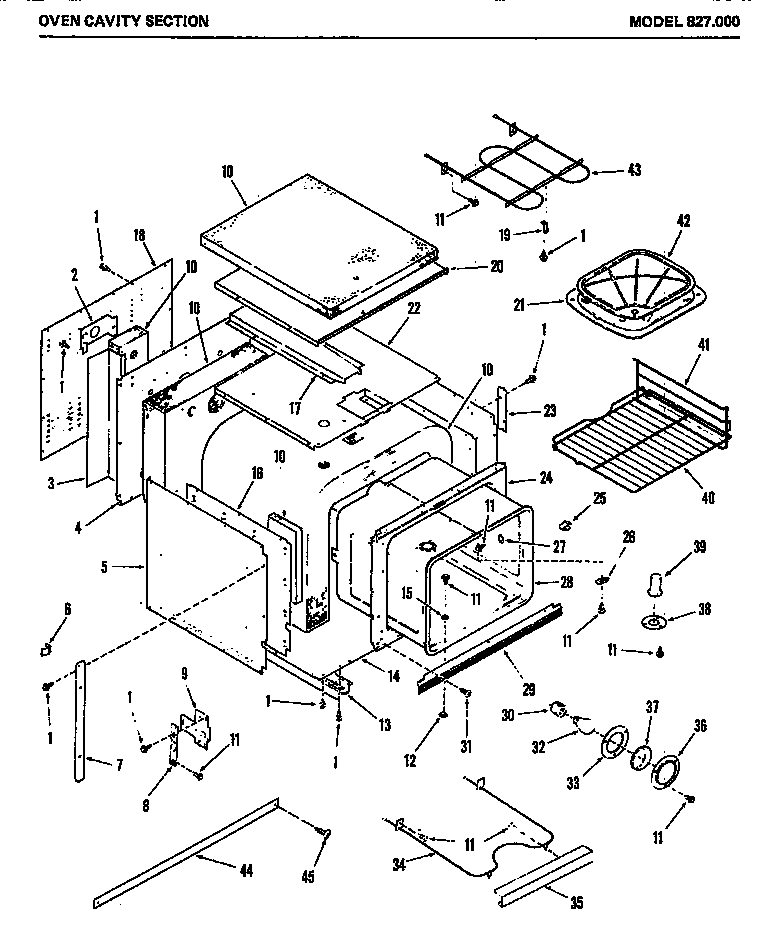

Oven cavity section (827.000) diagram

Screw 10-32 x 5/8 flat hd

Part #M1D71

The manufacturer no longer makes this part, and there's no substitute part

Fixed Input Control M14D256
#8

(827.000) diagram

Fixed input control

Part #M14D256

The manufacturer no longer makes this part, and there's no substitute part

Fuse M4D34
#58B

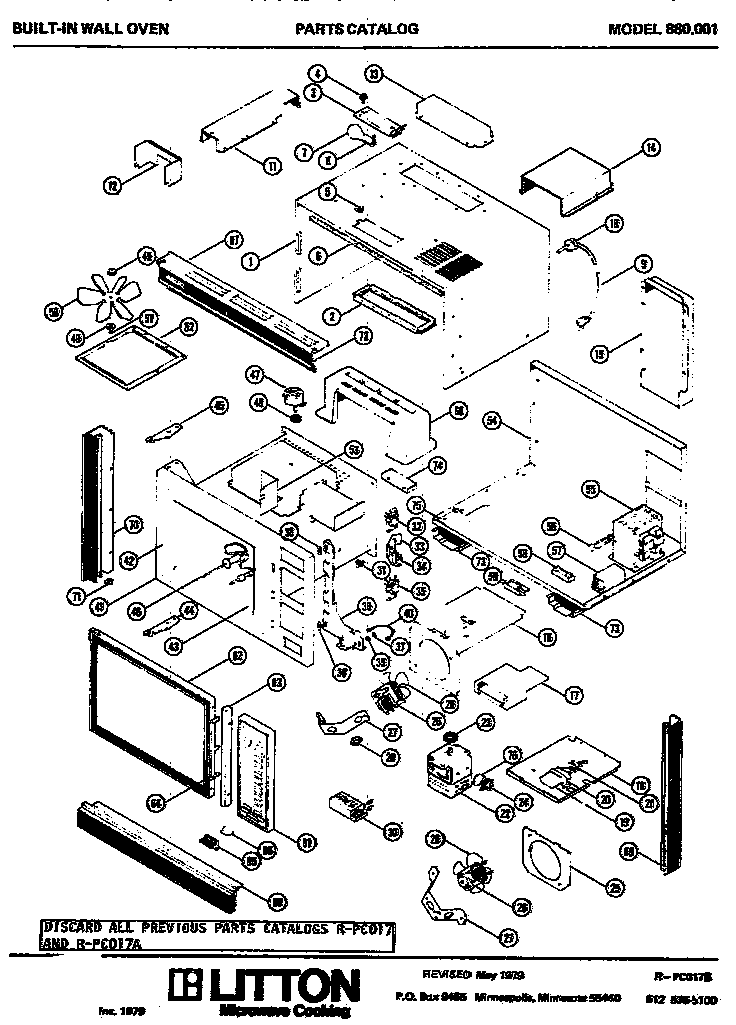

(880.001) diagram

Fuse

Part #M4D34

The manufacturer no longer makes this part, and there's no substitute part

Retainer - Oven Door Insulation M72D77
#9

Oven door section (827.000) diagram

Retainer - oven door insulation

Part #M72D77

The manufacturer no longer makes this part, and there's no substitute part

Broiler Element - 240 Volt M61D62
#43

Oven cavity section (827.000) diagram

Broiler element - 240 volt

Part #M61D62

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate - Thermostat Bulb M2D619
#27

Oven cavity section (827.000) diagram

Cover plate - thermostat bulb

Part #M2D619

The manufacturer no longer makes this part, and there's no substitute part

Power Cord M26D27
#9A

(880.001) diagram

Power cord

Part #M26D27

The manufacturer no longer makes this part, and there's no substitute part

Support - Lt. Side M20D231
#11B

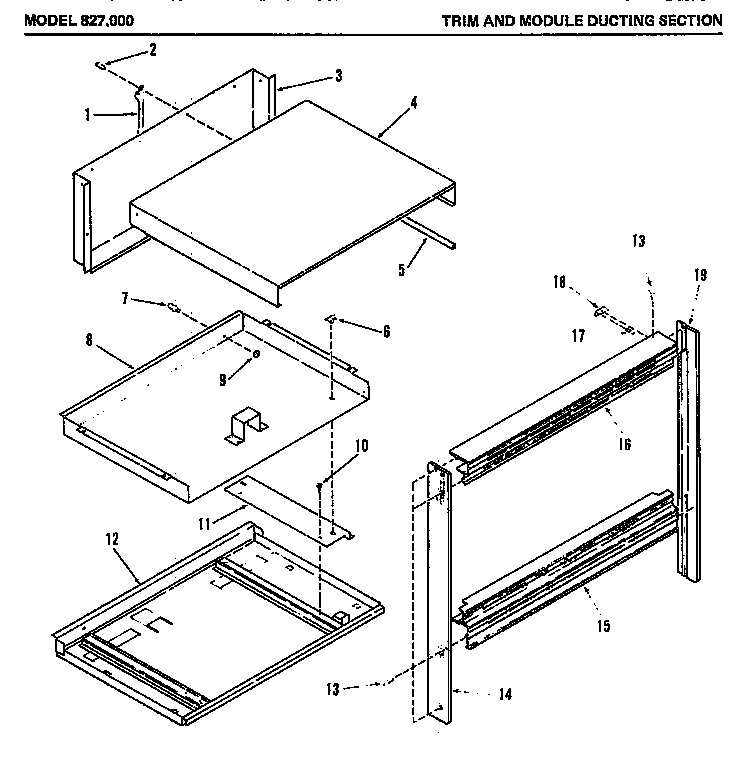

Trim and module ducting section (827.000) diagram

Support - lt. side

Part #M20D231

The manufacturer no longer makes this part, and there's no substitute part
