Model # 298586130 Official Craftsman 1.2-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 298586130 1.2-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

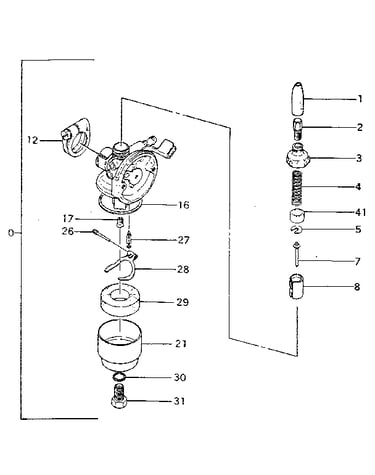

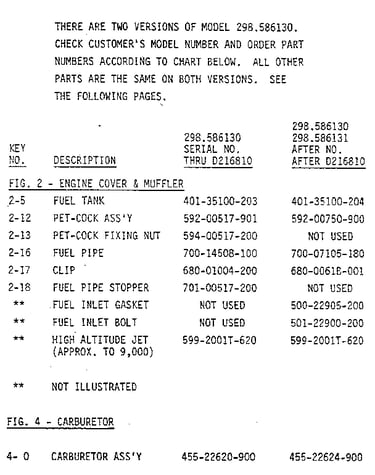

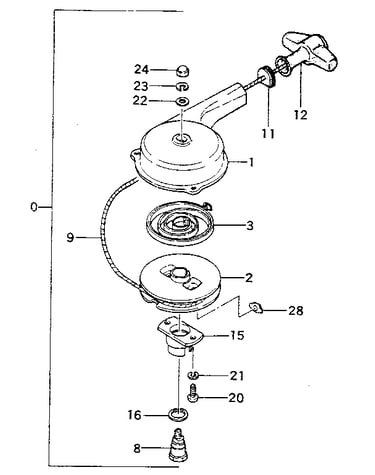

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Washer 992-01060-041
Washer

Part #992-01060-041

The manufacturer no longer makes this part, and there's no substitute part

Spark Plug 018-00562-200
#3

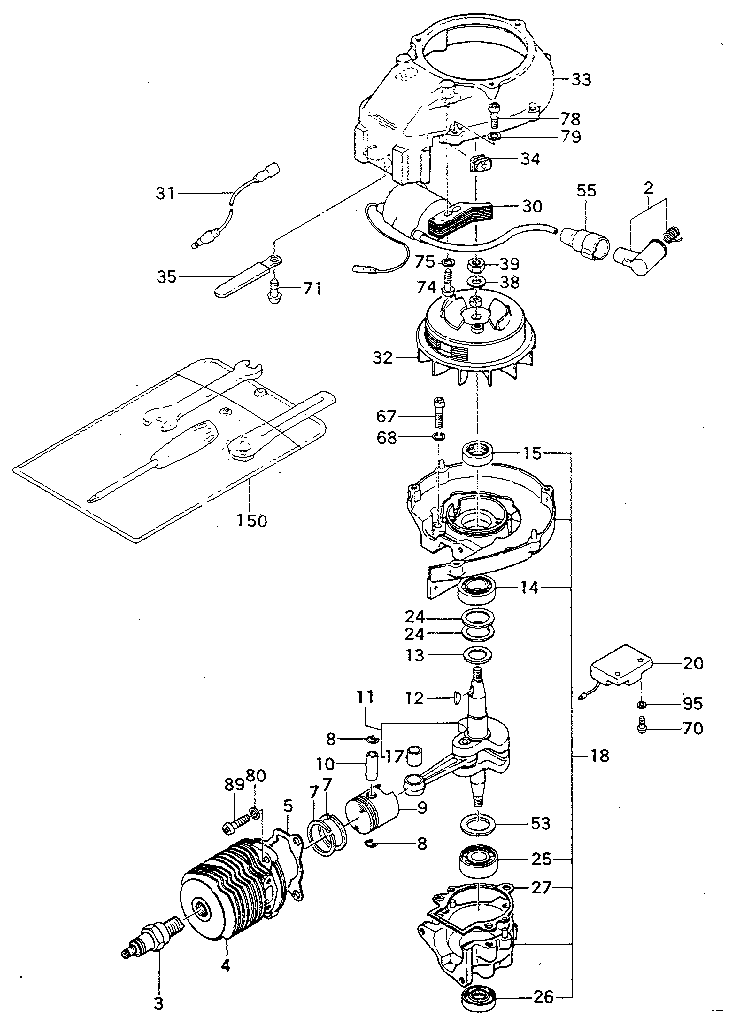

Engine diagram

Spark plug

Part #018-00562-200

Replaced by #845

?
Manufacturer substitution
This part replaces 018-00562-200. Substitute parts can look different from the original.
This item is not returnable
$4.94
In Stock
Washer 162-35118-200
#11

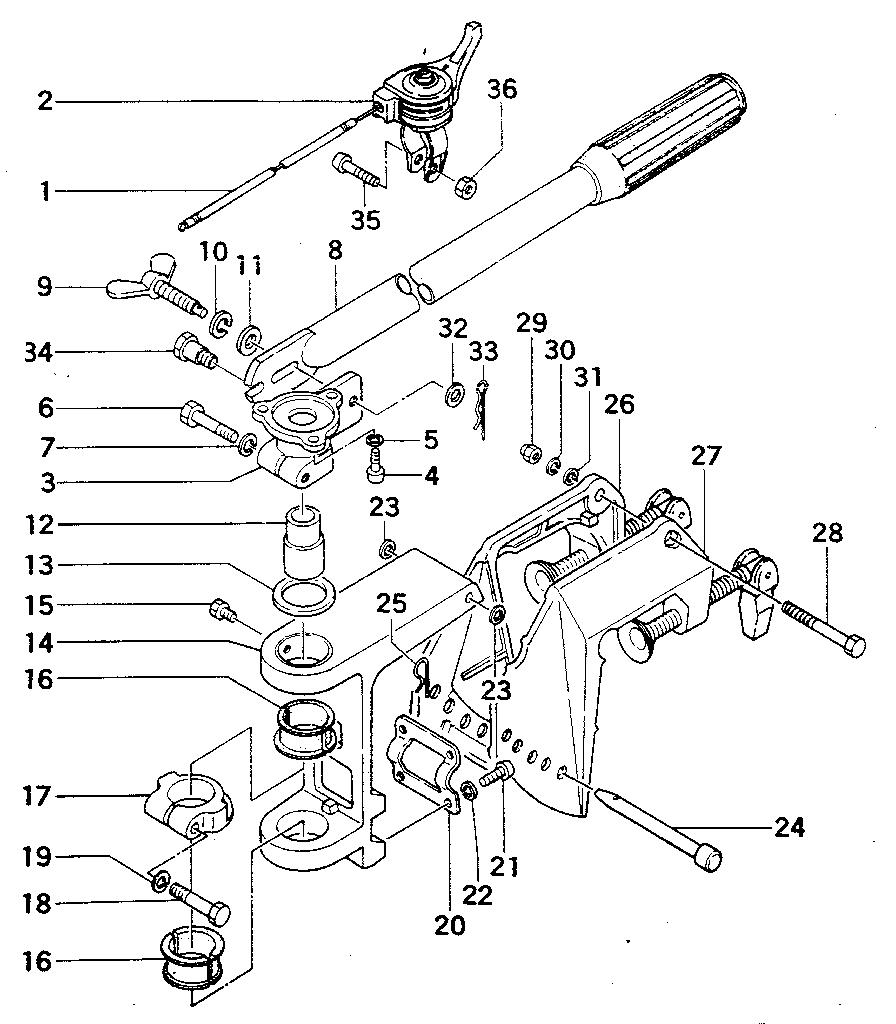

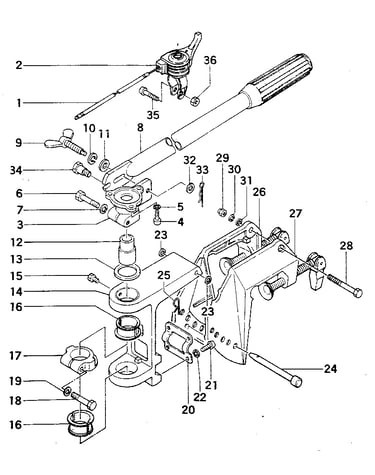

Handle & bracket diagram

Washer

Part #162-35118-200

The manufacturer no longer makes this part, and there's no substitute part

Crankcase 076-00501-203
#16

Engine diagram

Crankcase

Part #076-00501-203

The manufacturer no longer makes this part, and there's no substitute part

Drive Side 077-00531-201
#28

Engine diagram

Drive side

Part #077-00531-201

The manufacturer no longer makes this part, and there's no substitute part

Bolt 990-21060-302
Bolt

Part #990-21060-302

The manufacturer no longer makes this part, and there's no substitute part

Case Packing (gray) 048-35100-203
#21

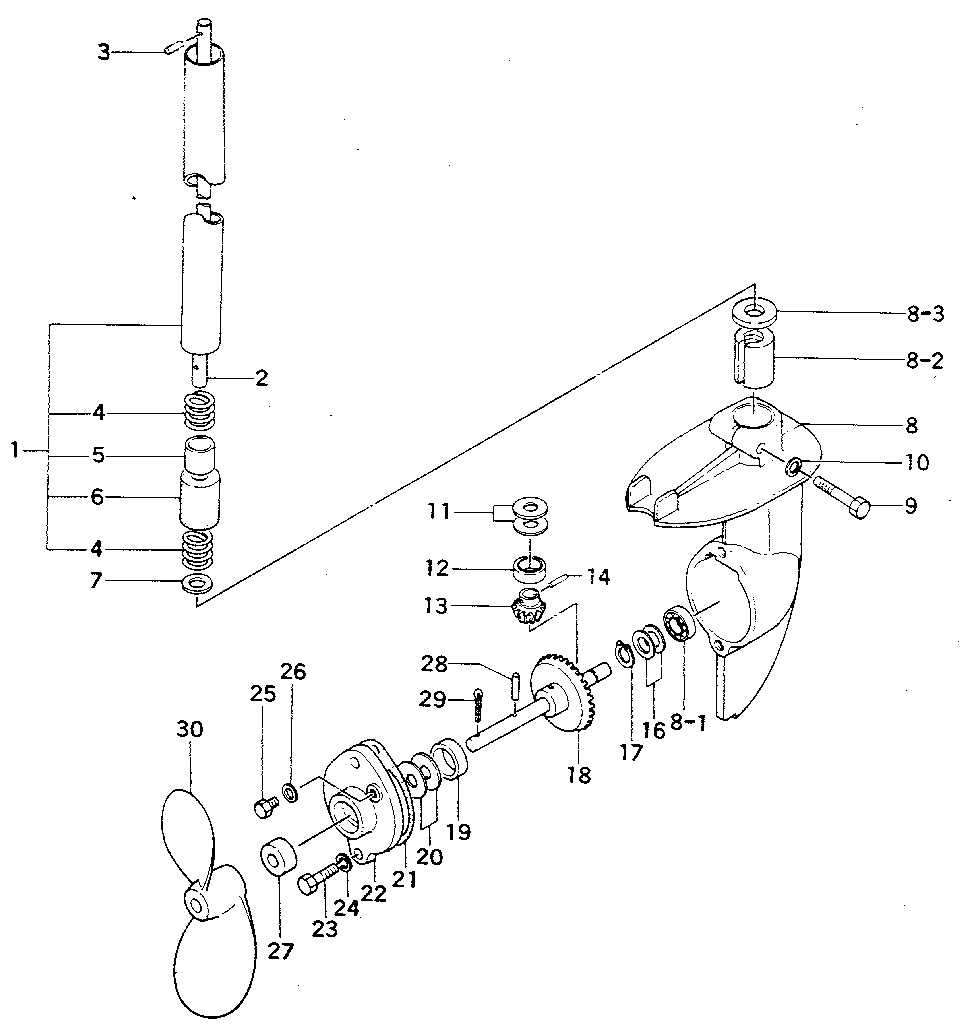

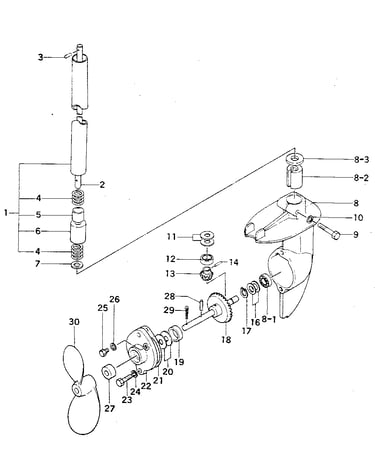

Drive shaftpipe and gear case diagram

Case packing (gray)

Part #048-35100-203

The manufacturer no longer makes this part, and there's no substitute part

Gasket/muflr 737-00517-200
#25

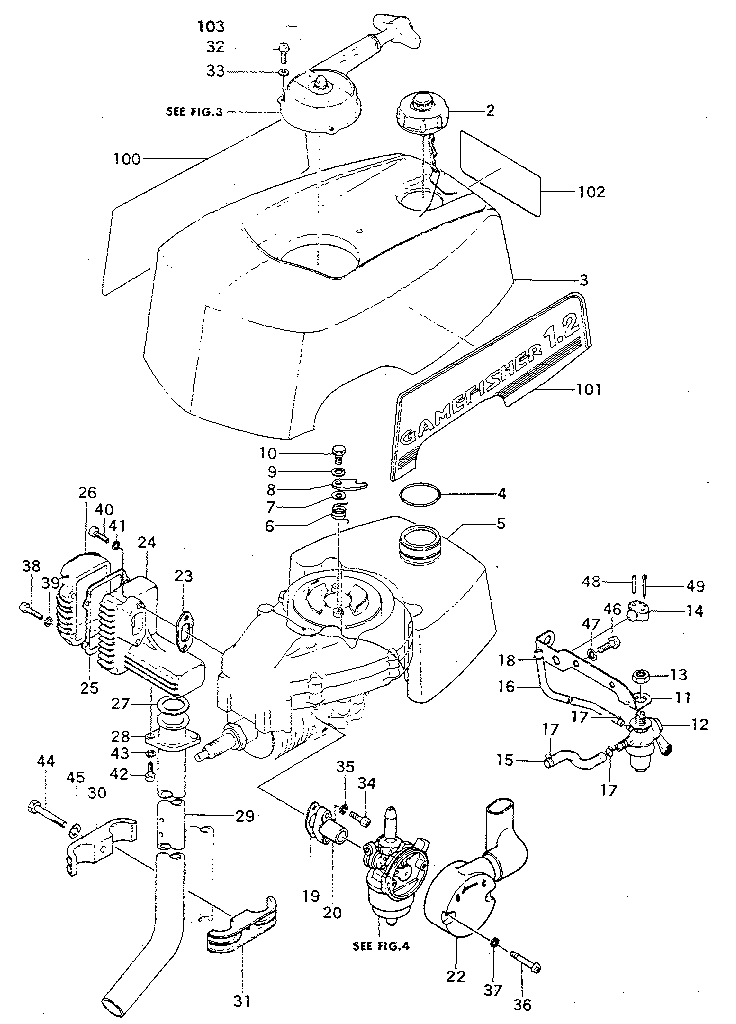

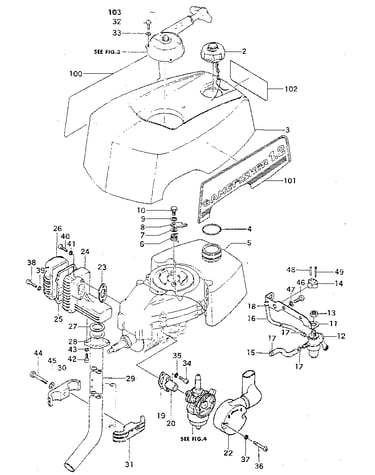

Engine cover & muffler diagram

Gasket/muflr

Part #737-00517-200

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 999-61620-100
#25

Engine diagram

Ball bearing

Part #999-61620-100

The manufacturer no longer makes this part, and there's no substitute part

Key 068-02000-200
#12

Engine diagram

Key

Part #068-02000-200

The manufacturer no longer makes this part, and there's no substitute part
