Model # WRT549SZDM04 Official Whirlpool refrigerator
Here are the diagrams and repair parts for Official Whirlpool WRT549SZDM04 refrigerator, as well as links to manuals and error code tables, if available.

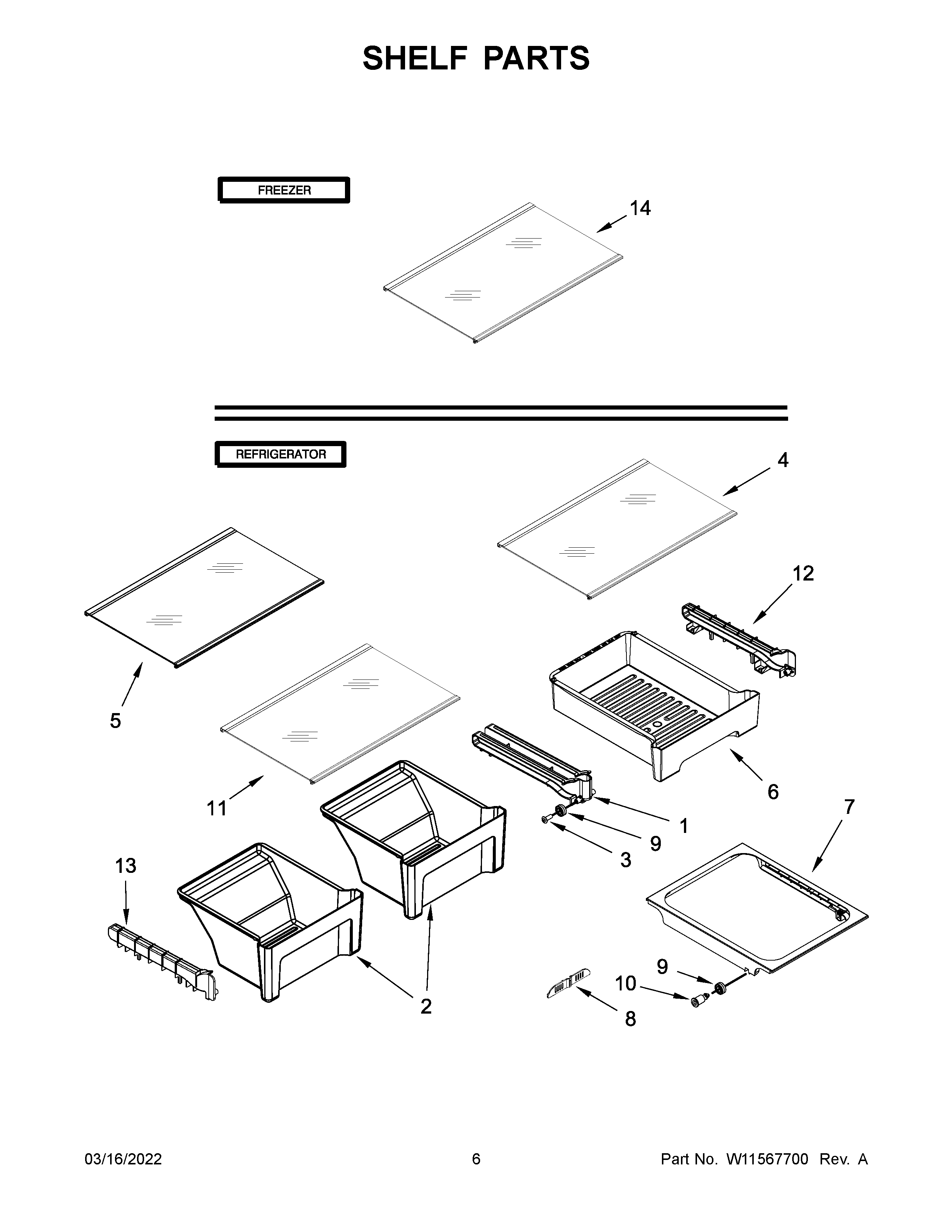

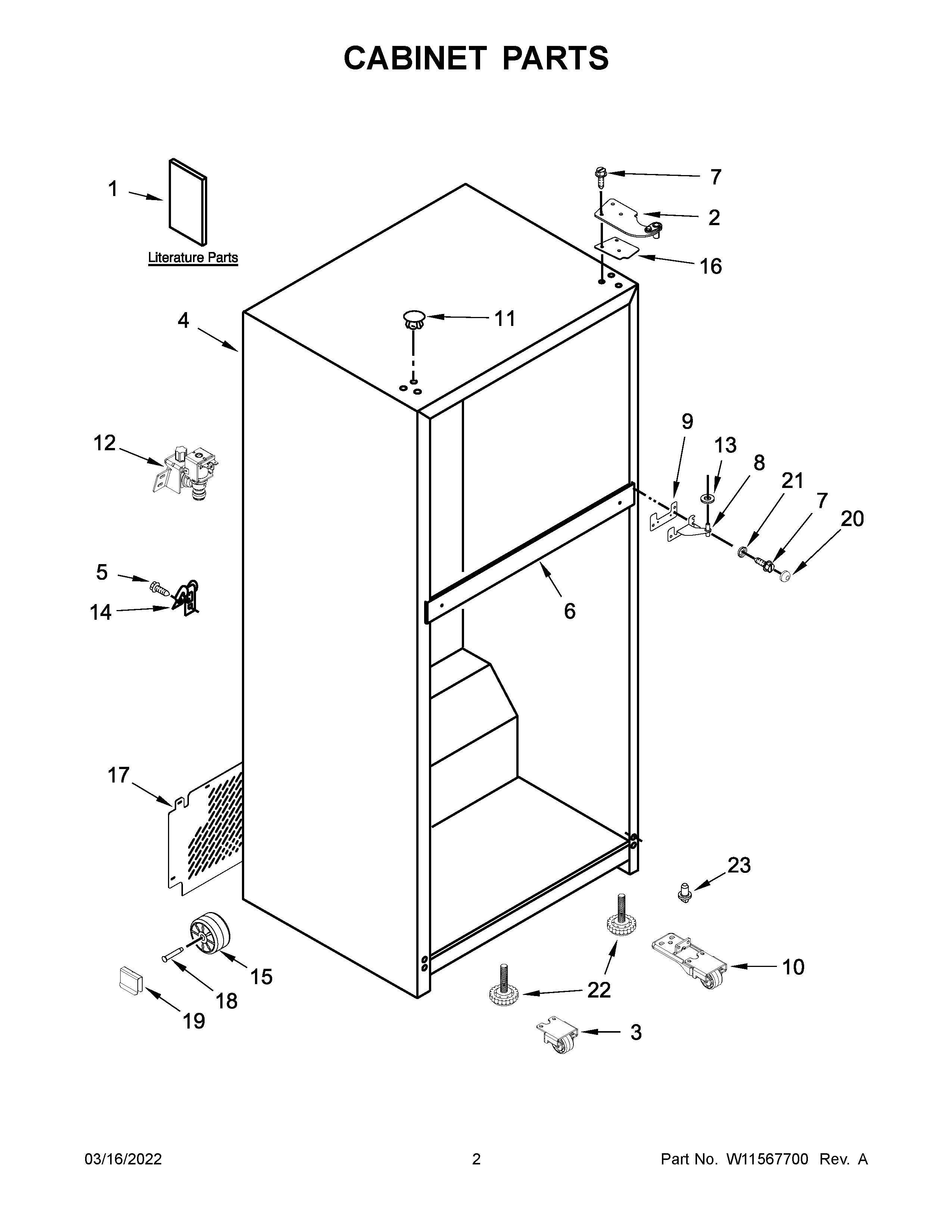

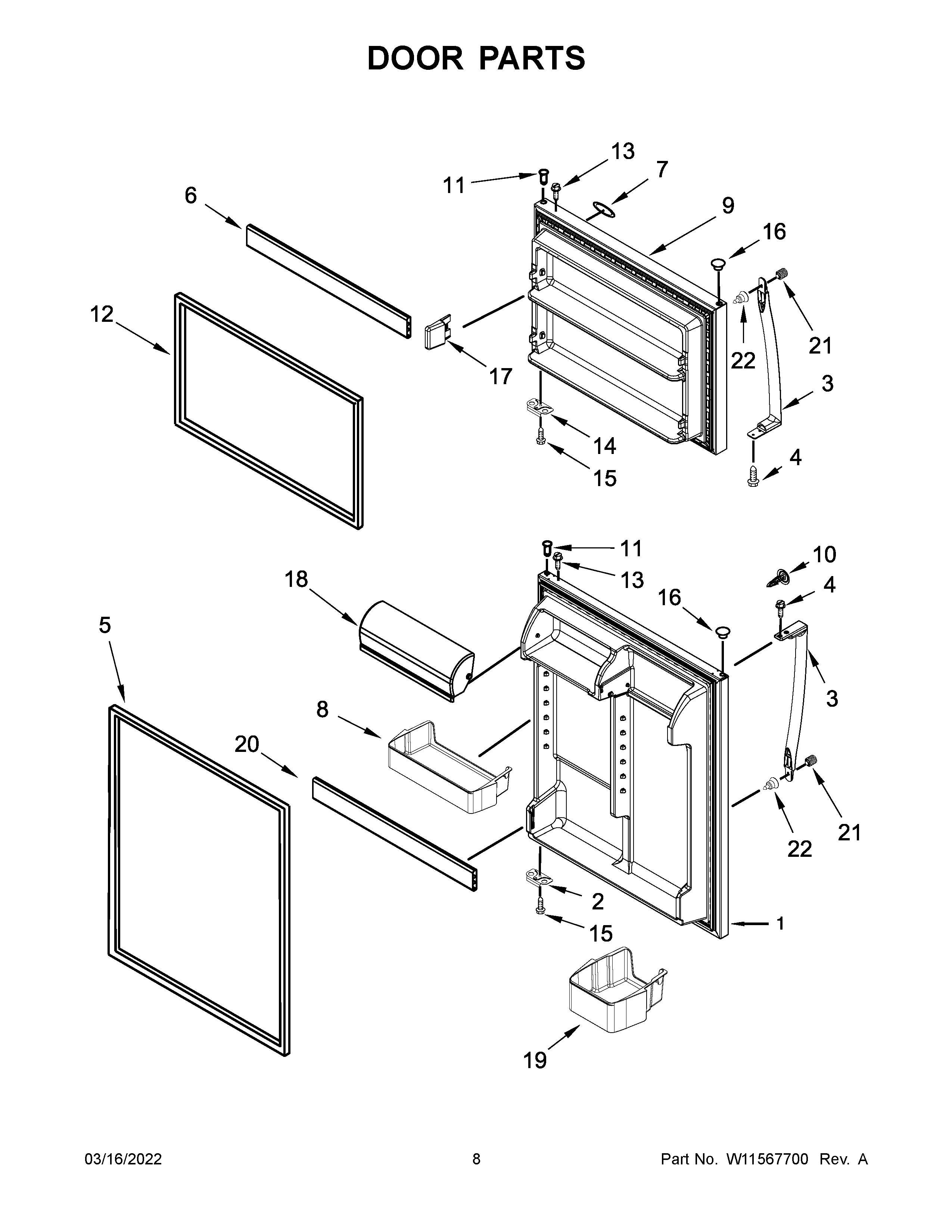

Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
WRT549SZDM04 Refrigerators
#19

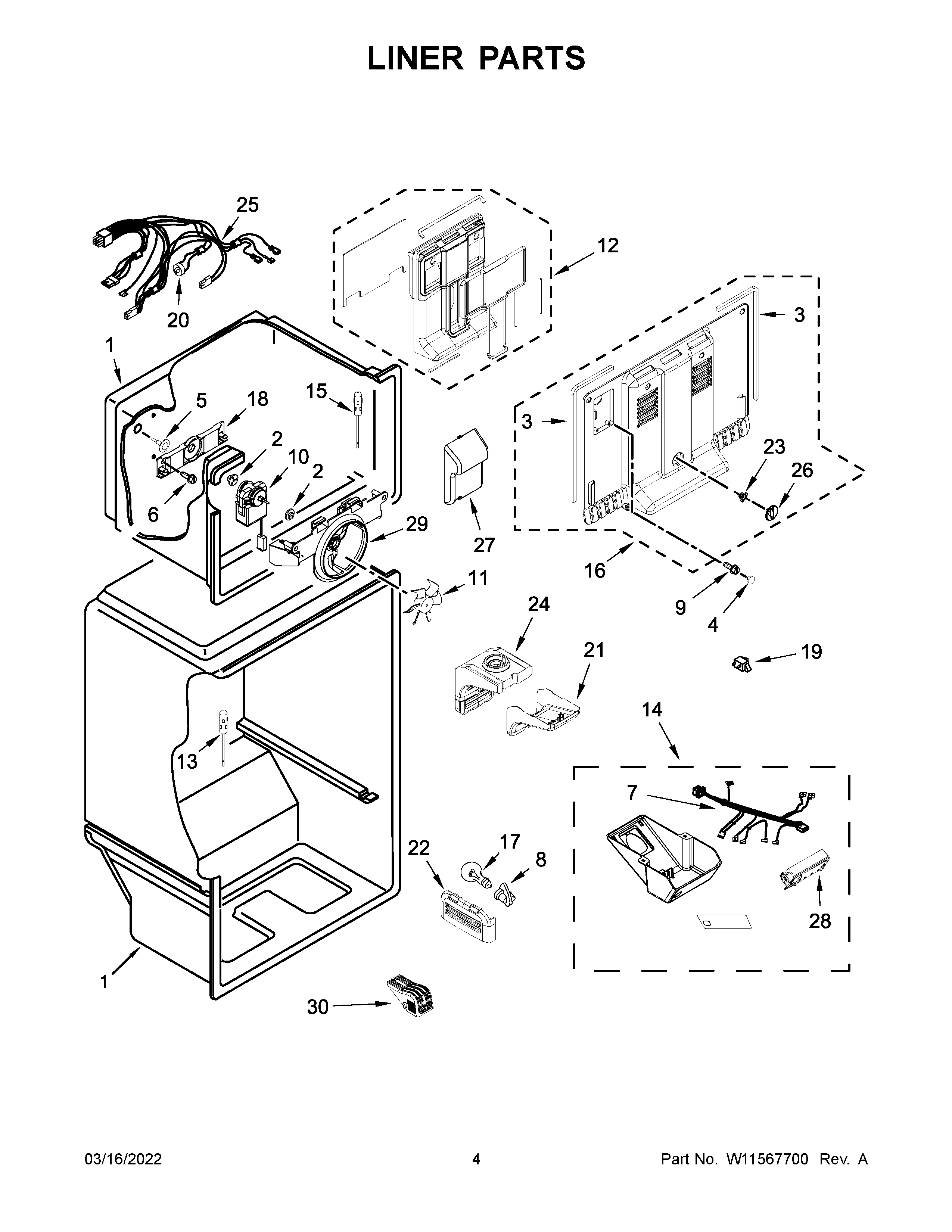

Liner parts diagram
Switch- rock
Part #W10847853
Replaced by #W11384469
?
Manufacturer substitution
This part replaces W10847853. Substitute parts can look different from the original.
$23.71 |
20% OFF Phone Price : $29.71
In Stock

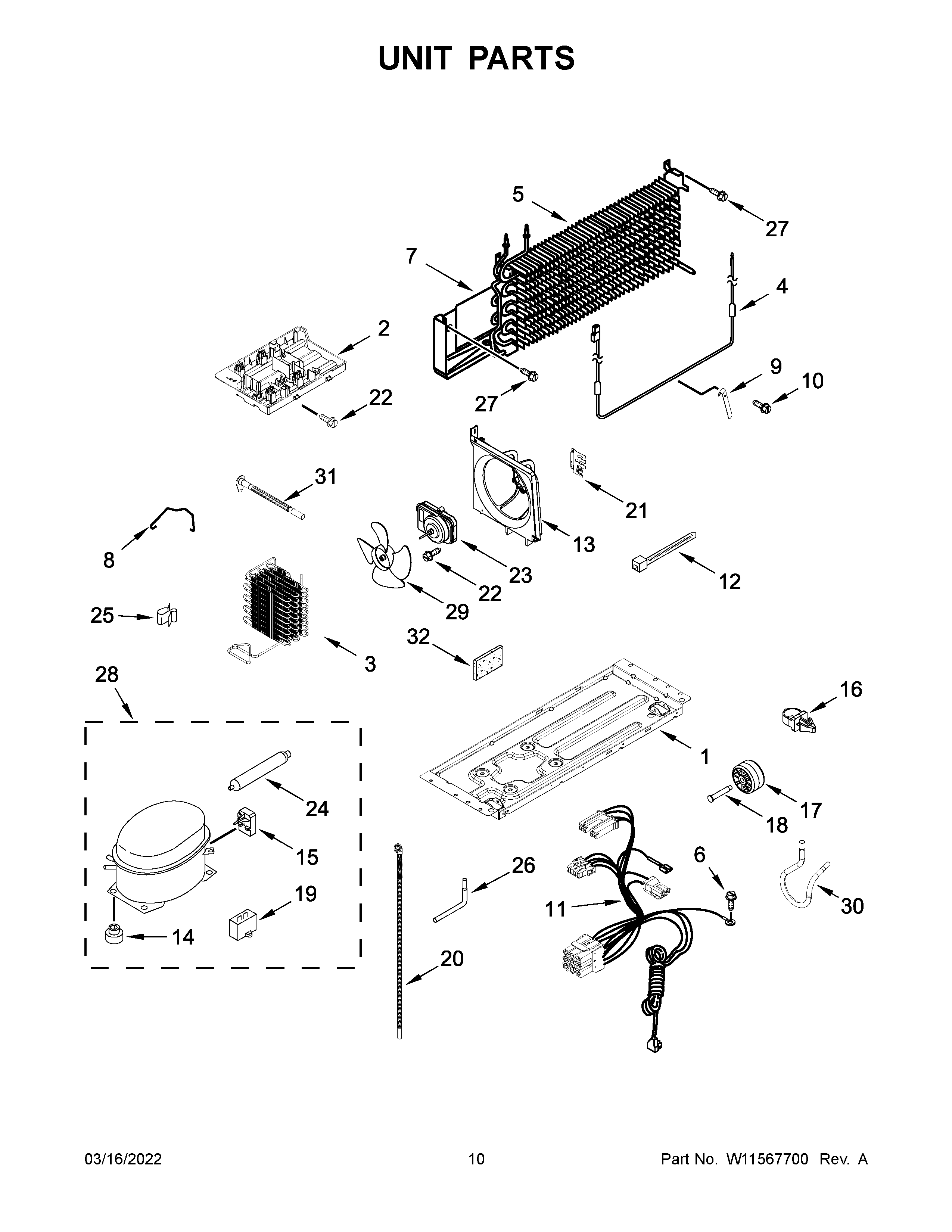

Refrigerator evaporator fan motor
Part #2315539
Replaced by #WP2315539
?
Manufacturer substitution
This part replaces 2315539. Substitute parts can look different from the original.
$49.32 |
11% OFF Phone Price : $55.32
In Stock
Refrigerator thermistor
Part #W10384183
The manufacturer no longer makes this part, and there's no substitute part
Refrigerator capacitor
Part #W10590083
Replaced by #WPW10662129
?
Manufacturer substitution
This part replaces W10590083. Substitute parts can look different from the original.
$47.43 |
11% OFF Phone Price : $53.43
In Stock
Refrigerator evaporator fan blade
Part #2163777
Replaced by #WP2163777
?
Manufacturer substitution
This part replaces 2163777. Substitute parts can look different from the original.
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Drier tube
Part #W10805035
Replaced by #W11109499
?
Manufacturer substitution
This part replaces W10805035. Substitute parts can look different from the original.
$28.11 |
18% OFF Phone Price : $34.11
In Stock
Compressor t
Part #W11332033
Replaced by #W11580057
?
Manufacturer substitution
This part replaces W11332033. Substitute parts can look different from the original.
$347.84
In Stock
Refrigerator deli drawer hanger
Part #W10628698
Replaced by #W10861519
?
Manufacturer substitution
This part replaces W10628698. Substitute parts can look different from the original.
$42.28 |
12% OFF Phone Price : $48.28
In Stock
Refrigerator screw
Part #489357
Replaced by #WP489357
?
Manufacturer substitution
This part replaces 489357. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Refrigerator inlet valve
Part #W10498995
Replaced by #WPW10279909
?
Manufacturer substitution
This part replaces W10498995. Substitute parts can look different from the original.
$73.81 |
8% OFF Phone Price : $79.81
In Stock
