Model # 11632912200 Official Kenmore vacuum

Here are the diagrams and repair parts for Official Kenmore 11632912200 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Vacuum Handle Switch 4368653
#3

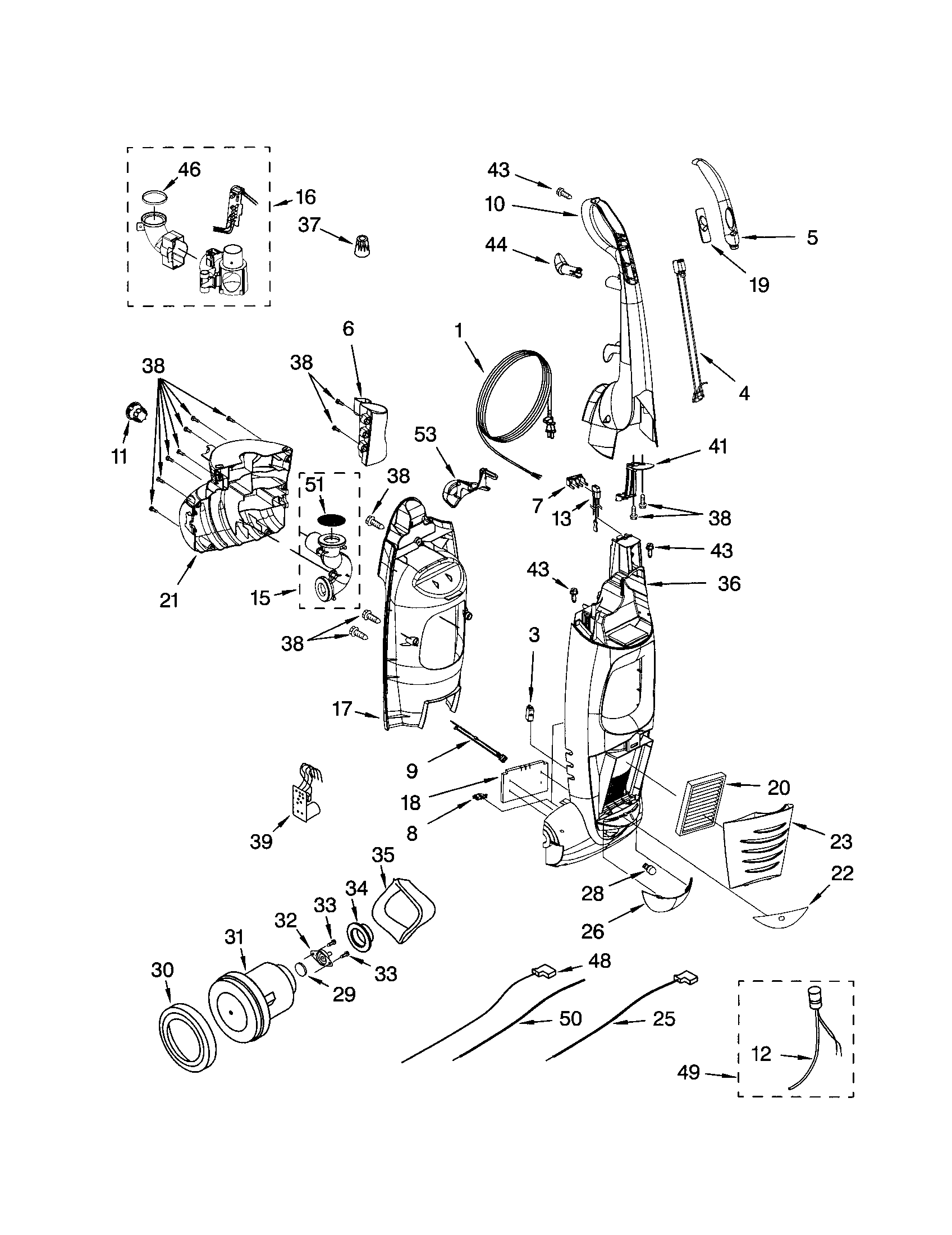

Dust compartment and motor diagram

Vacuum handle switch

Part #4368653

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool 4368684
#2

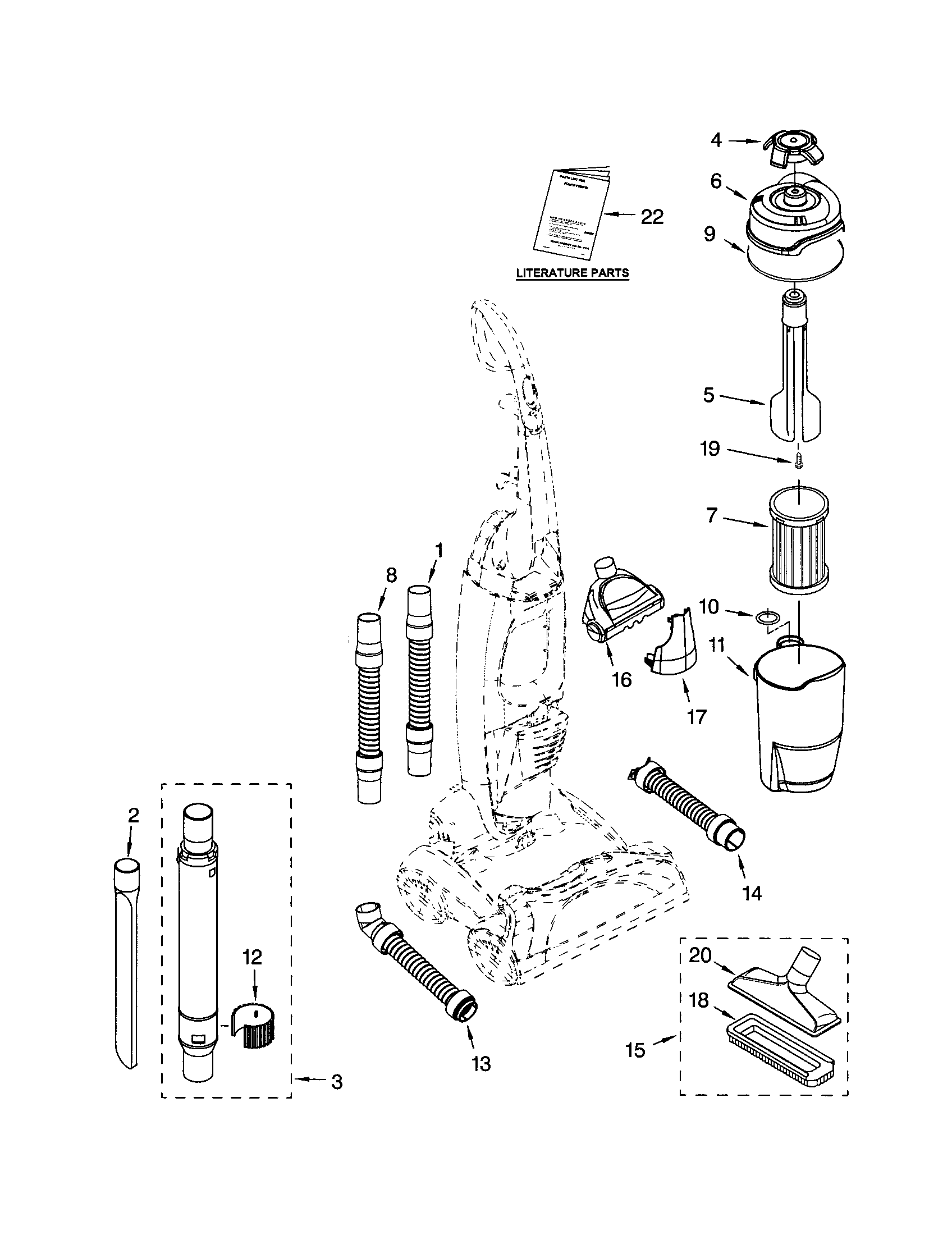

Hose and attachments diagram

Vacuum crevice tool

Part #4368684

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Agitator 8192292
#1

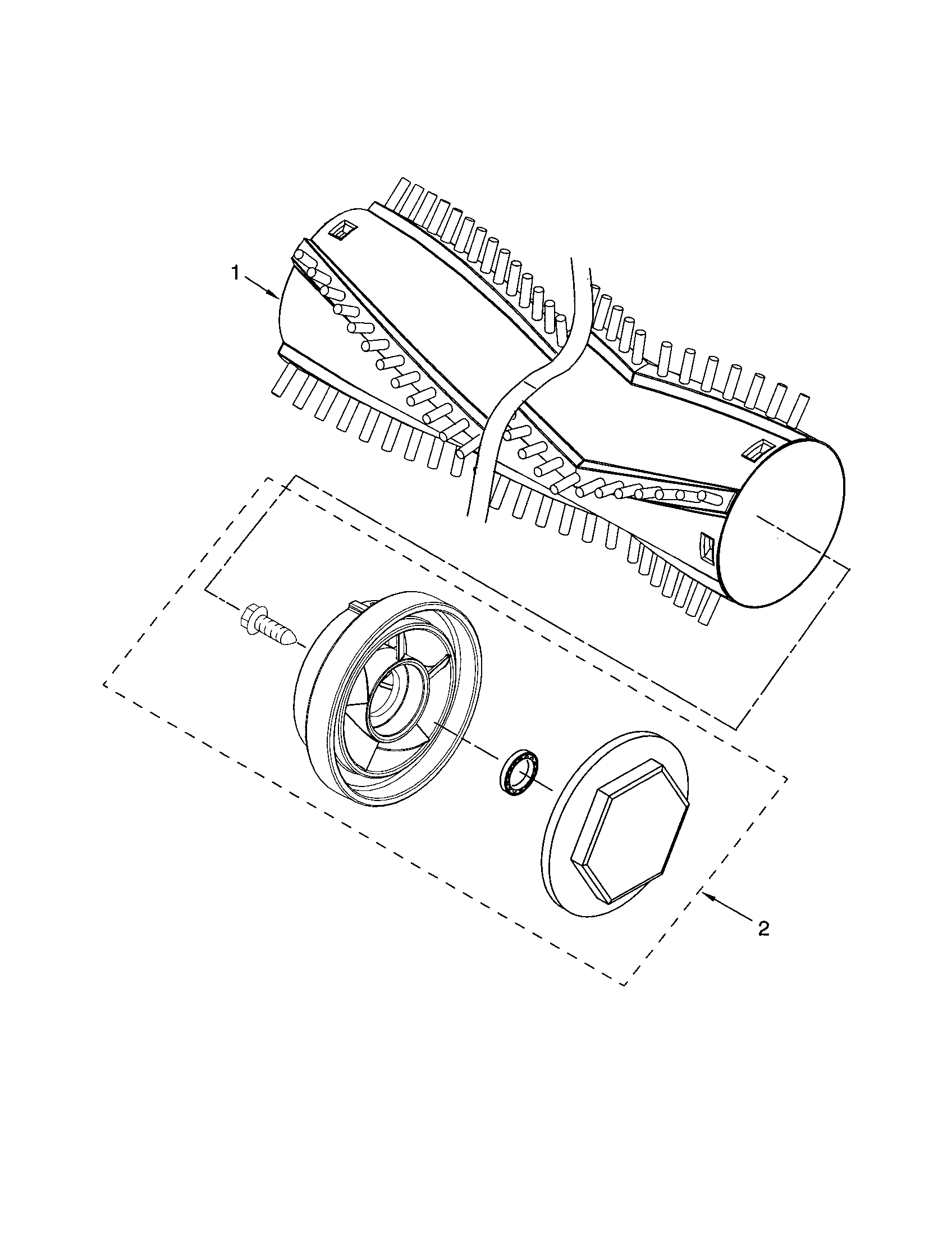

Agitator and endcap diagram

Agitator

Part #8192292

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly 8192248
#13

Hose and attachments diagram

Vacuum hose assembly

Part #8192248

The manufacturer no longer makes this part, and there's no substitute part

Dust Compartment 8192207
#36

Dust compartment and motor diagram

Dust compartment

Part #8192207

The manufacturer no longer makes this part, and there's no substitute part

Cover 8192293
#17

Hose and attachments diagram

Cover

Part #8192293

The manufacturer no longer makes this part, and there's no substitute part

Case-filtr 8192247
#11

Hose and attachments diagram

Case-filtr

Part #8192247

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 8192294
#20

Hose and attachments diagram

Vacuum beater bar

Part #8192294

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Knob 8192253
#19

Dust compartment and motor diagram

Vacuum knob

Part #8192253

The manufacturer no longer makes this part, and there's no substitute part
