Model # 1165018090C Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165018090C powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |

Protector 742332
#22

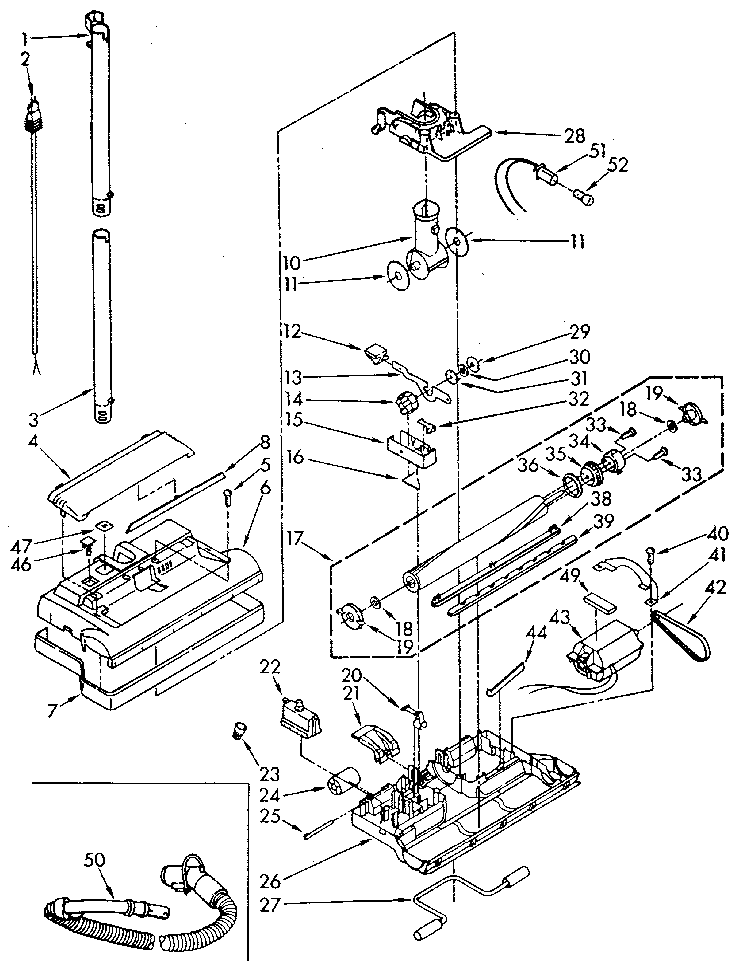

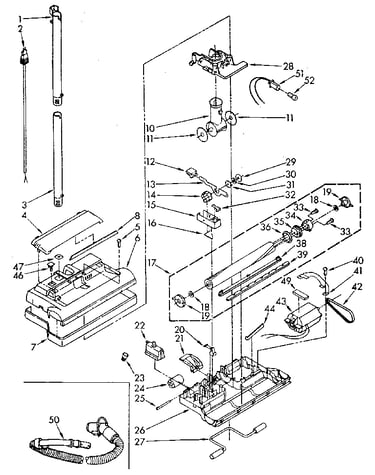

Power mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Housng-blb 4153576
#4

Power mate diagram

Housng-blb

Part #4153576

The manufacturer no longer makes this part, and there's no substitute part

Roller Shaft 742006
#25

Power mate diagram

Roller shaft

Part #742006

The manufacturer no longer makes this part, and there's no substitute part

Sprocket (black) 742506
#35

Power mate diagram

Sprocket (black)

Part #742506

The manufacturer no longer makes this part, and there's no substitute part

Bridge 705093
#41

Power mate diagram

Bridge

Part #705093

The manufacturer no longer makes this part, and there's no substitute part

Bulb Socket 747096
#51

Power mate diagram

Bulb socket

Part #747096

The manufacturer no longer makes this part, and there's no substitute part

Nut 596564
#23

Power mate diagram

Nut

Part #596564

The manufacturer no longer makes this part, and there's no substitute part

Bar 742029
#39

Power mate diagram

Bar

Part #742029

The manufacturer no longer makes this part, and there's no substitute part

Lifter 742013
#20

Power mate diagram

Lifter

Part #742013

The manufacturer no longer makes this part, and there's no substitute part
