Model # 32-1117-00-01 Official Tappan gas range - lt32487290
Here are the diagrams and repair parts for Official Tappan 32-1117-00-01 gas range - lt32487290, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for32-1117-00-01 Ranges
- #3

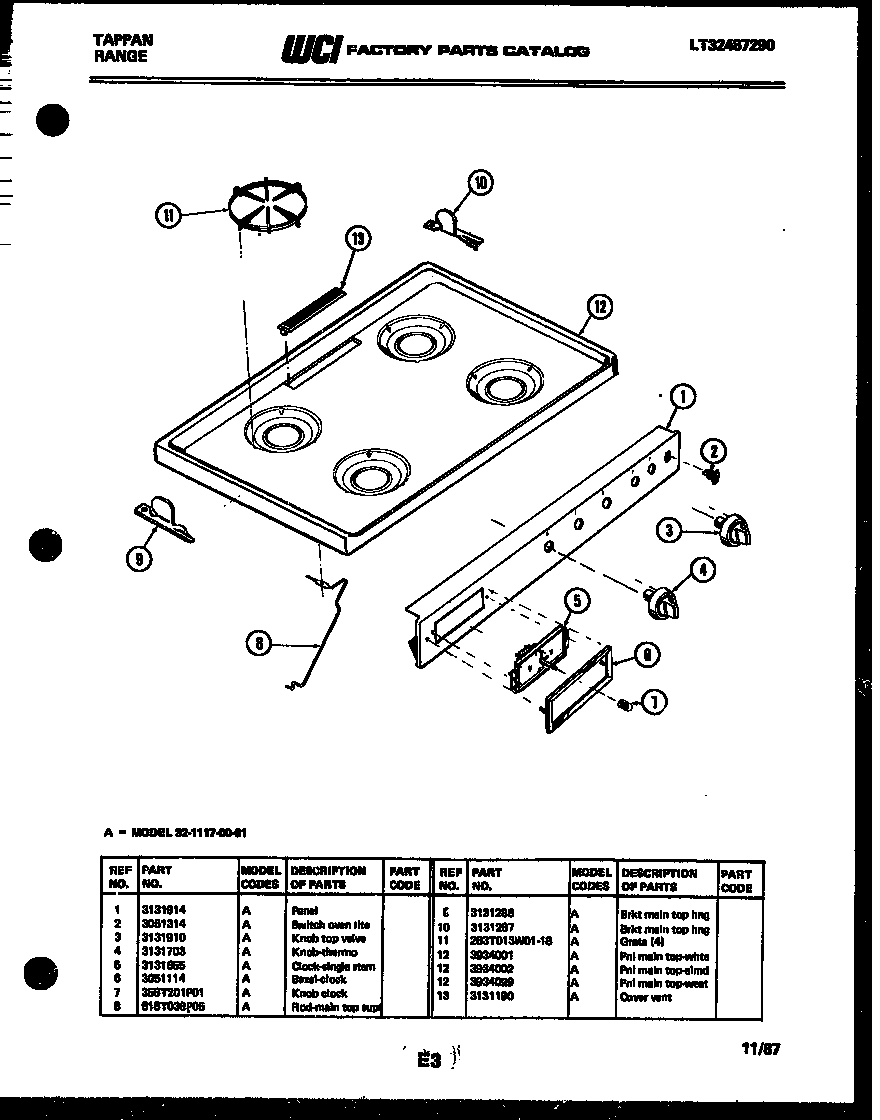

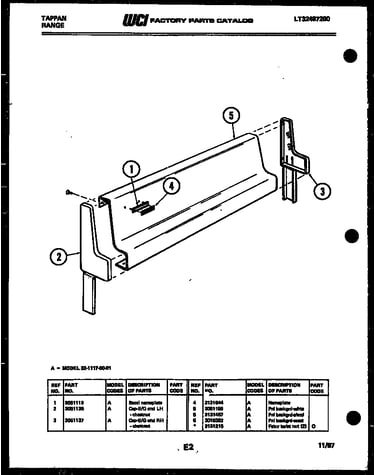

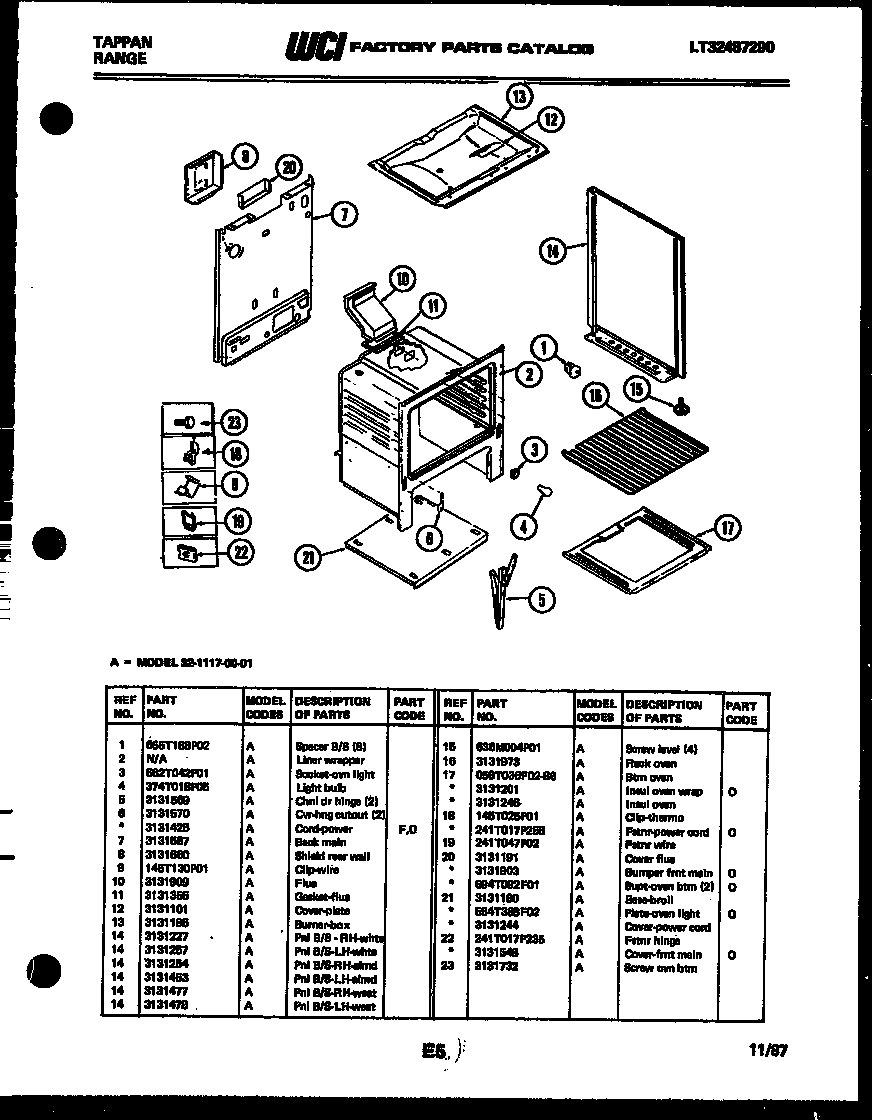

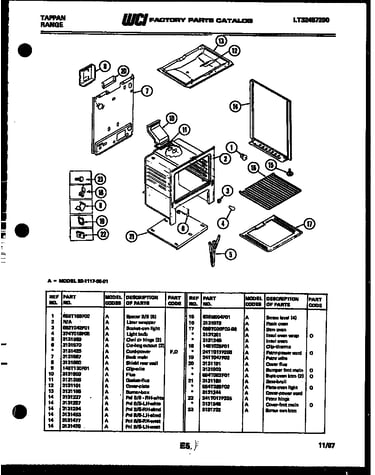

Body parts diagram
SocketPart #662T042P01
Replaced by #316116400
?Manufacturer substitutionThis part replaces 662T042P01. Substitute parts can look different from the original.$43.02 |12% OFF Phone Price : $49.02In Stock - #16
Body parts diagram
Oven rackPart #3131973
Replaced by #316067902
?Manufacturer substitutionThis part replaces 3131973. Substitute parts can look different from the original.$73.58 |8% OFF Phone Price : $79.58In Stock - #25

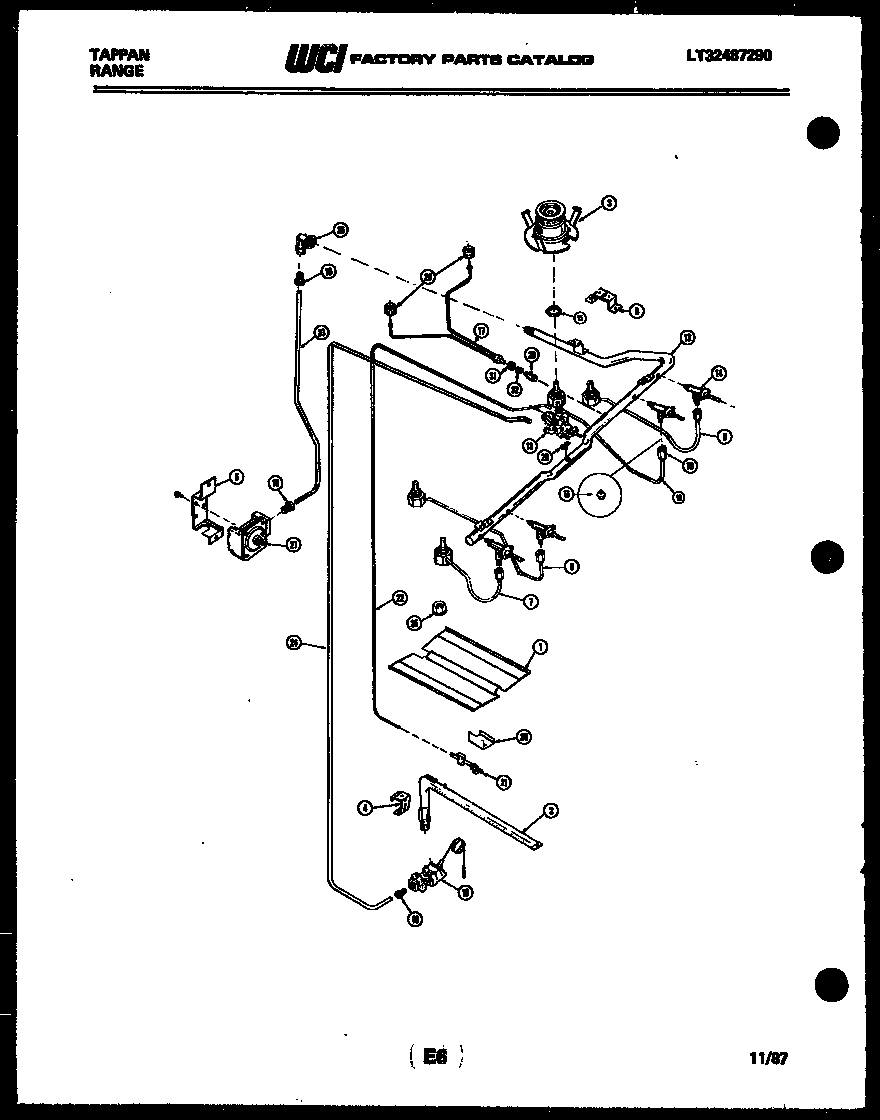

Burner, manifold and gas control diagram
NutPart #479T069P03
Replaced by #5303013272
?Manufacturer substitutionThis part replaces 479T069P03. Substitute parts can look different from the original.This item is not returnable$18.06 |10% OFF Phone Price : $20.06In Stock - #12B

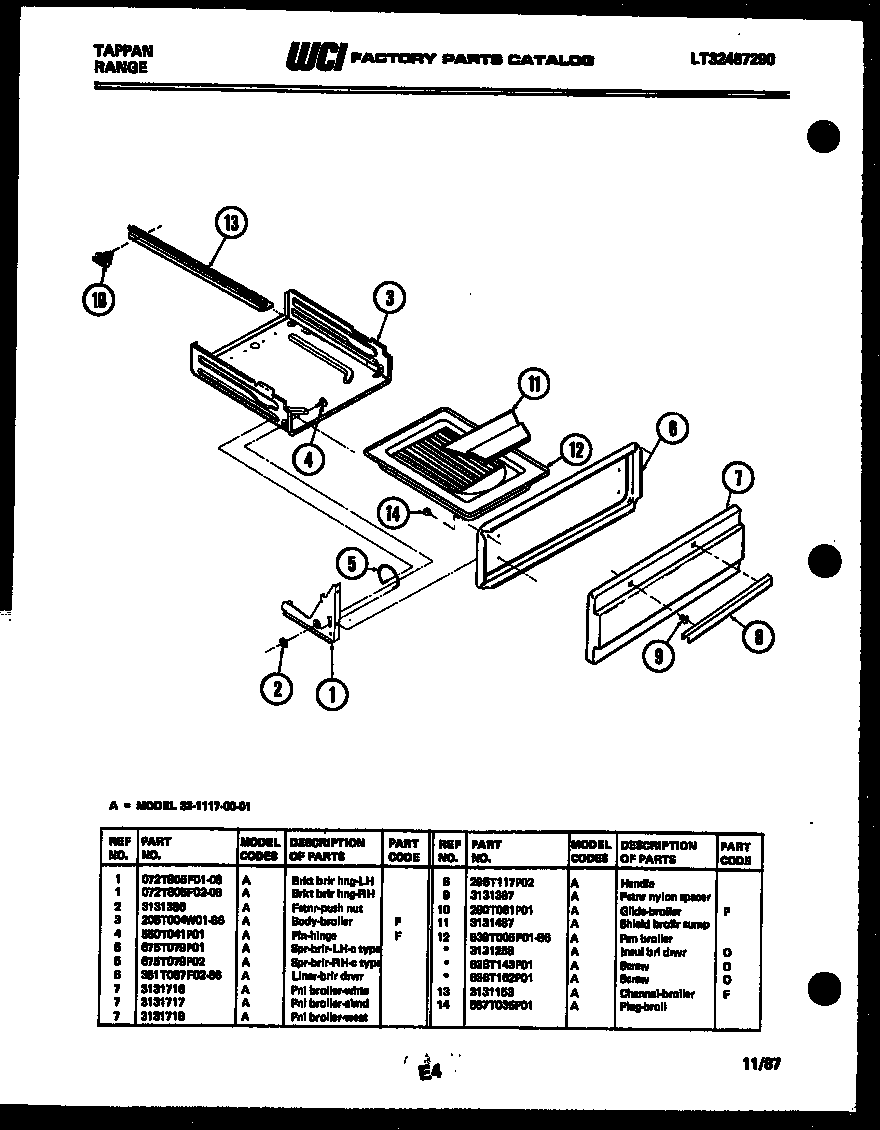

Broiler drawer parts diagram
ScrewPart #636T143P01
Replaced by #5303300265
?Manufacturer substitutionThis part replaces 636T143P01. Substitute parts can look different from the original.This item is not returnable$16.40In Stock - #18
Body parts diagram
ClipPart #145T025P01
Replaced by #5303284616
?Manufacturer substitutionThis part replaces 145T025P01. Substitute parts can look different from the original.This item is not returnable$9.63 |9% OFF Phone Price : $10.63In Stock - #20A
Body parts diagram
BumperPart #3131903
$46.62In Stock - #11
Body parts diagram
Gsket fluePart #3131355
Replaced by #316542102
?Manufacturer substitutionThis part replaces 3131355. Substitute parts can look different from the original.$12.53 |14% OFF Phone Price : $14.53In Stock - #11

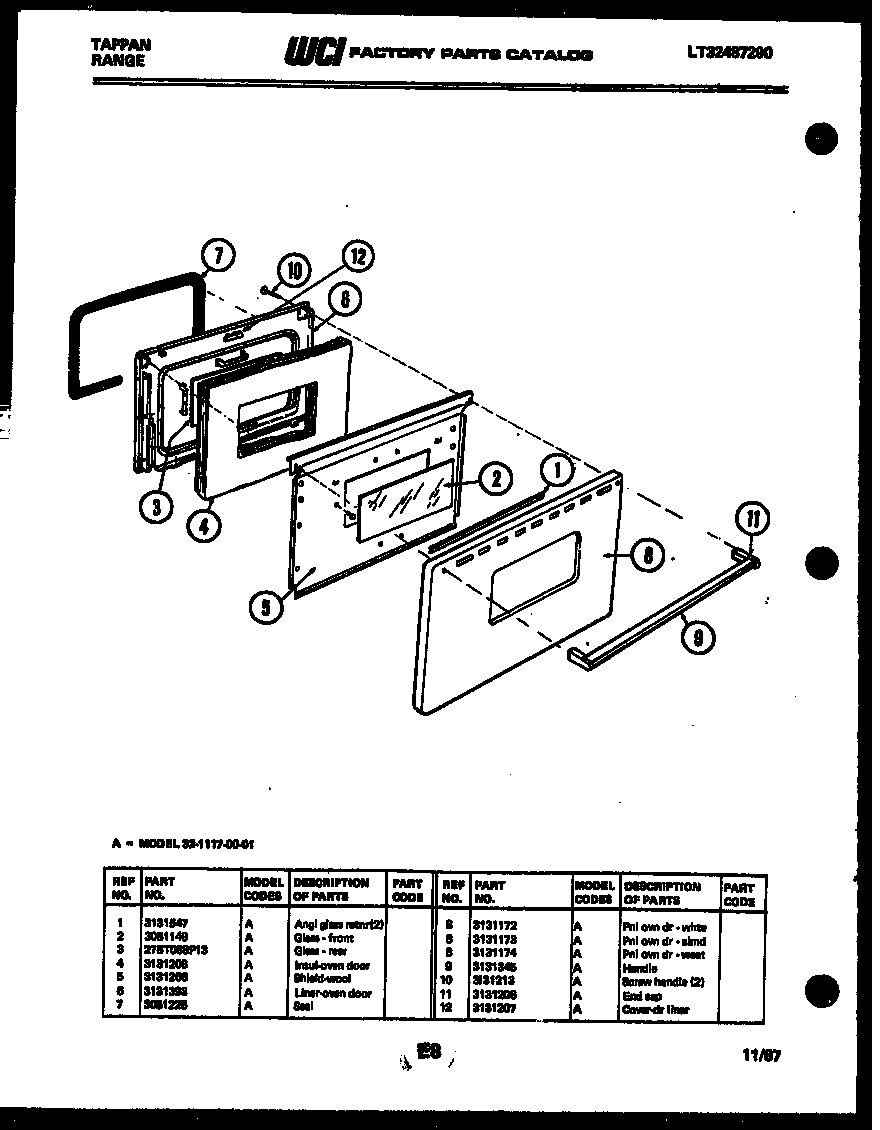

Door parts diagram
End capPart #3131206
Replaced by #316137003
?Manufacturer substitutionThis part replaces 3131206. Substitute parts can look different from the original.$37.63 |14% OFF Phone Price : $43.63In Stock - #4
Body parts diagram
LightPart #374T018P05
Replaced by #316538904
?Manufacturer substitutionThis part replaces 374T018P05. Substitute parts can look different from the original.$16.38 |11% OFF Phone Price : $18.38In Stock - #6A
Body parts diagram
Range power cordPart #3131425
Replaced by #5304534000
?Manufacturer substitutionThis part replaces 3131425. Substitute parts can look different from the original.$28.07In Stock
