Model # 62069250 Official Kenmore broiler oven

Here are the diagrams and repair parts for Official Kenmore 62069250 broiler oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

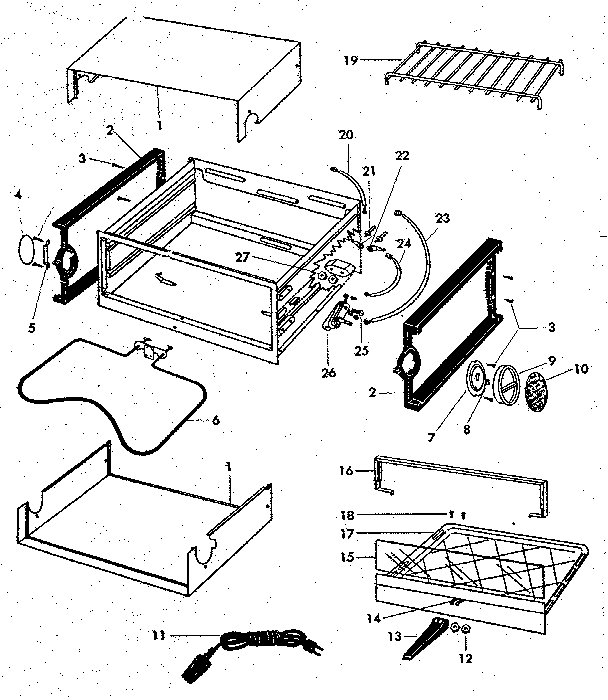

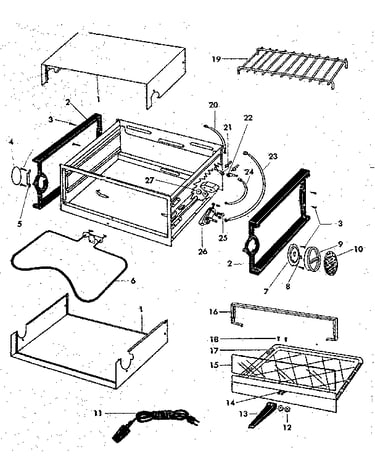

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |

Half Shroud 42187
#1

Replacement parts diagram

Half shroud

Part #42187

The manufacturer no longer makes this part, and there's no substitute part

Tray 96529
#17

Replacement parts diagram

Tray

Part #96529

The manufacturer no longer makes this part, and there's no substitute part

Insert 38788
#10

Replacement parts diagram

Insert

Part #38788

The manufacturer no longer makes this part, and there's no substitute part

Element 96534
#6

Replacement parts diagram

Element

Part #96534

The manufacturer no longer makes this part, and there's no substitute part

Terminal Pin 46068
#21

Replacement parts diagram

Terminal pin

Part #46068

The manufacturer no longer makes this part, and there's no substitute part

Glass 38790
#15

Replacement parts diagram

Glass

Part #38790

The manufacturer no longer makes this part, and there's no substitute part

Window Frame 39305
#16

Replacement parts diagram

Window frame

Part #39305

The manufacturer no longer makes this part, and there's no substitute part

Fastener 24502
#8

Replacement parts diagram

Fastener

Part #24502

The manufacturer no longer makes this part, and there's no substitute part

Screw 24364
#25

Replacement parts diagram

Screw

Part #24364

The manufacturer no longer makes this part, and there's no substitute part

Knob 96678
#9

Replacement parts diagram

Knob

Part #96678

The manufacturer no longer makes this part, and there's no substitute part
